T-HANDLES WITH STEEL INDEXING PLUNGER AND LOCK NUT

22

W271


Spintori filettati passo fine - con pomello

    Materials:

    (3) Stainless steel spring (Aisi 301).

    (4) Reinforced polyamide T-handle. Cannot be disassembled. Resistant to oils and greases.

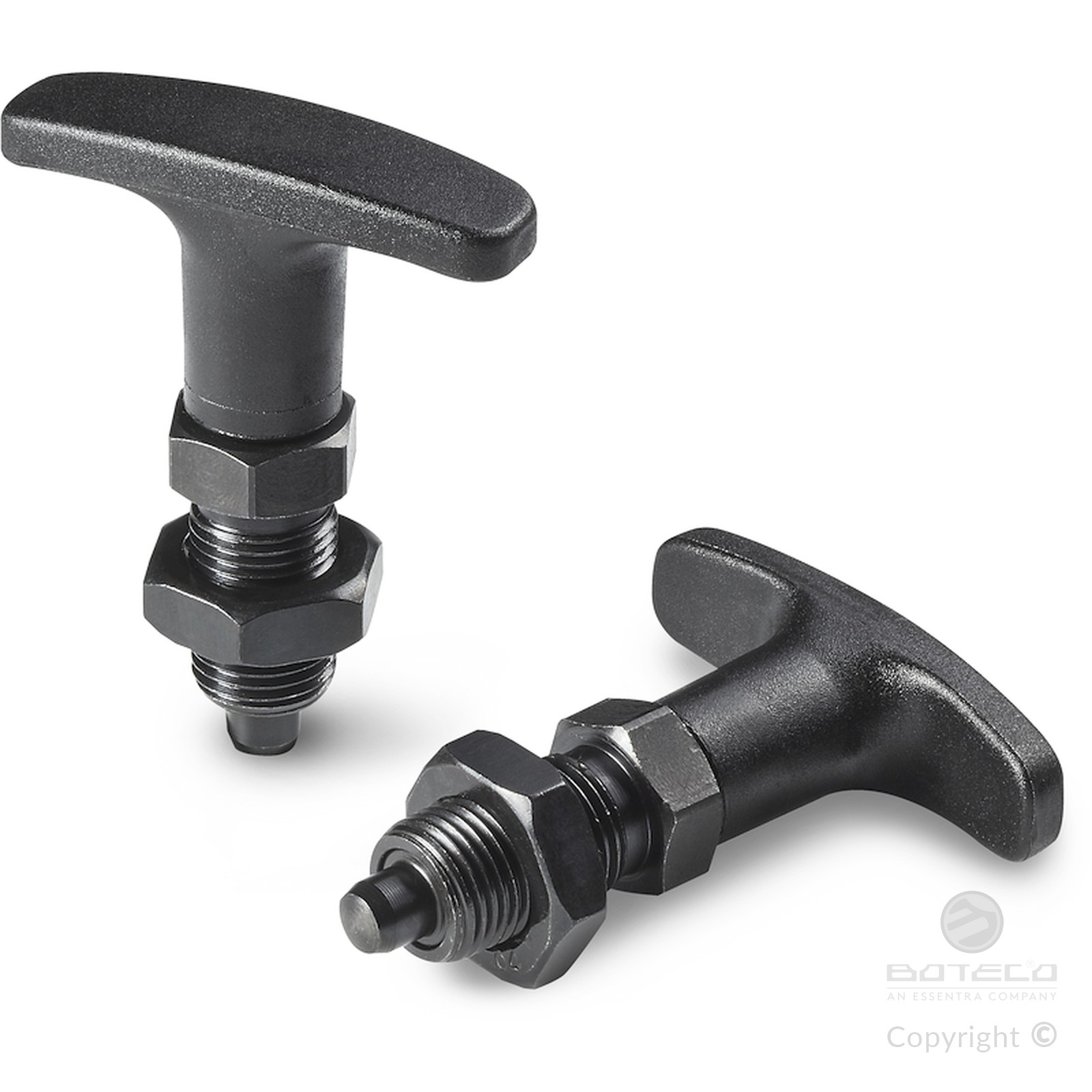

    W271:

    (2) Threaded high-resistance steel hexagon ring nut.

    (1) Hardened high resistance steel plunger pin.

    (5) Threaded steel lock nut (UNI 5589).

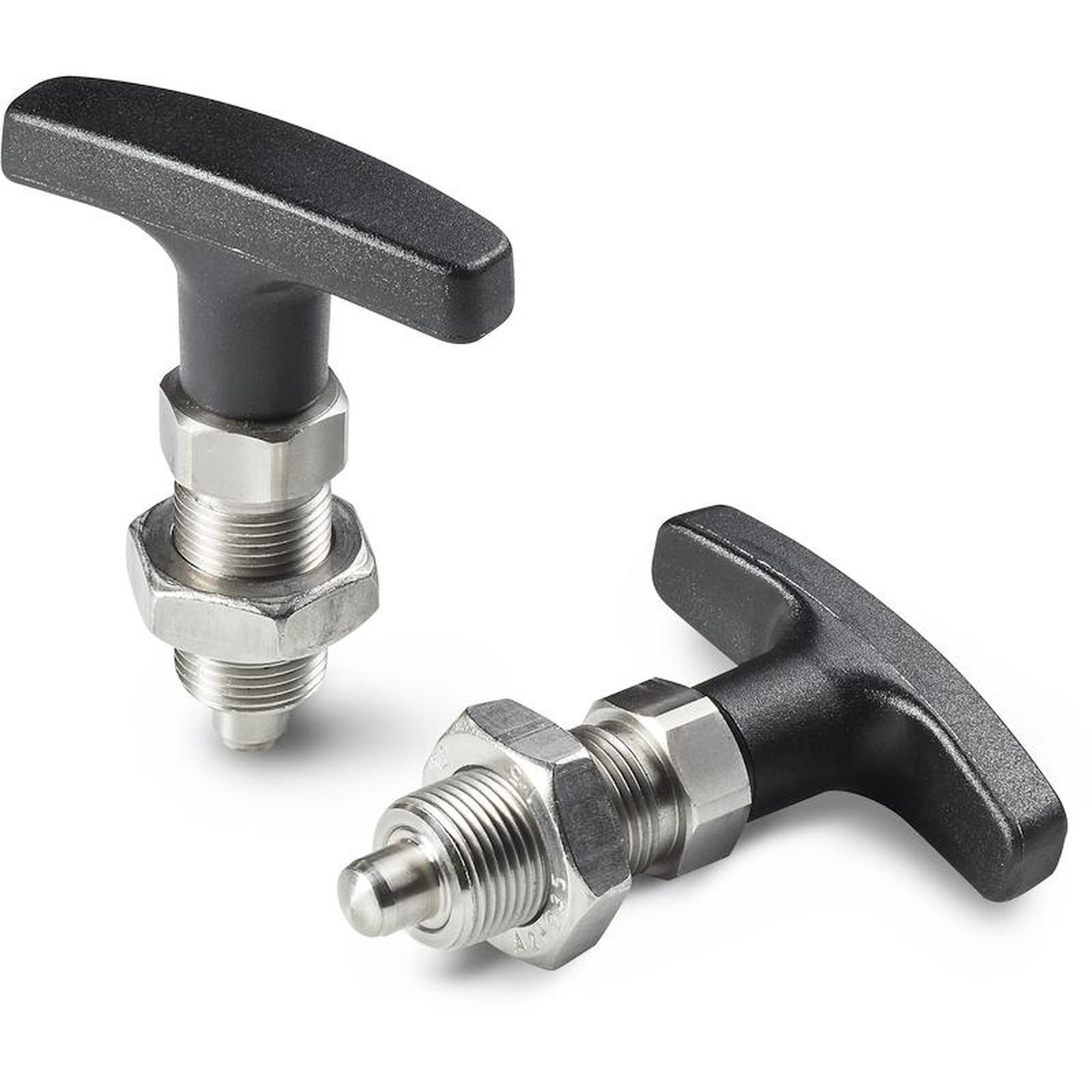

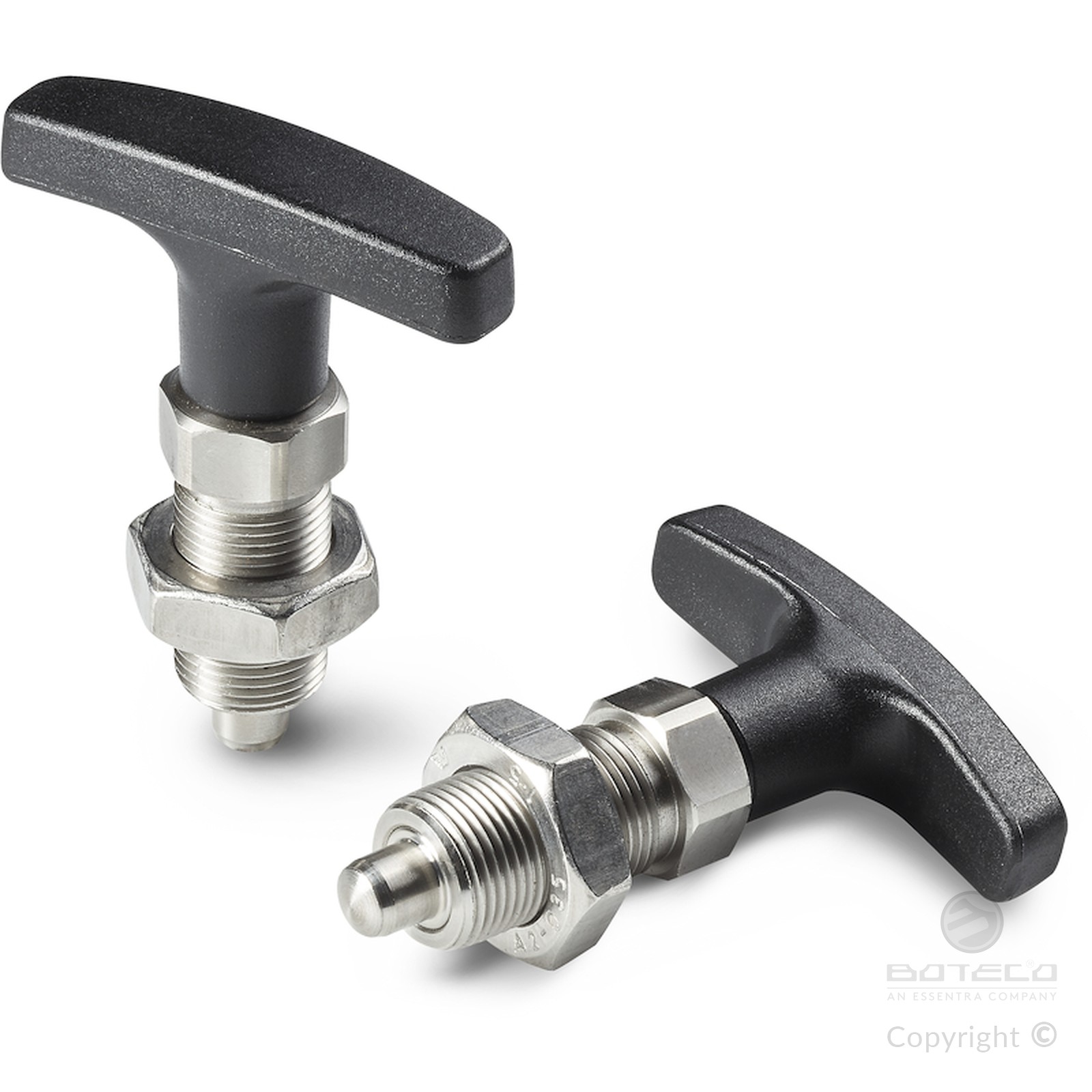

    W271CIN:

    (2) Threaded stainless steel hexagon ring nut (Aisi 303).

    (1) Stainless steel plunger pin (Aisi 303).

    (5) Threaded stainless steel lock nut (Aisi 304) (UNI 5589).

    Surface finish:

    (4) Satin.

    (1-2-3-5) Smooth.

    Colour:

    (4) Black (RAL 9011).

    W271: (1-2-5) Black-oxide treated.

    W271CIN: (1-2-5) Natural.

    ATTENTION:

    > We recommend an H7 tolerance for the plunger stem bore.

    > The nut is supplied assembled.

    Special Requests:

    On request and for special quantities the T-handle can be supplied in the colours indicated in the table.

    On request the nut can be supplied disassembled.

    Data sheet

    Version W271 - black-oxide treated steel

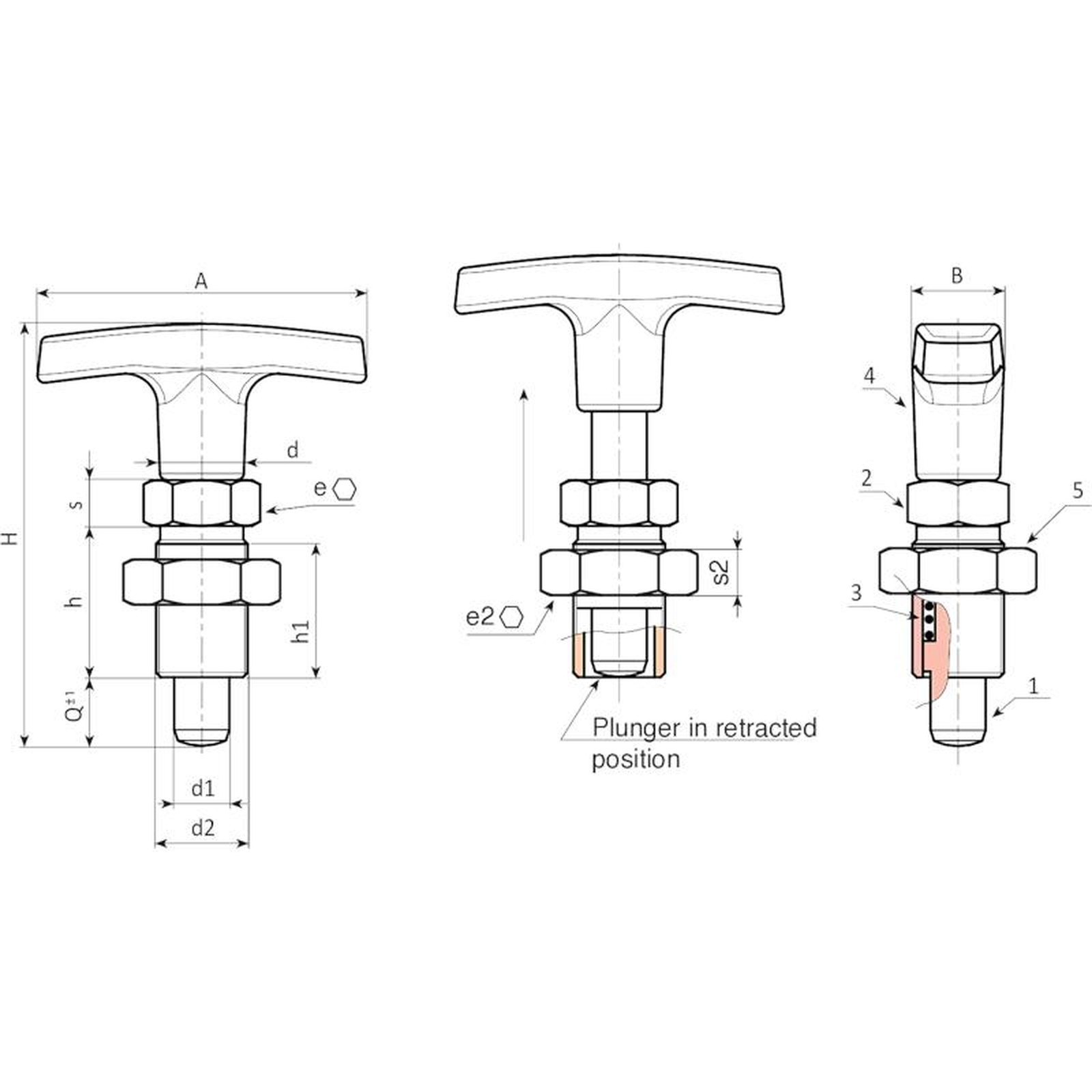

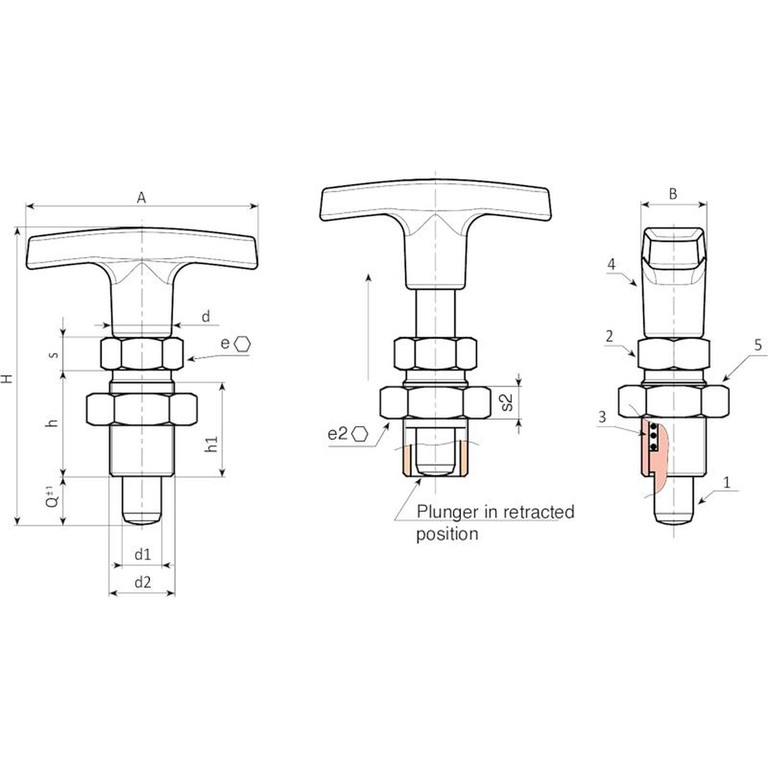

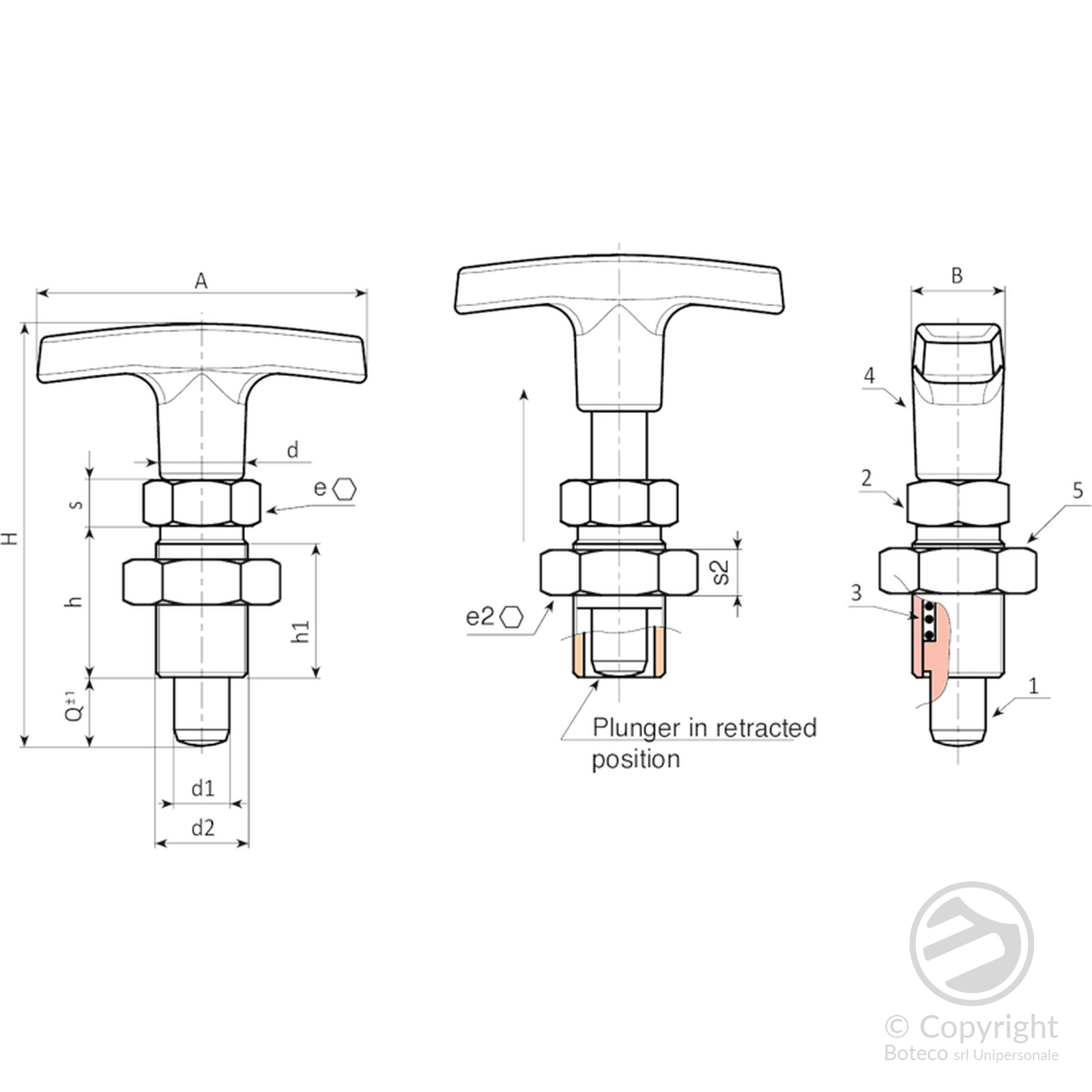

    Code Art. A B H h h1 d2 d e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W271.0005 W271.Q0501 50 15 51 17 15 M10x1 14 12 5 17 5 5 5 34
    W271.0006 W271.Q0601 50 15 56 20 18 M12x1,5 14 14 6 19 6 6 6 45
    W271.0007 W271.Q0801 60 18 75 26 24 M16x1,5 16,5 19 8 24 8 8 8 90
    W271.0008 W271.Q1001 72 20 87 33 31 M20x1,5 18,5 22 10 30 9 10 10 161

    Version W271 CIN - stainless steel (Aisi 303)

    Code Art. A B H h h1 d2 d e s e2 s2 d1 -0,02 -0,04 Q Weight (g)
    W271.0001 W271.I0501CIN 50 15 51 17 15 M10x1 14 12 5 17 5 5 5 34
    W271.0002 W271.I0601CIN 50 15 56 20 18 M12x1,5 14 14 6 19 6 6 6 45
    W271.0003 W271.I0801CIN 60 18 75 26 24 M16x1,5 16,5 19 8 24 8 8 8 90
    W271.0004 W271.I1001CIN 72 20 87 33 31 M20x1,5 18,5 22 10 30 9 10 10 161
