T-HANDLE WITH STEEL INDEXING PLUNGER
22
W270
Spintori filettati passo fine - con pomello

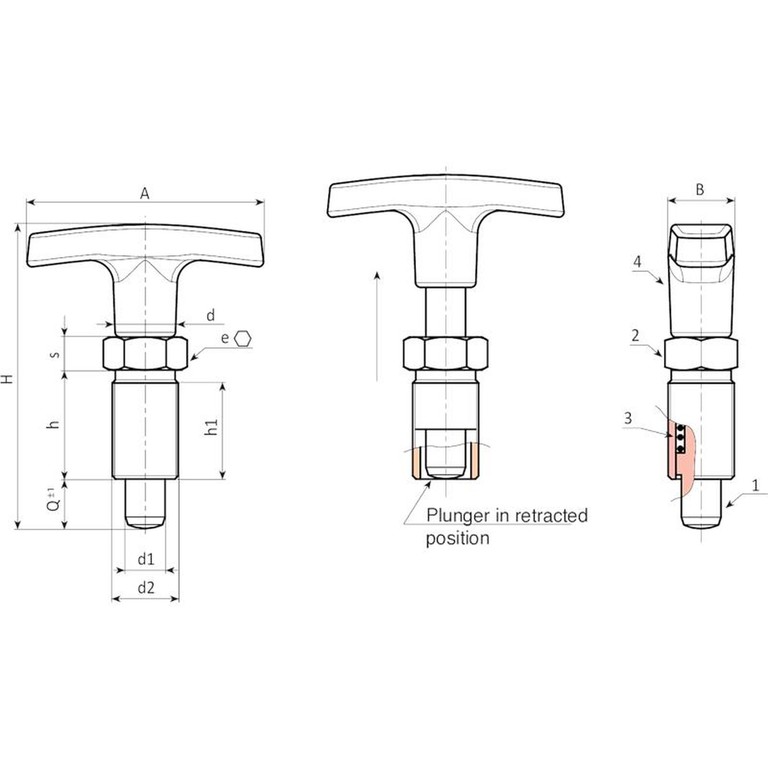

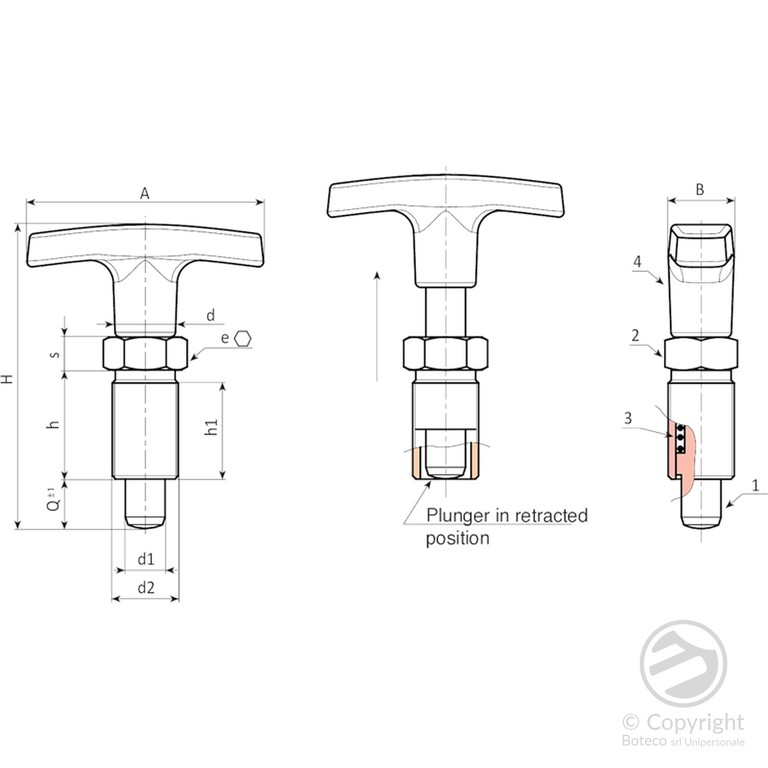

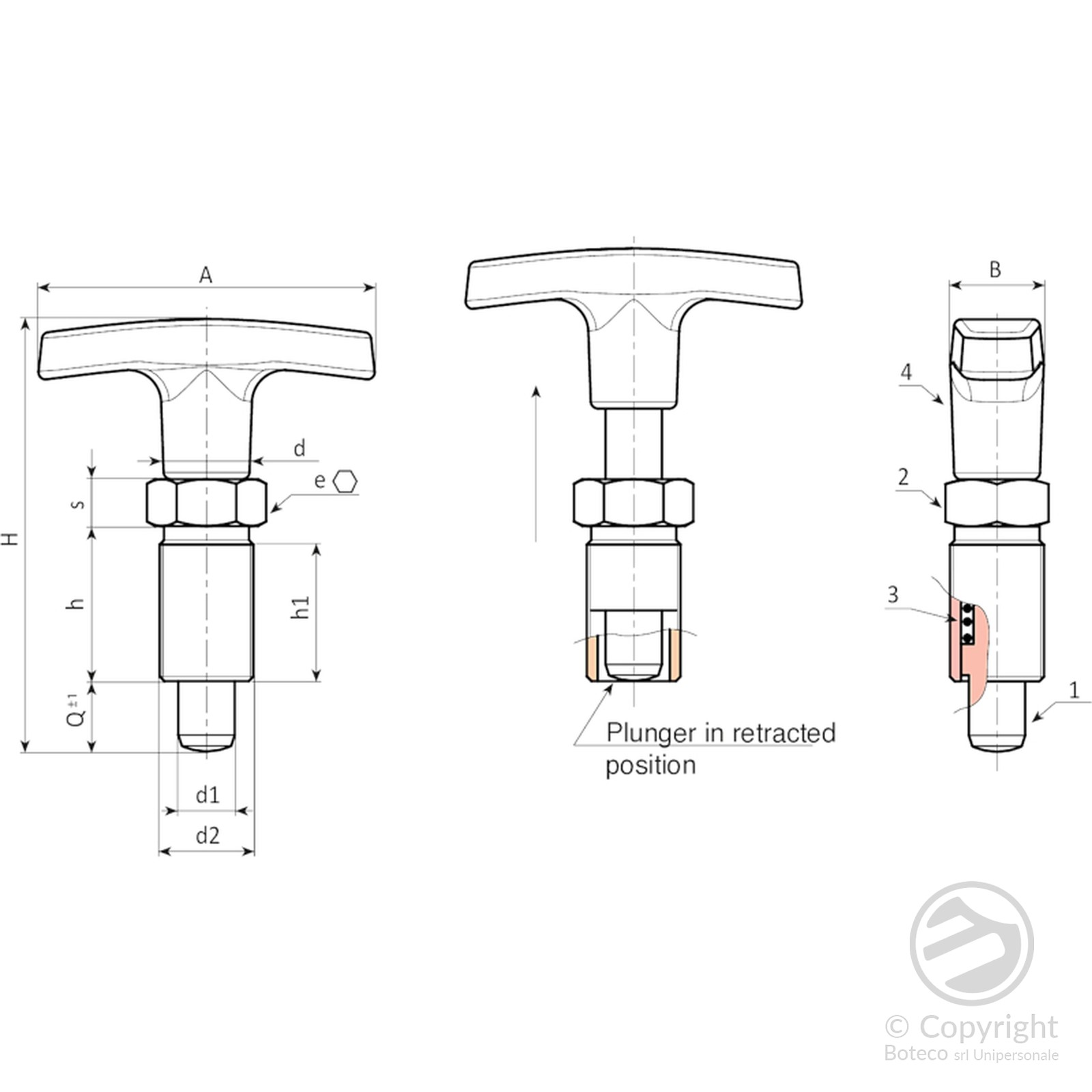

Materials:
(3) Stainless steel spring (Aisi 301).
(4) Reinforced polyamide T-handle. Cannot be disassembled. Resistant to oils and greases.
W270:
(2) Threaded high-resistance steel hexagon ring nut.
(1) Hardened high resistance steel plunger pin.
W270CIN:
(2) Threaded stainless steel hexagon ring nut (Aisi 303).
(1) Stainless steel plunger pin (Aisi 303).
Surface finish:
(4) Satin.
(1-2-3-5) Smooth.
Colour:
(4) Black (RAL 9011).
W270:
(1-2-5) Black-oxide treated.
W270CIN:
(1-2-5) Natural.
ATTENTION:
> We recommend an H7 tolerance for the plunger stem bore.
Special Requests:
On request and for special quantities the T-handle can be supplied in the colours indicated in the table.

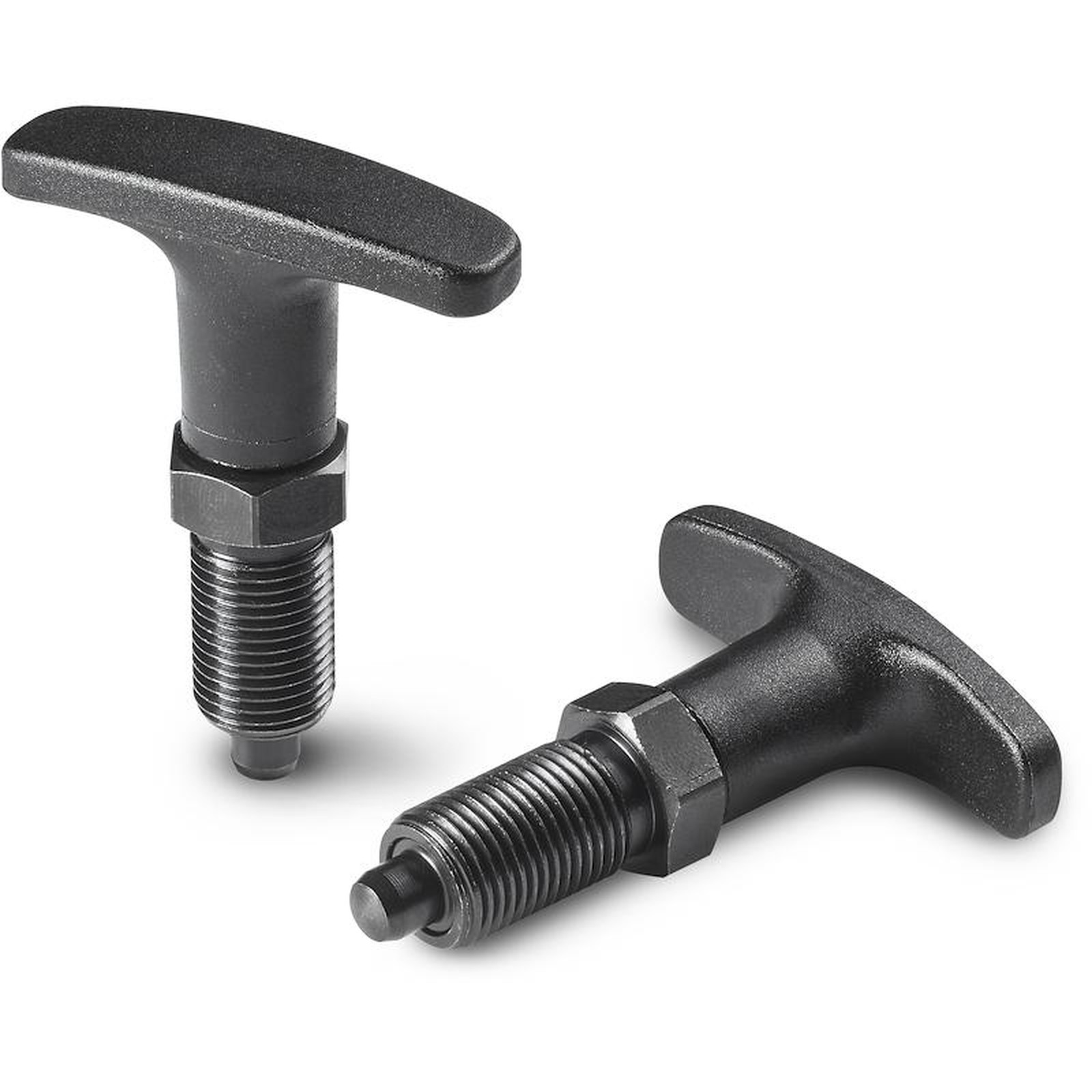

Version W270 - black-oxide treated steel
| Code | Art. | A | B | H | h | h1 | d2 | d | e | s | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W270.0007 | W270.Q0501 | 50 | 15 | 51 | 17 | 15 | M10x1 | 14 | 12 | 5 | 5 | 5 | 29 |
| W270.0008 | W270.Q0601 | 50 | 15 | 56 | 20 | 18 | M12x1,5 | 14 | 14 | 6 | 6 | 6 | 36 |
| W270.0009 | W270.Q0801 | 60 | 18 | 75 | 26 | 24 | M16x1,5 | 16,5 | 19 | 8 | 8 | 8 | 73 |
| W270.0010 | W270.Q1001 | 72 | 20 | 87 | 33 | 31 | M20x1,5 | 18,5 | 22 | 10 | 10 | 10 | 136 |

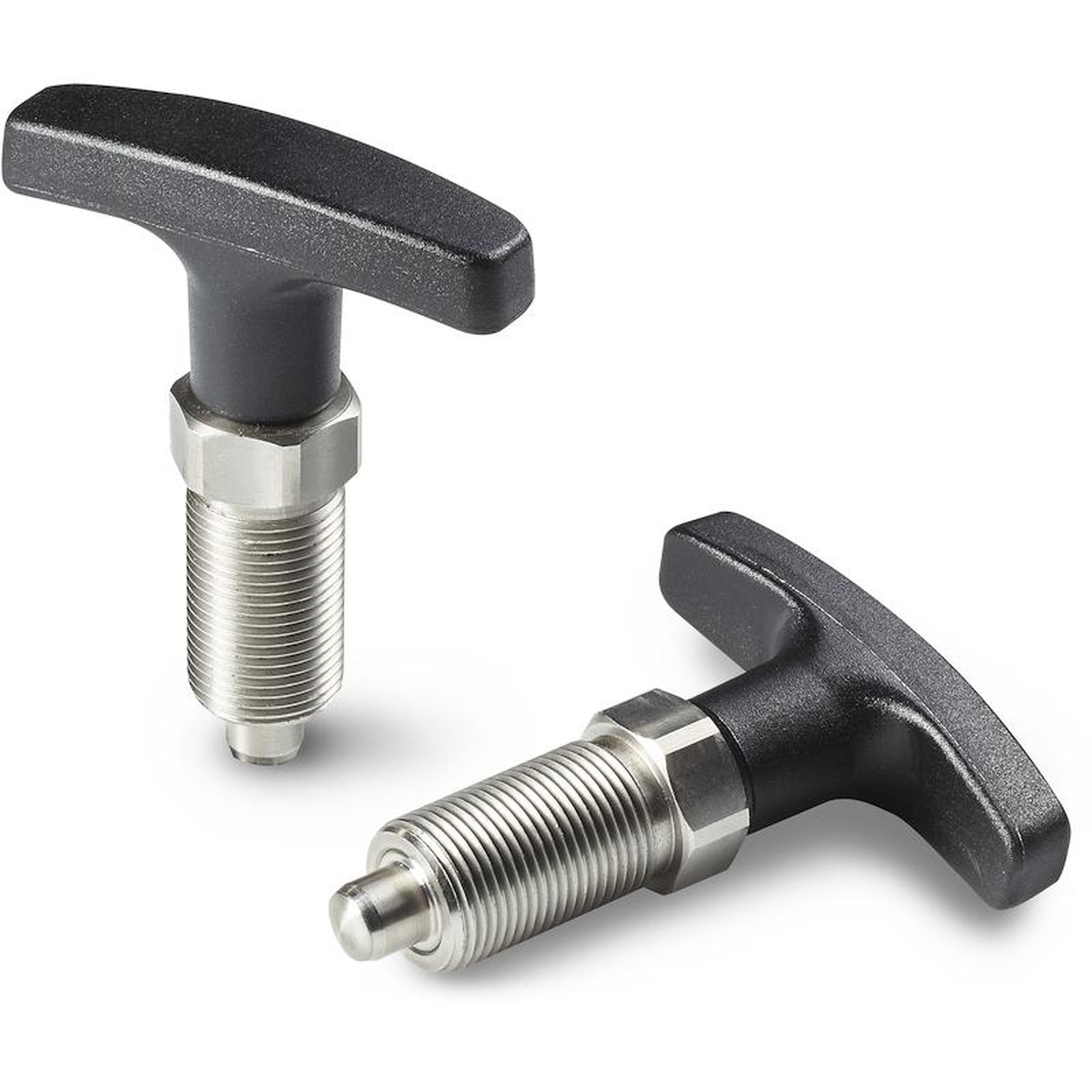

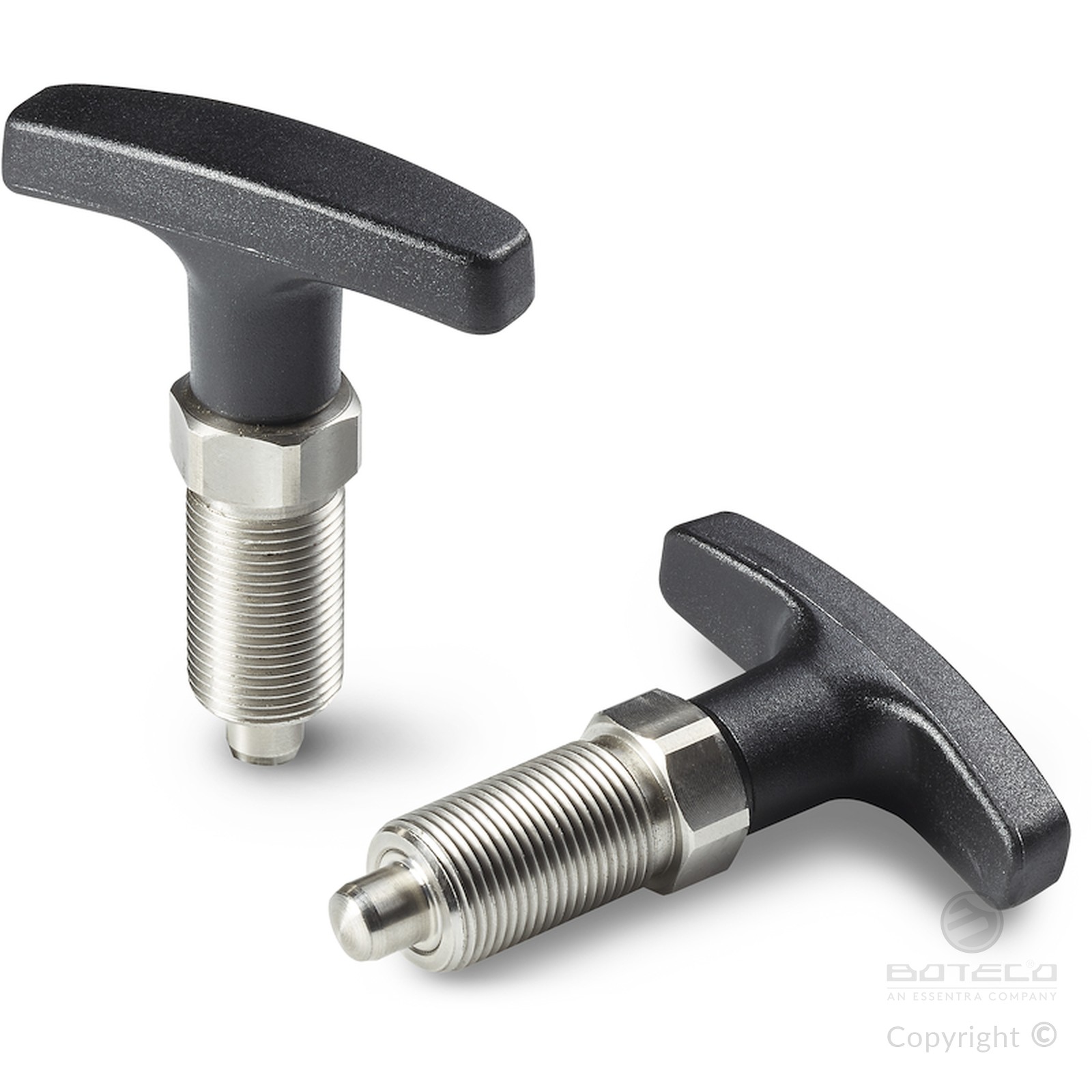

Version W270CIN - stainless steel (Aisi 303)
| Code | Art. | A | B | H | h | h1 | d2 | d | e | s | d1 -0,02 -0,04 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W270.0001 | W270.I0501CIN | 50 | 15 | 51 | 17 | 15 | M10x1 | 14 | 12 | 5 | 5 | 5 | 29 |
| W270.0002 | W270.I0601CIN | 50 | 15 | 56 | 20 | 18 | M12x1,5 | 14 | 14 | 6 | 6 | 6 | 36 |
| W270.0003 | W270.I0801CIN | 60 | 18 | 75 | 26 | 24 | M16x1,5 | 16,5 | 19 | 8 | 8 | 8 | 73 |
| W270.0004 | W270.I1001CIN | 72 | 20 | 87 | 33 | 31 | M20x1,5 | 18,5 | 22 | 10 | 10 | 10 | 136 |
