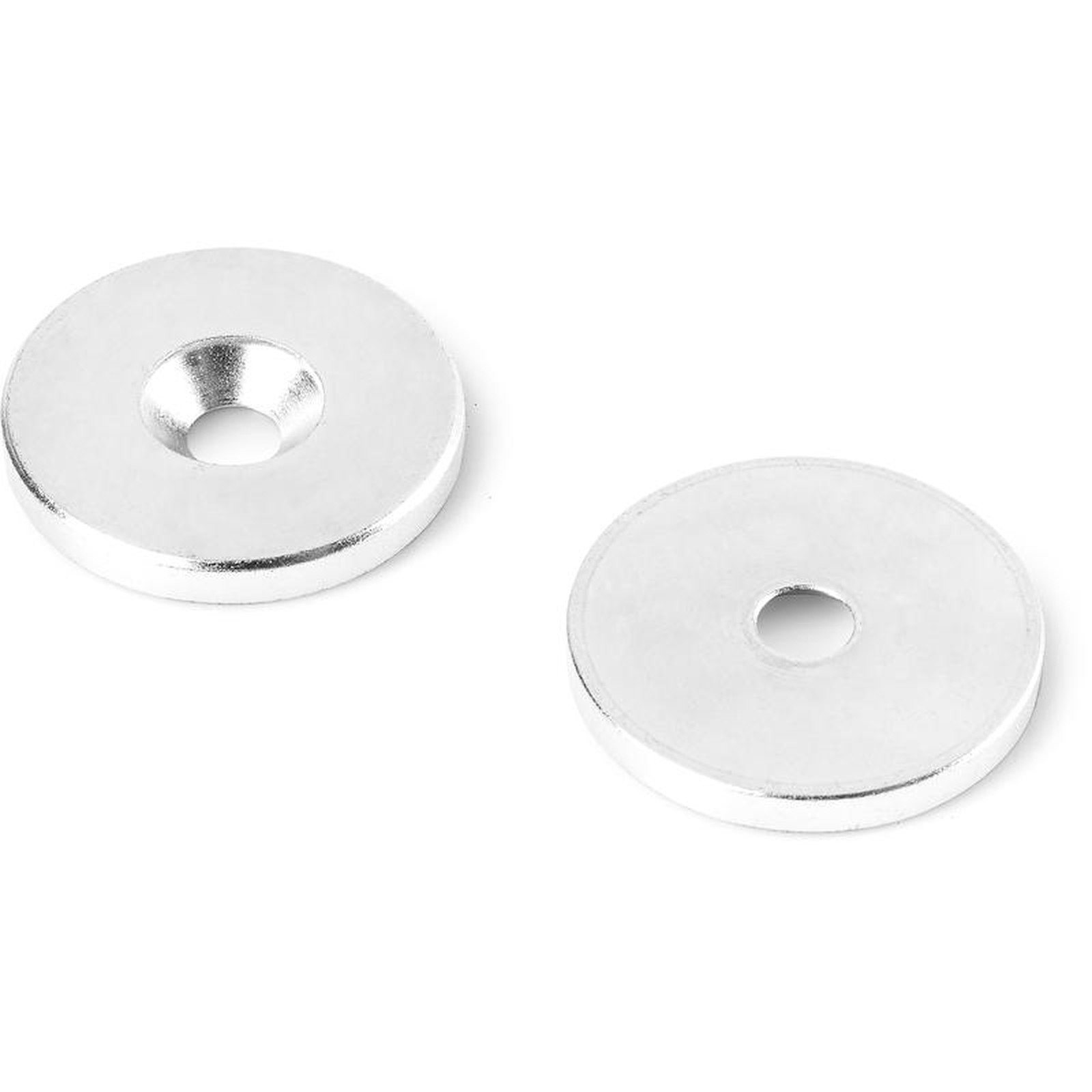

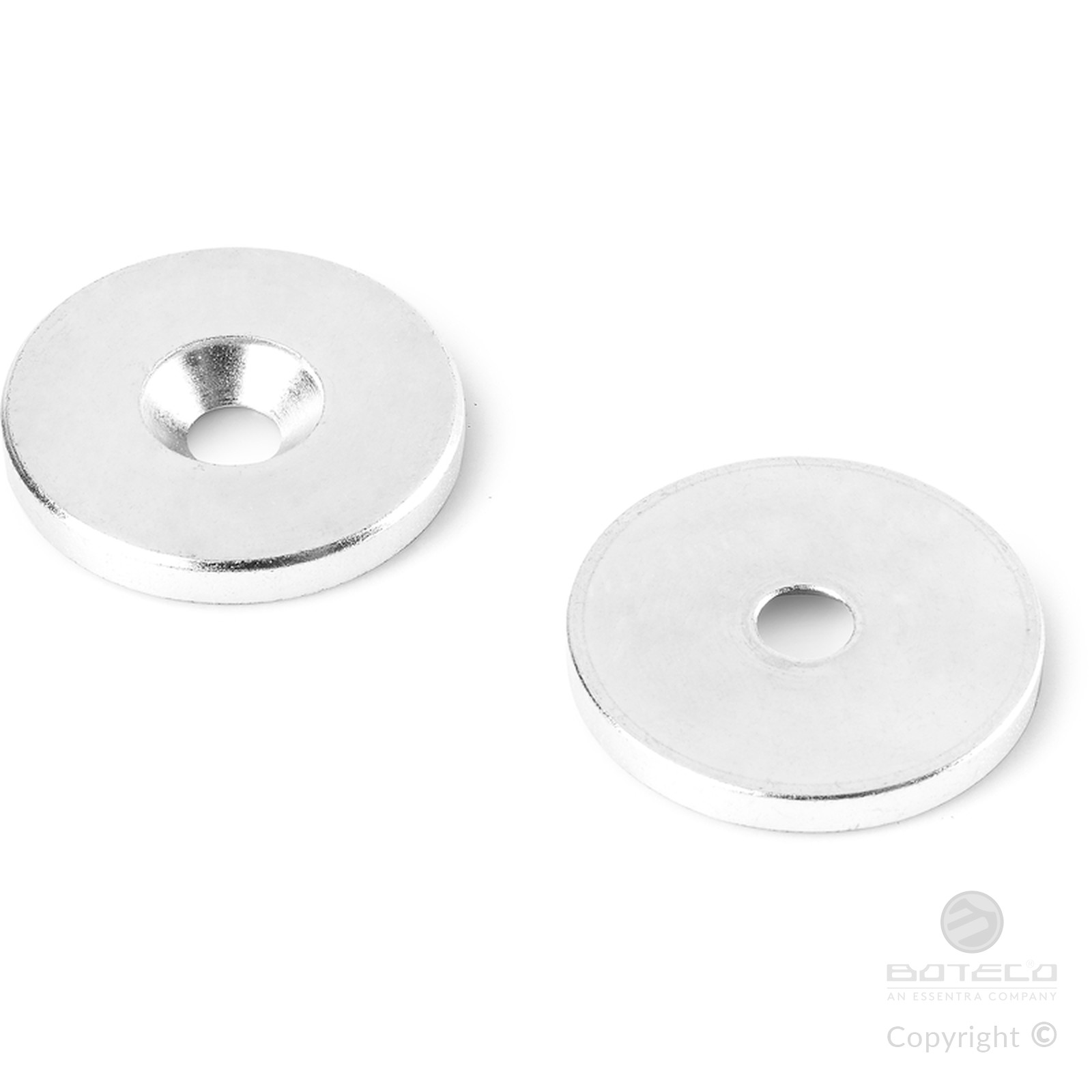

STEEL WASHER WITH SMOOTH BORE
17
W184
Metalline Pomelli
Materials:
W184:
Steel with strength class 3.8.
W184PIN:
Stainless steel (Aisi 303).
Surface finish:
Turned with low roughness.
Colour:
W184:
Standard blue zinc plating (galvanic treatment).
W184 PIN:
Natural.
Hole:
Smooth through bore machined from solid metal (hole tolerance H10).
Special requests:
None.
Version W184 - nickel-plated steel

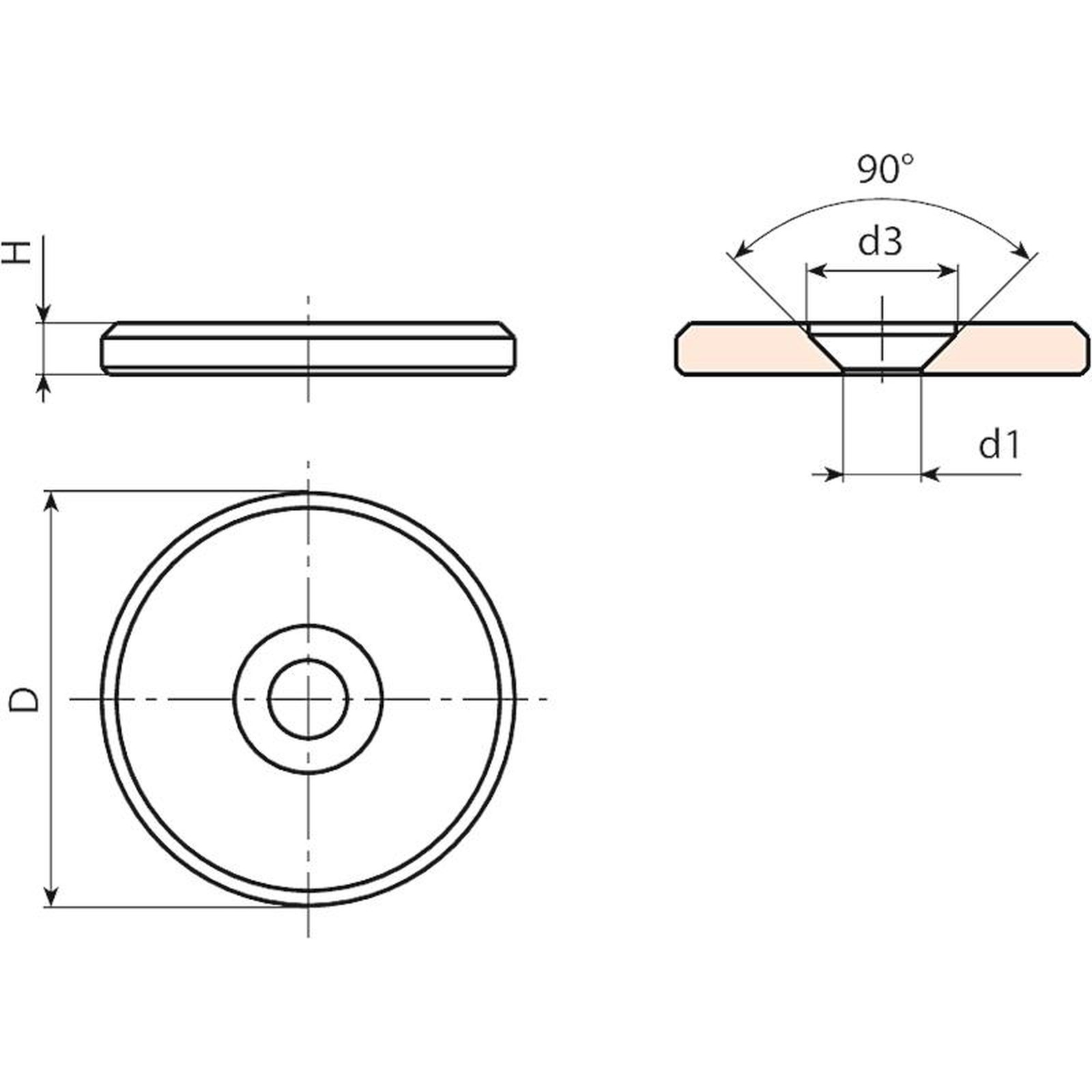

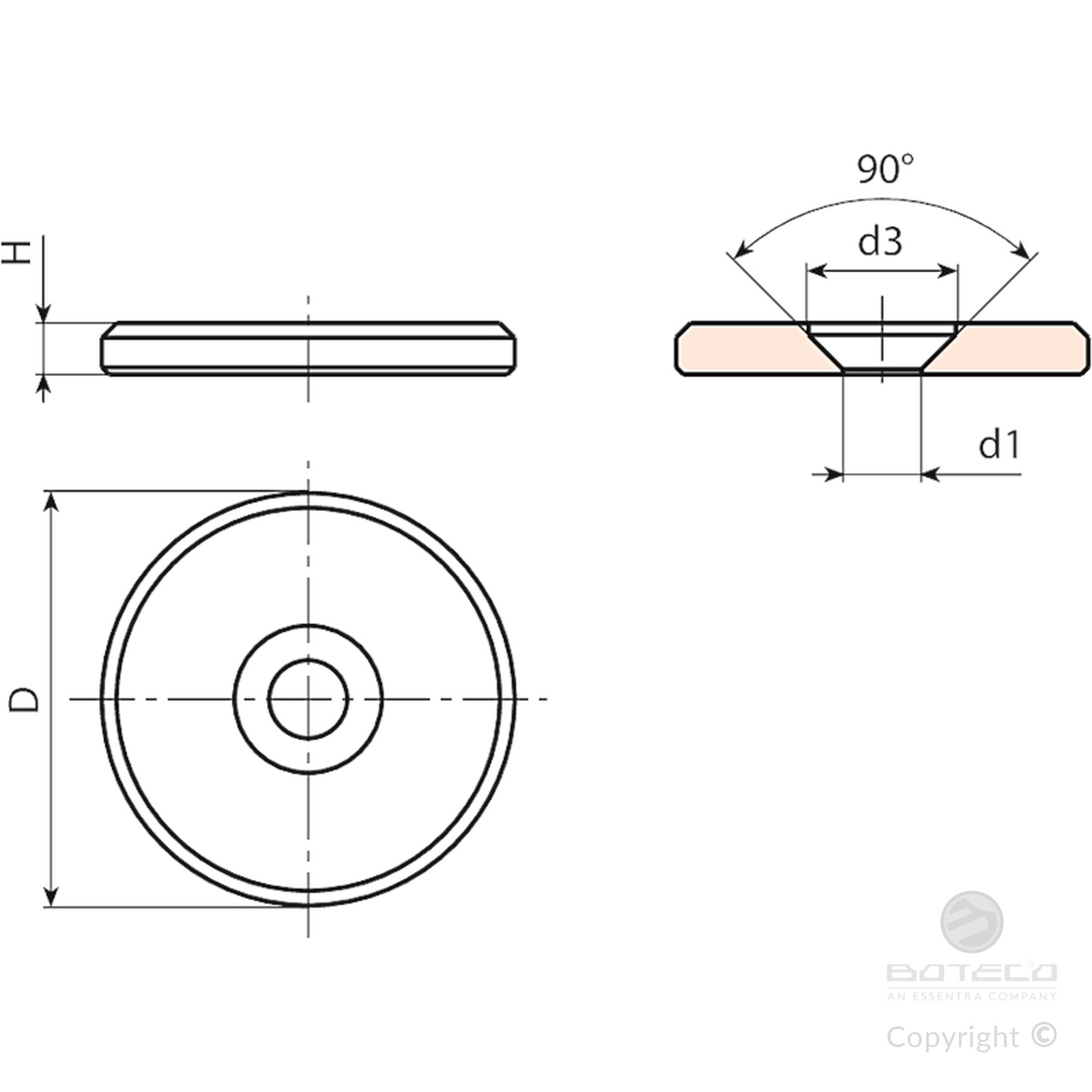

| Code | Art. | d | D | H | d1 H10 | Weight (g) |
|---|---|---|---|---|---|---|
| W18416.0003 | W18416.VP4.5Z | 16 | 3 | 8 | 4,5 x M4 | 4.5 |
| W18420.0002 | W18420.VP4.5Z | 20 | 3 | 8 | 4,5 x M4 | 7 |
| W18422.0002 | W18422.VP5.5Z | 22 | 3.5 | 10 | 5,5 x M5 | 10 |
| W18425.0002 | W18425.VP5.5Z | 25 | 3.5 | 10 | 5,5 x M5 | 13 |
| W18428.0002 | W18428.VP5.5Z | 28 | 3.5 | 10 | 5,5 x M5 | 16 |
| W18432.0002 | W18432.VP6.5Z | 32 | 4 | 12 | 6,5 x M6 | 24 |
| W18436.0002 | W18436.VP6.5Z | 36 | 4 | 12 | 6,5 x M6 | 31 |
| W18440.0002 | W18440.VP6.5Z | 40 | 5 | 12 | 6,5 x M6 | 48 |
Version W184 PIN - stainless steel (Aisi 303)
| Code | Art. | d | D | H | d1 H10 | Weight (g) |
|---|---|---|---|---|---|---|
| W18416.0001 | W18416.IP4.5PIN | 16 | 3 | 8 | 4,5 x M4 | 4.5 |
| W18420.0001 | W18420.IP4.5PIN | 20 | 3 | 8 | 4,5 x M4 | 7 |
| W18422.0001 | W18422.IP5.5PIN | 22 | 3.5 | 10 | 5,5 x M5 | 10 |
| W18425.0001 | W18425.IP5.5PIN | 25 | 3.5 | 10 | 5,5 x M5 | 13 |
| W18428.0001 | W18428.IP5.5PIN | 28 | 3.5 | 10 | 5,5 x M5 | 16 |
| W18432.0001 | W18432.IP6.5PIN | 32 | 4 | 12 | 6,5 x M6 | 24 |
| W18436.0001 | W18436.IP6.5PIN | 36 | 4 | 12 | 6,5 x M6 | 31 |
| W18440.0001 | W18440.IP6.5PIN | 40 | 5 | 12 | 6,5 x M6 | 48 |
