4-LOBE WASHER WITH THROUGH-HOLE INSERT AND CENTRAL CAP
17
Q284
Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Green (RAL 6024 code 17).
Red (RAL 3000 code 16).
Black (RAL 9011 code 01).
Inserts:
Version Q284 TM:

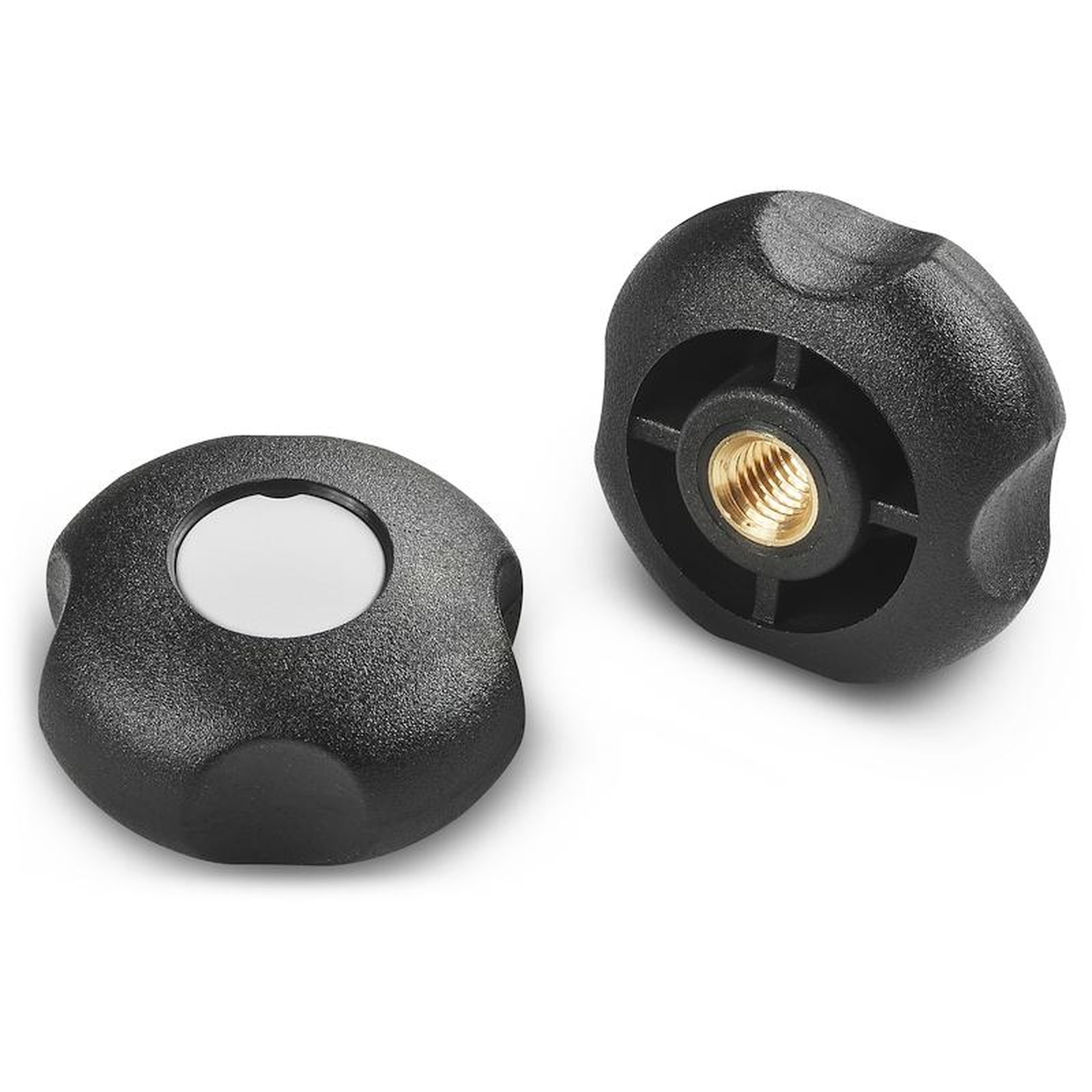

Brass insert with threaded through hole (thread tolerance 6H).
Version Q284 TQ:

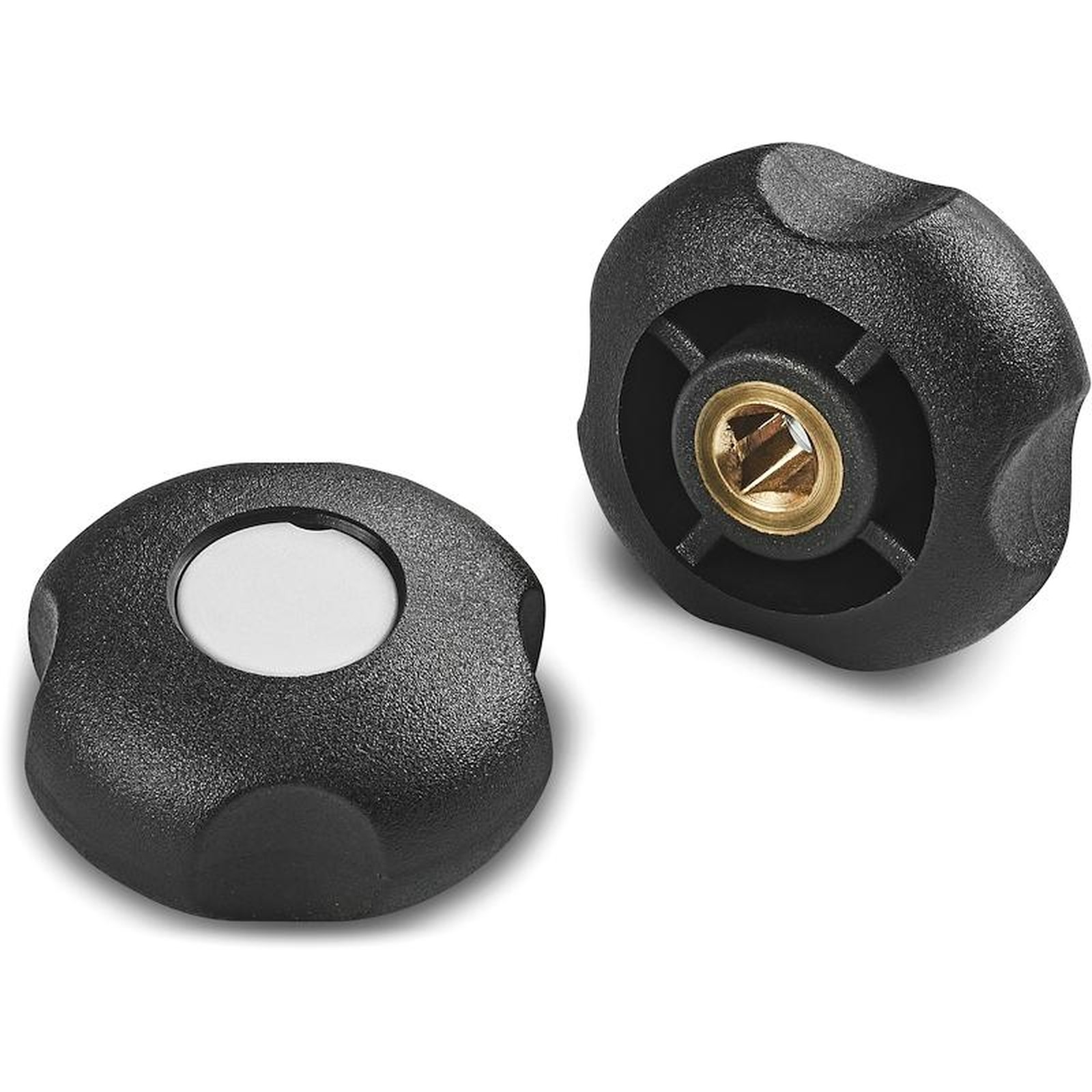

Brass insert with square through bore (bore tolerance H7).
Version Q284 TQ-PP:
Without insert, with smooth through square hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.
Version Q284 TM: With brass insert and threaded through hole

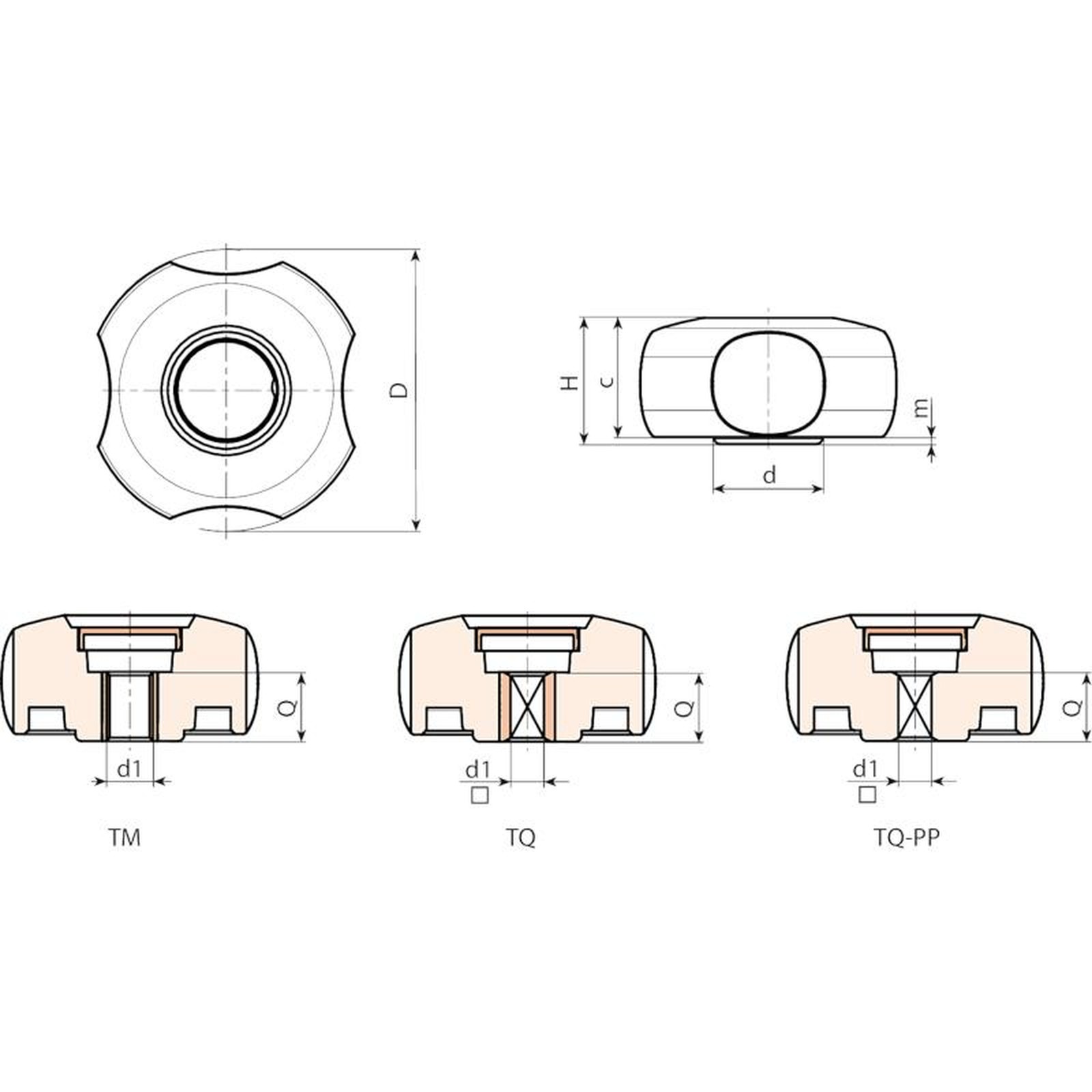

| Code | art. | D | H | d | d2 | d3 | c | m | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q28440.0003 | Q28440.TM0801P | 40.5 | 20 | 17 | 18 | 13 | 19 | 1 | M8 | 15 | - |
| Q28440.0004 | Q28440.TM1001P | 40.5 | 20 | 17 | 18 | 13 | 19 | 1 | M10 | 15 | - |
| Q28450.0001 | Q28450.TM0801P | 49 | 23 | 20 | 20 | 15 | 22 | 1 | M8 | 15 | - |
| Q28460.0001 | Q28460.TM1001P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | M10 | 15 | - |
| Q28460.0002 | Q28460.TM1201P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | M12 | 15 | - |
| Q28480.0001 | Q28480.TM1001P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | M10 | 15 | - |
| Q28480.0002 | Q28480.TM1201P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | M12 | 15 | - |
Version Q284 TQ: With brass insert and SQUARE hole
| Code | art. | D | H | d | d2 | d3 | c | m | d1 H7 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q28440.0005 | Q28440.TQ0601P | 40.5 | 20 | 17 | 18 | 13 | 19 | 1 | 6 | 15 | - |
| Q28450.0002 | Q28450.TQ0601P | 49 | 23 | 20 | 20 | 15 | 22 | 1 | 6 | 15 | - |
| Q28450.0004 | Q28450.TQ0701P | 49 | 23 | 20 | 20 | 15 | 22 | 1 | 7 | 15 | - |
| Q28460.0003 | Q28460.TQ0601P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 6 | 15 | - |
| Q28460.0005 | Q28460.TQ0701P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 7 | 15 | - |
| Q28460.0007 | Q28460.TQ0801P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 8 | 15 | - |
| Q28480.0003 | Q28480.TQ0701P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 7 | 15 | - |
| Q28480.0005 | Q28480.TQ0801P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 8 | 15 | - |
| Q28480.0007 | Q28480.TQ0901P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 9 | 15 | - |
| Q28480.0009 | Q28480.TQ1001P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 10 | 15 | - |
Version Q284 TQ-PP: With SQUARE hole in the plastic
| Code | art. | D | H | d | d2 | d3 | c | m | d1 ±0,1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q28440.0006 | Q28440.TQ0601PP | 40.5 | 20 | 17 | 18 | 13 | 19 | 1 | 6 | 15 | - |
| Q28450.0003 | Q28450.TQ0601PP | 49 | 23 | 20 | 20 | 15 | 22 | 1 | 6 | 15 | - |
| Q28450.0005 | Q28450.TQ0701PP | 49 | 23 | 20 | 20 | 15 | 22 | 1 | 7 | 15 | - |
| Q28460.0004 | Q28460.TQ0601PP | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 6 | 15 | - |
| Q28460.0006 | Q28460.TQ0701PP | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 7 | 15 | - |
| Q28460.0008 | Q28460.TQ0801PP | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 8 | 15 | - |
| Q28480.0004 | Q28480.TQ0701PP | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 7 | 15 | - |
| Q28480.0006 | Q28480.TQ0801PP | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 8 | 15 | - |
| Q28480.0008 | Q28480.TQ0901PP | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 9 | 15 | - |
| Q28480.0010 | Q28480.TQ1001PP | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 10 | 15 | - |
