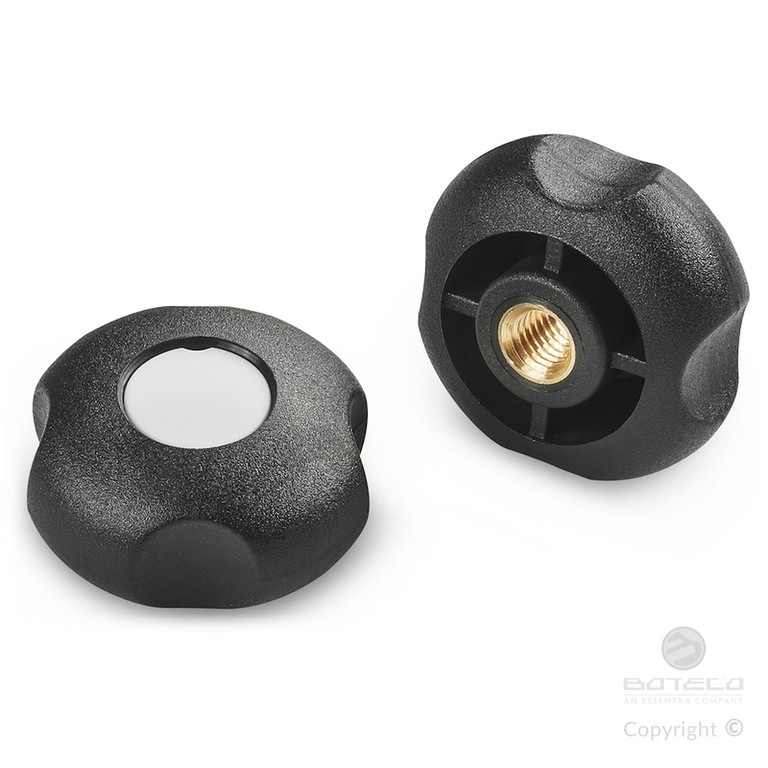

4-LOBE WASHER WITH THREADED THROUGH-HOLE INSERT
17
Q283
Materials:
Reinforced polyamide. Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:

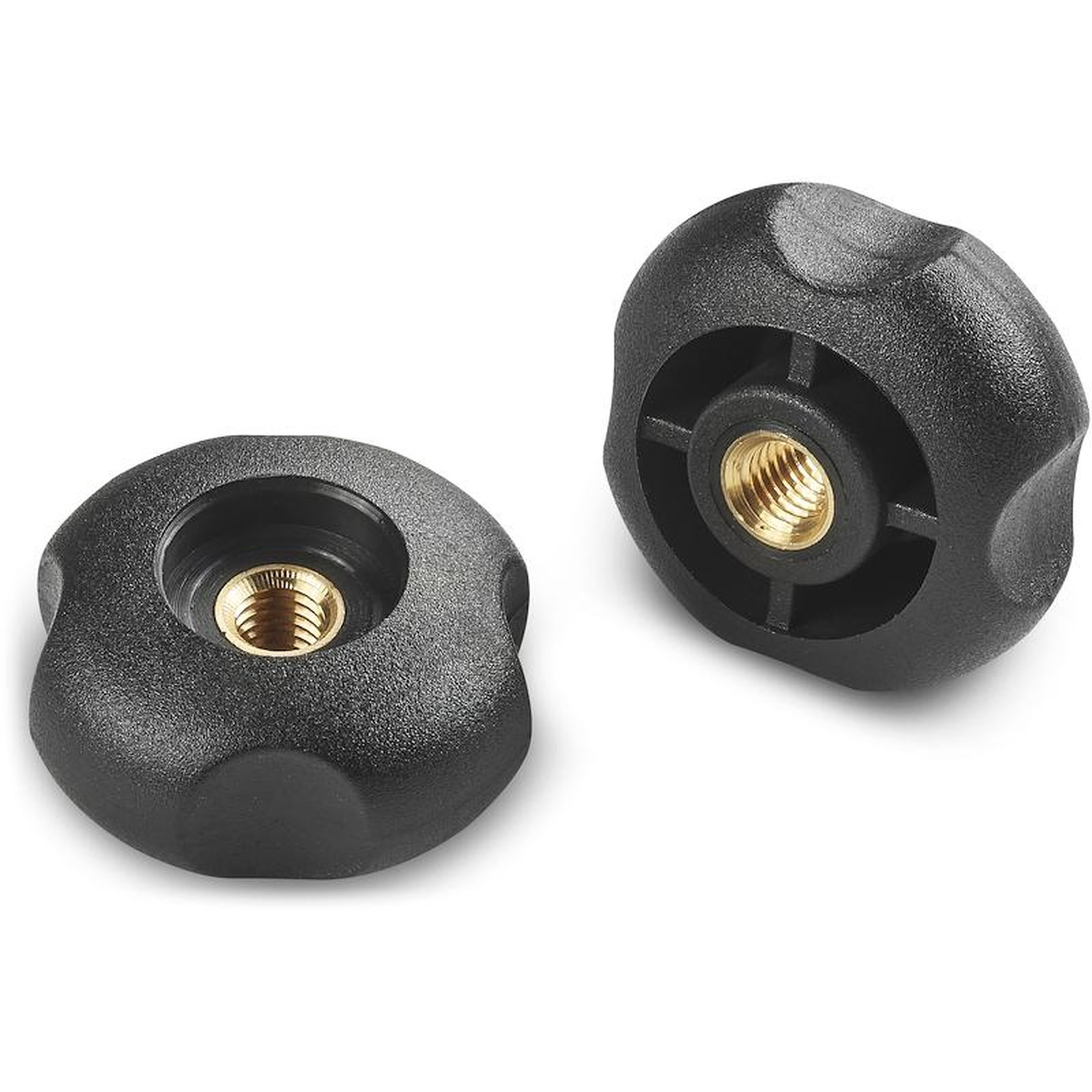

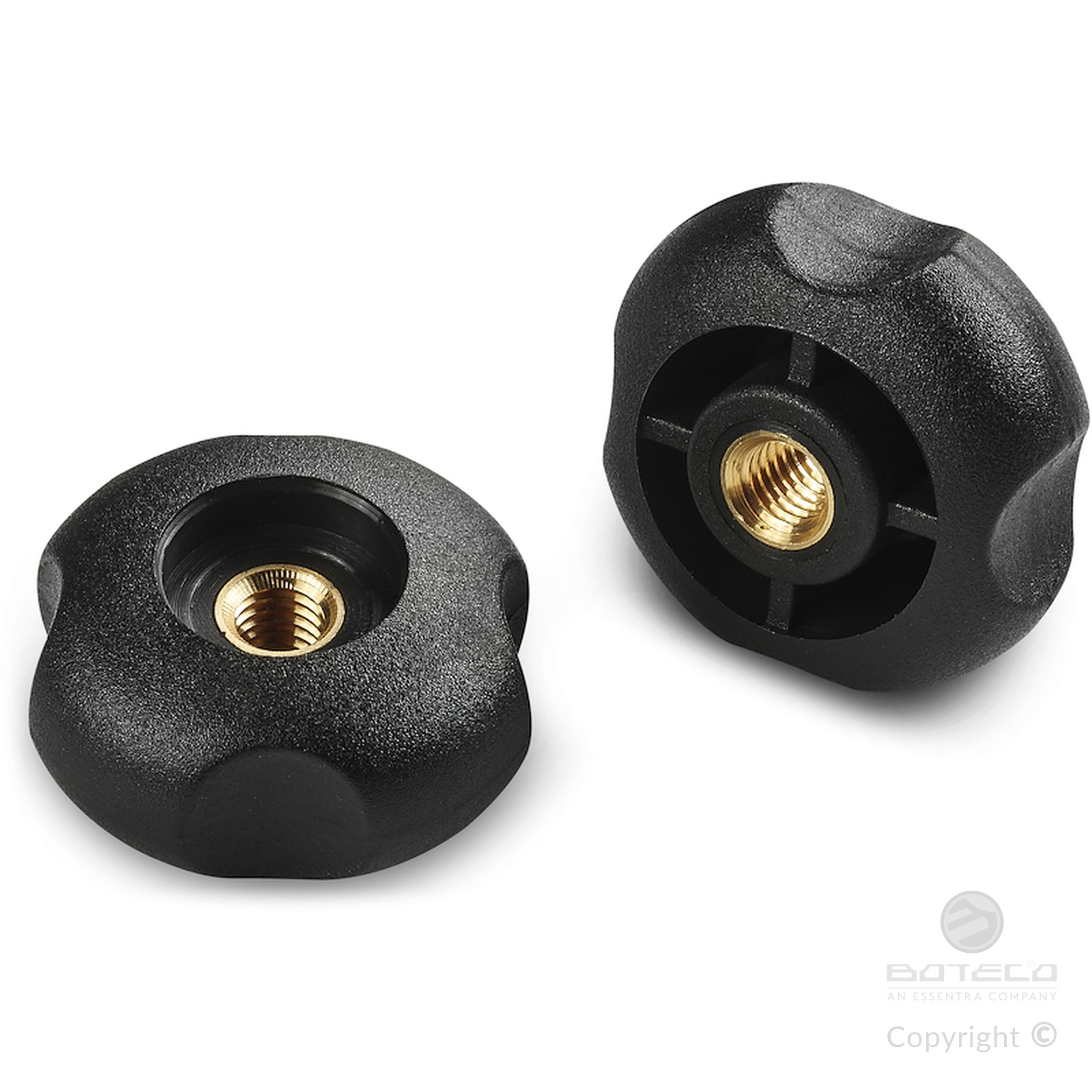

Version Q283 TM:
Brass insert with threaded through hole (thread tolerance 6H).

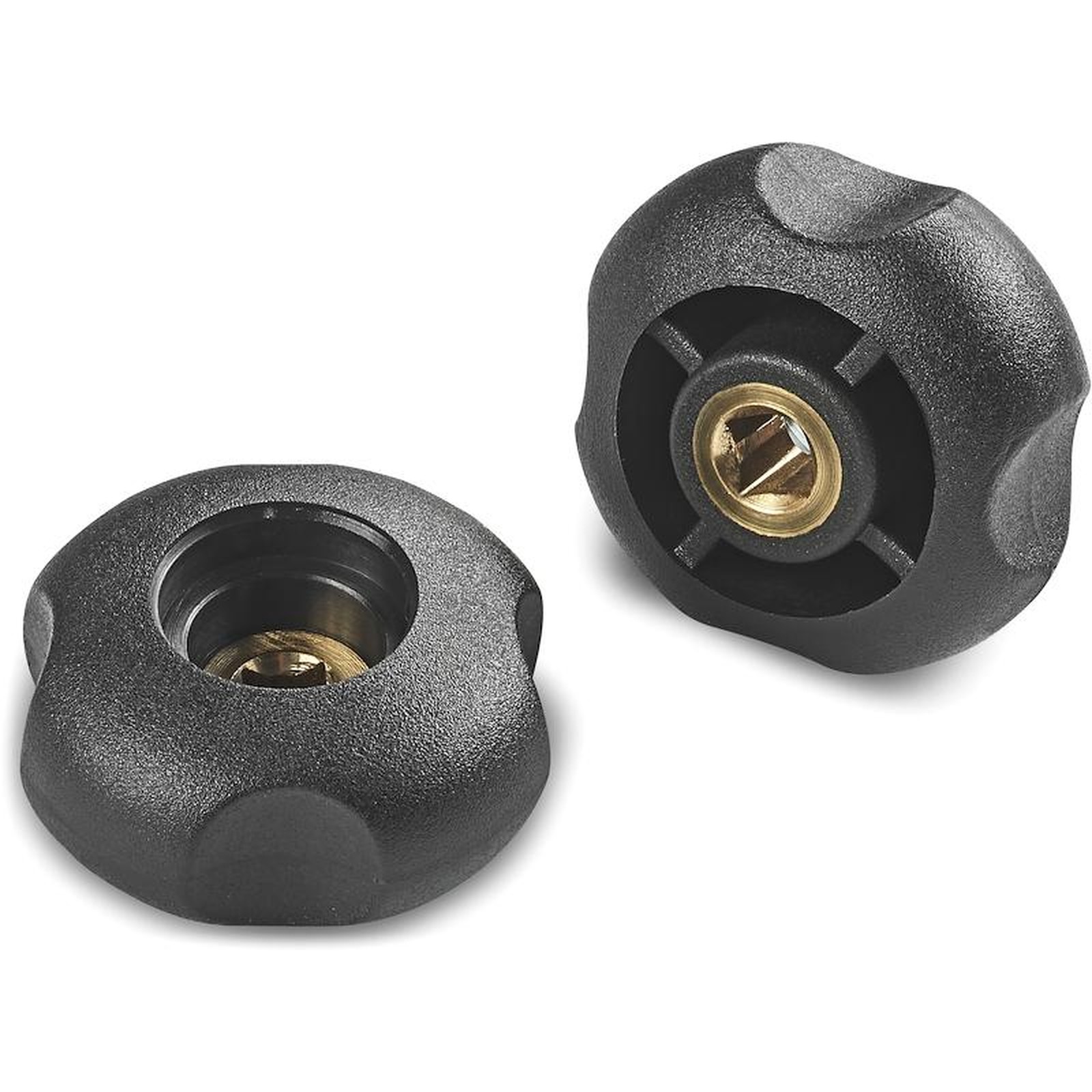

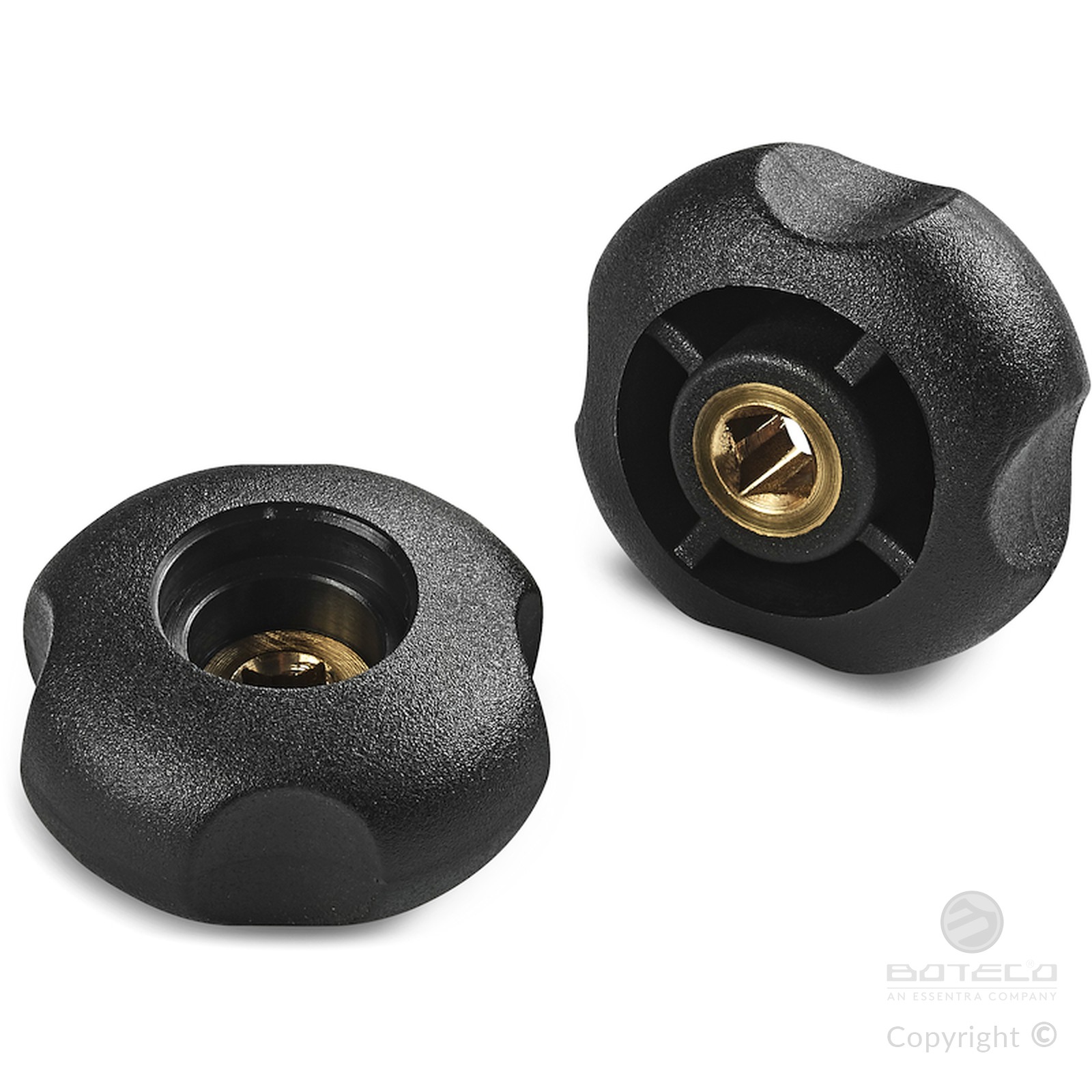

Version Q283 TQ:
Brass insert with square through bore (bore tolerance H7).

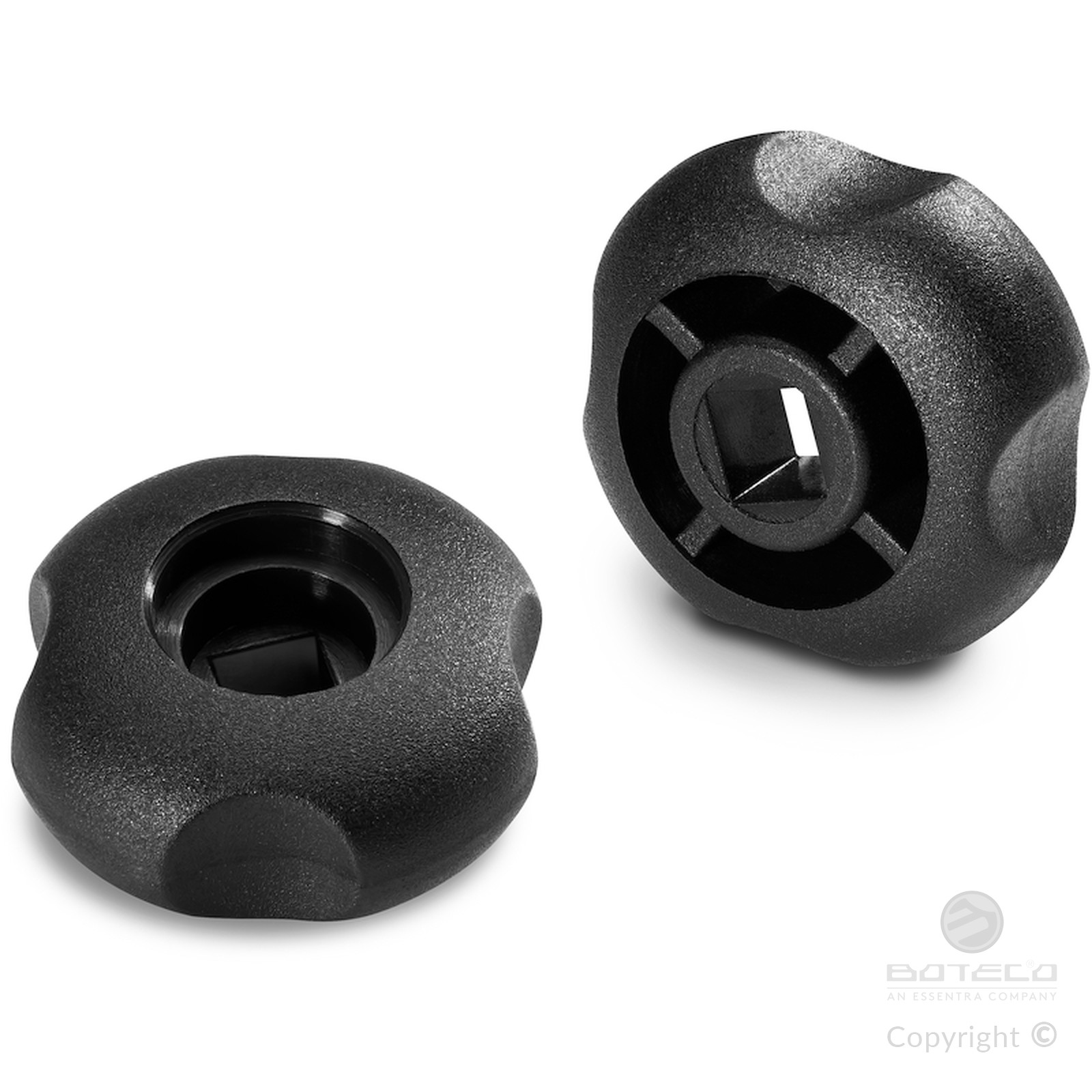

Version Q283 TQ-PP:
Without insert, with smooth through square hole obtained by moulding the plastic.
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.
Version Q283 TM: With brass insert and threaded through hole

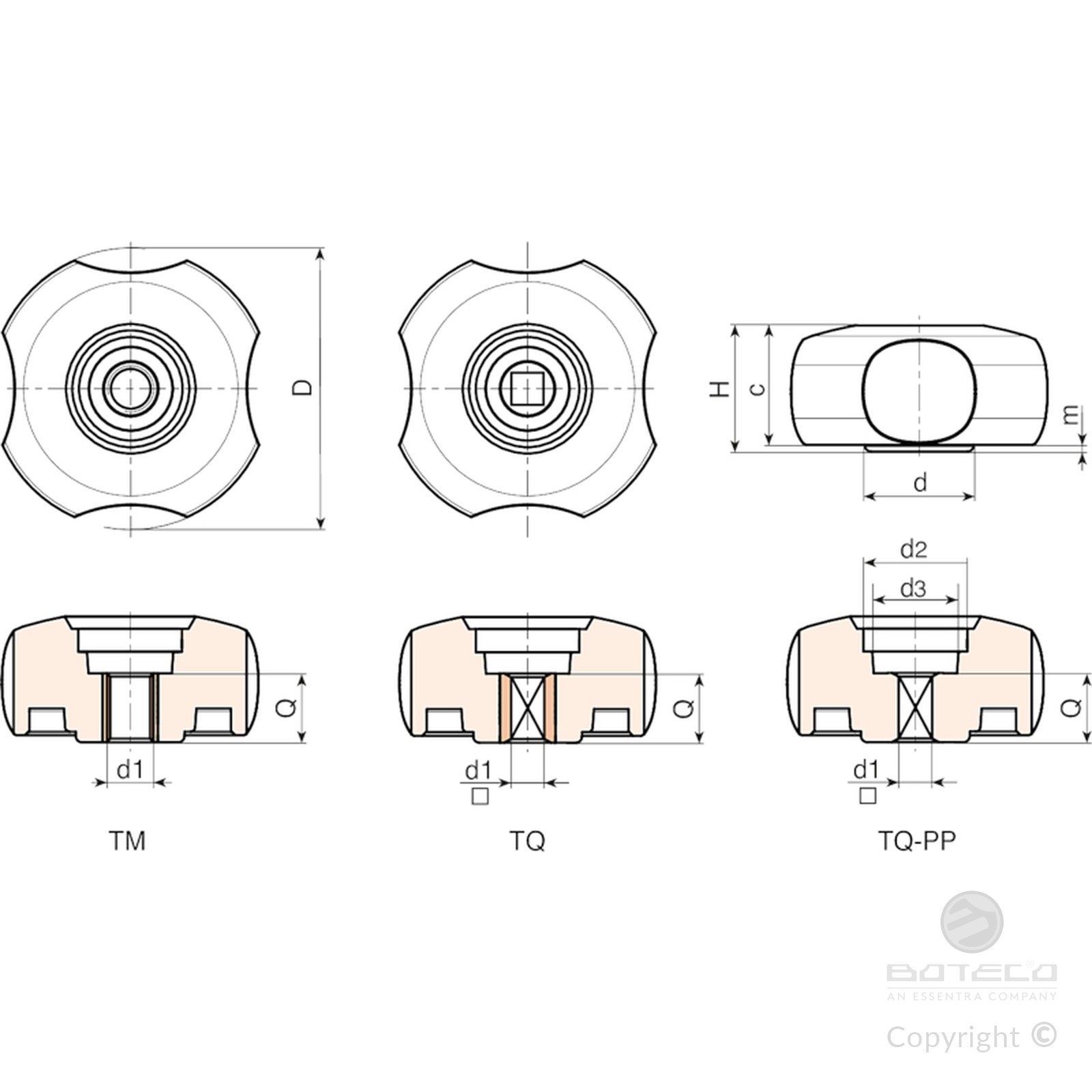

| Code | art. | D | H | d | d2 | d3 | c | m | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q28340.0002 | Q28340.TM0801P | 40.5 | 20 | 17 | 18 | 13 | 19 | 1 | M8 | 15 | - |
| Q28340.0004 | Q28340.TM1001P | 40.5 | 20 | 17 | 18 | 13 | 19 | 1 | M10 | 15 | - |
| Q28350.0001 | Q28350.TM0801P | 49 | 23 | 20 | 20 | 15 | 22 | 1 | M8 | 15 | - |
| Q28360.0001 | Q28360.TM1001P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | M10 | 15 | - |
| Q28360.0002 | Q28360.TM1201P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | M12 | 15 | - |
| Q28380.0001 | Q28380.TM1001P | 79 | 26 | 30,5 | 22 | 19.5 | 24 | 2 | M10 | 15 | - |
| Q28380.0002 | Q28380.TM1201P | 79 | 26 | 30,5 | 22 | 19.5 | 24 | 2 | M12 | 15 | - |
Version Q283 TQ: With brass insert and SQUARE hole
| Code | art. | D | H | d | d2 | d3 | c | m | d1 H7 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q28340.0005 | Q28340.TQ0601P | 40.5 | 20 | 17 | 18 | 13 | 19 | 1 | 6 | 15 | - |
| Q28350.0002 | Q28350.TQ0601P | 49 | 23 | 20 | 20 | 15 | 22 | 1 | 6 | 15 | - |
| Q28350.0004 | Q28350.TQ0701P | 49 | 23 | 20 | 20 | 15 | 22 | 1 | 7 | 15 | - |
| Q28360.0003 | Q28360.TQ0601P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 6 | 15 | - |
| Q28360.0005 | Q28360.TQ0701P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 7 | 15 | - |
| Q28360.0007 | Q28360.TQ0801P | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 8 | 15 | - |
| Q28380.0003 | Q28380.TQ0701P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 7 | 15 | - |
| Q28380.0005 | Q28380.TQ0801P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 8 | 15 | - |
| Q28380.0007 | Q28380.TQ0901P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 9 | 15 | - |
| Q28380.0009 | Q28380.TQ1001P | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 10 | 15 | - |
Version Q283 TQ-PP: With SQUARE hole in the plastic
| Code | art. | D | H | d | d2 | d3 | c | m | d1 ±0,1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Q28340.0006 | Q28340.TQ0601PP | 40.5 | 20 | 17 | 18 | 13 | 19 | 1 | 6 | 15 | - |
| Q28350.0003 | Q28350.TQ0601PP | 49 | 23 | 20 | 20 | 15 | 22 | 1 | 6 | 15 | - |
| Q28350.0005 | Q28350.TQ0701PP | 49 | 23 | 20 | 20 | 15 | 22 | 1 | 7 | 15 | - |
| Q28360.0004 | Q28360.TQ0601PP | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 6 | 15 | - |
| Q28360.0006 | Q28360.TQ0701PP | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 7 | 15 | - |
| Q28360.0008 | Q28360.TQ0801PP | 59 | 27 | 23 | 22 | 18 | 22,5 | 1,5 | 8 | 15 | - |
| Q28380.0004 | Q28380.TQ0701PP | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 7 | 15 | - |
| Q28380.0006 | Q28380.TQ0801PP | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 8 | 15 | - |
| Q28380.0008 | Q28380.TQ0901PP | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 9 | 15 | - |
| Q28380.0010 | Q28380.TQ1001PP | 79 | 26 | 30,5 | 22 | 20 | 24 | 2 | 10 | 15 | - |
