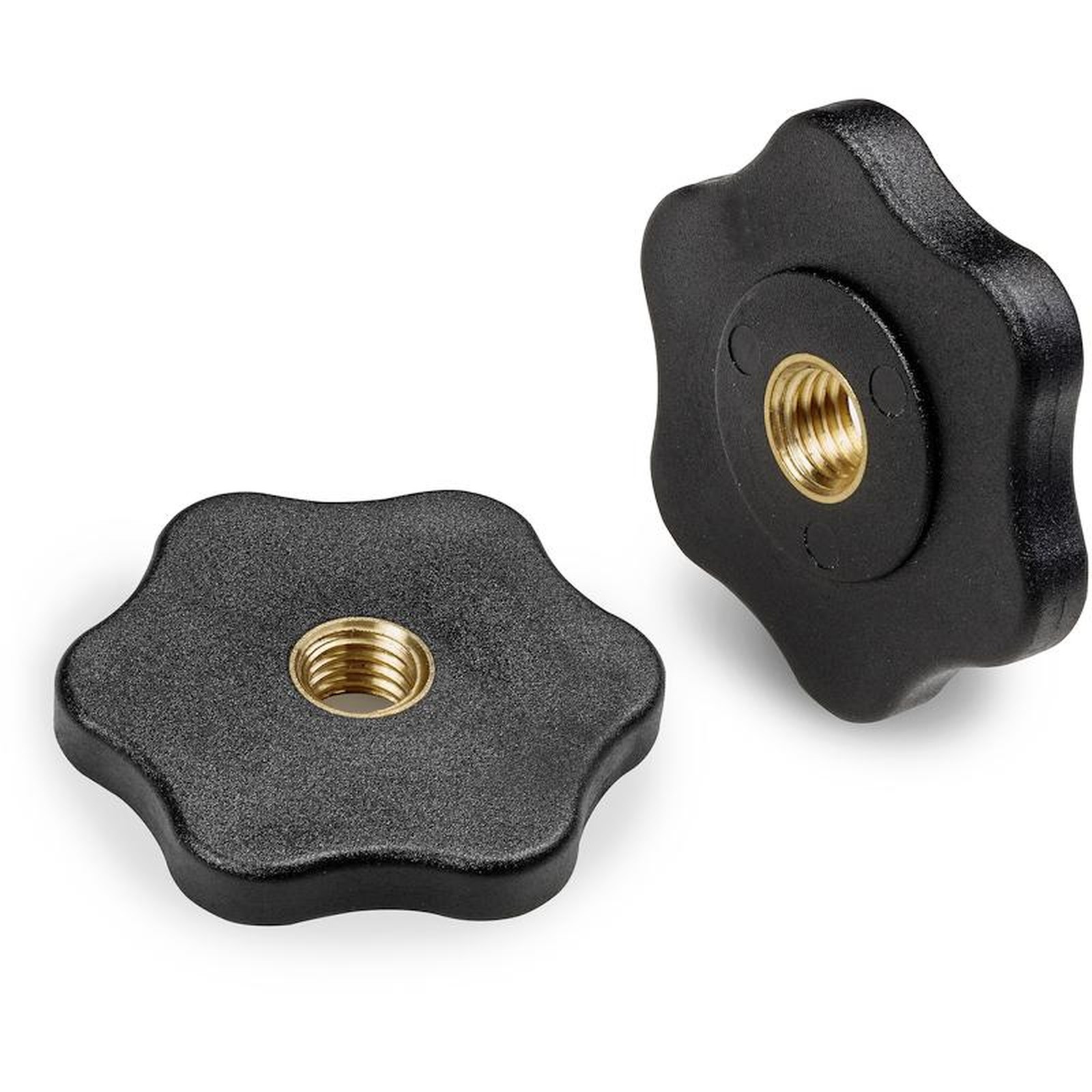

6-LOBE WASHER
17
Q264
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with threaded through hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

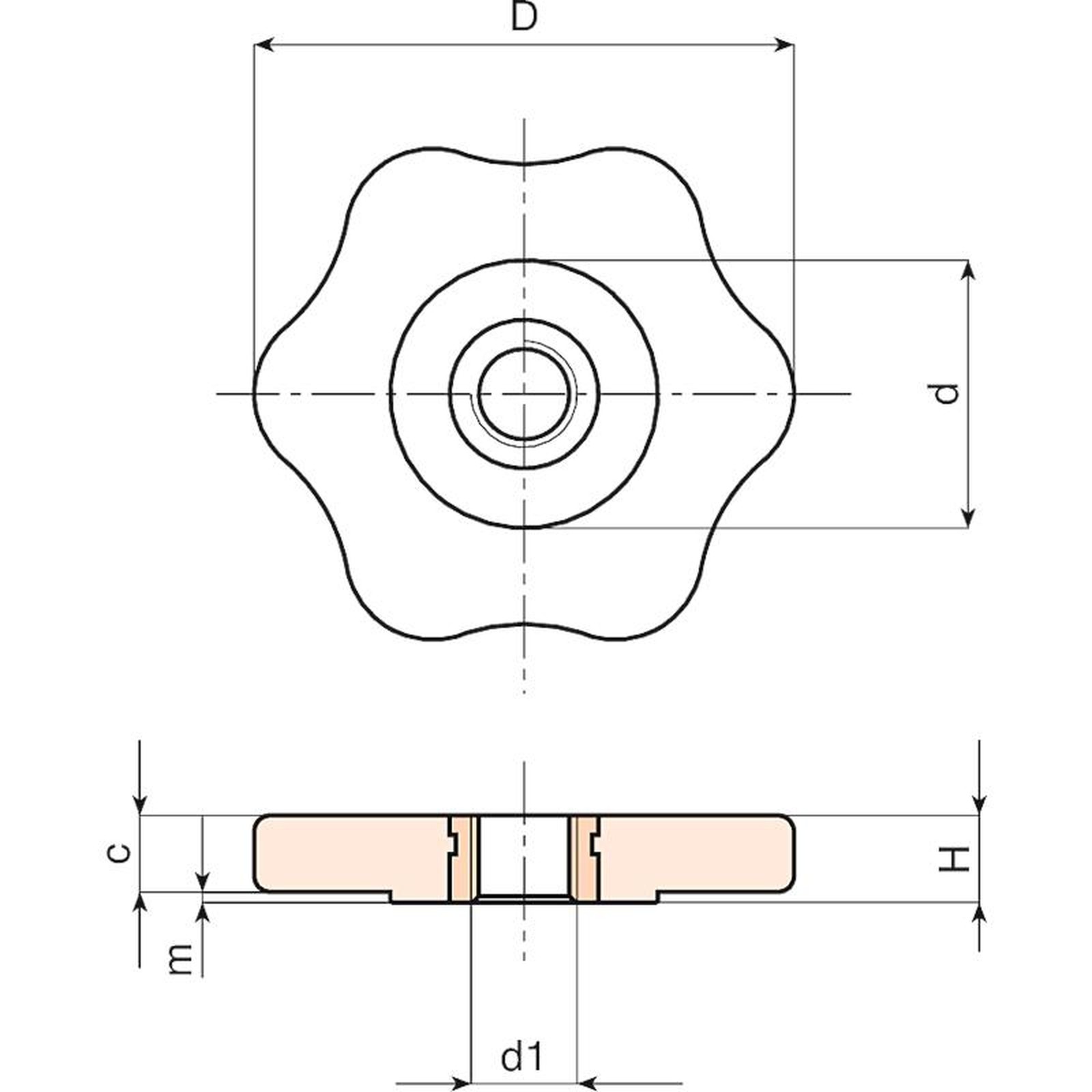

| Code | art. | D | H | d | c | m | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| Q26450.0002 | Q26450.TM0601P | 50 | 8 | 25 | 7 | 1 | M6 | 18 |
| Q26450.0003 | Q26450.TM0801P | 50 | 8 | 25 | 7 | 1 | M8 | 18 |
| Q26450.0005 | Q26450.TM1001P | 50 | 8 | 25 | 7 | 1 | M10 | 20 |
