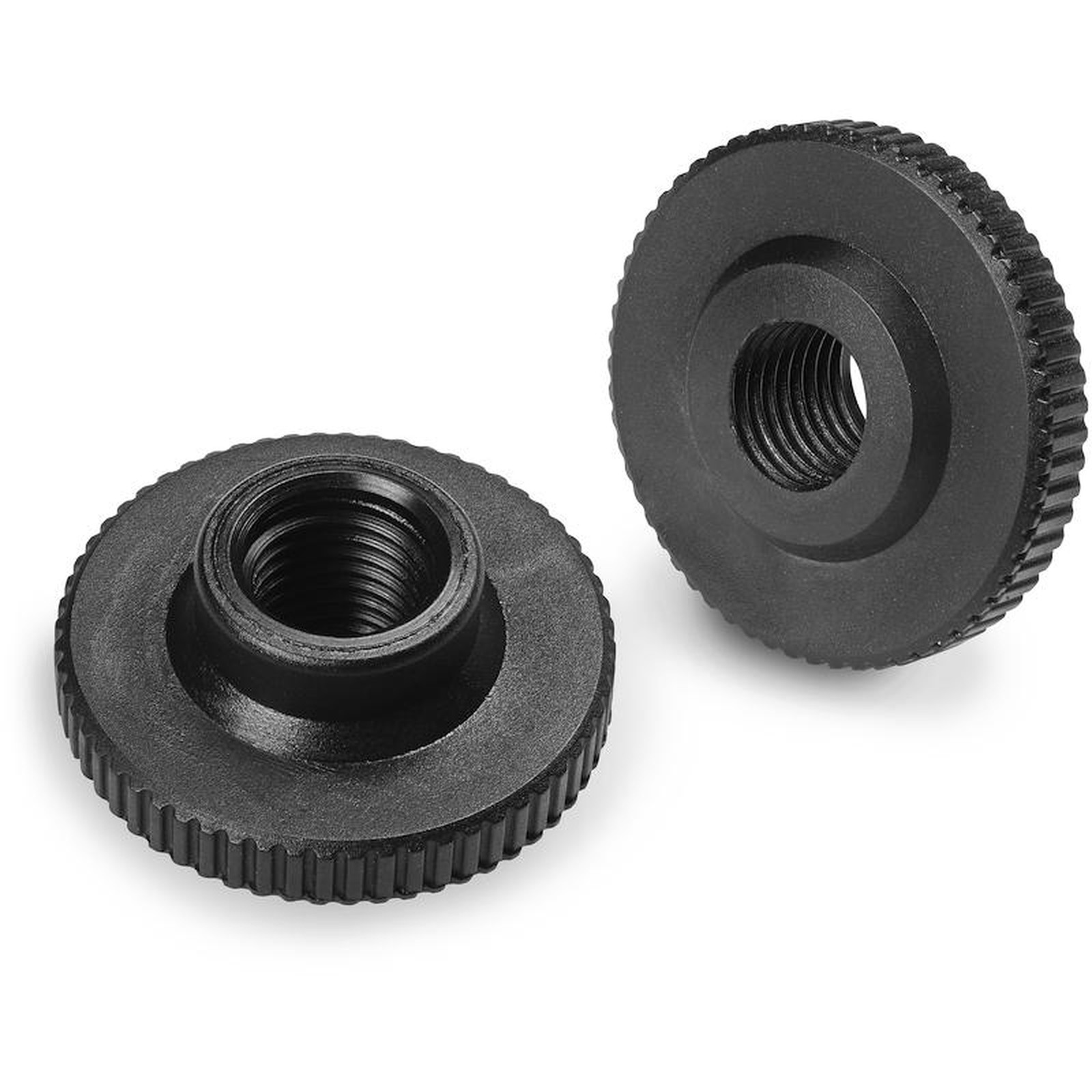

KNURLED WASHER
17
Q263
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface:
Satin.
Colour:
Black (RAL 9011).
Hole:
Threaded through hole obtained by moulding the plastic (tolerance not applicable).
Special Requests:
Upon request and for special quantities hole d1 can be supplied to customer’s drawing.

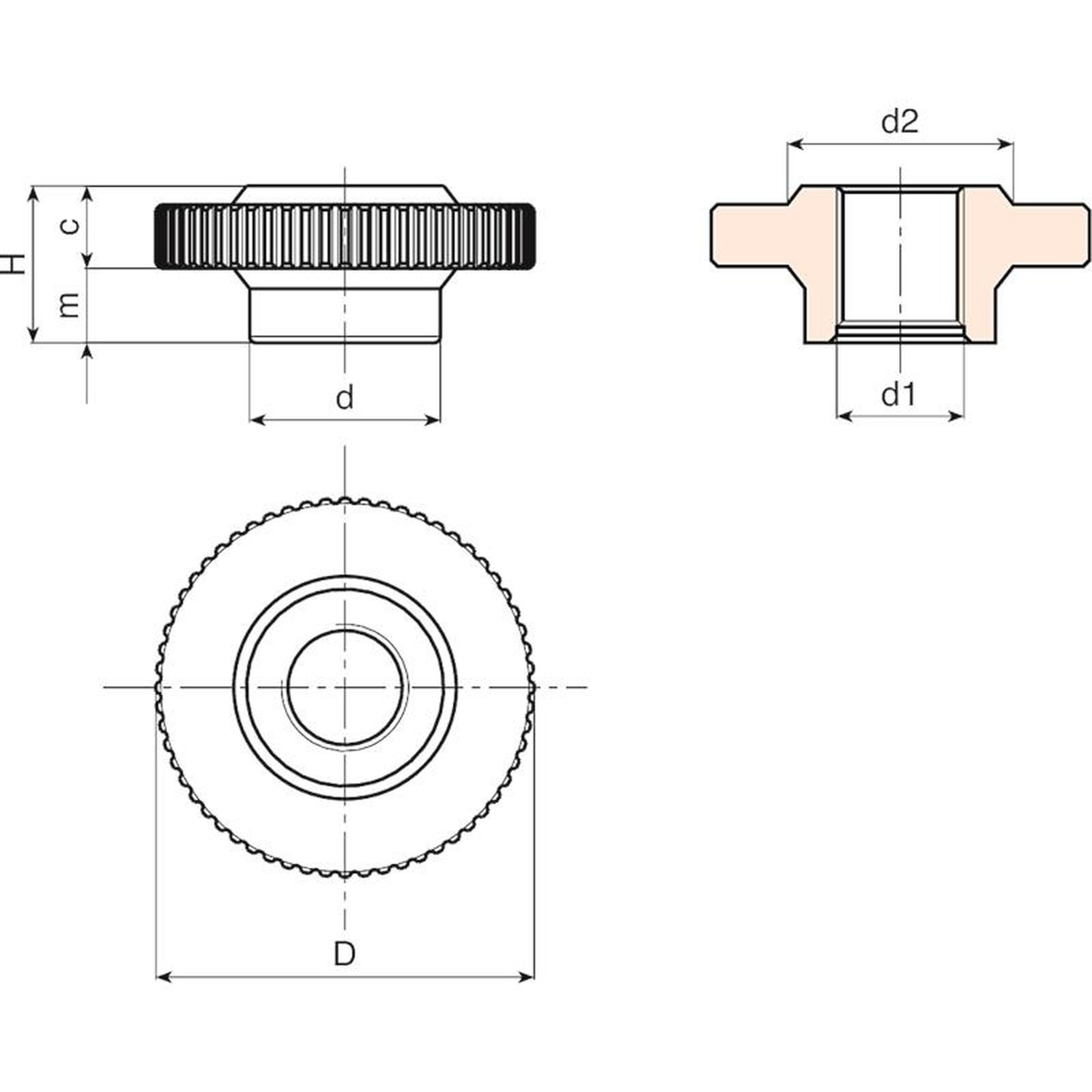

| Code | art. | D | H | d | c | m | d2 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| Q26360.0002 | Q26360.TM2001P | 60 | 25 | 30 | 12 | 13 | 35 | M20 | 38 |
| Q26360.0003 | Q26360.TM2401P | 60 | 25 | 30 | 12 | 13 | 35 | M24 | 35 |
