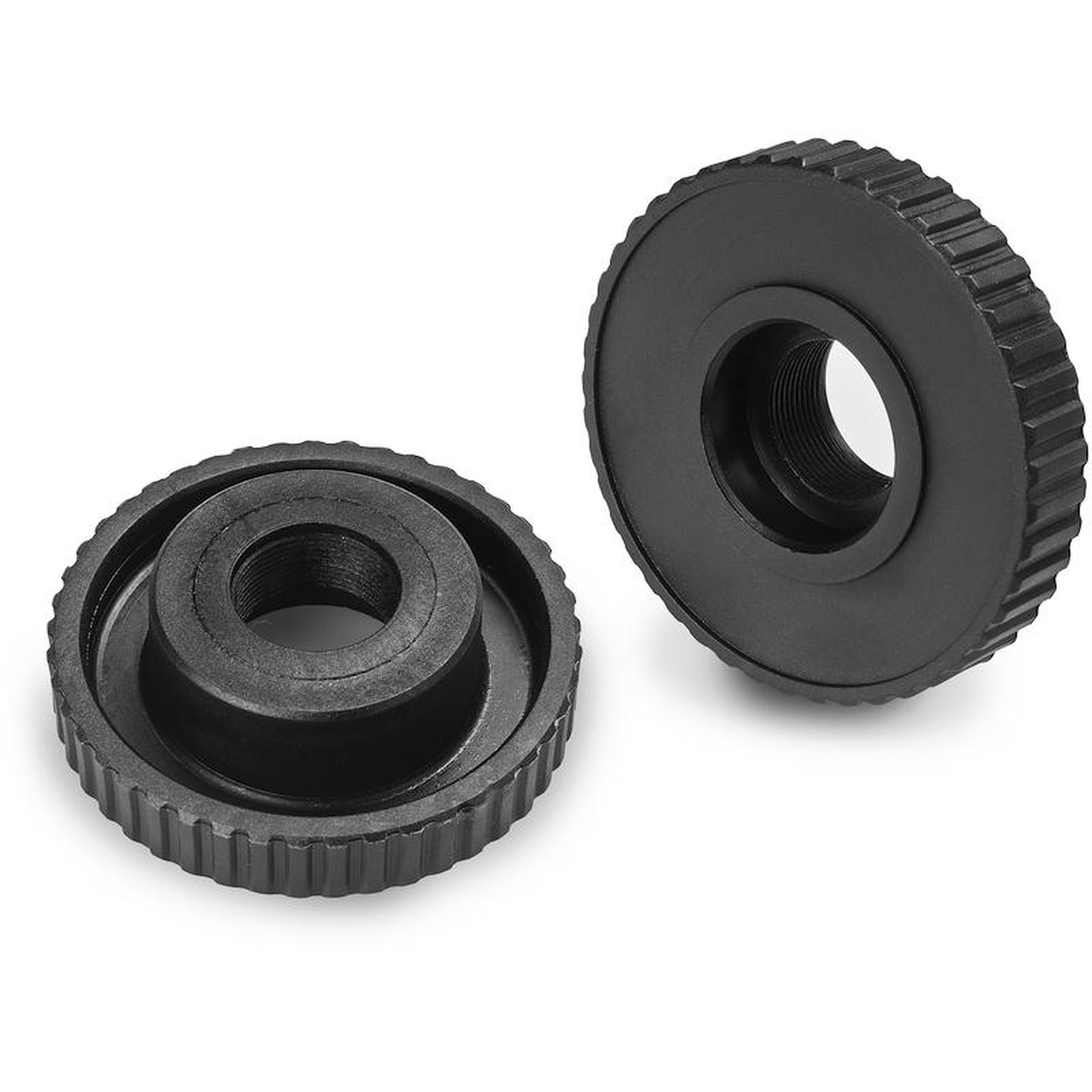

KNURLED WASHER
17
Q262
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface:
Satin.
Colour:
Black (RAL 9011).
Hole:
Threaded through hole obtained by moulding the plastic (tolerance not applicable).
Special Requests:
Upon request and for special quantities hole d1 can be supplied to customer’s drawing.

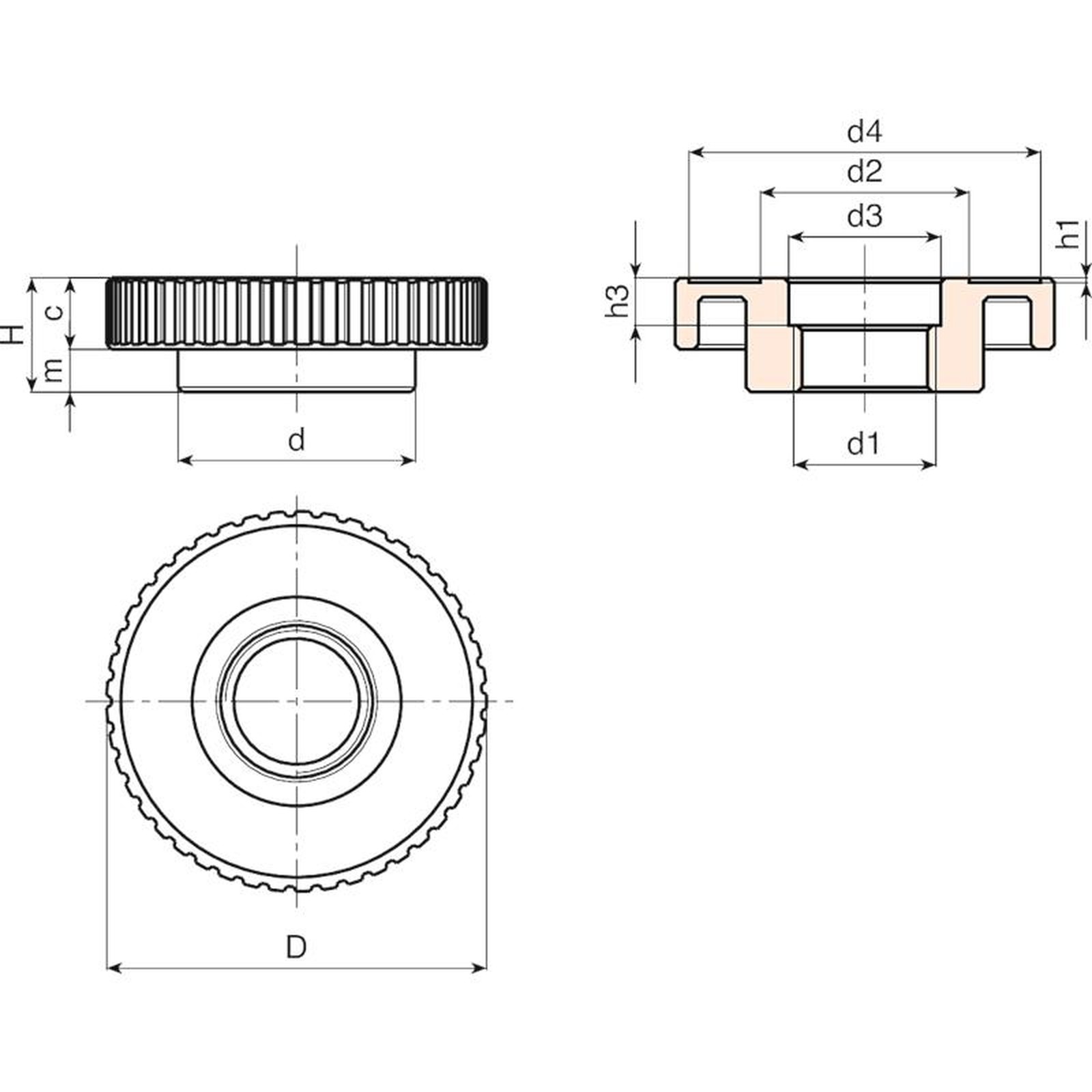

| Code | art. | D | H | d | c | m | h1 | h3 | d2 | d3 | d4 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Q26280.0002 | Q26280.TB3001P | 81 | 24 | 50 | 14.5 | 9.5 | 1 | 10 | 43.5 | 32 | 74 | M30x1,5 | 65 |
