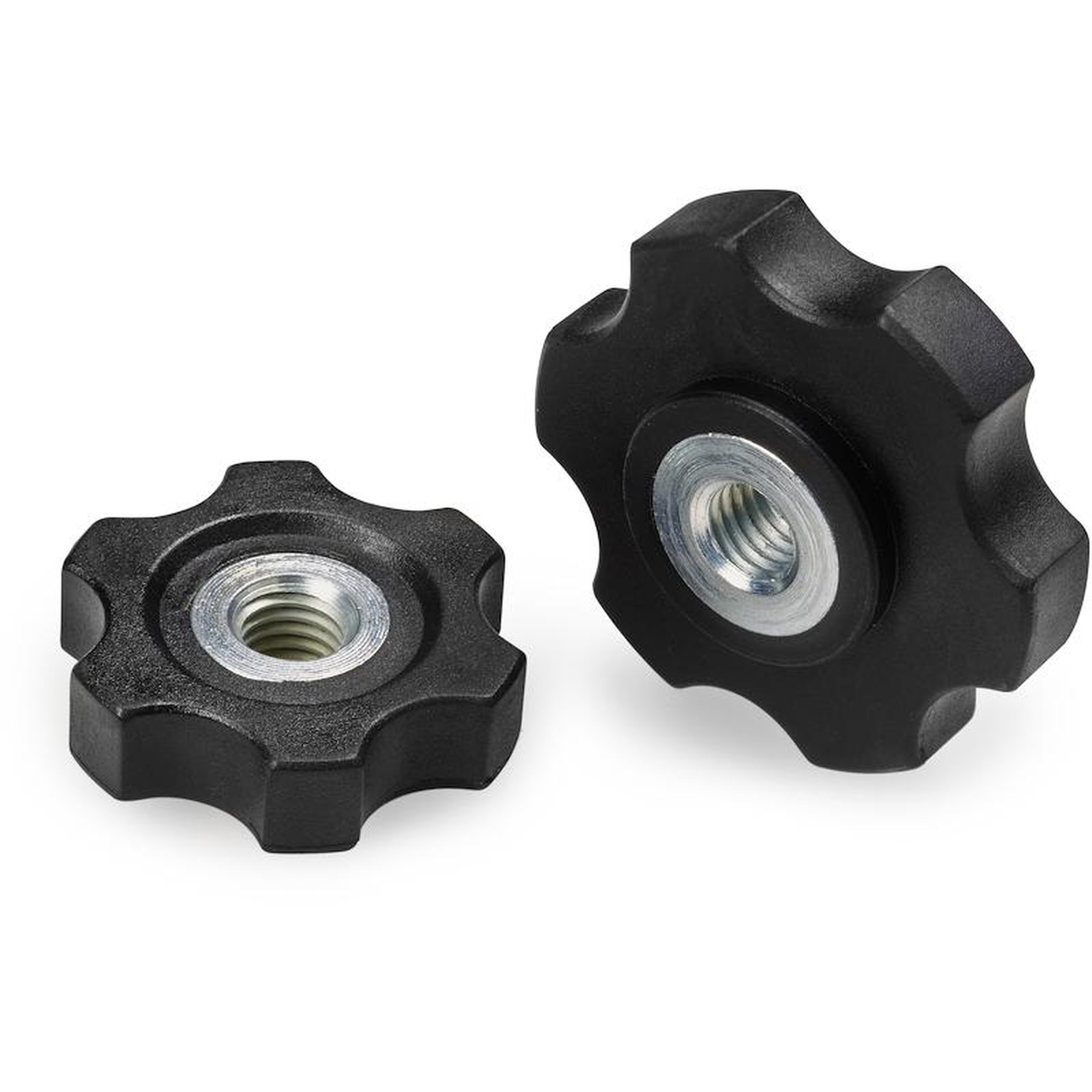

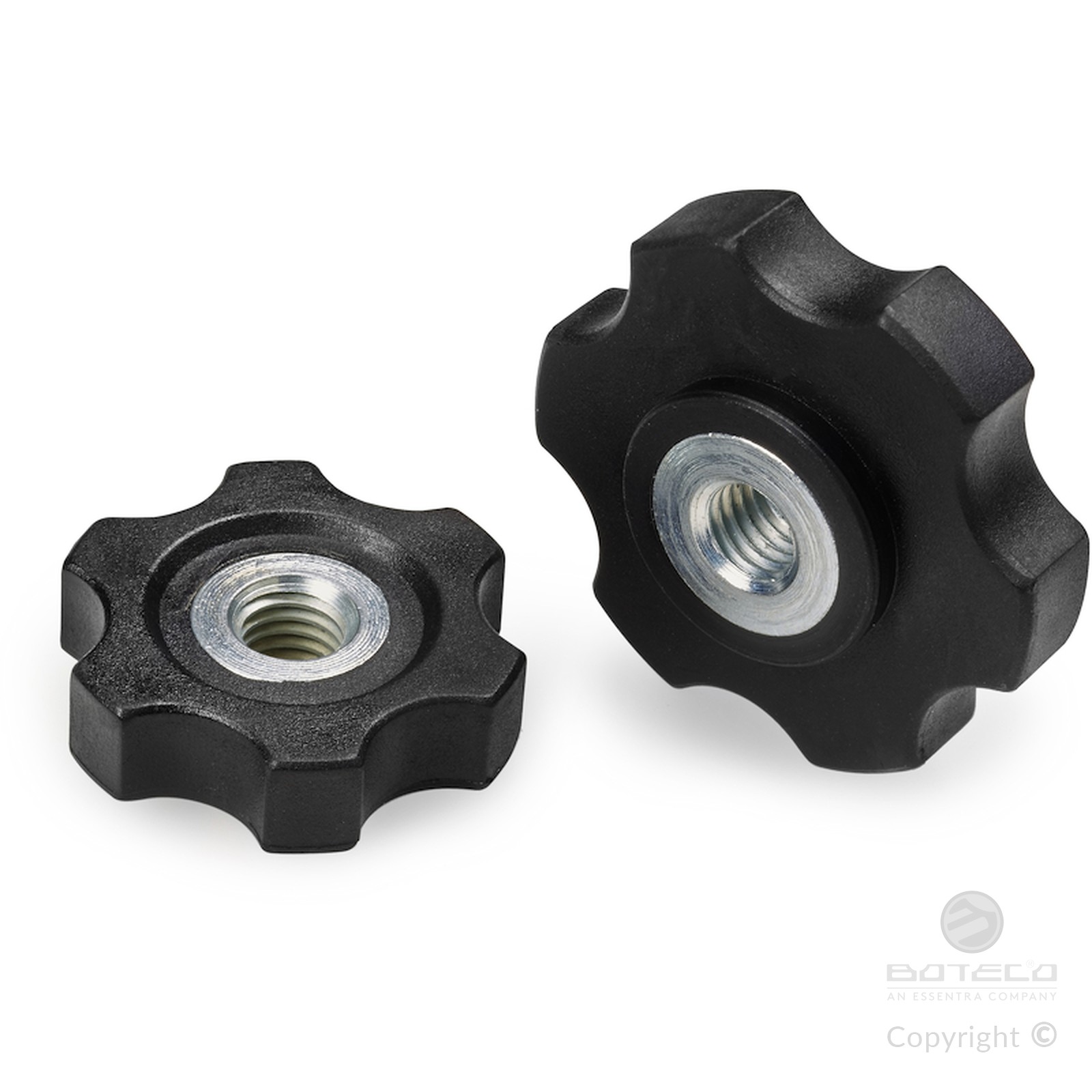

LOBED WASHER
17
Q261
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with threaded through hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

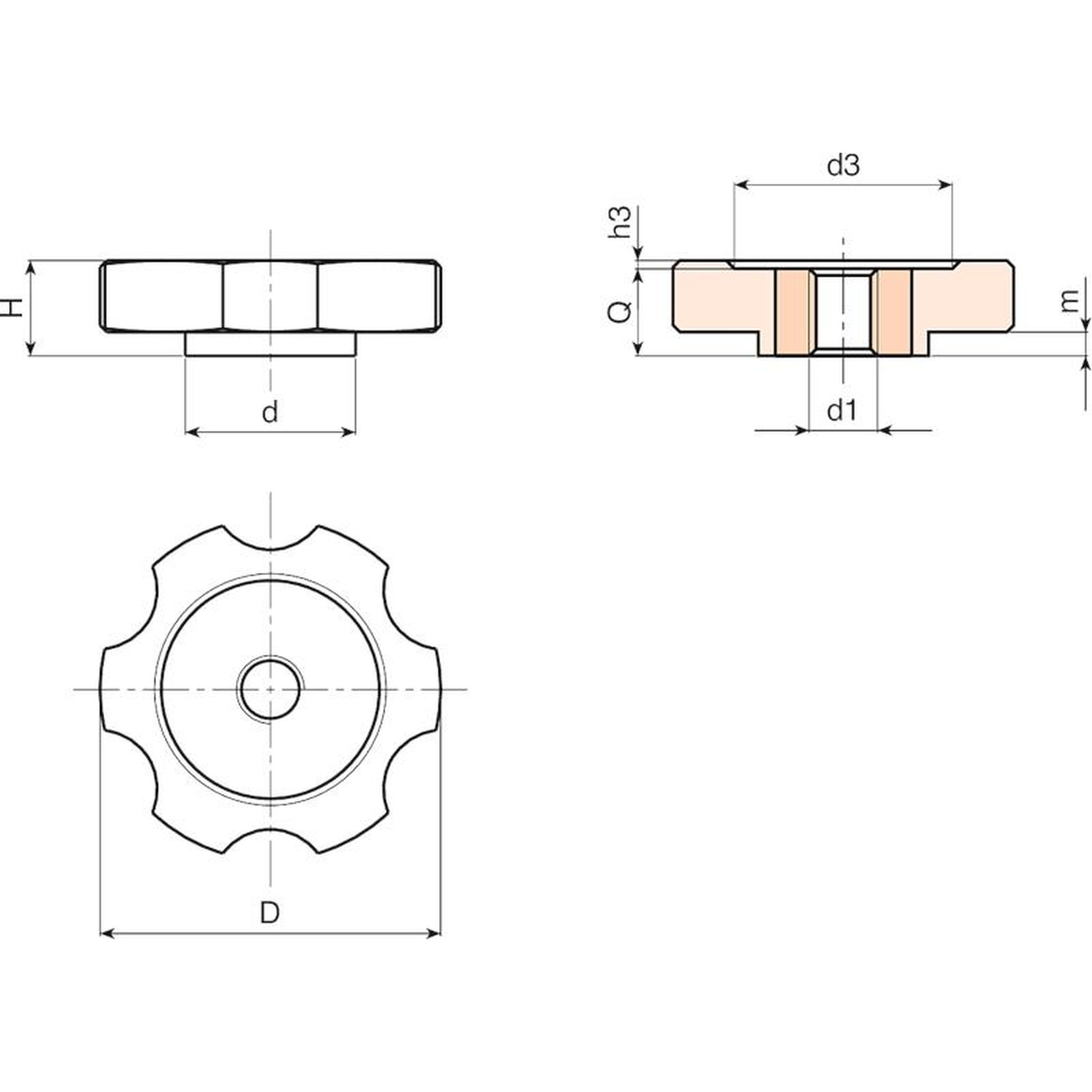

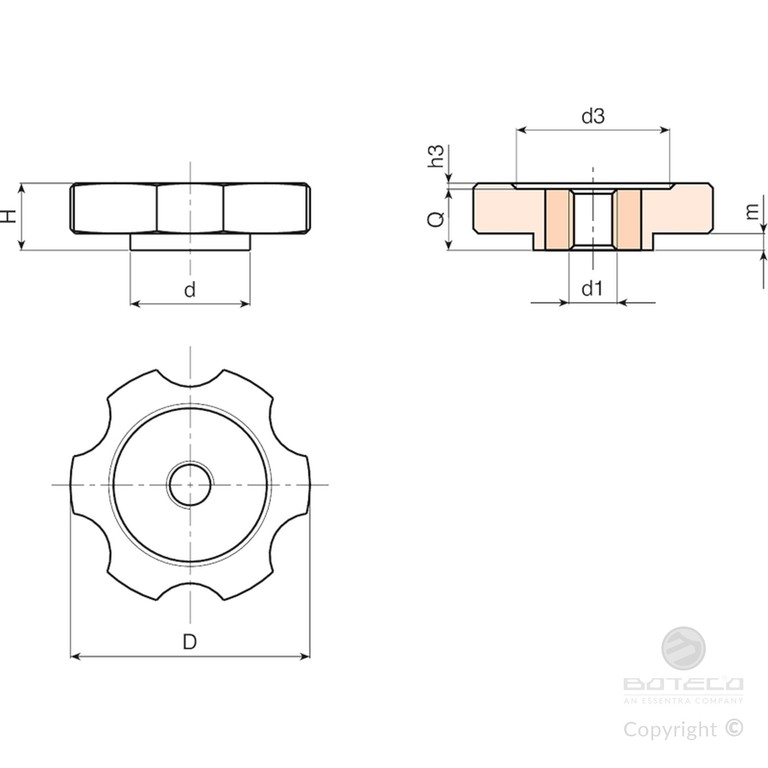

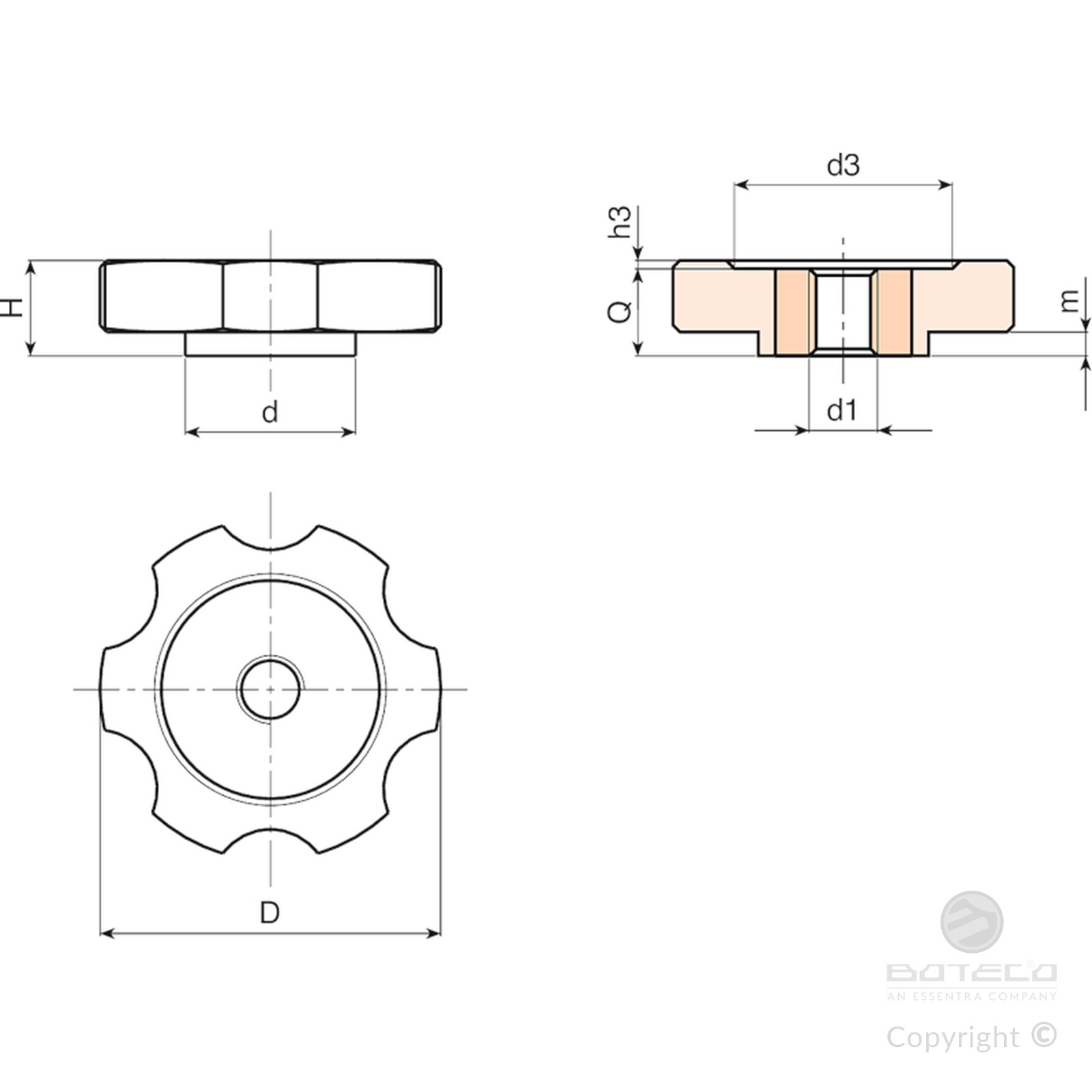

| Code | art. | D | H | d | m | h3 | d3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| Q26140.0003 | Q26140.TM0801P | 40,5 | 12 | 25 | 1,5 | 1.5 | 22 | M8 | 10,5 | 21 |
| Q26140.0005 | Q26140.TM1001P | 40,5 | 12 | 25 | 1,5 | 1.5 | 22 | M10 | 10,5 | 22 |
| Q26140.0007 | Q26140.TM1201P | 40,5 | 12 | 25 | 1,5 | 1.5 | 22 | M12 | 10,5 | 24 |
| Q26150.0001 | Q26150.TM0801P | 50 | 14 | 25 | 3.5 | 1.5 | 32 | M8 | 13 | 31 |
| Q26150.0002 | Q26150.TM1001P | 50 | 14 | 25 | 3.5 | 1.5 | 32 | M10 | 13 | 32 |
| Q26150.0003 | Q26150.TM1201P | 50 | 14 | 25 | 3.5 | 1.5 | 32 | M12 | 13 | 35 |
