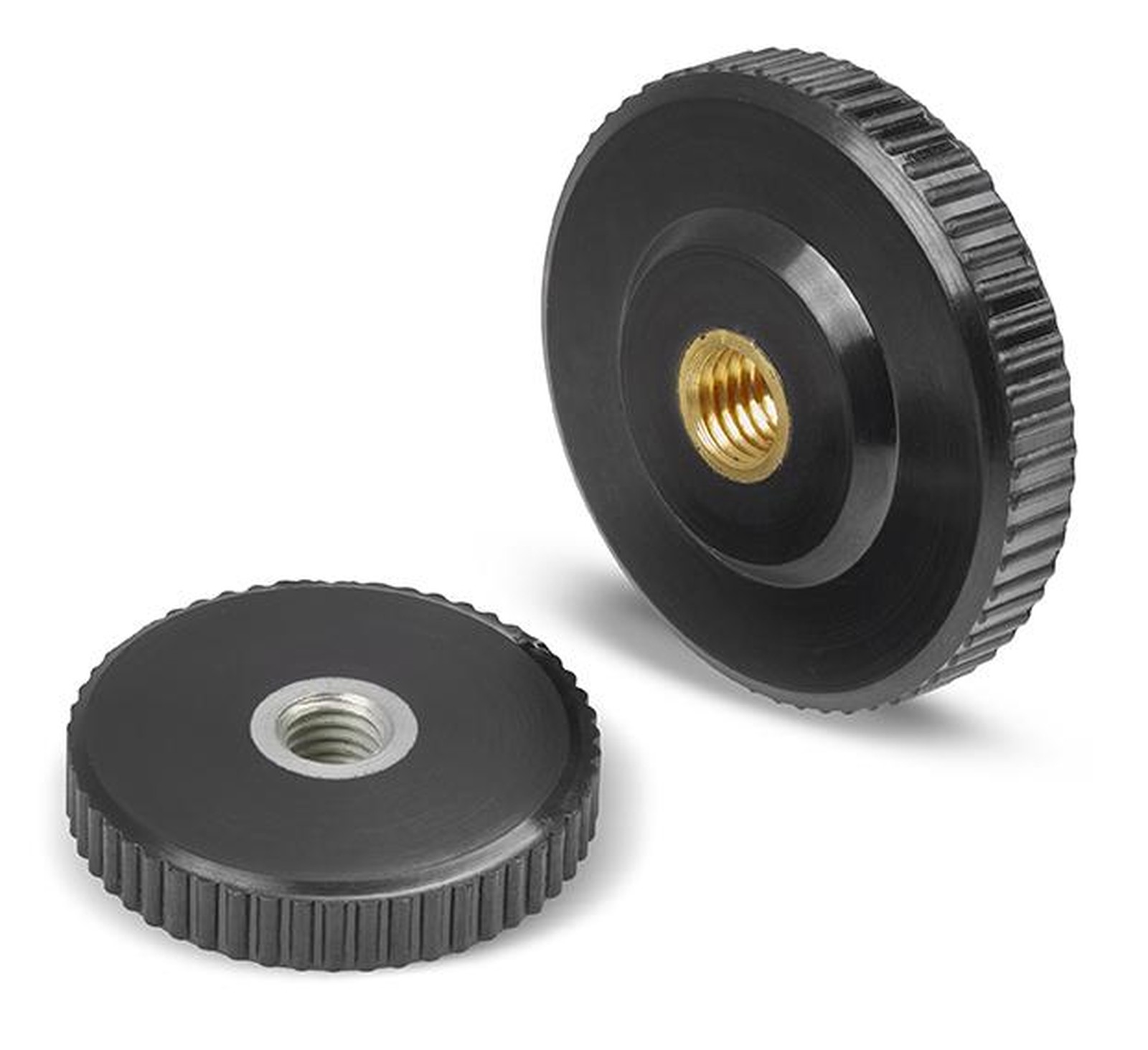

KNURLED WASHER
17
Q260
Materials:
Phenolic resin.
Resistant to oils and greases.
Resistant to high temperatures.
Surface:
Glossy.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with threaded through hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.

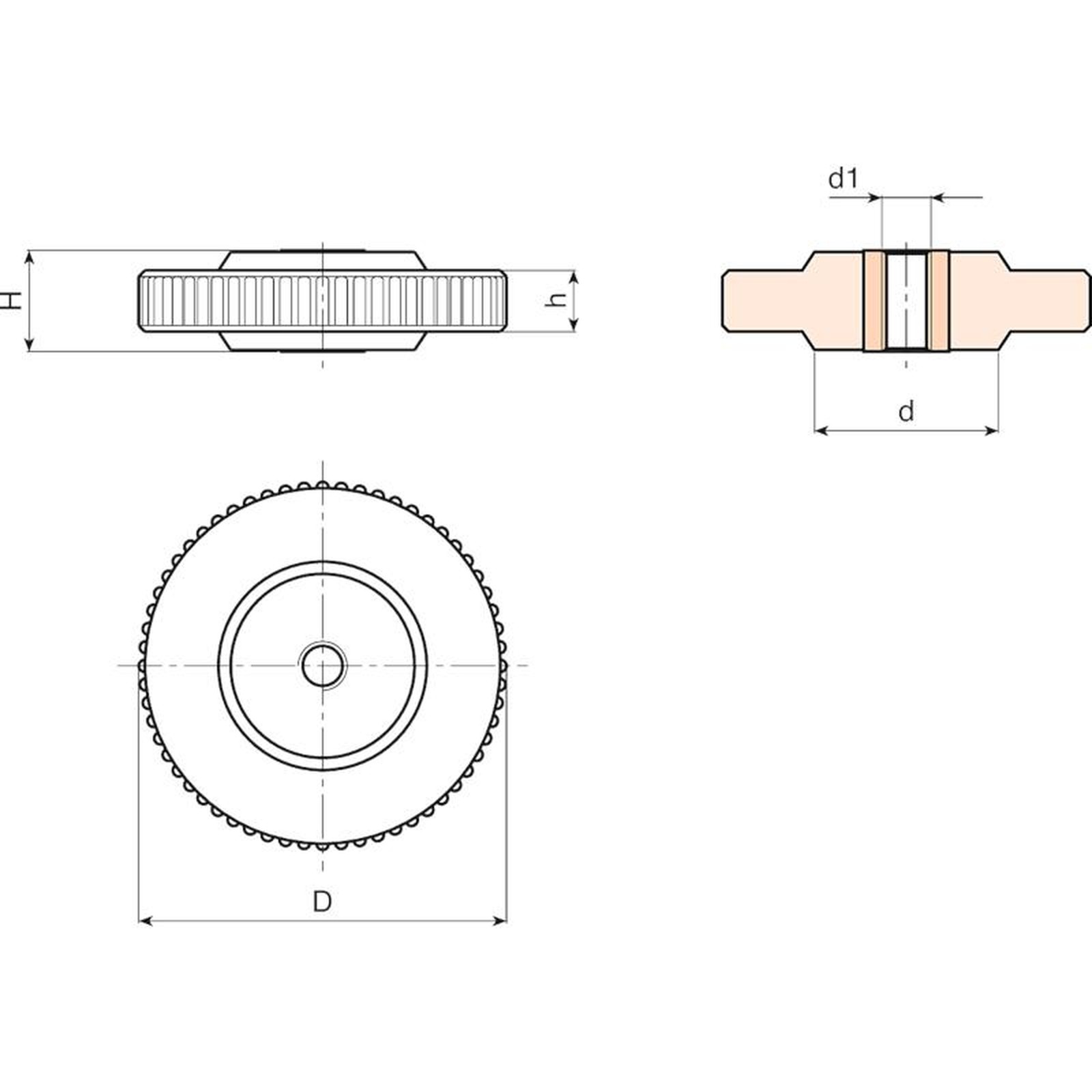

| Code | art. | D | H | d | h | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|
| Q26045.0001 | Q26045.BM0601P | 47 | 10 | - | - | M6 | 31 |
| Q26045.0003 | Q26045.BM0801P | 47 | 10 | - | - | M8 | 32 |
| Q26045.0005 | Q26045.BM1001P | 47 | 10 | - | - | M10 | 34 |
| Q26045.0006 | Q26045.BM1201P | 47 | 10 | - | - | M12 | 35 |
| Q26045.0007 | Q26045.BM1401P | 47 | 10 | - | - | M14 | 38 |
| Q26045.0008 | Q26045.BM1601P | 47 | 10 | - | - | M16 | 42 |
| Q26060.0001 | Q26060.BM0801P | 60 | 16 | 30 | 11 | M8 | 62 |
| Q26060.0002 | Q26060.BM1001P | 60 | 16 | 30 | 11 | M10 | 65 |
| Q26060.0003 | Q26060.BM1201P | 60 | 16 | 30 | 11 | M12 | 68 |
| Q26060.0005 | Q26060.BM1401P | 60 | 16 | 30 | 11 | M14 | 70 |
| Q26060.0006 | Q26060.BM1601P | 60 | 16 | 30 | 11 | M16 | 73 |
