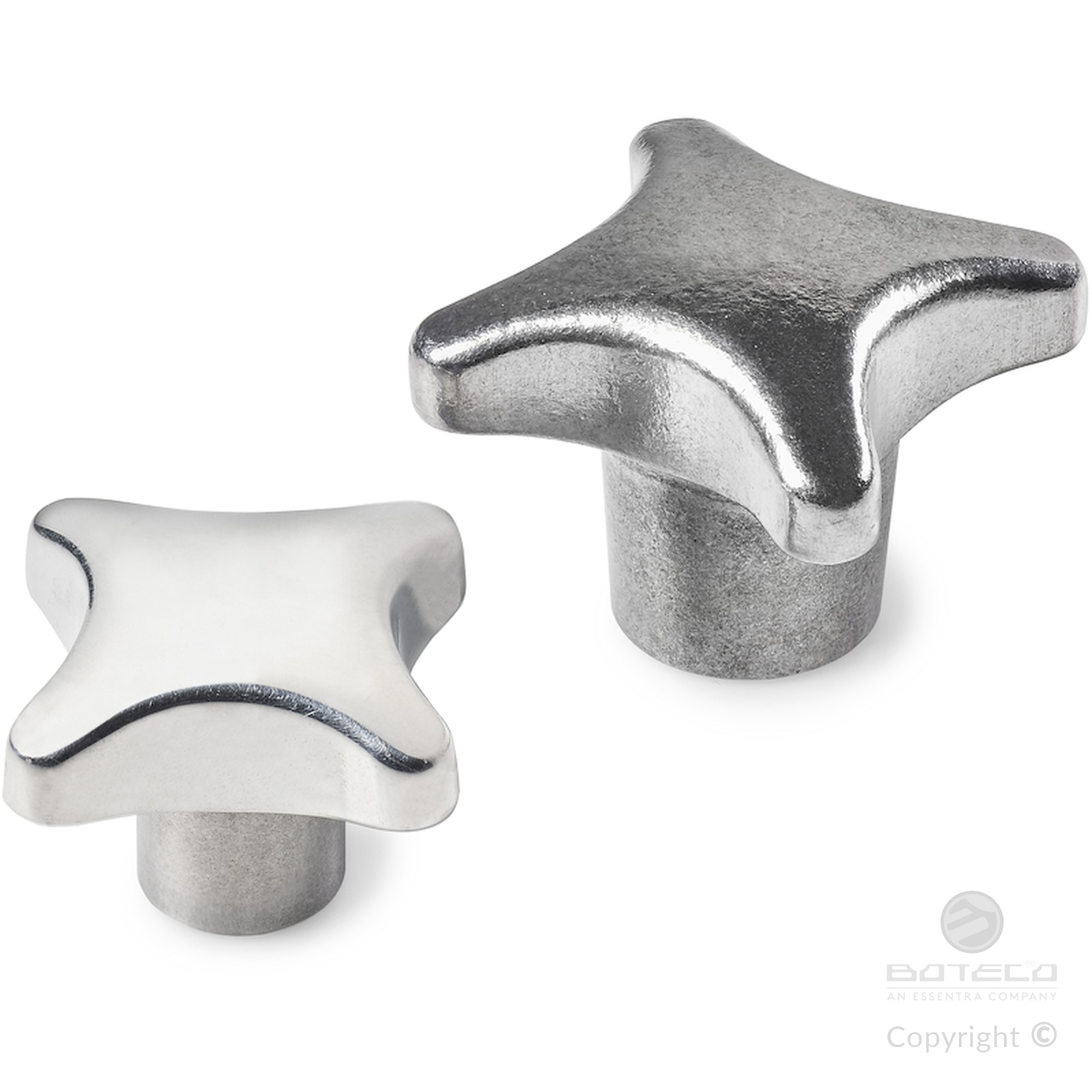

DIN 6335 - E DESIGN - ALUMINIUM CROSS HANDWHEEL
06
Y335
Volantini e Leve DIN
Materials:
Aluminium alloy.
Surface finish:
Smooth, turned.
Y335:
Tumbled then electrolytically finished surface.
Y335L:
Mirror polished surface finish.
Colour:
Natural.
Hole:
Female threaded hole (thread tolerance 6H).
Special requests:
None.
Version Y335: Tumbled surface finish

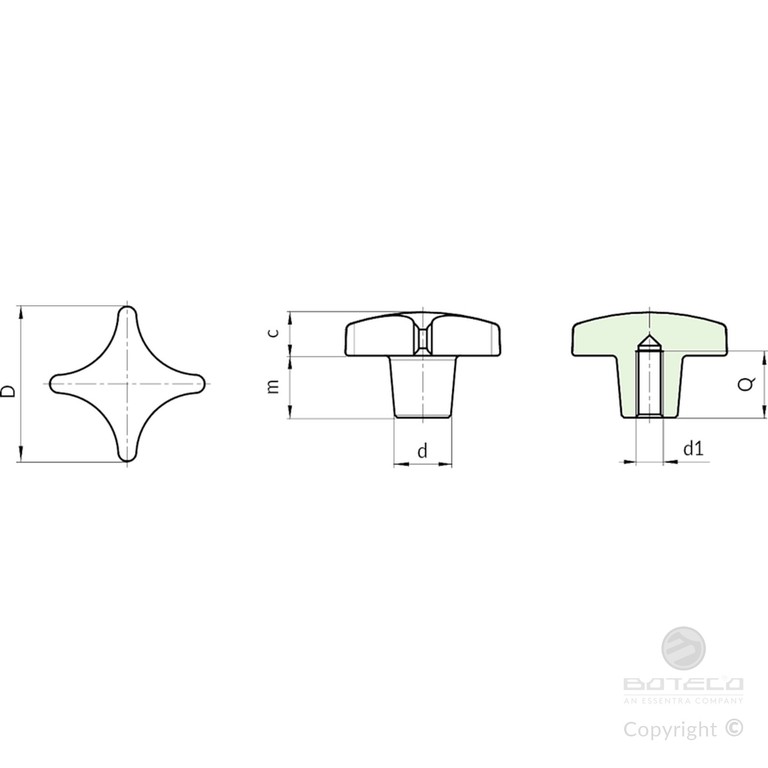

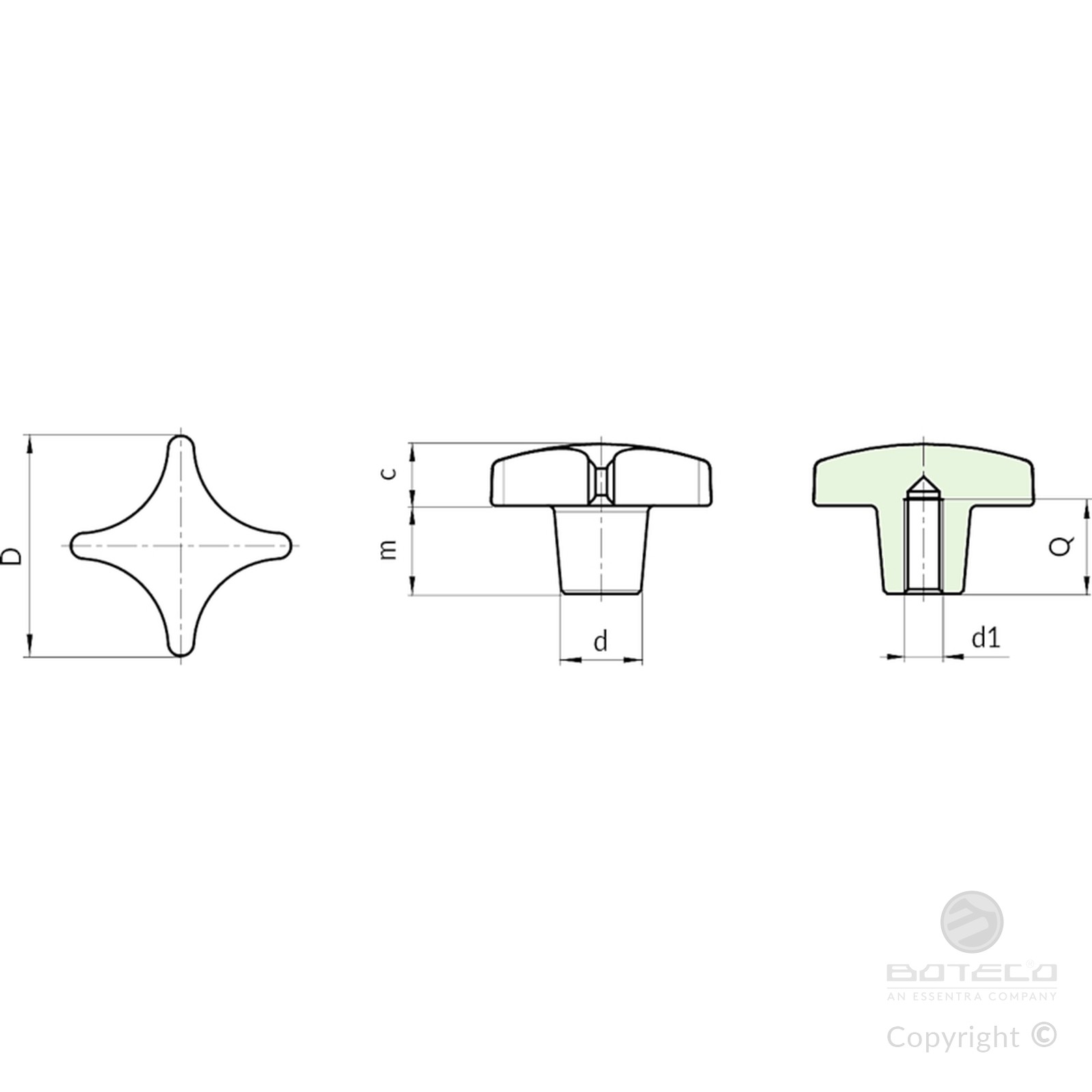

| Code | Art. | D | d | H | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| Y335040.0001 | Y335040.AM08 | 40 | 14 | 25 | 14 | 11 | M8 | 15 | 25 |
| Y335050.0001 | Y335050.AM10 | 50 | 18 | 32 | 20 | 12 | M10 | 18 | 40 |
| Y335063.0001 | Y335063.AM12 | 63 | 20 | 40 | 25 | 15 | M12 | 22 | 90 |
| Y335080.0001 | Y335080.AM16 | 80 | 25 | 50 | 30 | 20 | M16 | 28 | 180 |
Version Y335 L: Mirror polished surface finish
| Code | Art. | D | d | H | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| Y335040.0002 | Y335040.AM08L | 40 | 14 | 25 | 14 | 11 | M8 | 15 | 25 |
| Y335050.0002 | Y335050.AM10L | 50 | 18 | 32 | 20 | 12 | M10 | 18 | 40 |
| Y335063.0002 | Y335063.AM12L | 63 | 20 | 40 | 25 | 15 | M12 | 22 | 90 |
| Y335080.0002 | Y335080.AM16L | 80 | 25 | 50 | 30 | 20 | M16 | 28 | 180 |
| Y336063.0004 | Y336063.AM12L | 63 | 20 | 40 | 21 | 19 | M12 | 22 | 107 |
