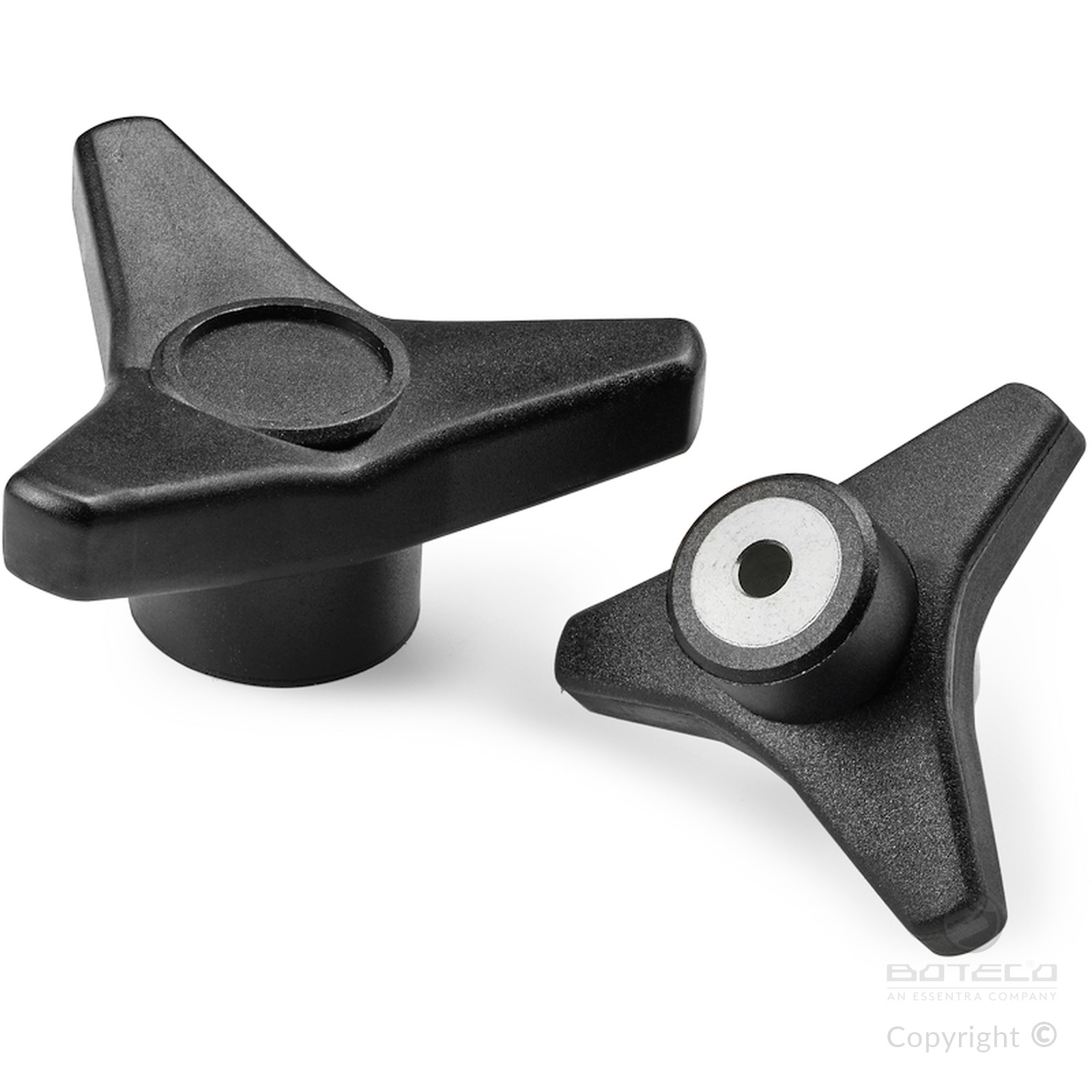

3-LOBE SOLID HANDWHEEL WITH INSERT AND SMOOTH BORE
06
F662
Volantini a 3 lobi
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel insert with blind smooth bore (bore tolerance H10).
Special Requests:
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

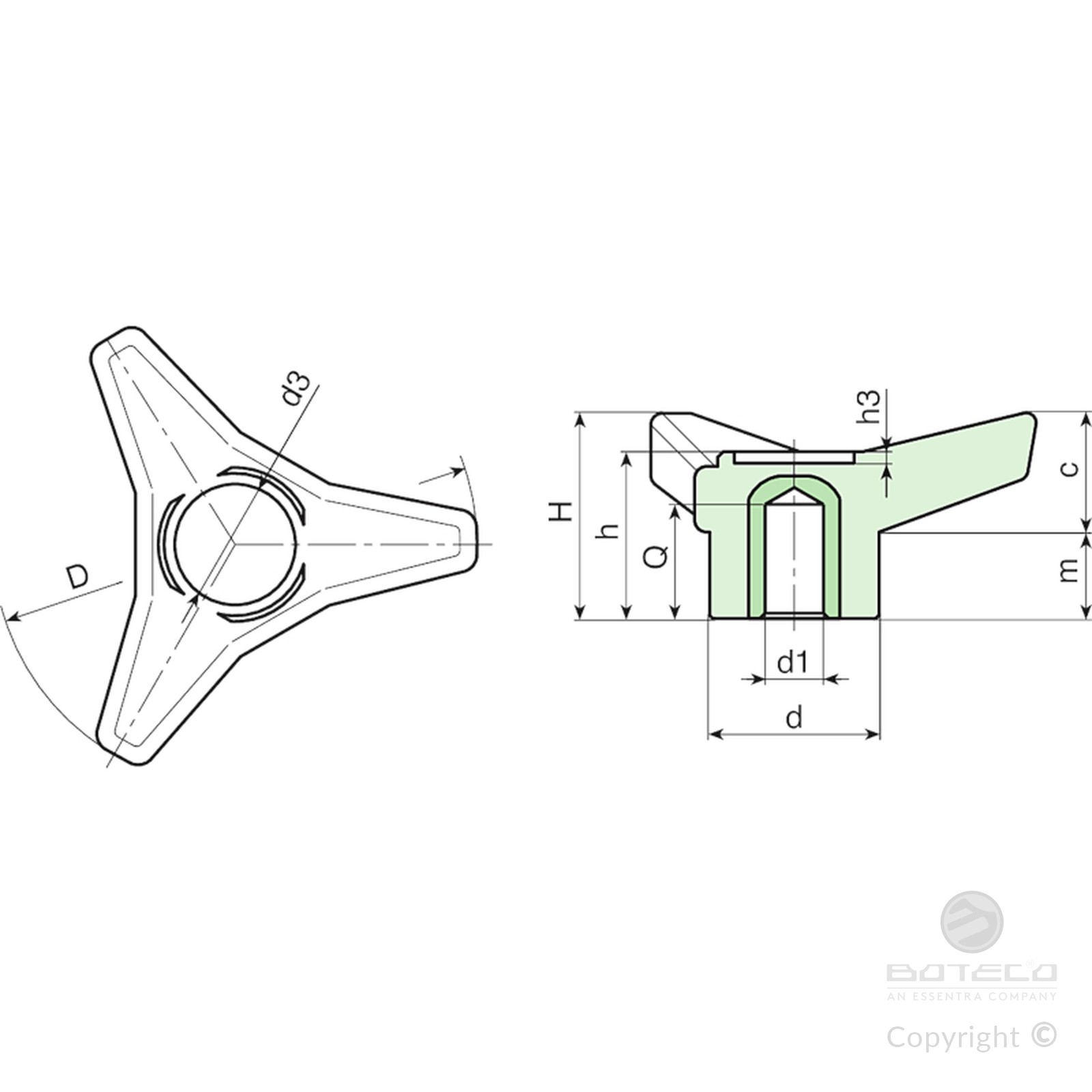

Code | Art. | D | H | h | d | c | m | d3 | h3 | dm | d1 H10 | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
F662045.0001 | F662045.TD0601 | 45 | 21 | 18 | 16 | 11 | 10 | 11 | 1 | - | 6 | 8 | 14 |
F662065.0004 | F662065.TD0501 | 65 | 28 | 23.5 | 22 | 16.5 | 11.5 | 15.5 | 1.5 | 10 | 5 | 13 | 36 |
F662065.0003 | F662065.TD1001 | 65 | 28 | 23.5 | 22 | 16.5 | 11.5 | 15.5 | 1.5 | 10 | 10 | 13 | 34 |
F662085.0001 | F662085.TD0501 | 85 | 37 | 30.5 | 30 | 21 | 16 | 21 | 2 | 16 | 5 | 19 | 112 |
F662085.0004 | F662085.TD1001 | 85 | 37 | 30.5 | 30 | 21 | 16 | 21 | 2 | 16 | 10 | 19 | 110 |
F662085.0005 | F662085.TD1201 | 85 | 37 | 30.5 | 30 | 21 | 16 | 21 | 2 | 16 | 12 | 19 | 110 |
F662085.0006 | F662085.TD1401 | 85 | 37 | 30.5 | 30 | 21 | 16 | 21 | 2 | 16 | 14 | 19 | 110 |
F662105.0001 | F662105.TD0501 | 105 | 45 | 37 | 35 | 26 | 19 | 25 | 2 | 18 | 5 | 24 | 126 |
F662105.0005 | F662105.TD1201 | 105 | 45 | 37 | 35 | 26 | 19 | 25 | 2 | 18 | 12 | 24 | 98 |
F662105.0006 | F662105.TD1401 | 105 | 45 | 37 | 35 | 26 | 19 | 25 | 2 | 18 | 14 | 24 | 95 |
F662105.0008 | F662105.TD1601 | 105 | 45 | 37 | 35 | 26 | 19 | 25 | 2 | 18 | 16 | 24 | 163 |
F662125.0001 | F662125.TD0801 | 125 | 54 | 45 | 42.5 | 31 | 23 | 28 | 2 | 22 | 8 | 26 | 290 |
Attention: for a minimum of 50 pieces the diameter d1 can be produced with the requested dimensions with H10 tolerance.
Dm = Maximum obtainable diameter for subsequent machining (widening).
