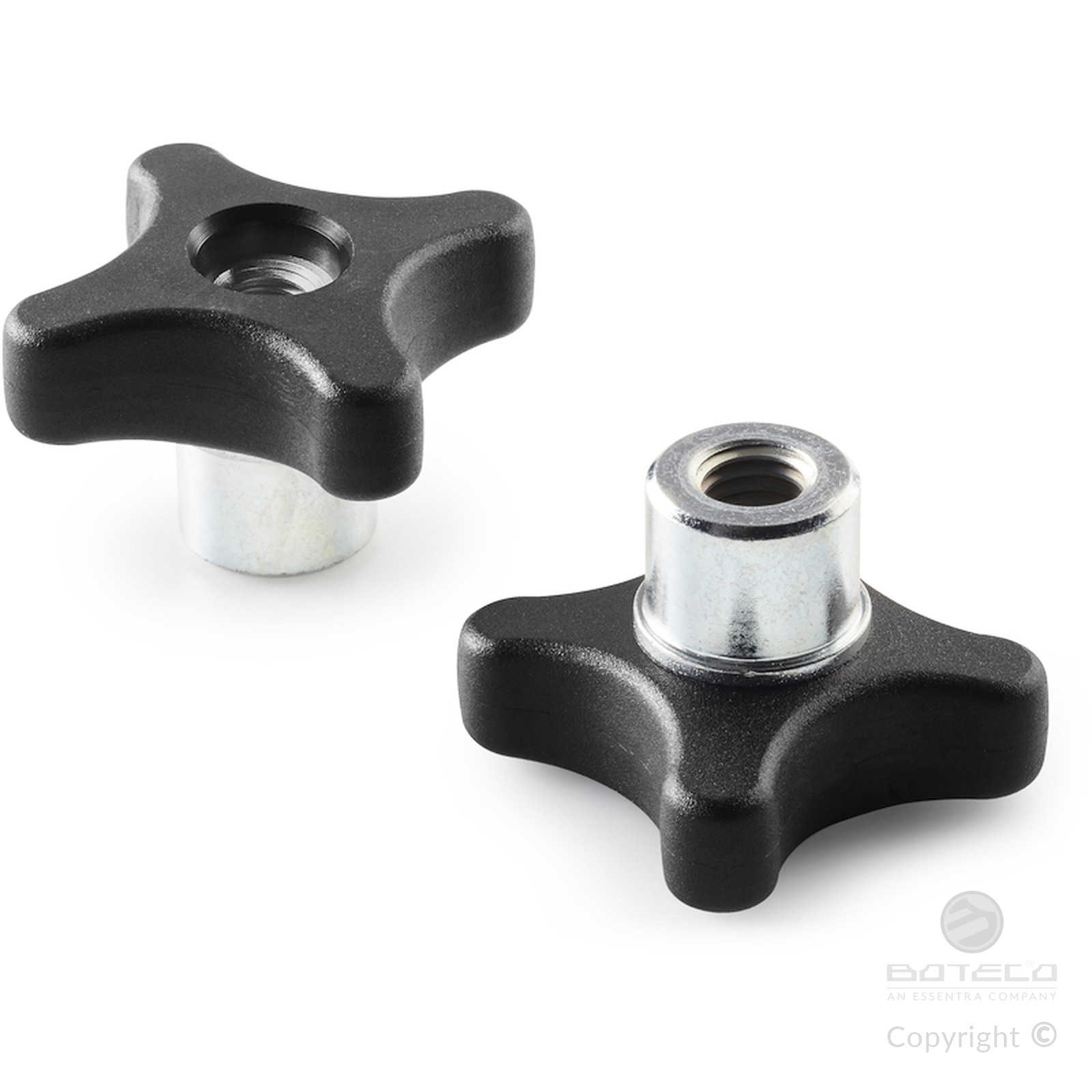

STAR HANDWHEEL WITH STEEL HUB AND THREADED THROUGH HOLE
06
F288
Volantini a croce
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
F288:
Galvanised steel insert with threaded through hole (thread tolerance 6H).
F288PIN:
Stainless steel insert with threaded through hole (Aisi 303) (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).
Version F288: Galvanised steel hub.

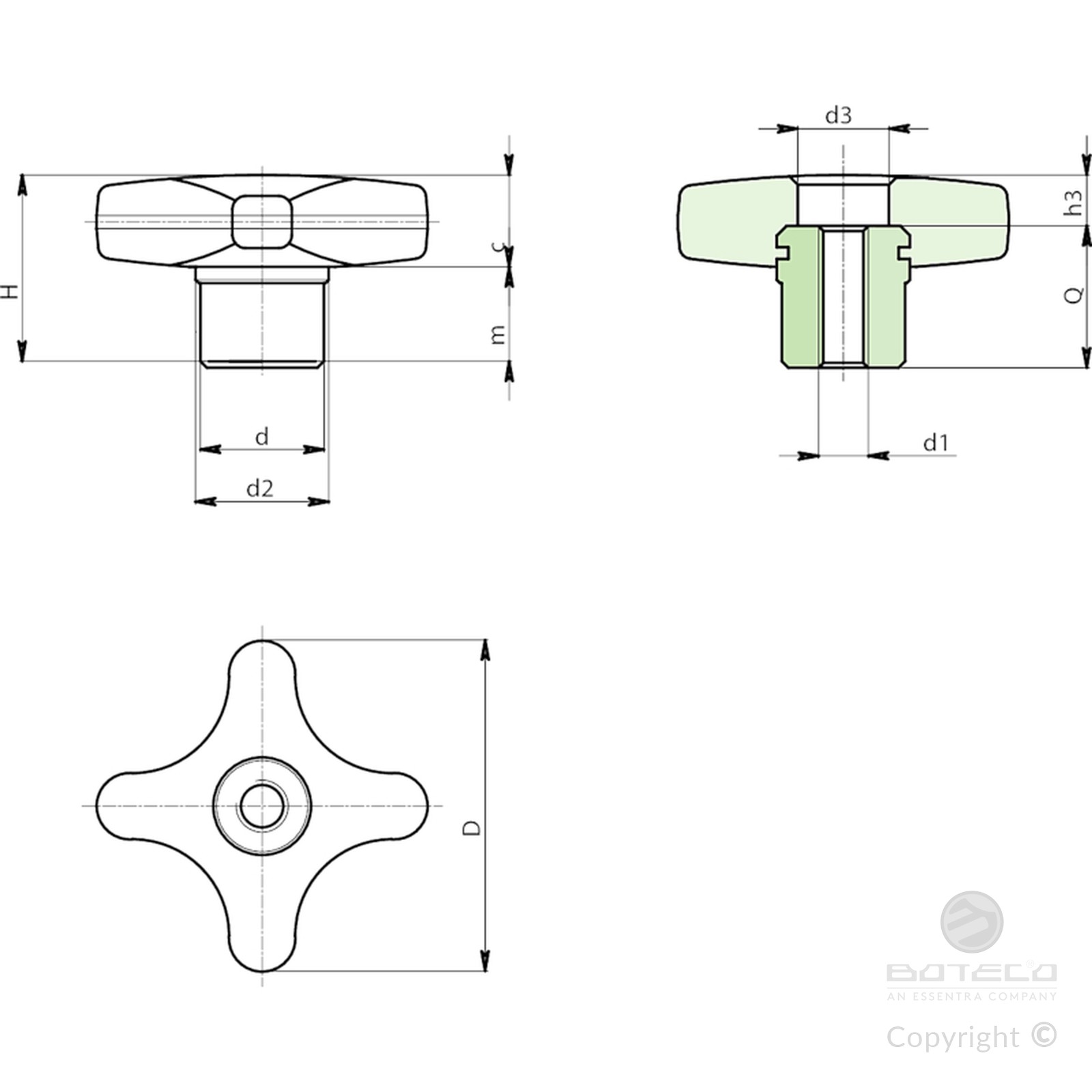

| Code | Art. | D | d | d2 | d3 | H | h3 | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F28832.0001 | F28832.TM0601 | 32 | 13 | 15 | 8 | 22 | 4 | 11 | 11 | M6 | 18 | 21 |
| F28840.0001 | F28840.TM0801 | 40 | 14 | 16 | 11 | 24 | 6 | 12 | 12 | M8 | 18 | 28 |
| F28850.0001 | F28850.TM1001 | 50 | 18 | 20 | 14 | 29 | 7 | 15 | 14 | M10 | 22 | 49 |
| F28860.0001 | F28860.TM1201 | 60 | 20 | 24 | 16 | 34 | 6 | 18 | 16 | M12 | 28 | 81 |
Version F288 PIN: Stainless steel hub (Aisi 303).
| Code | Art. | D | d | d2 | d3 | H | h3 | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F28832.0002 | F28832.TM0601PIN | 32 | 13 | 15 | 8 | 22 | 4 | 11 | 11 | M6 | 18 | 21 |
| F28840.0002 | F28840.TM0801PIN | 40 | 14 | 16 | 11 | 24 | 6 | 12 | 12 | M8 | 18 | 28 |
| F28850.0002 | F28850.TM1001PIN | 50 | 18 | 20 | 14 | 29 | 7 | 15 | 14 | M10 | 22 | 49 |
| F28860.0002 | F28860.TM1201PIN | 60 | 20 | 24 | 16 | 34 | 6 | 18 | 16 | M12 | 28 | 81 |
