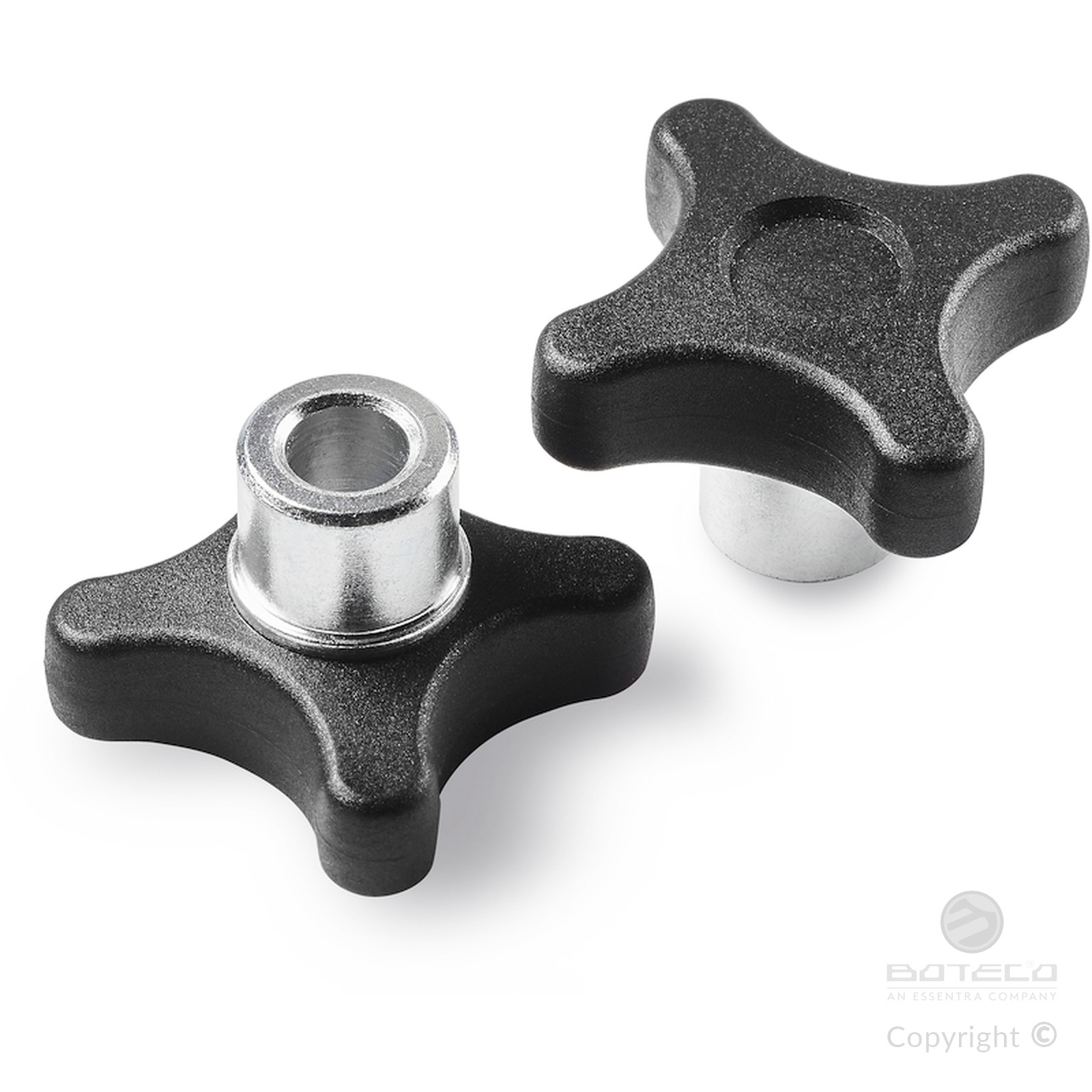

STAR HANDWHEEL WITH STEEL HUB AND SMOOTH BORE
06
F287
Volantini a croce
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
F287:
Galvanised steel insert with blind smooth bore (bore tolerance H9).
F287CIN:
Galvanised steel insert with blind smooth bore (Aisi 303) (bore tolerance H9).
Special requests:
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).
Version F287: Galvanised steel hub.

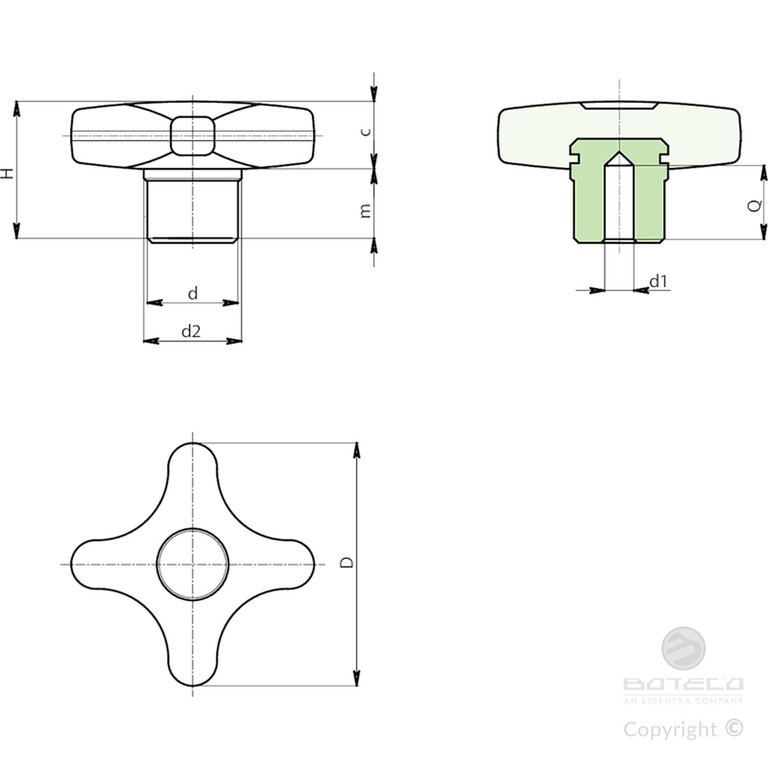

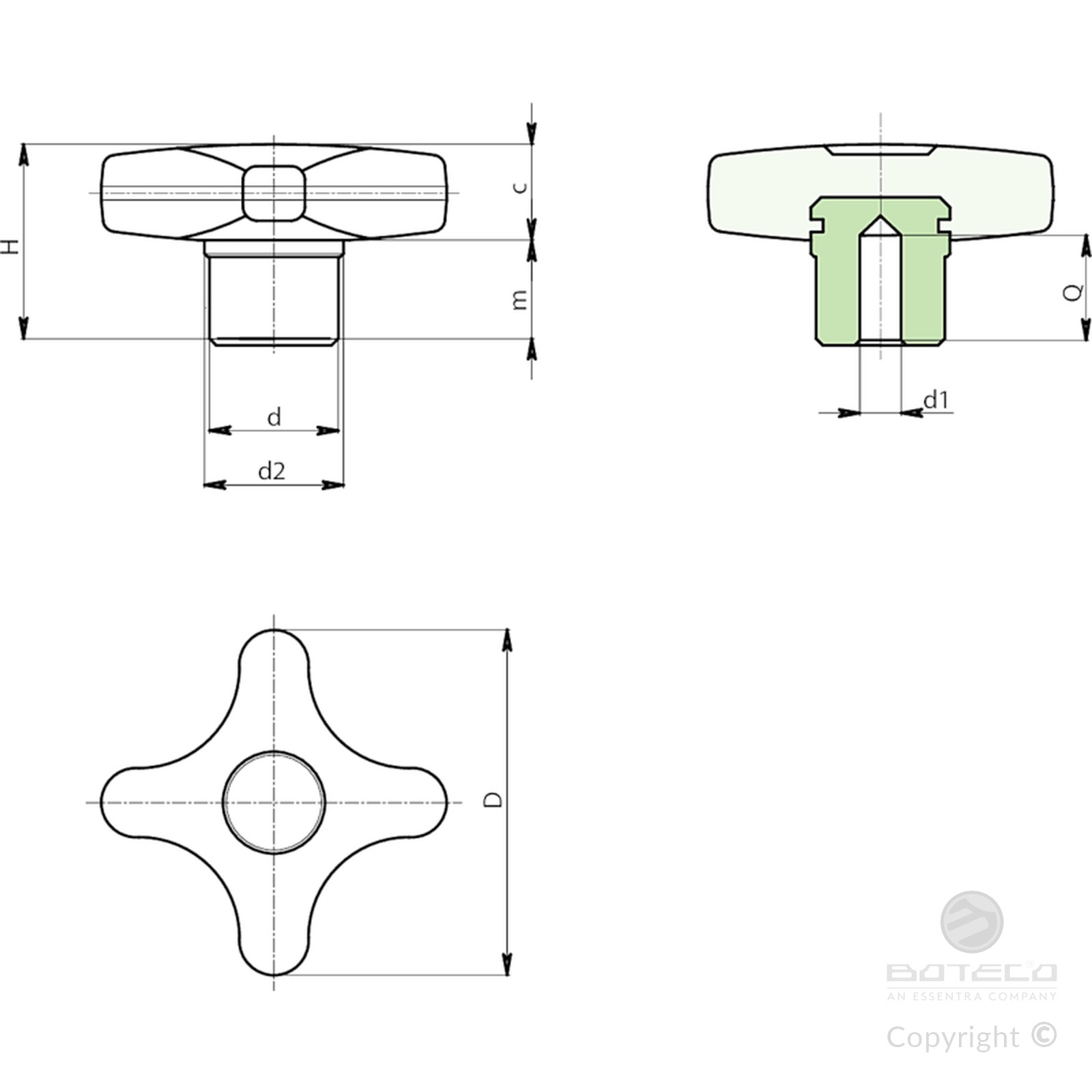

| Code | Art. | D | d | d2 | H | m | c | d1 H9 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| F28732.0002 | F28732.TD0601 | 32 | 13 | 15 | 22 | 11 | 11 | 6 | 12 | 24 |
| F28740.0001 | F28740.TD0801 | 40 | 14 | 16 | 24 | 12 | 12 | 8 | 14 | 35 |
| F28750.0001 | F28750.TD1001 | 50 | 18 | 20 | 29 | 15 | 14 | 10 | 16 | 57 |
| F28760.0002 | F28760.TD1201 | 60 | 20 | 24 | 34 | 18 | 16 | 12 | 20 | 85 |
Version F287 CIN: Stainless steel hub (Aisi 303).
| Code | Art. | D | d | d2 | H | m | c | d1 H9 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| F28732.0001 | F28732.TD0601CIN | 32 | 13 | 15 | 22 | 11 | 11 | 6 | 12 | 24 |
| F28740.0002 | F28740.TD0801CIN | 40 | 14 | 16 | 24 | 12 | 12 | 8 | 14 | 35 |
| F28750.0002 | F28750.TD1001CIN | 50 | 18 | 20 | 29 | 15 | 14 | 10 | 16 | 57 |
| F28760.0001 | F28760.TD1201CIN | 60 | 20 | 24 | 34 | 18 | 16 | 12 | 20 | 85 |
