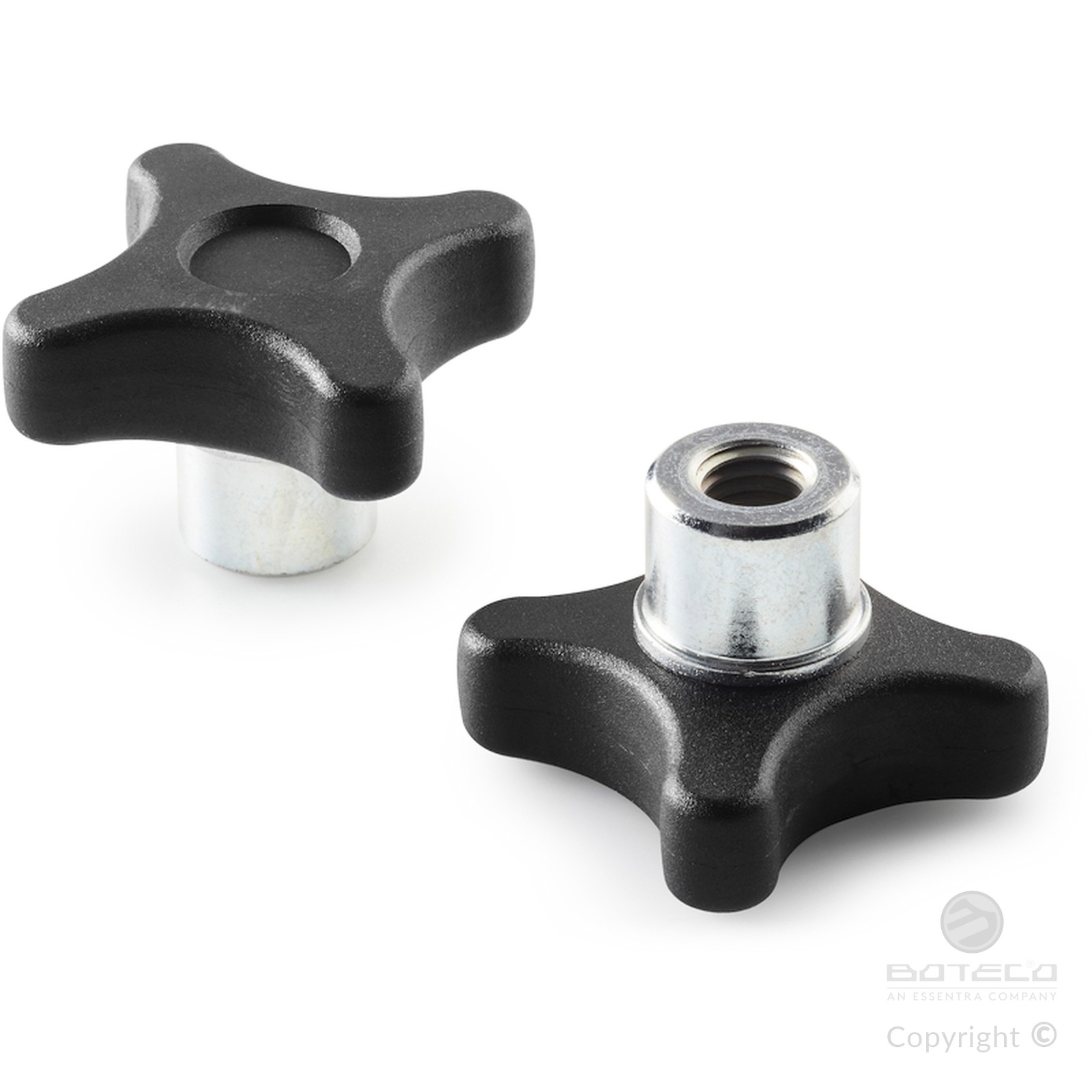

STAR HANDWHEEL WITH STEEL HUB AND THREADED HOLE
06
F286
Volantini a croce
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
F286:
Galvanised steel insert with female threaded hole (thread tolerance 6H).
F286CIN:
Stainless steel insert with female threaded hole (Aisi 303) (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied with custom hole diameter d1.
Upon request and for special quantities available in the colours indicated in the chart on page TitoloTabellaColori .
Version F286: Galvanised steel hub.

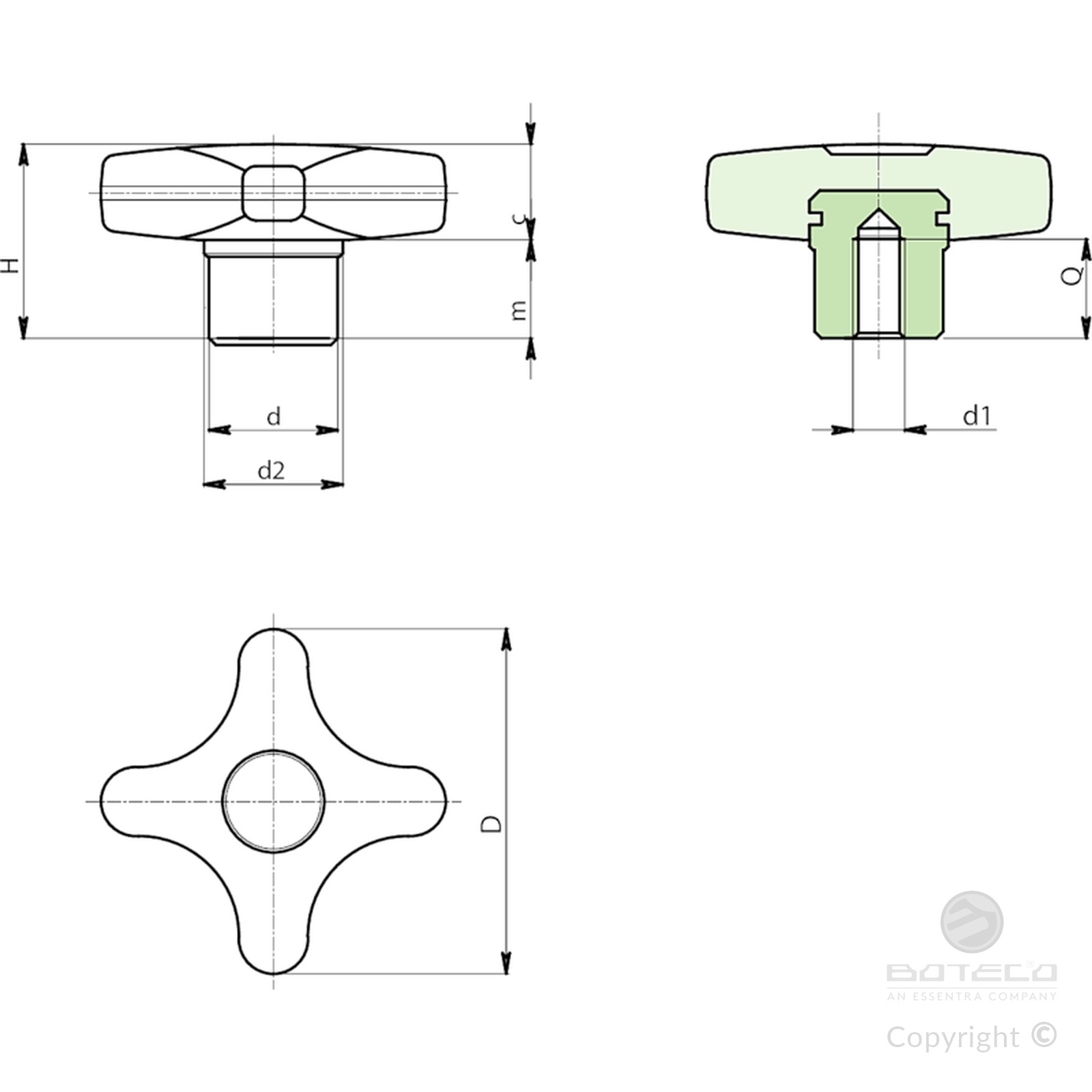

| Code | Art. | D | d | d2 | H | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| F28632.0002 | F28632.TM0601 | 32 | 13 | 15 | 22 | 11 | 11 | M6 | 12 | 23 |
| F28640.0001 | F28640.TM0801 | 40 | 14 | 16 | 24 | 12 | 12 | M8 | 14 | 32 |
| F28650.0001 | F28650.TM1001 | 50 | 18 | 20 | 29 | 15 | 14 | M10 | 16 | 54 |
| F28660.0001 | F28660.TM1201 | 60 | 20 | 24 | 34 | 18 | 16 | M12 | 20 | 90 |
Version F286 CIN: Stainless steel hub (Aisi 303).
| Code | Art. | D | d | d2 | H | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| F28632.0001 | F28632.TM0601CIN | 32 | 13 | 15 | 22 | 11 | 11 | M6 | 12 | 23 |
| F28640.0002 | F28640.TM0801CIN | 40 | 14 | 16 | 24 | 12 | 12 | M8 | 14 | 32 |
| F28650.0002 | F28650.TM1001CIN | 50 | 18 | 20 | 29 | 15 | 14 | M10 | 16 | 54 |
| F28660.0002 | F28660.TM1201CIN | 60 | 20 | 24 | 34 | 18 | 16 | M12 | 20 | 90 |
