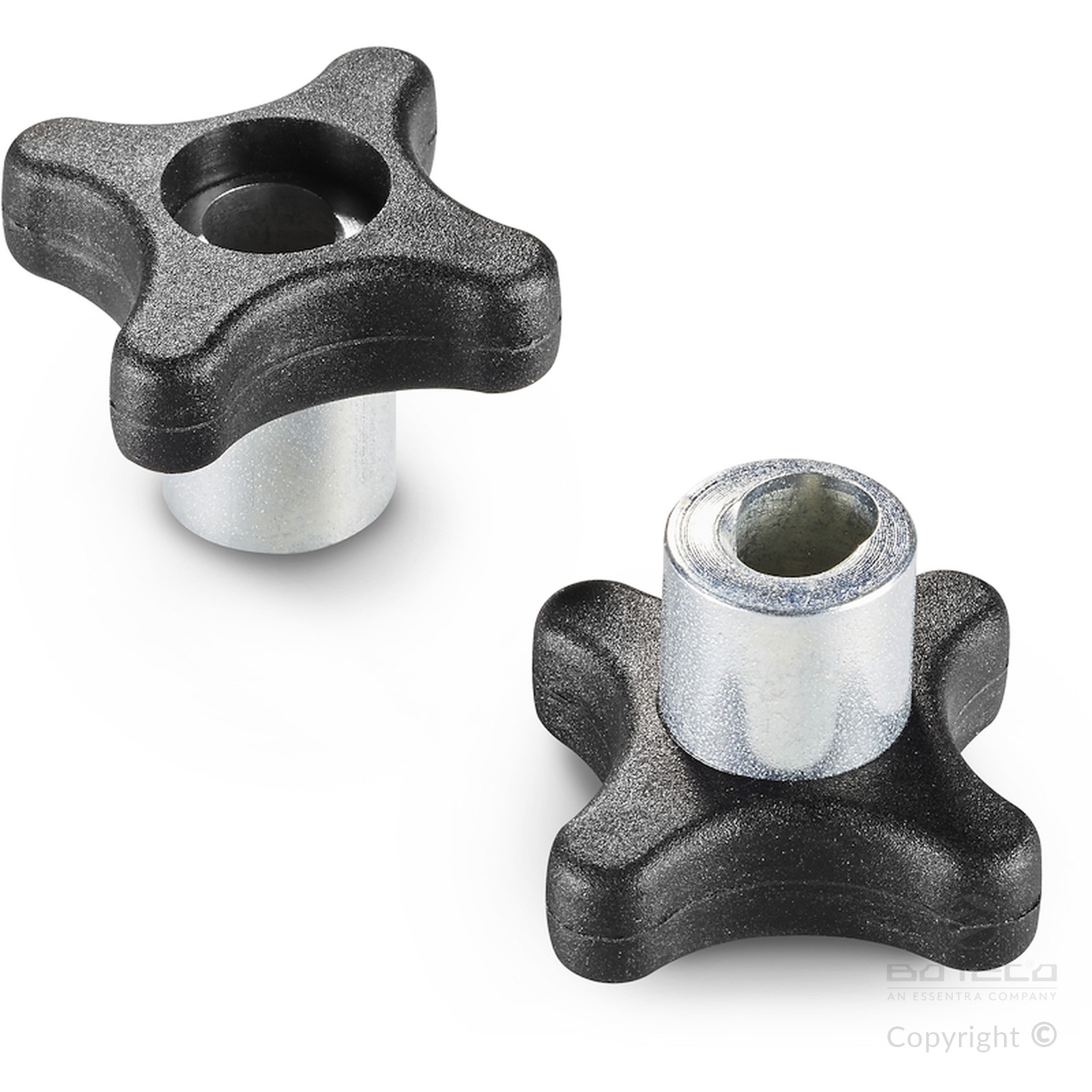

QUICK RELEASE STAR HANDWHEEL WITH STEEL HUB AND THREADED HOLE
06
F271
Volantini a croce
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
F271:
Galvanised steel insert with threaded through hole, with groove for quick release.
F271CIN:
Stainless steel insert (Aisi 303) with threaded through hole, with groove for quick release.
Special Requests:
None.
ATTENTION:
TO GUARANTEE CORRECT OPERATION OF THE QUICK RELEASE HANDWHEEL, THE THREADED STUD MUST HAVE A MINIMUM LENGTH EQUAL TO Q2.
Version F271: Galvanised steel hub.

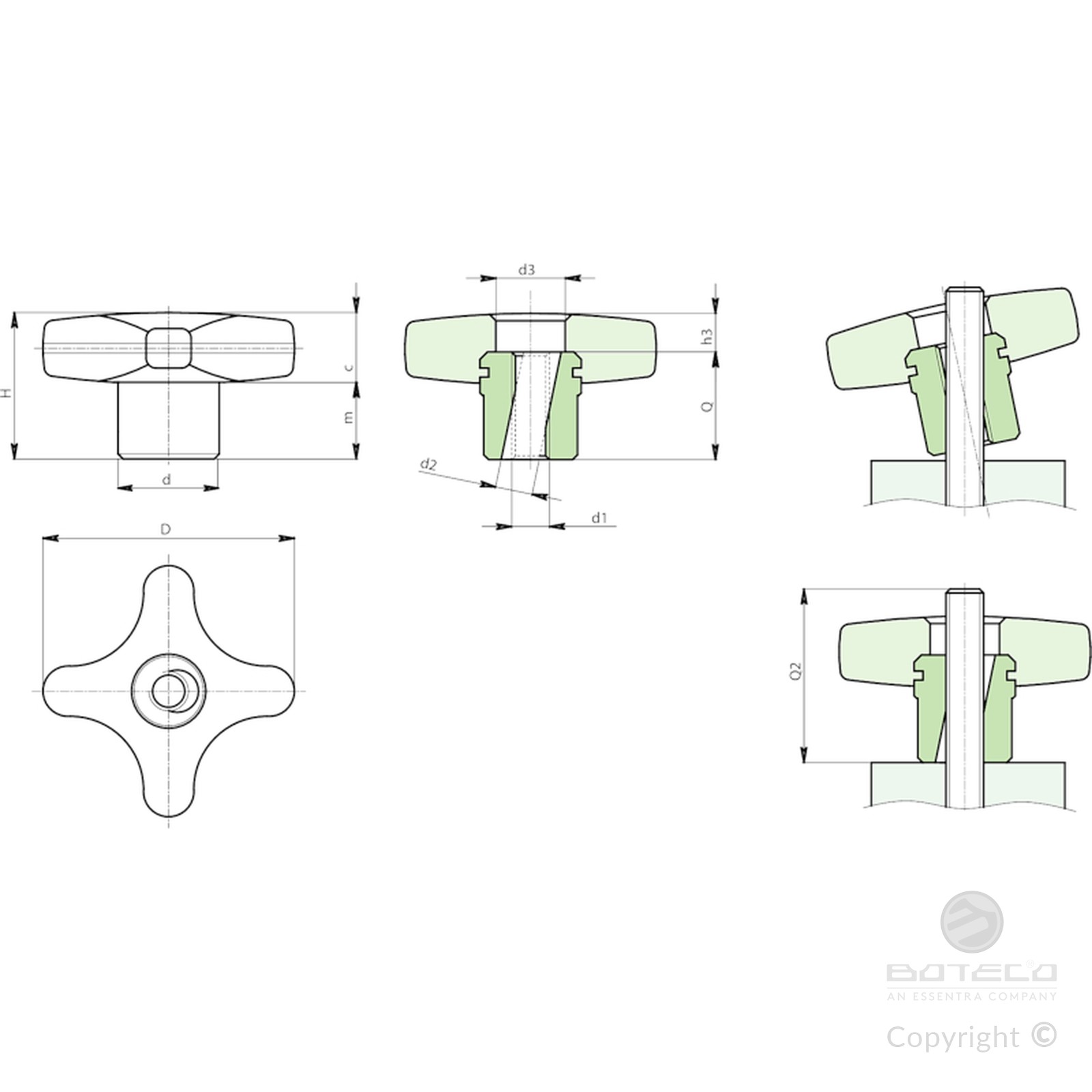

| Code | Art. | D | d | d2 | d3 | H | h3 | m | c | d1 | Q | Q2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F27140.0001 | F27140.TM0801P | 40 | 16 | 8.5 | 14 | 26 | 4 | 14 | 12 | M8 | 22 | 35 | 31 |
| F27150.0001 | F27150.TM1001P | 50 | 20 | 10.5 | 18 | 34 | 4 | 20 | 14 | M10 | 30 | 43 | 63 |
Version F271 PIN: Stainless steel hub (Aisi 303).
| Code | Art. | D | d | d2 | d3 | H | h3 | m | c | d1 | Q | Q2 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F27140.0002 | F27140.TM0801PIN | 40 | 16 | 8.5 | 14 | 26 | 4 | 14 | 12 | M8 | 22 | 35 | 31 |
| F27150.0002 | F27150.TM1001PIN | 50 | 20 | 10.5 | 18 | 34 | 4 | 20 | 14 | M10 | 30 | 43 | 63 |
