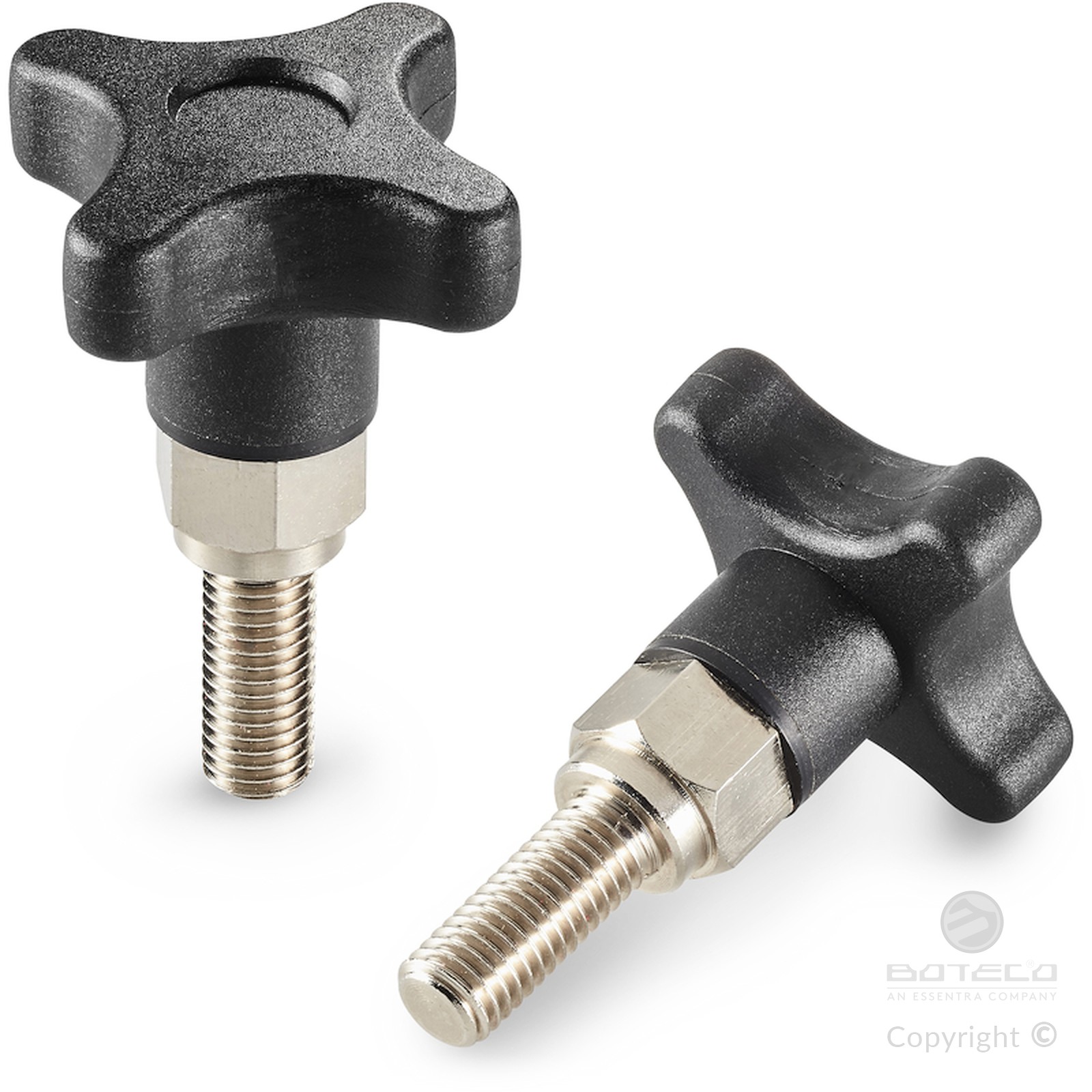

HIGH CLAMPING STAR HANDWHEEL WITH THREADED STUD
06
F270
Volantini a croce
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Nickel-plated brass insert with threaded stud (thread tolerance 6g).
Special Requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).
ATTENTION:
For a standard lock turn the knob. For a tighter lock, use a hex wrench to tighten the hex nut.

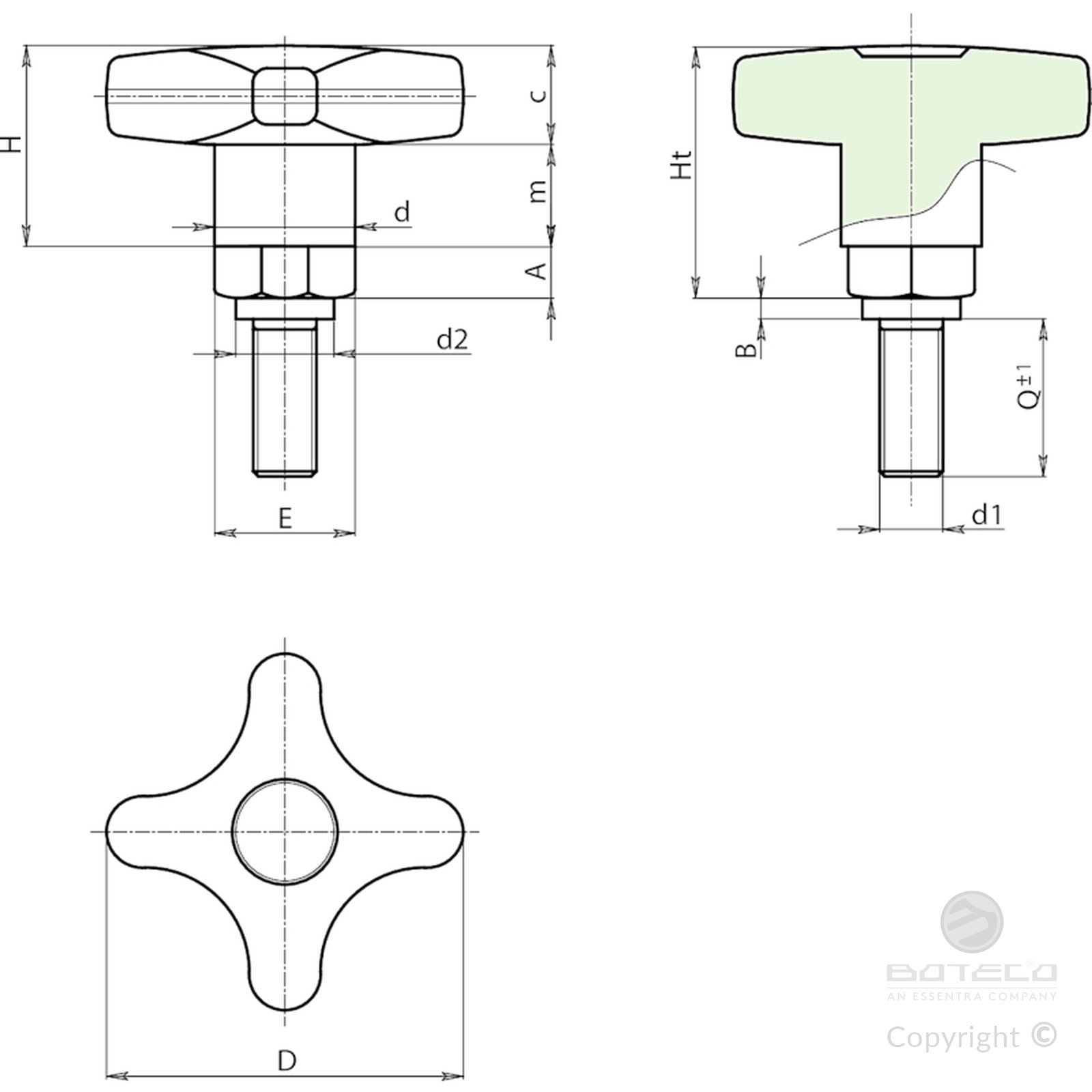

Code | Art. | D | d | d2 | H | Ht | A | B | E | m | c | d1 6g | Q | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
F27050.0001 | F27050.TM10X2501 | 50 | 18 | 15 | 24 | 34 | 10 | 4 | 17 | 15 | 14 | M10 | 25 | 97 |
