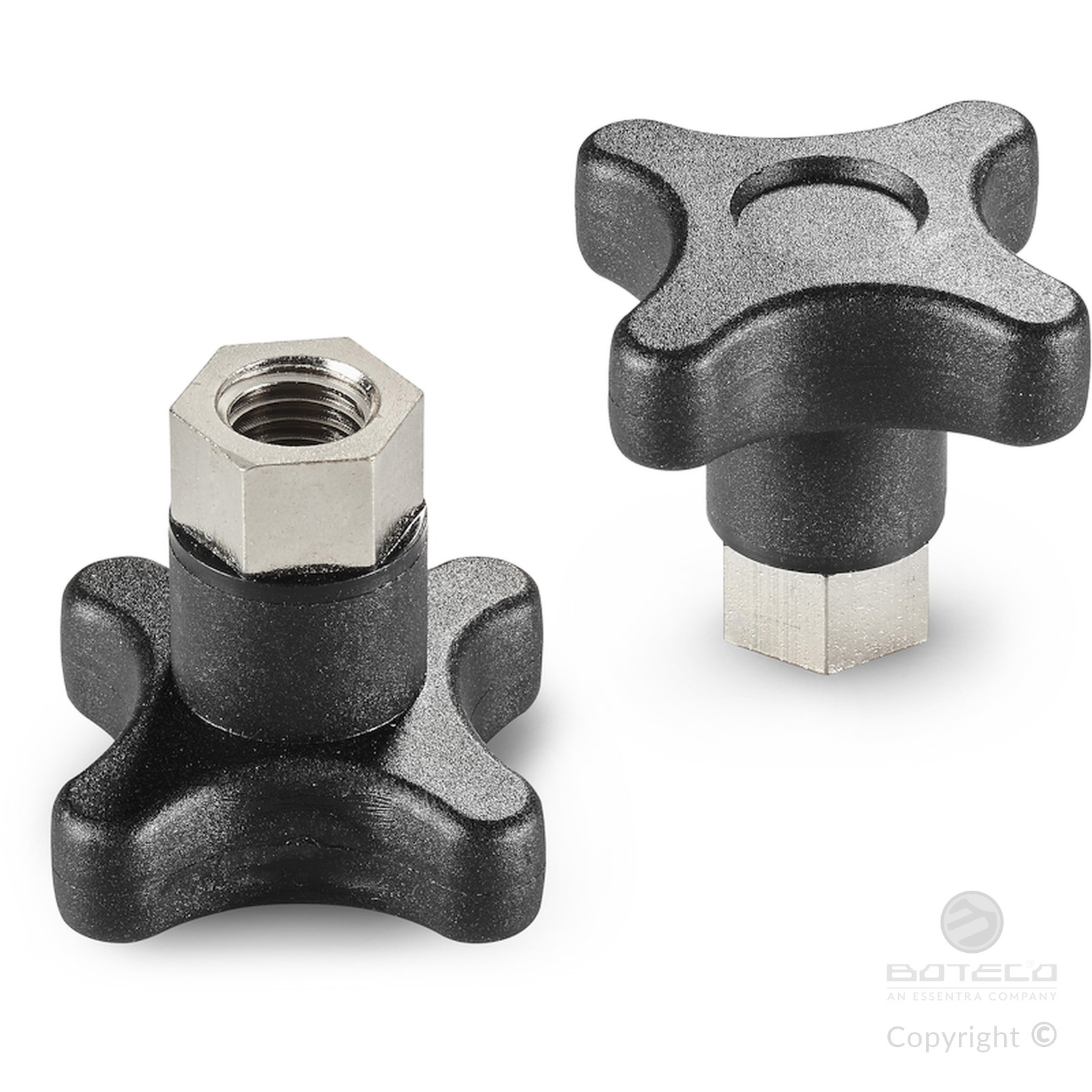

HIGH CLAMPING STAR HANDWHEEL WITH THREADED INSERT
06
F269
Volantini a croce
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Nickel-plated brass insert with female threaded hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).
ATTENTION:
For a standard lock turn the knob. For a tighter lock, use a hex wrench to tighten the hex nut.

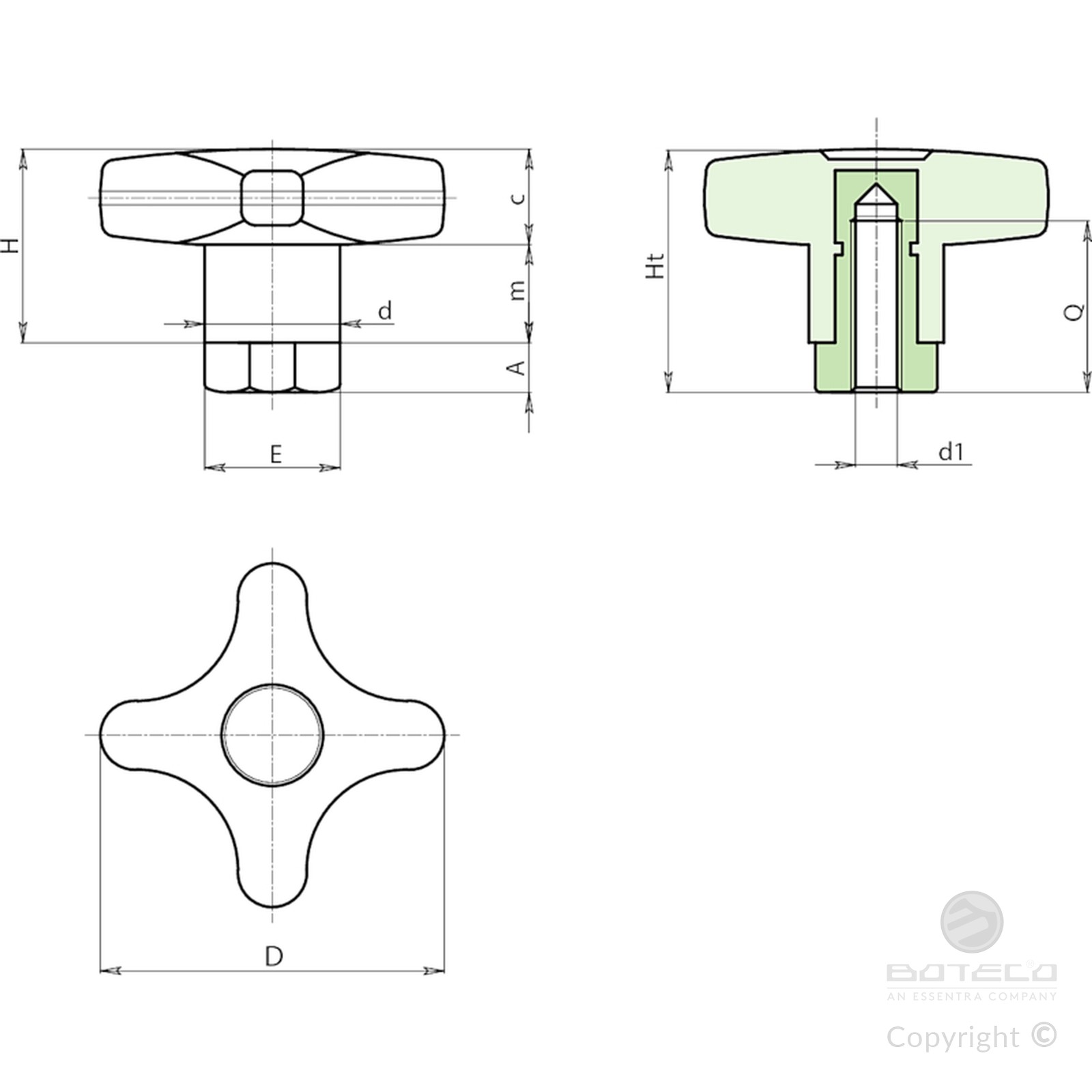

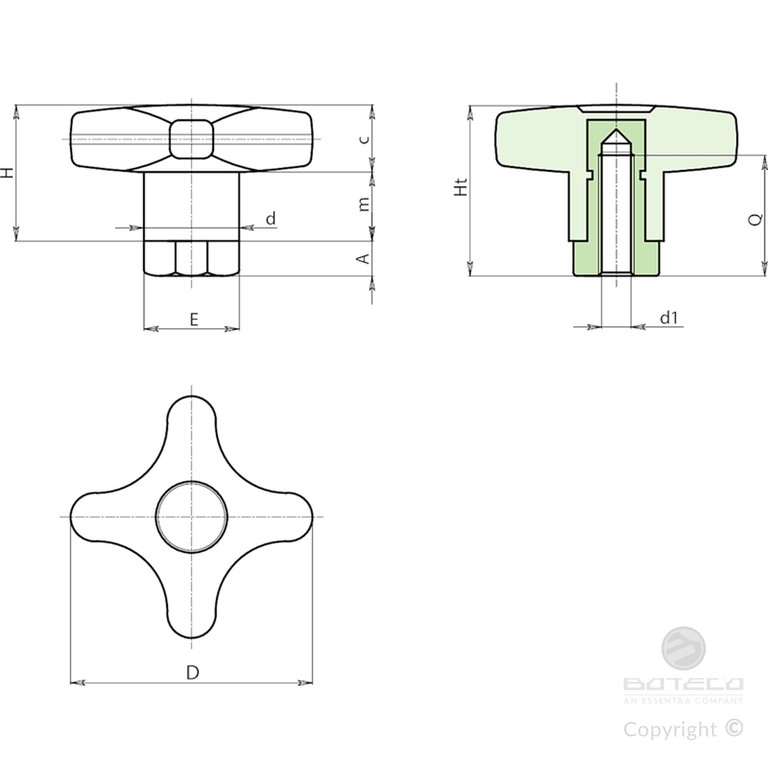

| Code | Art. | D | d | H | Ht | A | E | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F26950.0001 | F26950.TM0601 | 50 | 18 | 29 | 39 | 10 | 17 | 15 | 14 | M6 | 25 | 72 |
| F26950.0002 | F26950.TM0801 | 50 | 18 | 29 | 39 | 10 | 17 | 15 | 14 | M8 | 25 | 67 |
| F26950.0003 | F26950.TM1001 | 50 | 18 | 29 | 39 | 10 | 17 | 15 | 14 | M10 | 25 | 60 |
