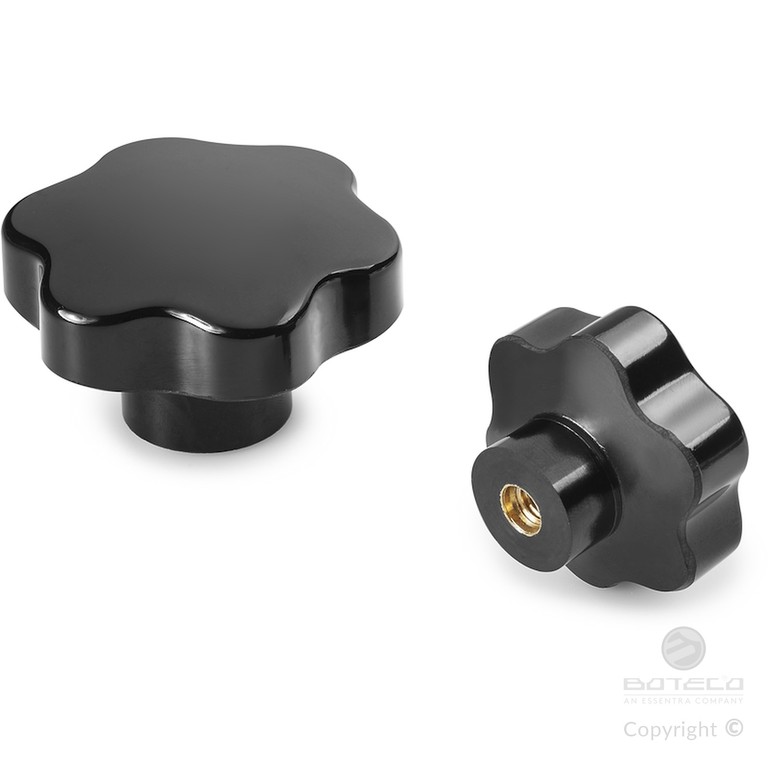

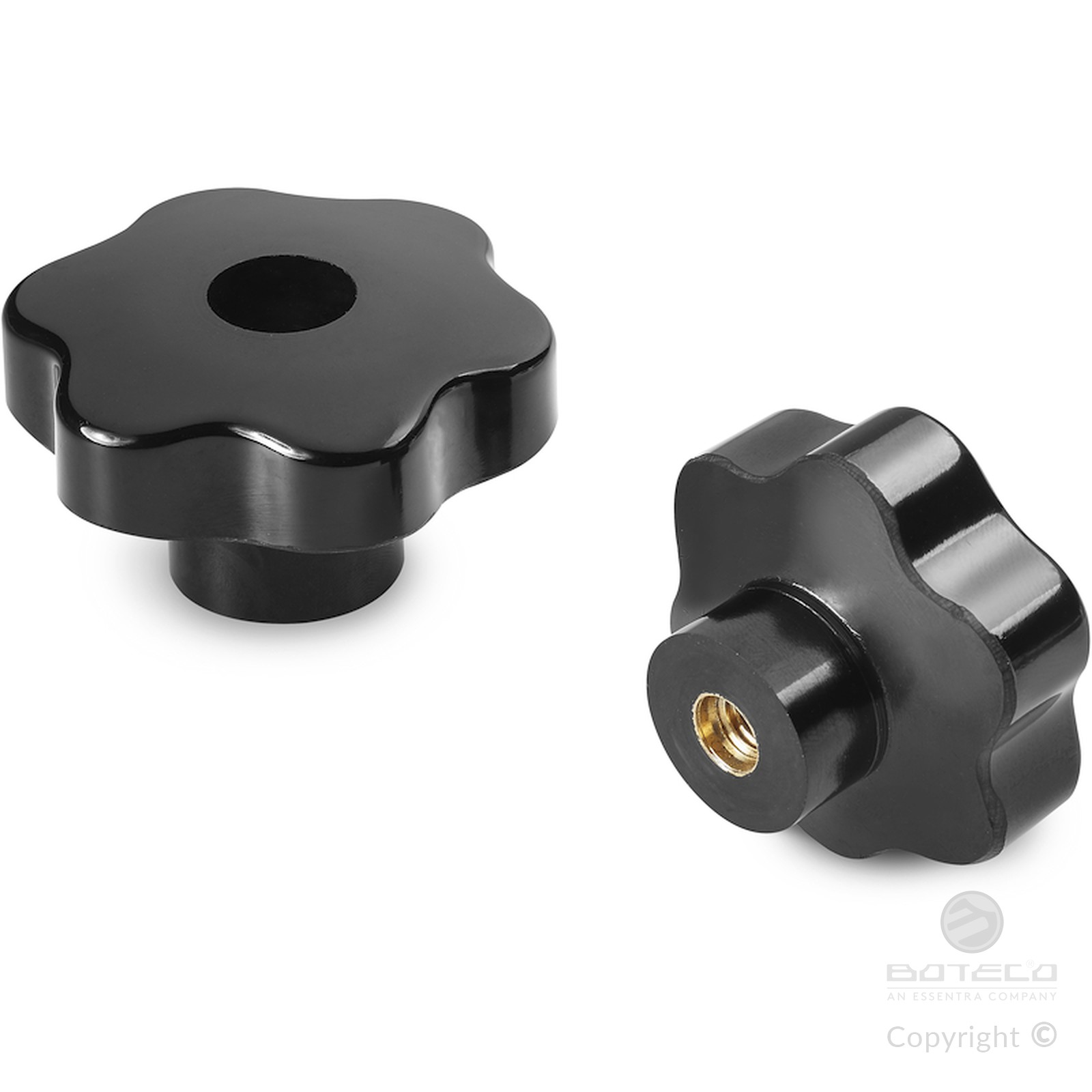

SOLID BAKELITE LOBED KNOB WITH INSERT AND THREADED THROUGH HOLE
06
F204
Volantini in bakelite
Materials:
Phenolic resin.
Resistant to oils and greases.
Resistant to high temperatures.
Surface finish:
Glossy.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with threaded through hole (thread tolerance 6H).
Special requests:
None.

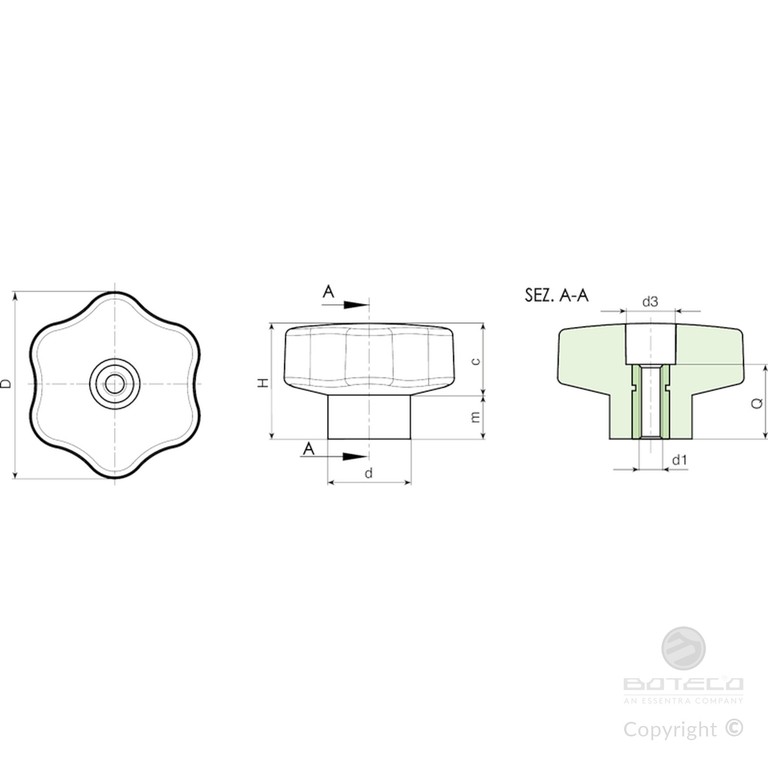

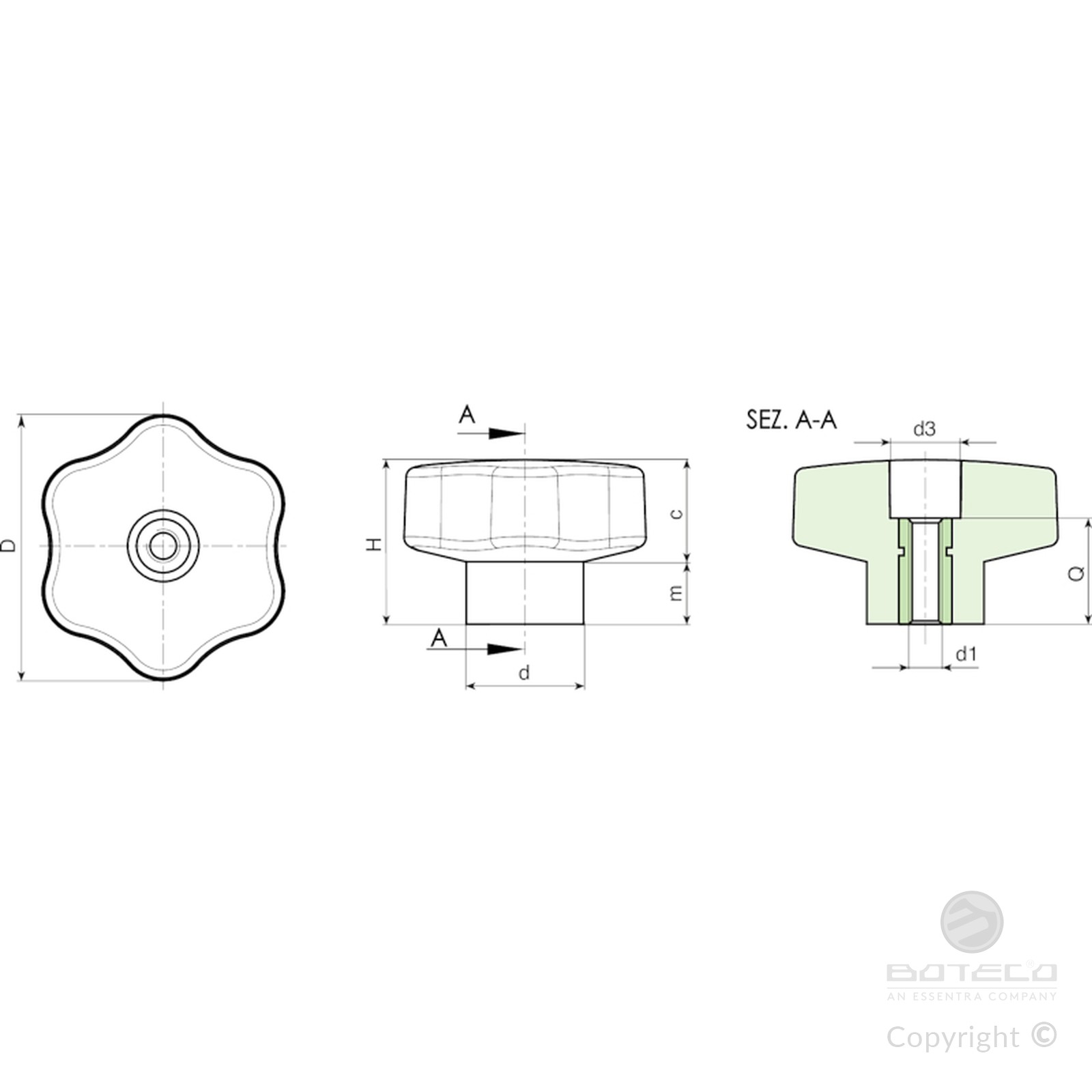

| Code | art. | D | d | H | m | c | d3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| F20440.0002 | F20440.BM0801 | 40 | 24 | 28 | 13 | 15 | 13 | M8 | 16 | 26 |
| F20440.0003 | F20440.BM1001 | 40 | 24 | 28 | 13 | 15 | 13 | M10 | 16 | 24 |
| F20460.0003 | F20460.BM1201 | 60 | 28 | 37 | 15 | 22 | 15 | M12 | 26 | 85 |
