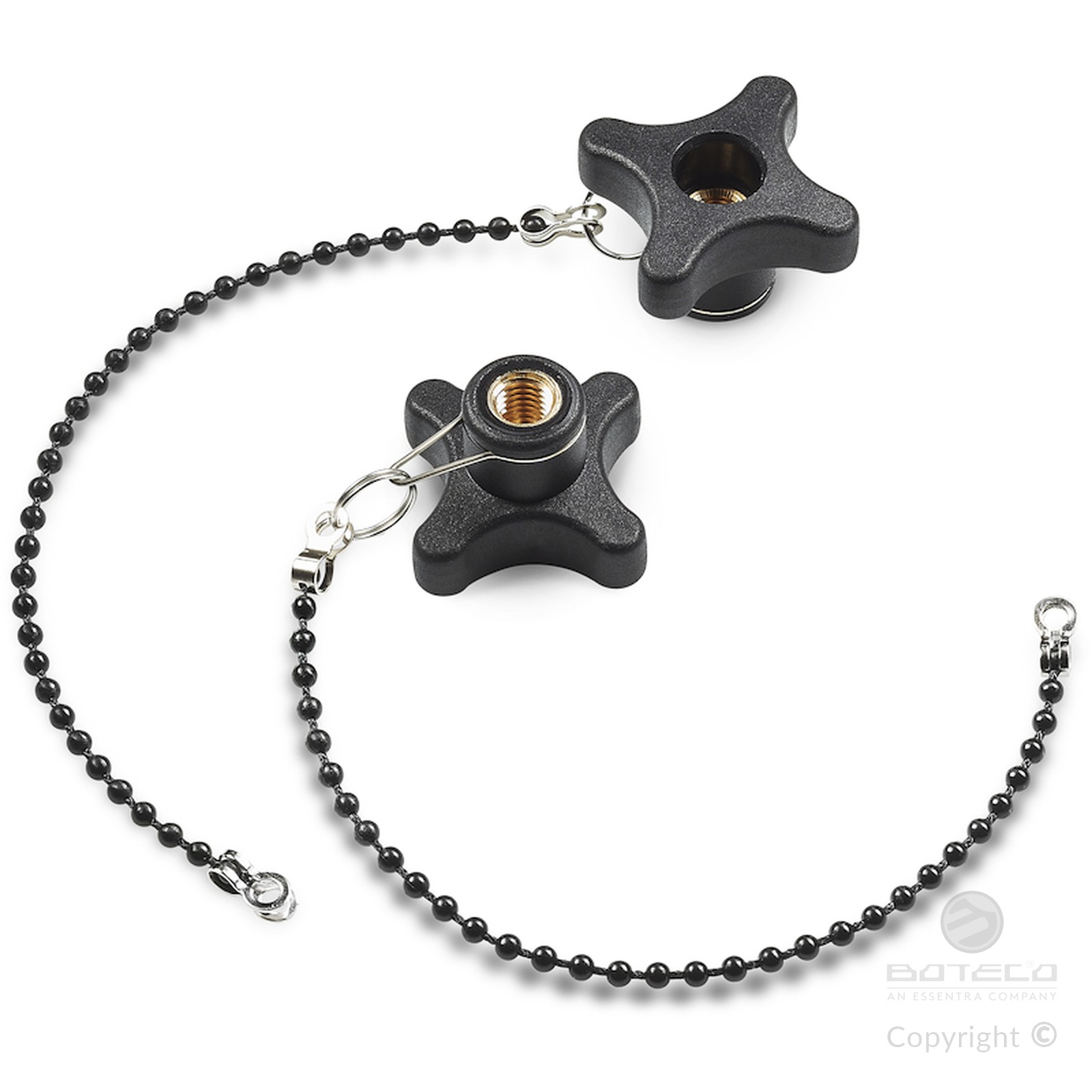

SOLID STAR HANDWHEEL WITH RETAINING CHAIN AND THREADED THROUGH-HOLE INSERT
06
F188CAT
Volantini a croce
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with threaded through hole (thread tolerance 6H).
Chain:
Black acetal (POM) chain. Harmonic stainless steel (Aisi 302) joints, retaining ring and hub hook.
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request the chain can be supplied with customised lengths.
Upon request and for special quantities available in the colours indicated in the chart (attention: reduced range).

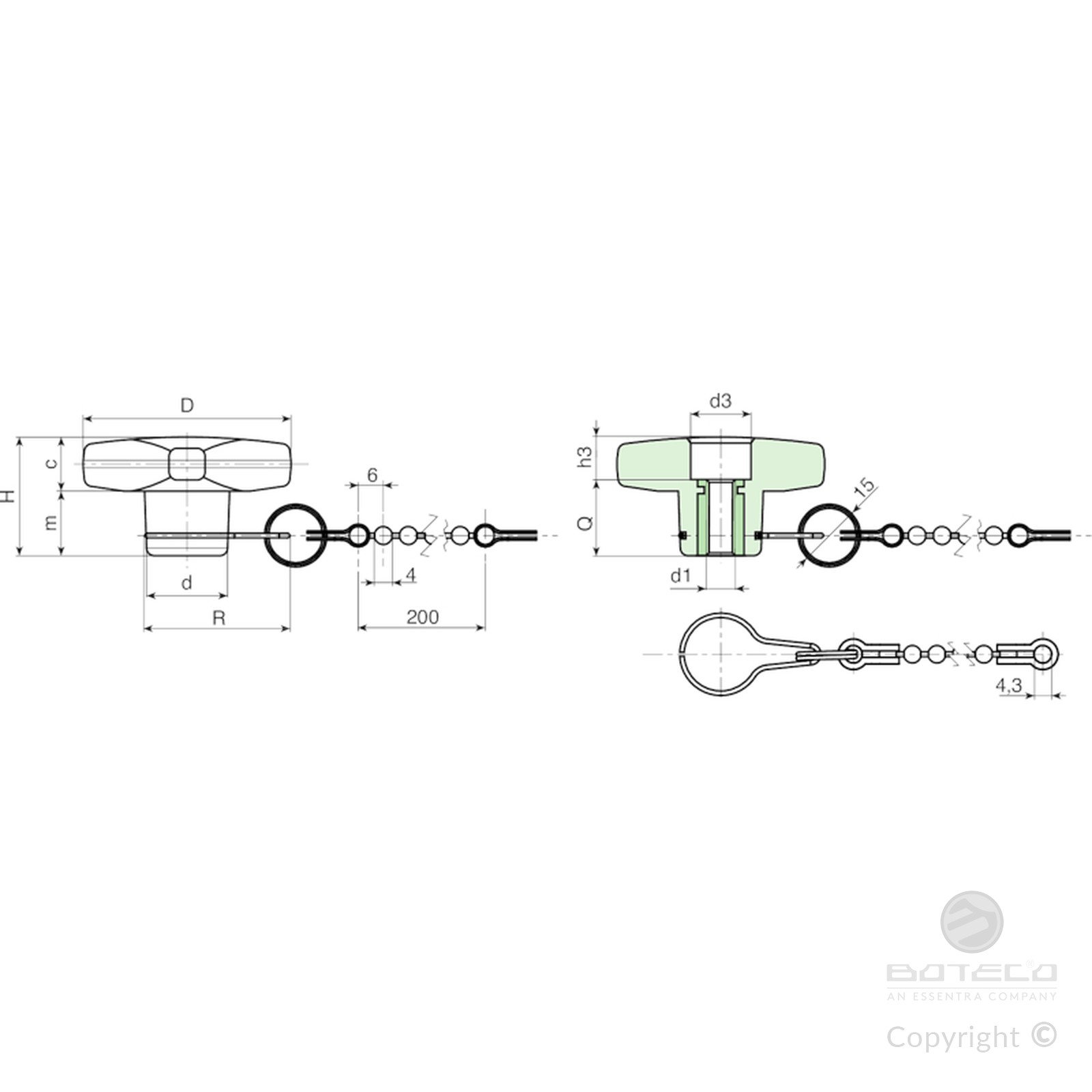

| Code | Art. | D | H | d | R | c | m | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F18832.0002 | F18832.TM0401CAT | 32 | 23 | 15 | 32 | 11 | 11 | 10 | 5 | M4 | 18 | 12 |
| F18832.0005 | F18832.TM0501CAT | 32 | 23 | 15 | 32 | 11 | 11 | 10 | 5 | M5 | 18 | 13 |
| F18832.0009 | F18832.TM0601CAT | 32 | 23 | 15 | 32 | 11 | 11 | 10 | 5 | M6 | 18 | 13.5 |
| F18840.0003 | F18840.TM0601CAT | 40 | 24.5 | 16 | 33 | 12 | 12.5 | 12 | 6.5 | M6 | 18 | 16 |
| F18840.0008 | F18840.TM0801CAT | 40 | 24.5 | 16 | 33 | 12 | 12.5 | 12 | 6.5 | M8 | 18 | 18 |
| F18850.0002 | F18850.TM0601CAT | 50 | 29 | 20 | 35 | 14 | 15 | 14 | 11 | M6 | 18 | 26 |
| F18850.0005 | F18850.TM0801CAT | 50 | 29 | 20 | 35 | 14 | 15 | 14 | 11 | M8 | 18 | 27 |
| F18850.0009 | F18850.TM1001CAT | 50 | 29 | 20 | 35 | 14 | 15 | 14 | 11 | M10 | 18 | 28 |
| F18860.0002 | F18860.TM0801CAT | 60 | 34 | 24 | 38 | 15.5 | 18.5 | 16 | 16 | M8 | 18 | 37 |
| F18860.0006 | F18860.TM1001CAT | 60 | 34 | 24 | 38 | 15.5 | 18.5 | 16 | 16 | M10 | 18 | 41 |
| F18860.0010 | F18860.TM1201CAT | 60 | 34 | 24 | 38 | 15.5 | 18.5 | 16 | 16 | M12 | 18 | 43 |
