W298

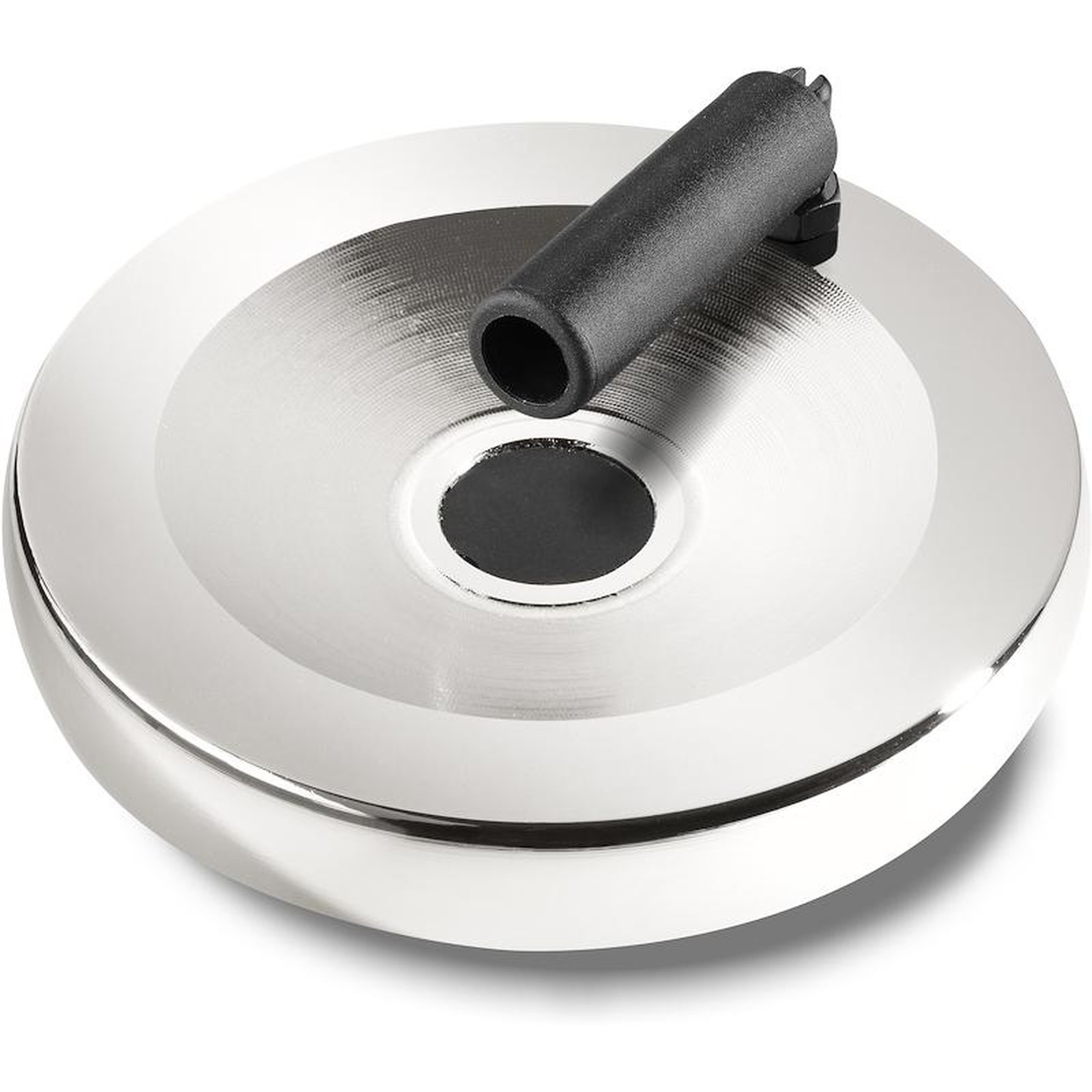

ALUMINIUM CONTROL HANDWHEEL WITH SMOOTH BORE AND REVOLVING FOLDING HANDLE
Metalline - Control handwheels
Materials:
Aluminium.
Surface finish:
Low roughness turned surface.
Colour:
Nickel plated (galvanic treatment).
Alternative colours (min. 50 pieces):
Black epoxy powder coated:
(replace the final letter of the code (H) with letter V (W298100.AD10V).
Cap:
Central cap in black polyamide (RAL 9011 code 01).
Alternative cap colours:
The central cap for the black handwheel will be grey (RAL 7035 code no. 13).
Lateral handle:
Revolving, folding handle art. M136.
Hole:
Smooth through hole, remachined with H7 tolerance.
Special Requests:
Upon request and for special quantities handwheels can be supplied on customer’s drawing with hole diameter d1.
Fixing method:
For fixing systems, or execution of keyways or square holes, please refer to the technical notes attached to the catalogue.

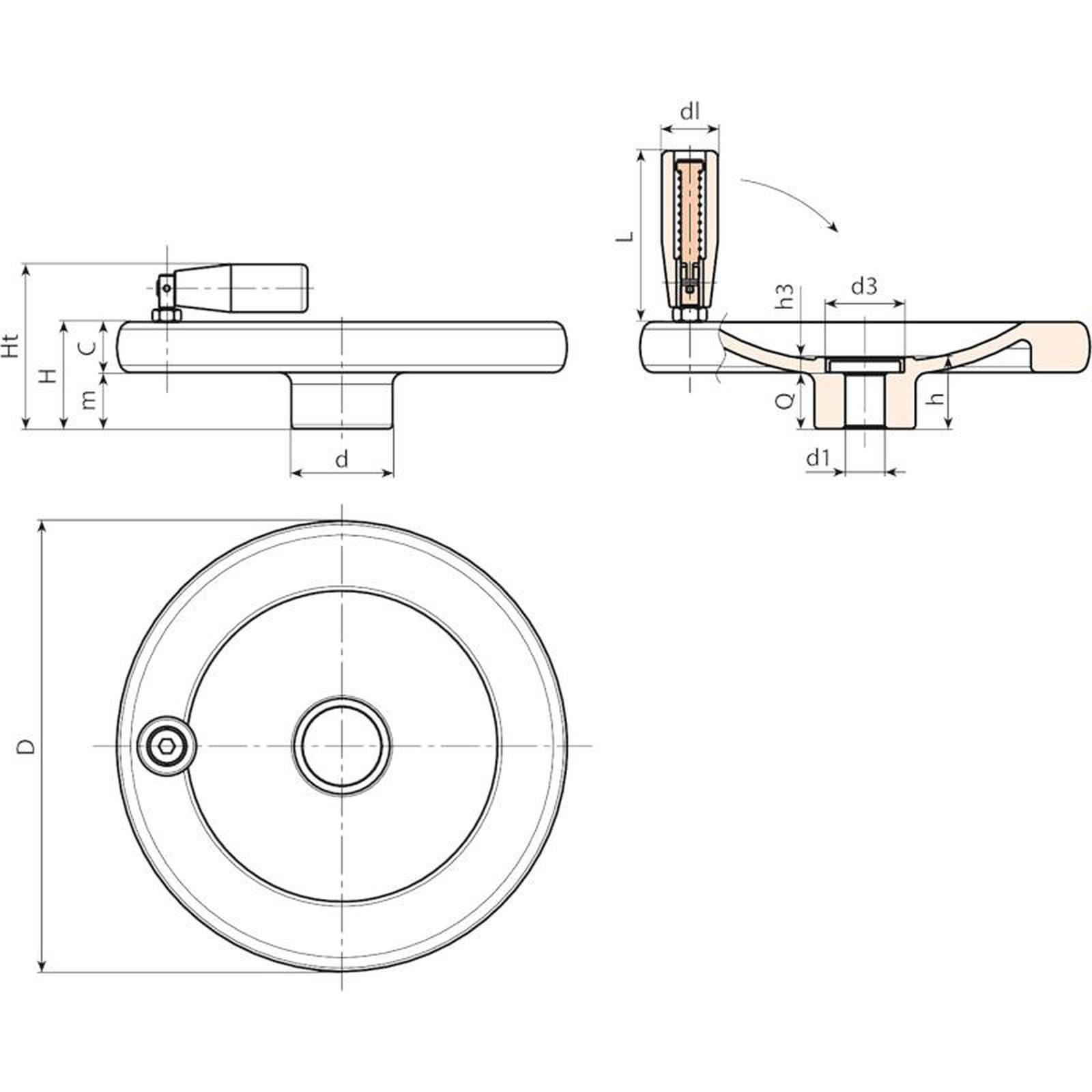

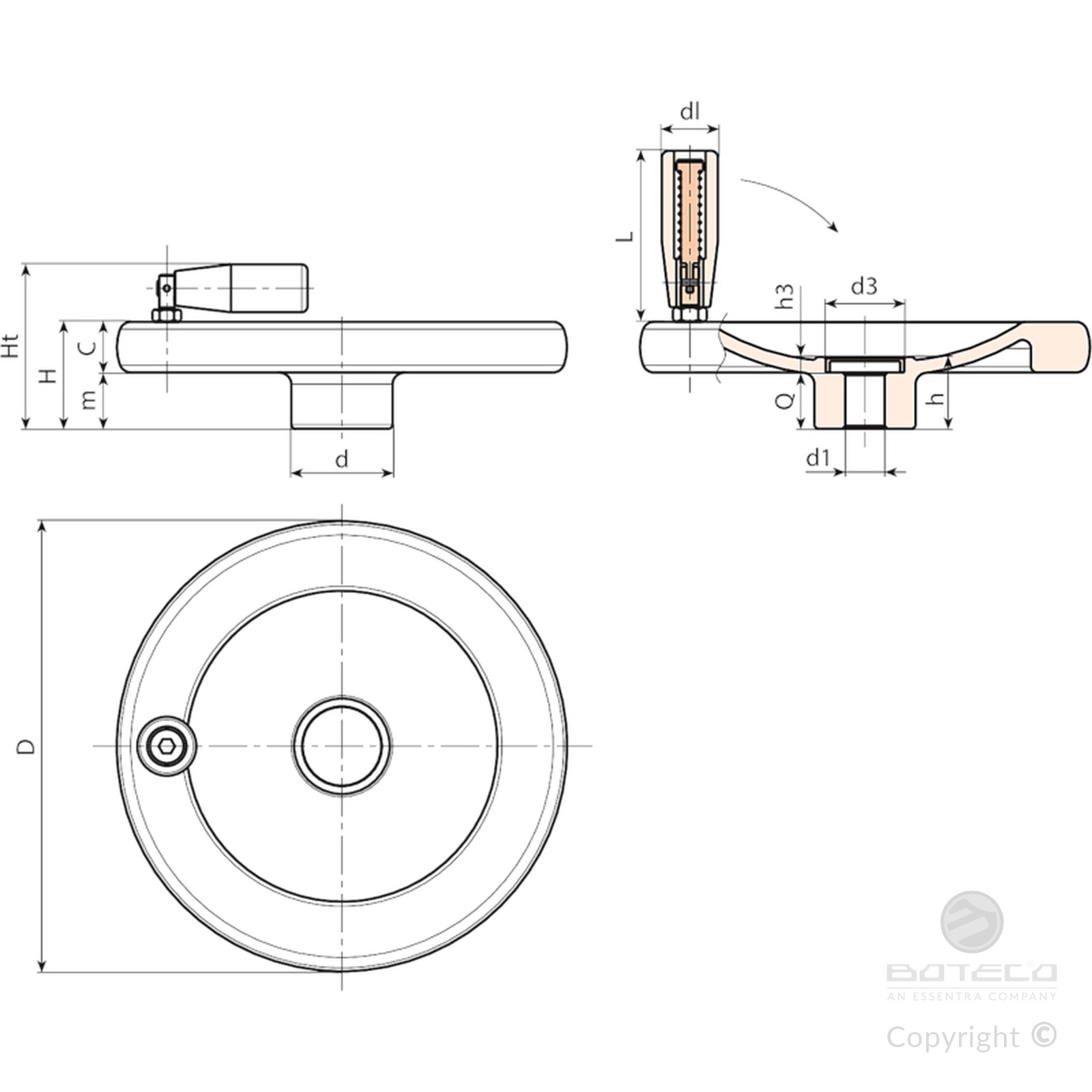

| Code | Art. | d | D | H | m | c | h | h3 | d3 | d1 H7 | Q | dl | L | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| W298080.0001 | W298080.AD08H | 25 | 80 | 26 | 14 | 12 | 21 | 5.5 | 20 | 8 | 15.5 | 20 | 56 | 181 |
| W298100.0001 | W298100.AD10H | 28 | 100 | 28 | 14 | 14 | 21.5 | 5.5 | 20 | 10 | 16 | 20 | 56 | 279 |
| W298130.0002 | W298130.AD12H | 36 | 130 | 35 | 19 | 16 | 25.5 | 5.5 | 28 | 12 | 20 | 25 | 76 | 506 |
| W298160.0001 | W298160.AD14H | 36 | 160 | 38 | 20 | 18 | 25.5 | 5.5 | 28 | 14 | 20 | 25 | 76 | 756 |
| W298200.0001 | W298200.AD16H | 42 | 200 | 44 | 24 | 20 | 31.5 | 6 | 34 | 16 | 25.5 | 26 | 89 | 1337 |
Attention: For a minimum of 50 pieces the diameter d1 can be customised (hole tolerance H7).
