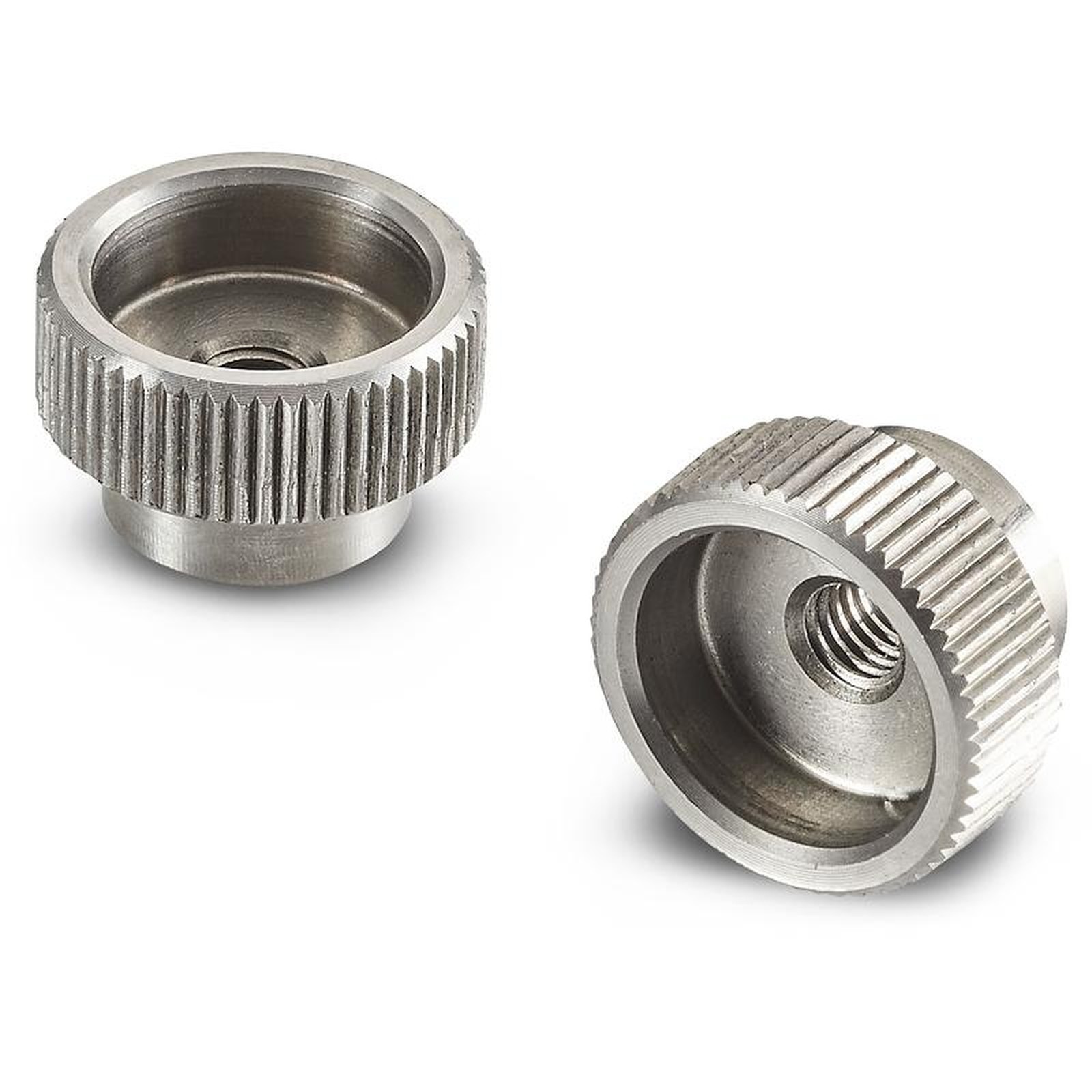

DIN 6303 - KNURLED THUMB KNOB WITH THREADED HOLE
08
Y303
Vol. Zigrinati metallo
Materials:
Y303:
Free-cutting steel.
Y303PIN:
Stainless steel (Aisi 303).
Surface finish:
Smooth, turned.
Colour:
Y303:
Black-oxide treatment.
Y303PIN:
Natural.
Hole:
Threaded through hole (thread tolerance 6H).
Special requests:
None.
Version Y303: black-oxide treated steel

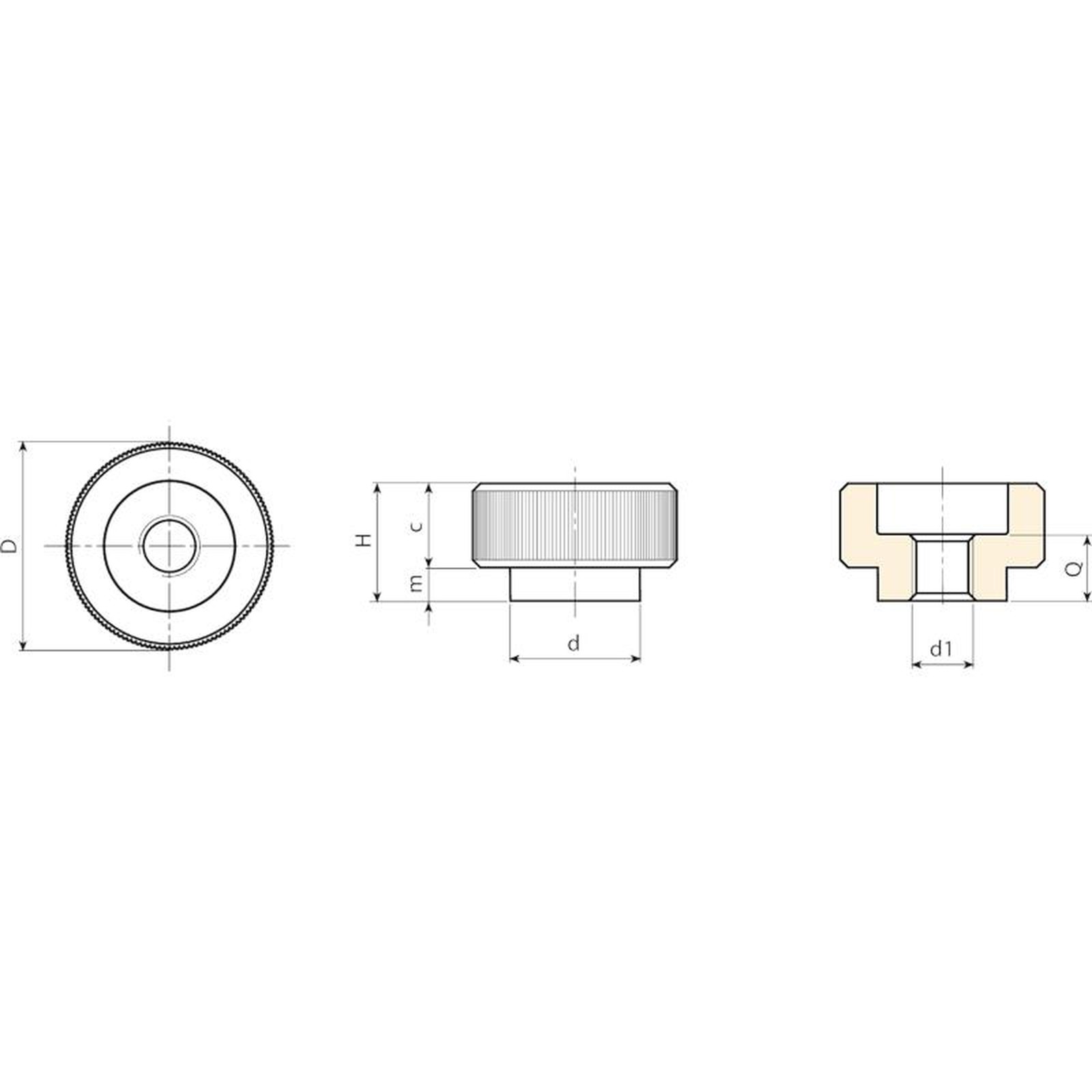

| Code | Art. | D | d | H | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| Y303020.0002 | Y303020.VBM05 | 20 | 14 | 12 | 4 | 8 | M5 | 7 | 17 |
| Y303024.0002 | Y303024.VBM06 | 24 | 16 | 14 | 4 | 10 | M6 | 8 | 30 |
| Y303030.0002 | Y303030.VBM08 | 30 | 20 | 17 | 5 | 12 | M8 | 10 | 50 |
| Y303036.0002 | Y303036.VBM10 | 36 | 28 | 20 | 6 | 14 | M10 | 12 | 90 |
| Y303040.0002 | Y303040.VBM12 | 40 | 32 | 24 | 8 | 16 | M12 | 16 | 124 |
Version Y303 PIN: stainless steel (Aisi 303)
| Code | Art. | D | d | H | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| Y303020.0001 | Y303020.INM05PIN | 20 | 14 | 12 | 4 | 8 | M5 | 7 | 17 |
| Y303024.0001 | Y303024.INM06PIN | 24 | 16 | 14 | 4 | 10 | M6 | 8 | 30 |
| Y303030.0001 | Y303030.INM08PIN | 30 | 20 | 17 | 5 | 12 | M8 | 10 | 50 |
| Y303036.0001 | Y303036.INM10PIN | 36 | 28 | 20 | 6 | 14 | M10 | 12 | 90 |
| Y303040.0001 | Y303040.INM12PIN | 40 | 32 | 24 | 8 | 16 | M12 | 16 | 124 |
