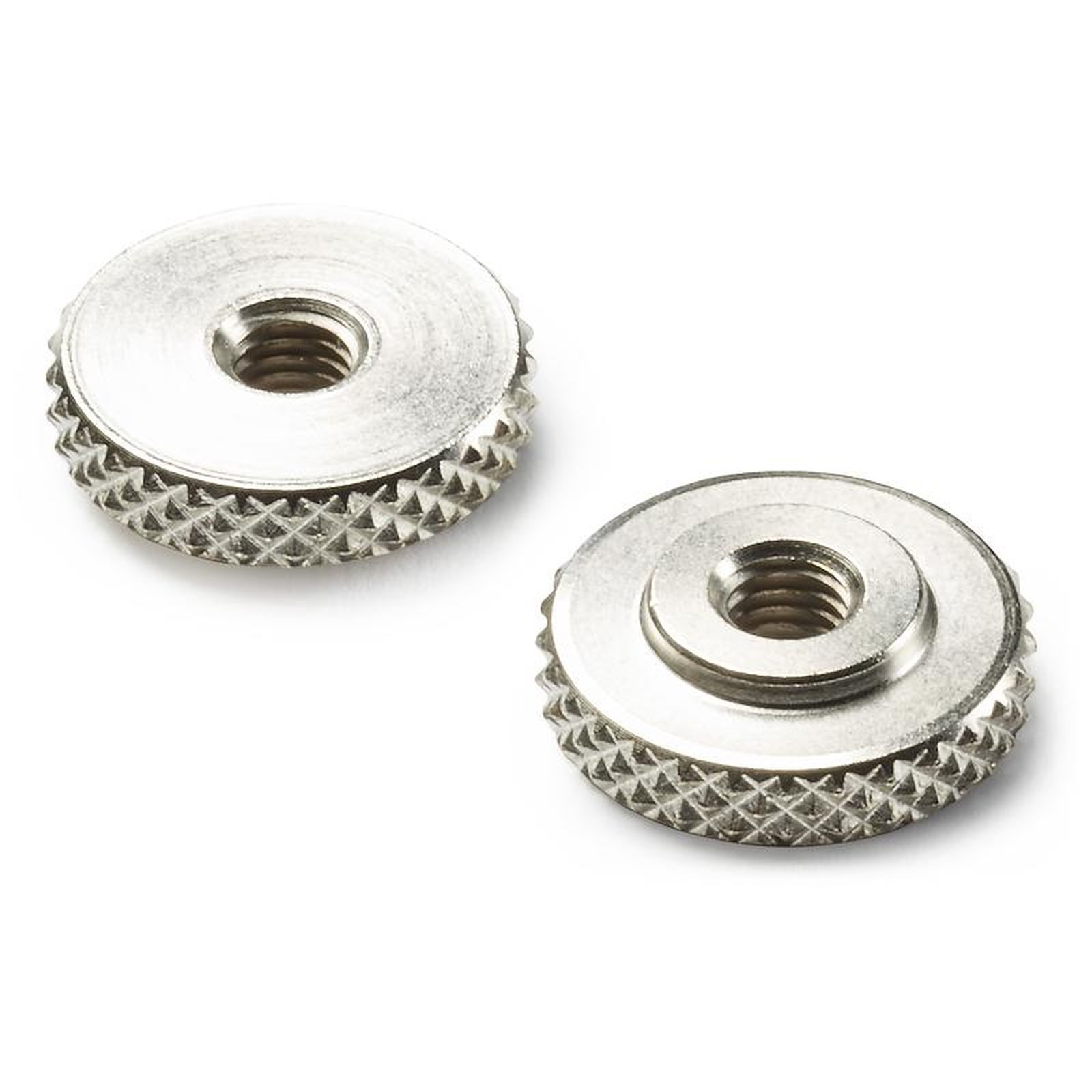

KNURLED METAL HANDWHEEL WITH SHORT HUB AND THREADED HOLE
08
W467
Vol. Zigrinati metallo
Materials:
W467:
Steel with strength class 5.8.
W467 PIN:
Stainless steel (Aisi 303).
Surface finish:
Turned with low roughness.
Colour:
W467:
Nickel plated (galvanic treatment).
W467 PIN:
Natural.
Alternative finishes:
Black-oxide treatment:
(replace the final letter of the code (H) with letter B (W46729.SM08B).
Galvanising:
(replace the final letter of the code (H) with letter Z (W46729.SM08Z).
Hole:
Threaded through hole machined from solid metal (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied to customer’s drawing with hole diameter d1.
Version W467 - nickel-plated steel

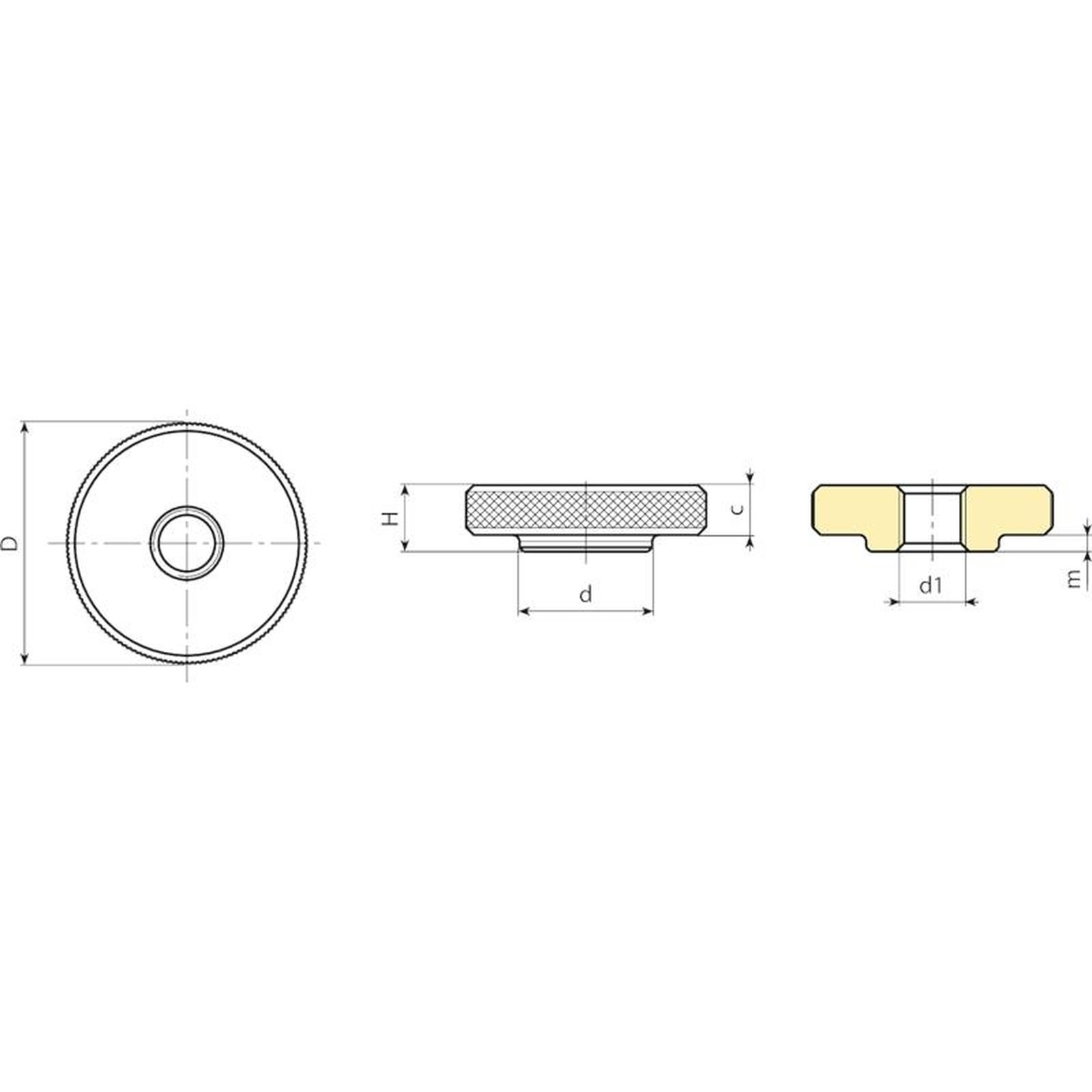

| Code | Art. | d | D | H | m | c | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W46711.0002 | W46711.SM03H | 6 | 11 | 3 | 0,5 | 3 | M3 | 2 |
| W46715.0002 | W46715.SM04H | 8 | 15 | 4 | 0,5 | 4 | M4 | 5 |
| W46719.0002 | W46719.SM05H | 10 | 19 | 5 | 1 | 4 | M5 | 9 |
| W46723.0002 | W46723.SM06H | 12 | 23 | 6 | 1 | 5 | M6 | 16 |
| W46729.0002 | W46729.SM08H | 16 | 29 | 8 | 2 | 6 | M8 | 32 |
| W46735.0003 | W46735.SM10H | 20 | 35 | 10 | 2 | 8 | M10 | 61 |
| W46739.0002 | W46739.SM12H | 22 | 39 | 12 | 2 | 10 | M12 | 92 |
Version W467 PIN - stainless steel (Aisi 303)
| Code | Art. | d | D | H | m | c | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W46711.0001 | W46711.IM03PIN | 6 | 11 | 3 | 0,5 | 3 | M3 | 2 |
| W46715.0001 | W46715.IM04PIN | 8 | 15 | 4 | 0,5 | 4 | M4 | 5 |
| W46719.0001 | W46719.IM05PIN | 10 | 19 | 5 | 1 | 4 | M5 | 9 |
| W46723.0001 | W46723.IM06PIN | 12 | 23 | 6 | 1 | 5 | M6 | 16 |
| W46729.0001 | W46729.IM08PIN | 16 | 29 | 8 | 2 | 6 | M8 | 32 |
| W46735.0001 | W46735.IM10PIN | 20 | 35 | 10 | 2 | 8 | M10 | 61 |
| W46739.0001 | W46739.IM12PIN | 22 | 39 | 12 | 2 | 10 | M12 | 92 |
