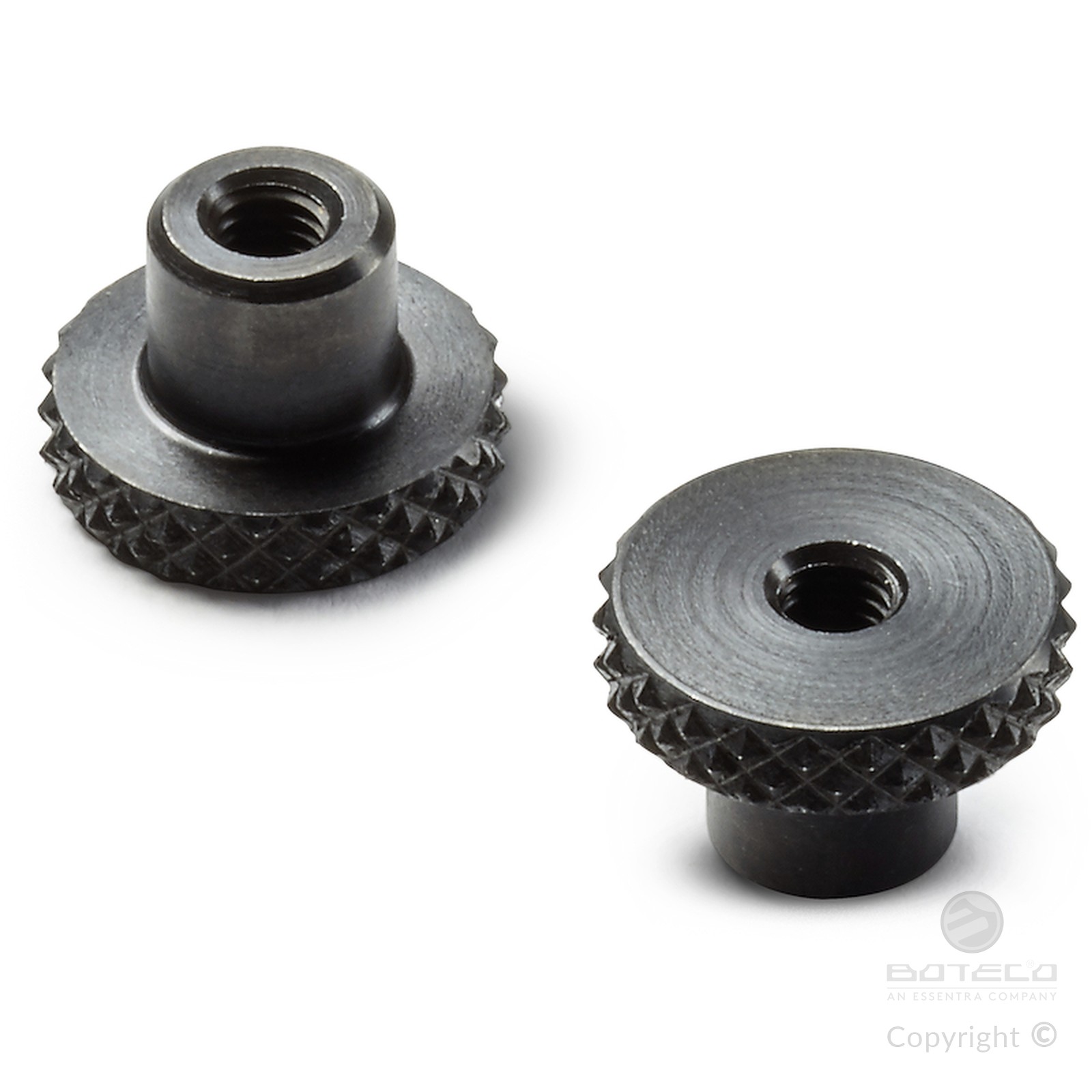

KNURLED METAL HANDWHEEL WITH THREADED HOLE
08
W466
Vol. Zigrinati metallo
Materials:
W466:
Steel with strength class 5.8.
W466 PIN:
Stainless steel (Aisi 303).
Surface finish:
Turned with low roughness.
Colour:
W466:
Nickel plated (galvanic treatment).
W466PIN:
Natural.
Alternative finishes:

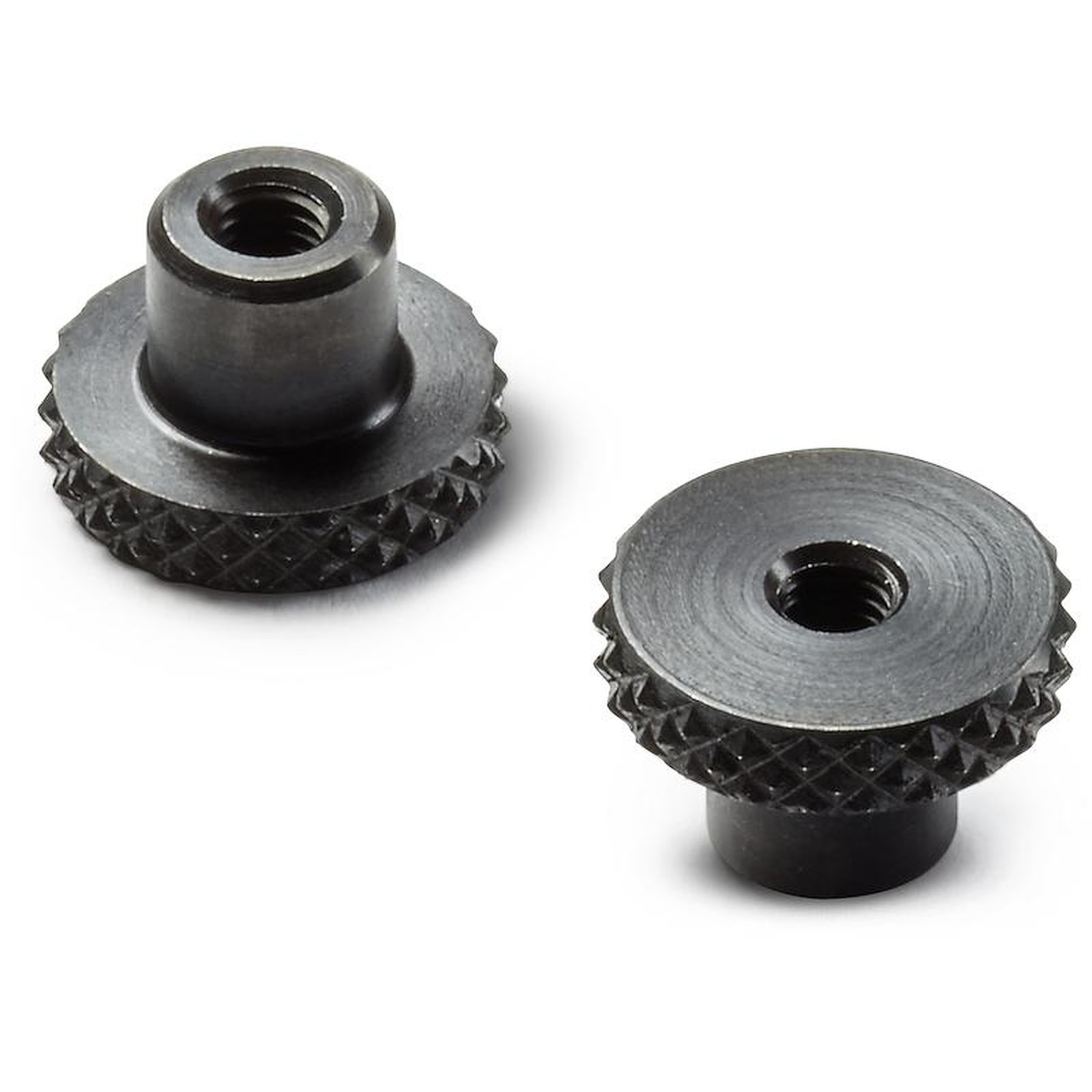

Black-oxide treatment:
(replace the final letter of the code (H) with letter B (W46629.SM08B).
Galvanising:
(replace the final letter of the code (H) with letter Z (W46629.SM08Z).
Hole:
Threaded through hole machined from solid metal (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied to customer’s drawing with hole diameter d1.

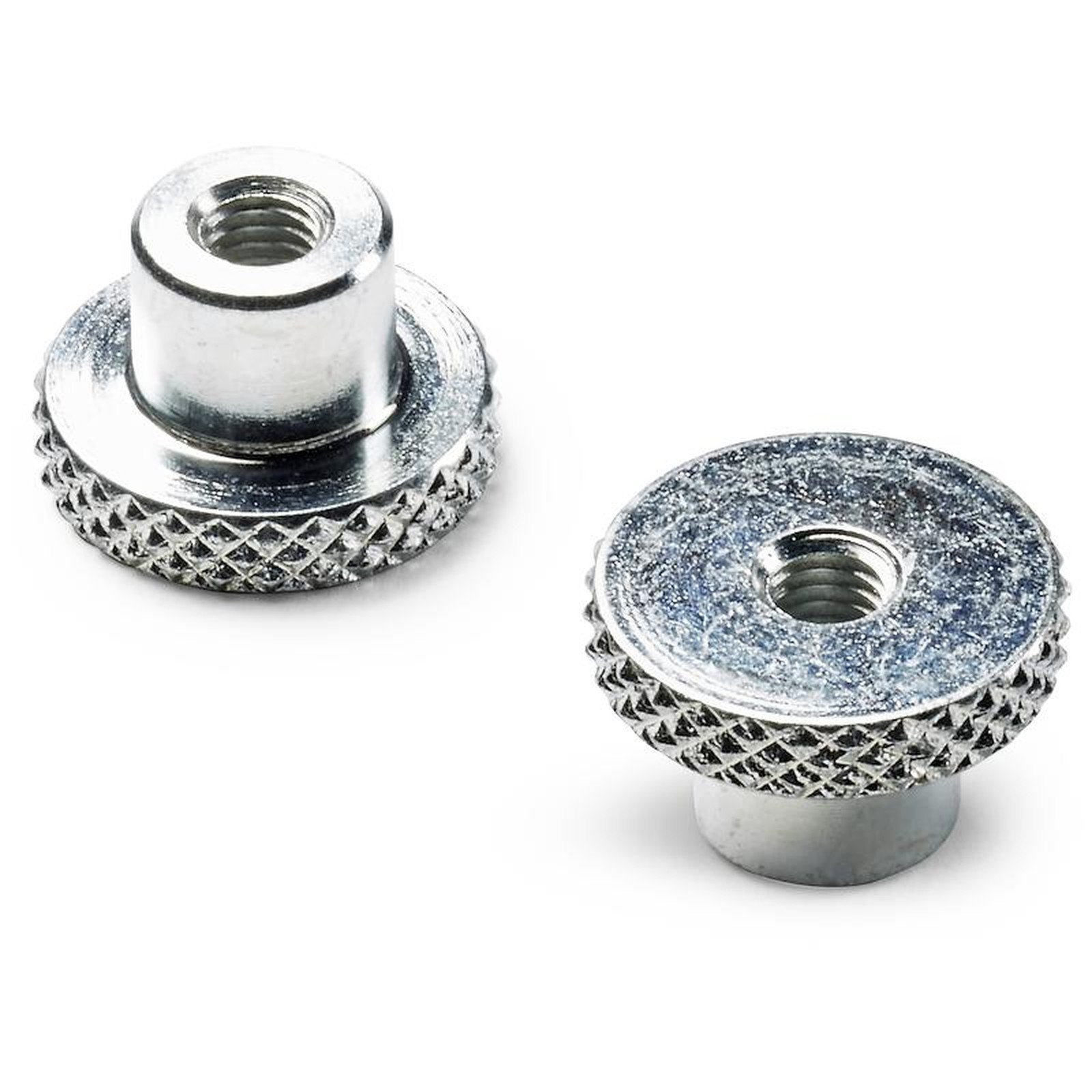

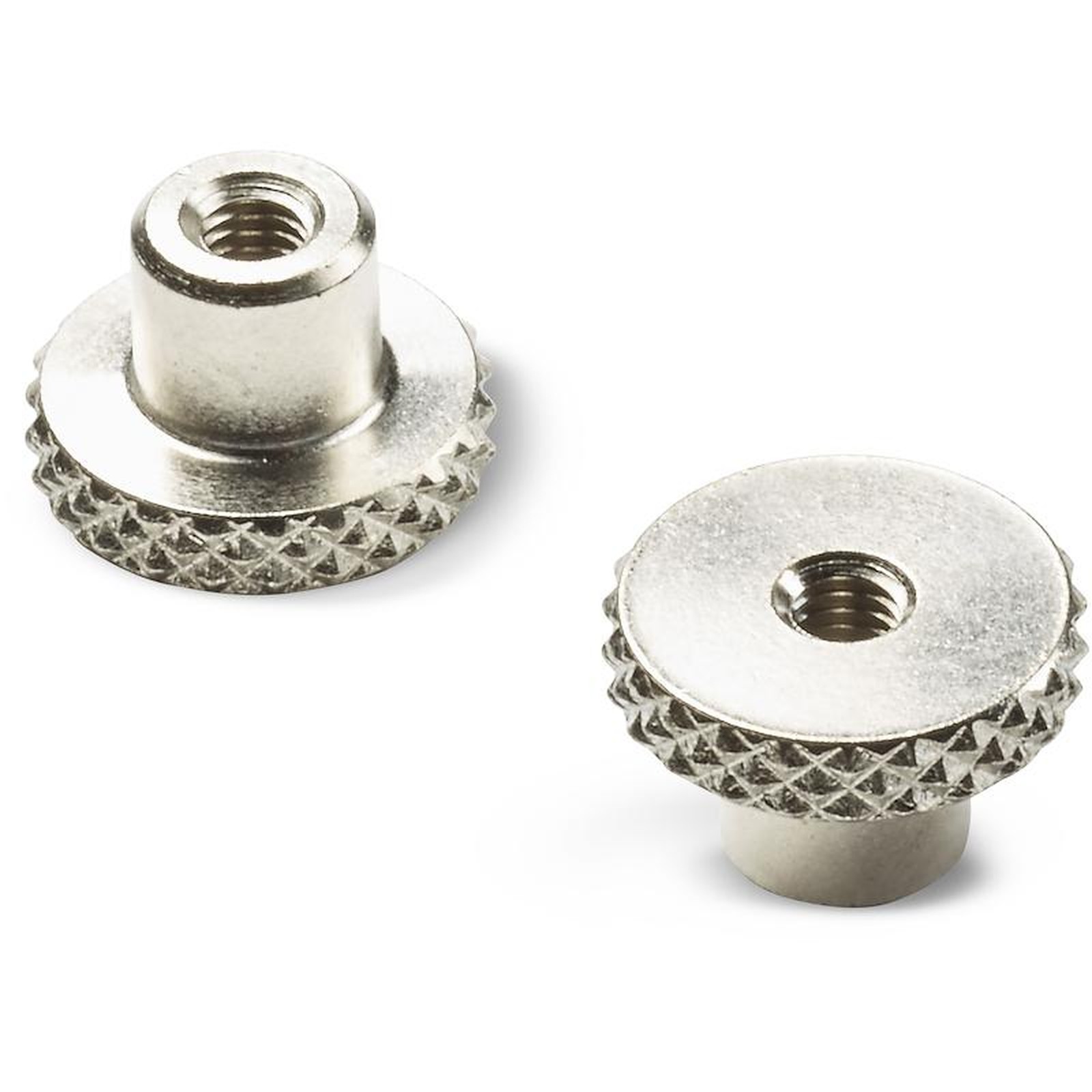

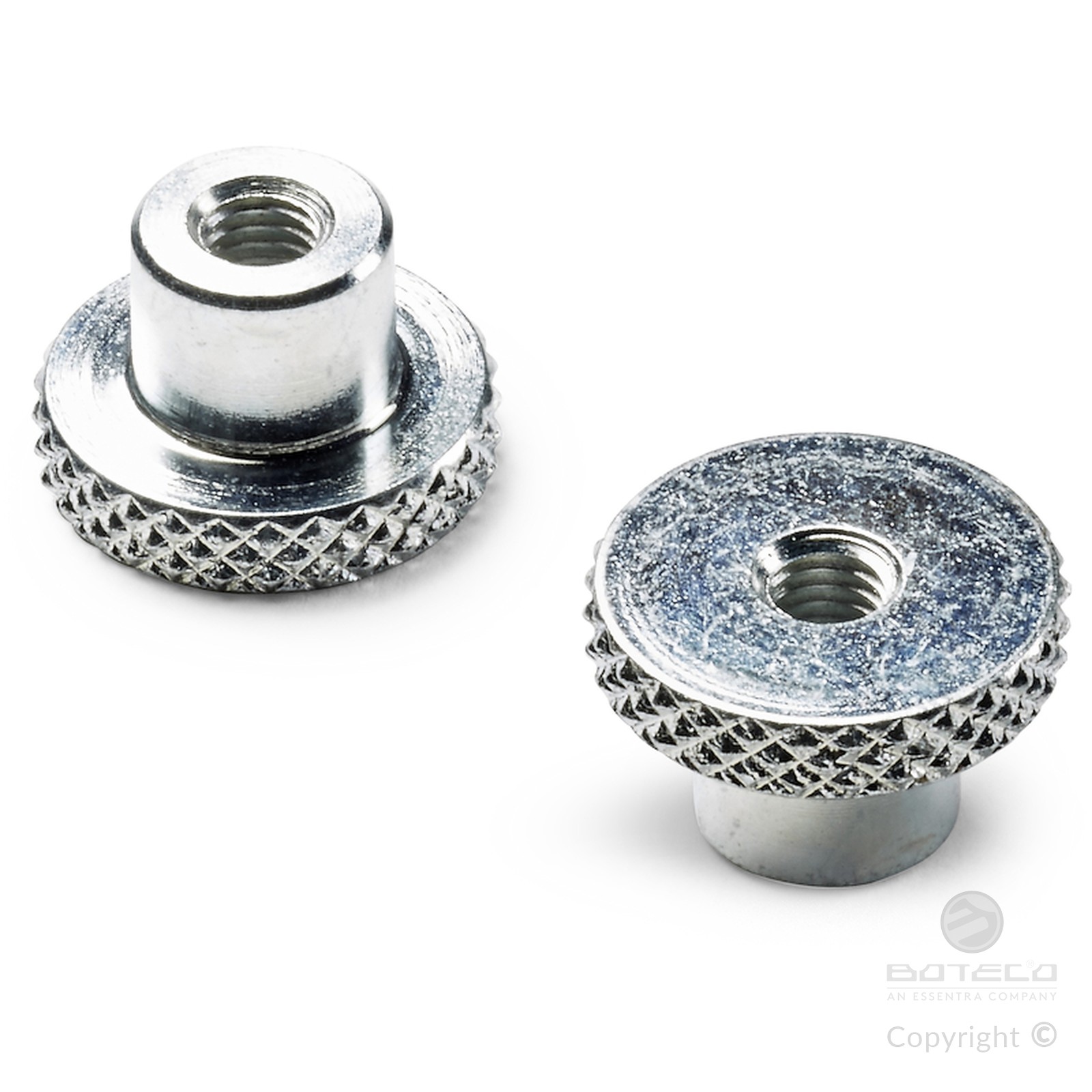

Version W466 - nickel-plated steel

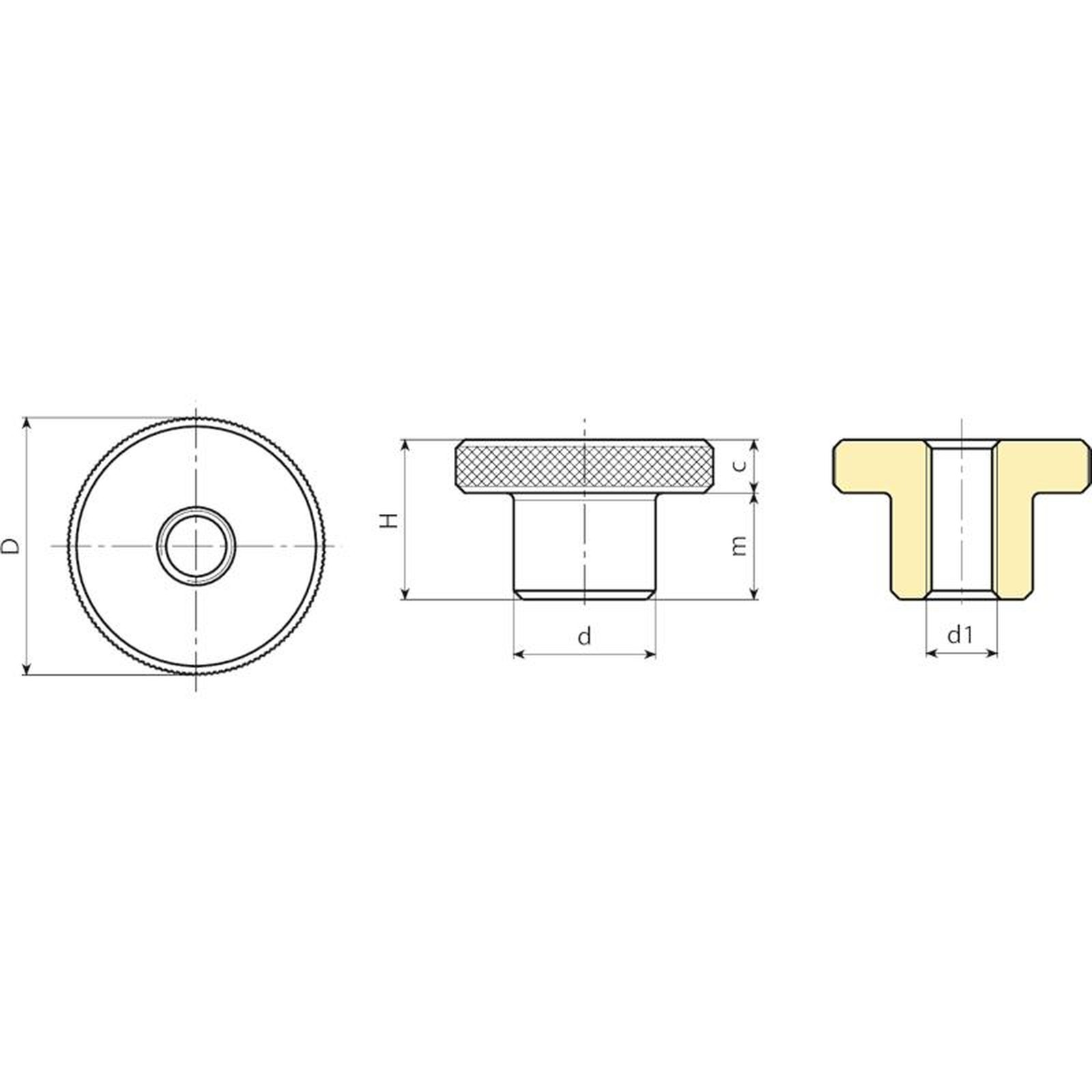

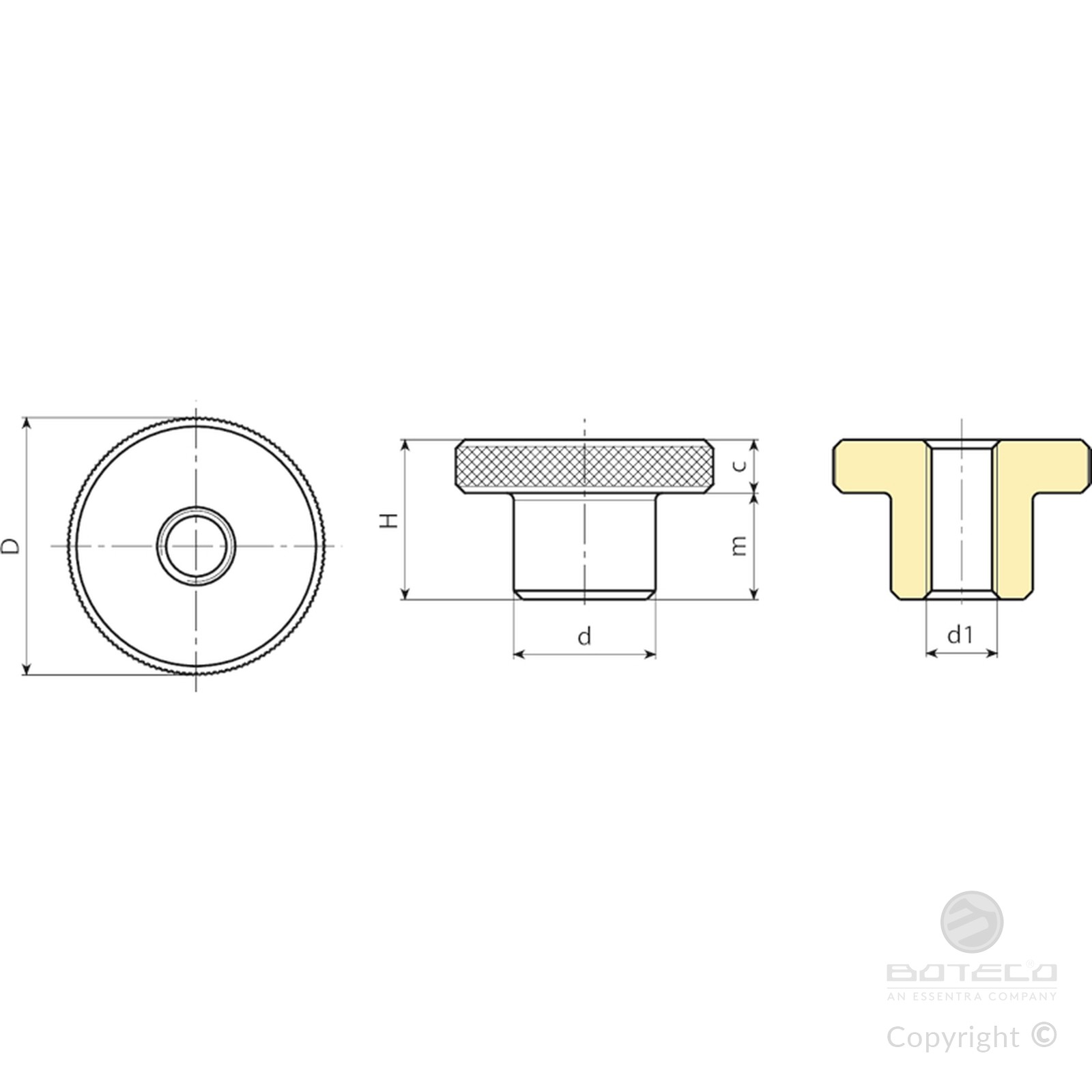

| Code | Art. | d | D | H | m | c | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W46611.0003 | W46611.SM03H | 6 | 11 | 8 | 5 | 3 | M3 | 3 |
| W46615.0003 | W46615.SM04H | 8 | 15 | 10 | 6 | 4 | M4 | 7 |
| W46619.0002 | W46619.SM05H | 10 | 19 | 12 | 8 | 4 | M5 | 12 |
| W46623.0004 | W46623.SM06H | 12 | 23 | 15 | 10 | 5 | M6 | 22.5 |
| W46629.0003 | W46629.SM08H | 16 | 29 | 18 | 12 | 6 | M8 | 45 |
| W46635.0003 | W46635.SM10H | 20 | 35 | 23 | 15 | 8 | M10 | 87 |
| W46639.0004 | W46639.SM12H | 22 | 39 | 25 | 15 | 10 | M12 | 121 |

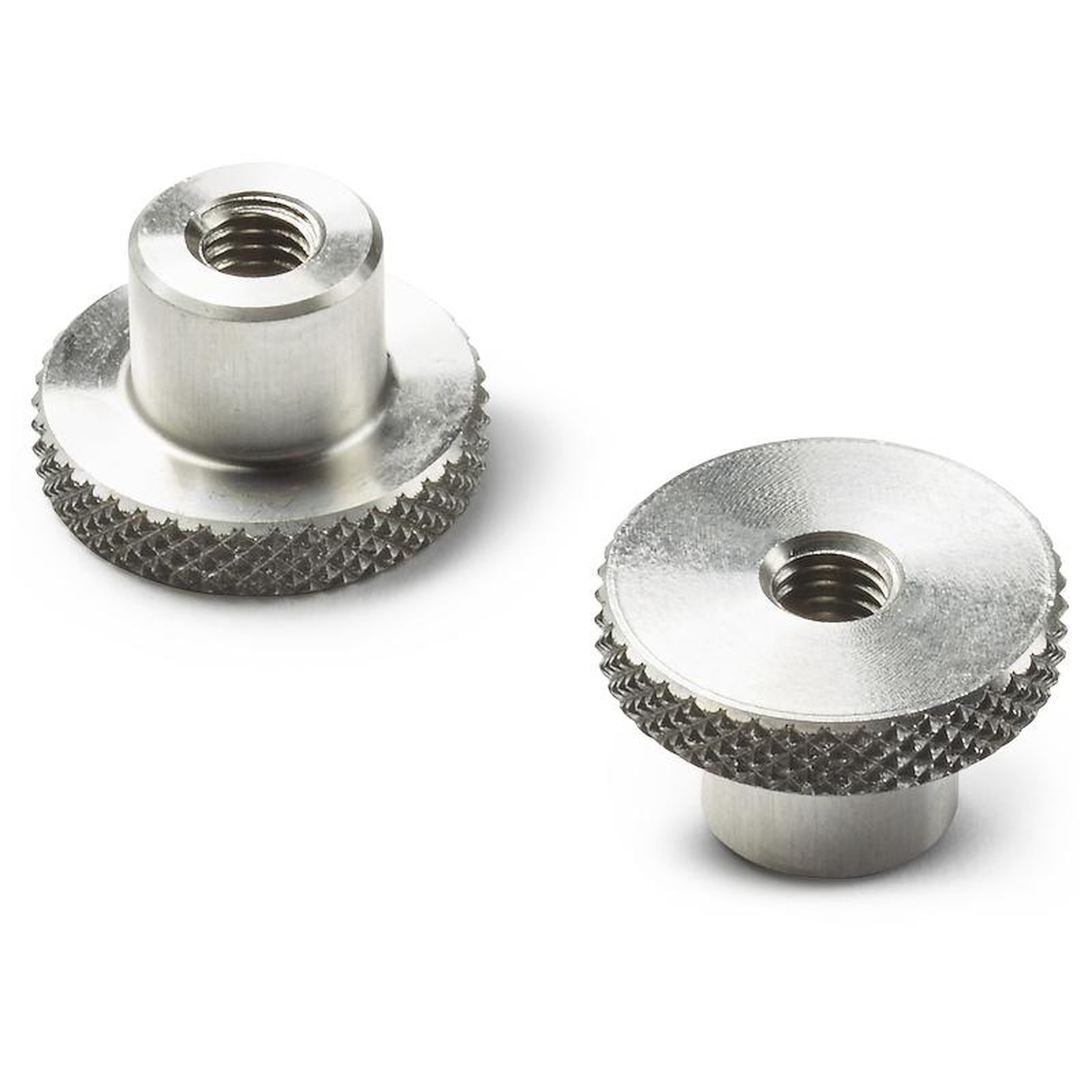

Version W466 PIN - stainless steel (Aisi 303)

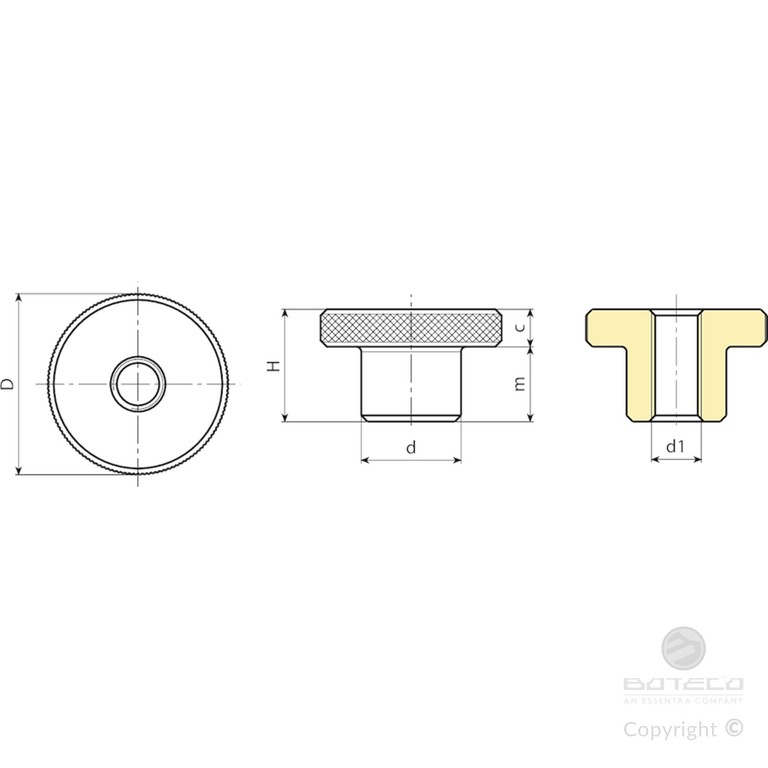

| Code | Art. | d | D | H | m | c | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W46611.0001 | W46611.IM03PIN | 6 | 11 | 8 | 5 | 3 | M3 | 3 |
| W46615.0001 | W46615.IM04PIN | 8 | 15 | 10 | 6 | 4 | M4 | 7 |
| W46619.0001 | W46619.IM05PIN | 10 | 19 | 12 | 8 | 4 | M5 | 12 |
| W46623.0001 | W46623.IM06PIN | 12 | 23 | 15 | 10 | 5 | M6 | 22.5 |
| W46629.0001 | W46629.IM08PIN | 16 | 29 | 18 | 12 | 6 | M8 | 45 |
| W46635.0001 | W46635.IM10PIN | 20 | 35 | 23 | 15 | 8 | M10 | 87 |
| W46639.0002 | W46639.IM12PIN | 22 | 39 | 25 | 15 | 10 | M12 | 121 |
