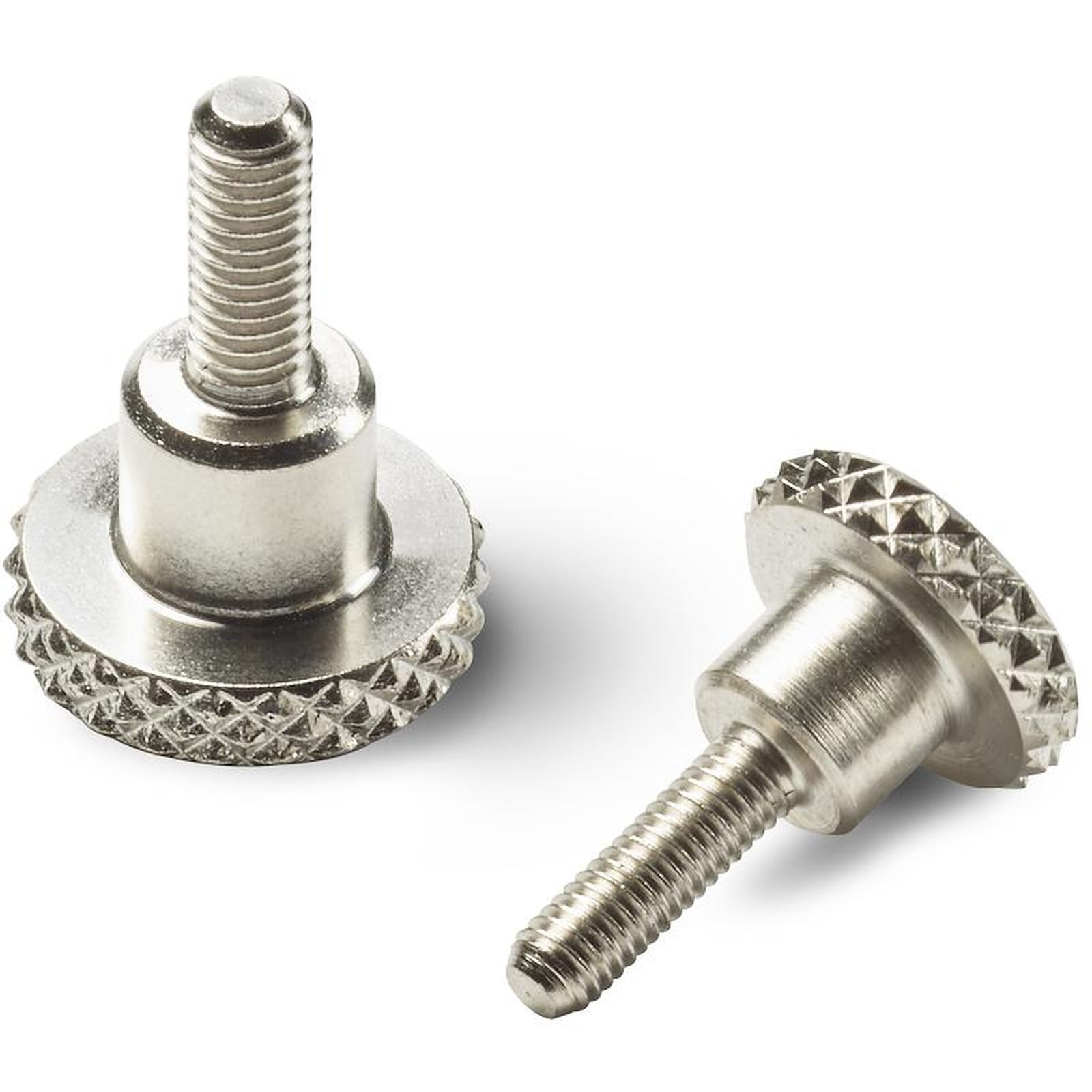

KNURLED METAL HANDWHEEL WITH THREADED STUD
08
W464
Vol. Zigrinati metallo
Materials:
W464:
Steel with strength class 5.8.
W464CIN:
Stainless steel (Aisi 303).
Surface finish:
Turned with low roughness.
Colour:
W464:
Nickel plated (galvanic treatment).
W464 CIN:
Natural.
Alternative finishes:
Black-oxide treatment:
(replace the final letter of the code (H) with letter B (W46429.SM08X..B).
Galvanising:
(replace the final letter of the code (H) with letter Z (W46429.SM08X..Z).
Stud:
Threaded stud machined from solid metal (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Version W464 - nickel-plated steel

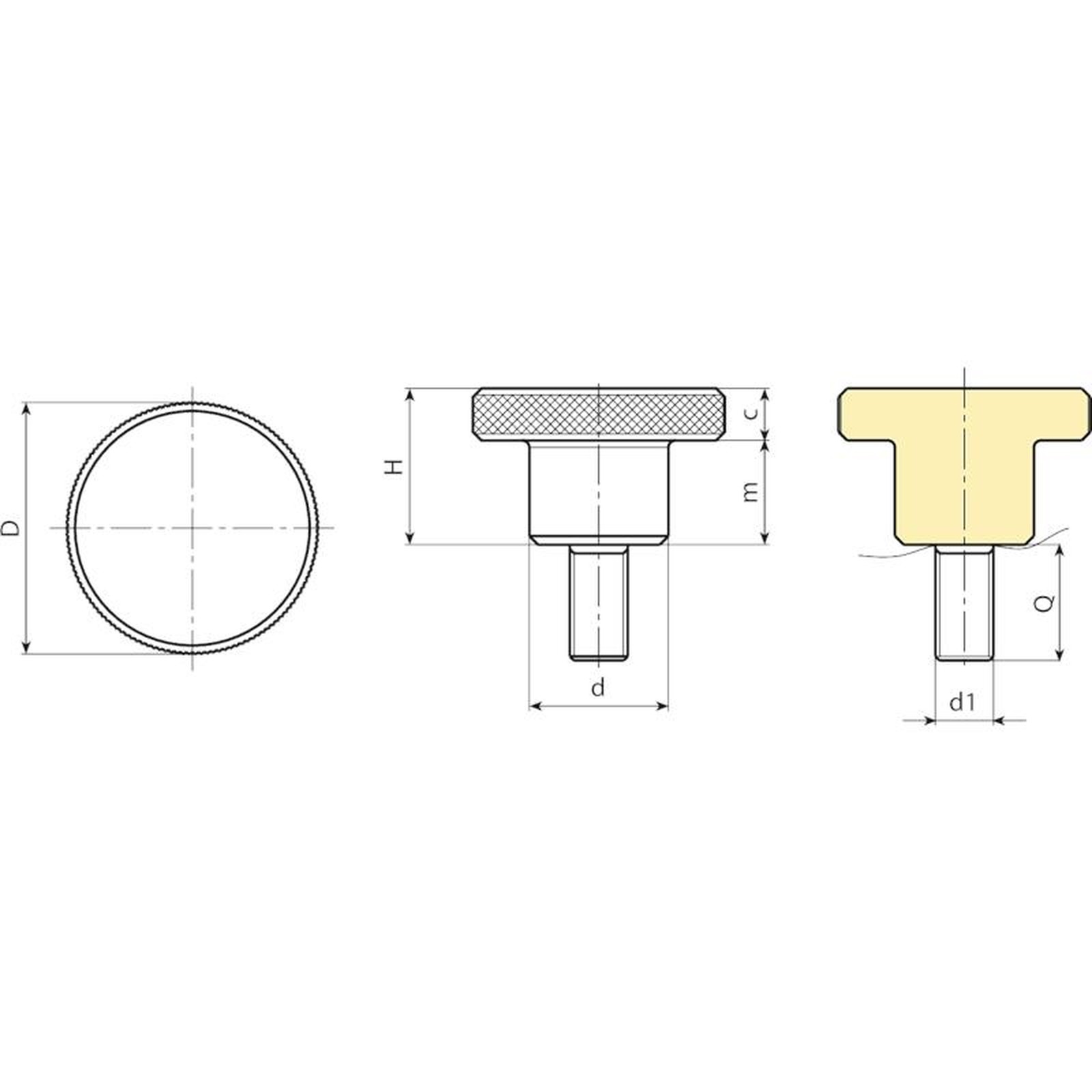

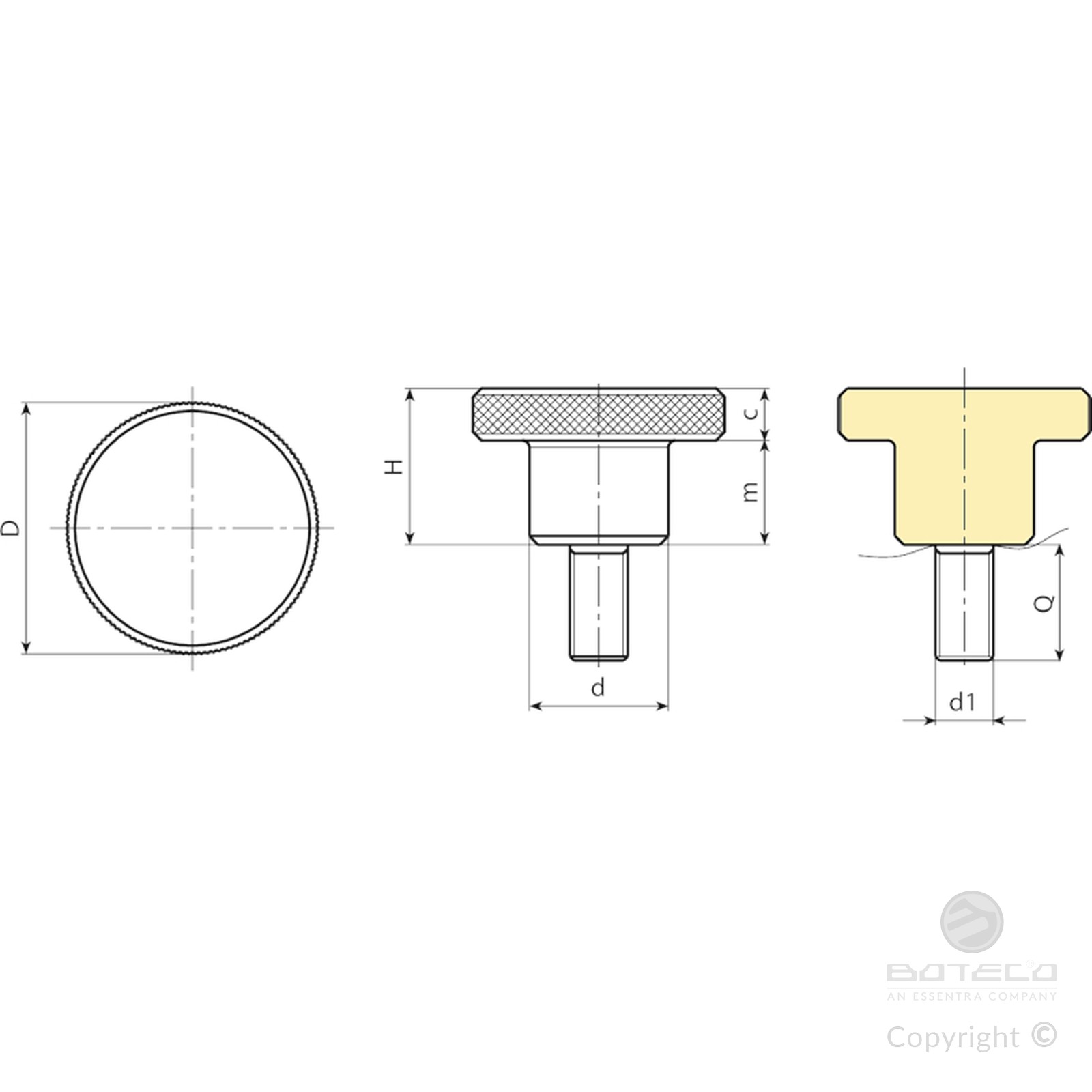

| Code | Art. | d | D | H | m | c | Q Max | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| W46411.0006 | W46411.SM03X16H | 6 | 11 | 8 | 5 | 3 | 16 | M3 | 16 | 5 |
| W46415.0002 | W46415.SM04X10H | 8 | 15 | 10 | 6 | 4 | 20 | M4 | 10 | 7.8 |
| W46419.0005 | W46419.SM05X16H | 10 | 19 | 12 | 8 | 4 | 25 | M5 | 16 | 15,6 |
| W46423.0005 | W46423.SM06X16H | 12 | 23 | 15 | 10 | 5 | 35 | M6 | 16 | 27,5 |
| W46423.0010 | W46423.SM06X35H | 12 | 23 | 15 | 10 | 5 | 35 | M6 | 35 | 30,5 |
| W46429.0004 | W46429.SM08X16H | 16 | 29 | 18 | 12 | 6 | 40 | M8 | 16 | 55 |
| W46429.0007 | W46429.SM08X30H | 16 | 29 | 18 | 12 | 6 | 40 | M8 | 30 | 59 |
| W46435.0004 | W46435.SM10X25H | 20 | 35 | 23 | 15 | 8 | 40 | M10 | 25 | 109.5 |
Customised stud length available for a minimum of 100 pieces.
Qmax = maximum turning length.
Version W464 CIN - stainless steel (Aisi 303)
| Code | Art. | d | D | H | m | c | Q Max | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| W46423.0002 | W46423.IM06X35CIN | 12 | 23 | 15 | 10 | 5 | 35 | M6 | 35 | 30.5 |
Customised stud length available for a minimum of 100 pieces.
Qmax = maximum turning length.
