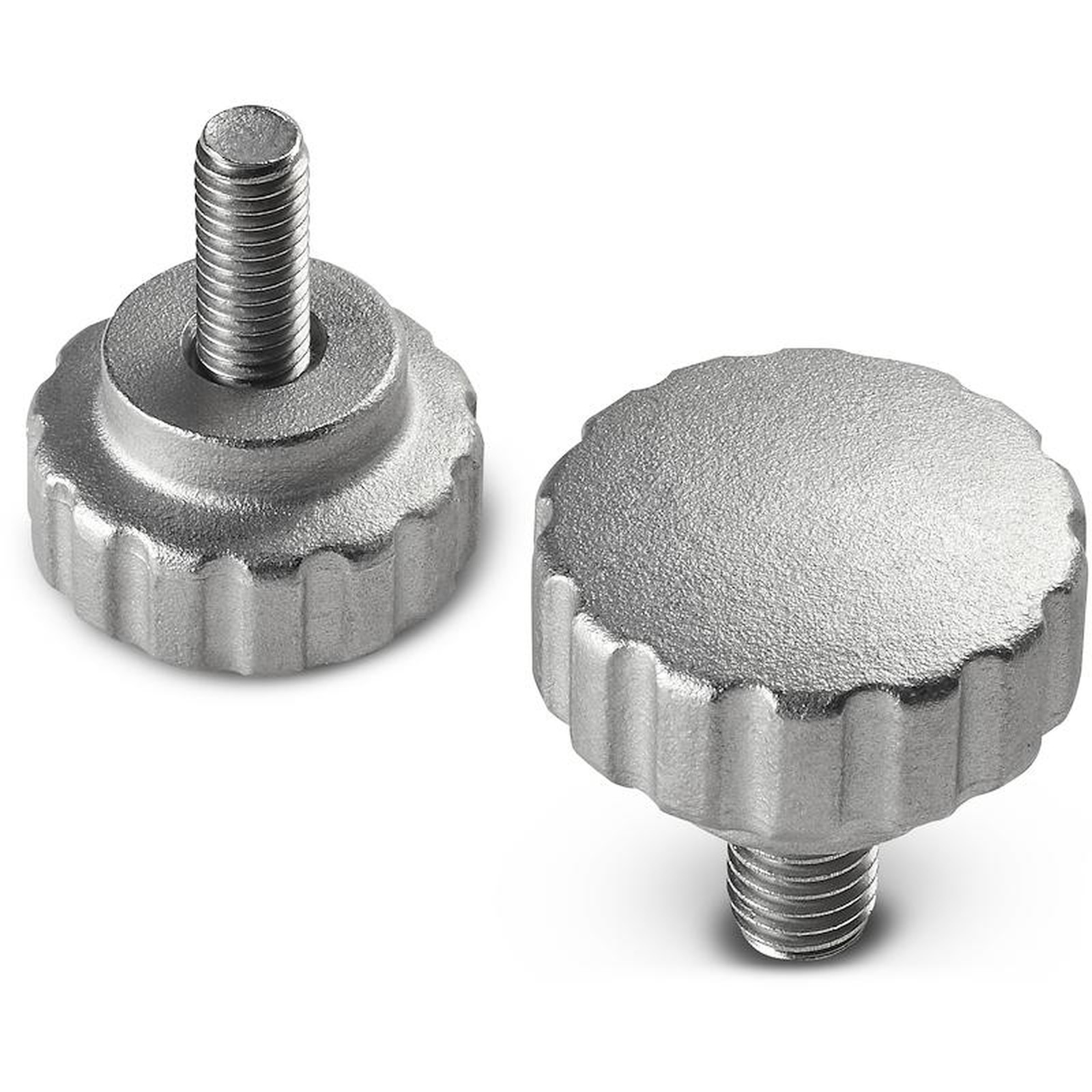

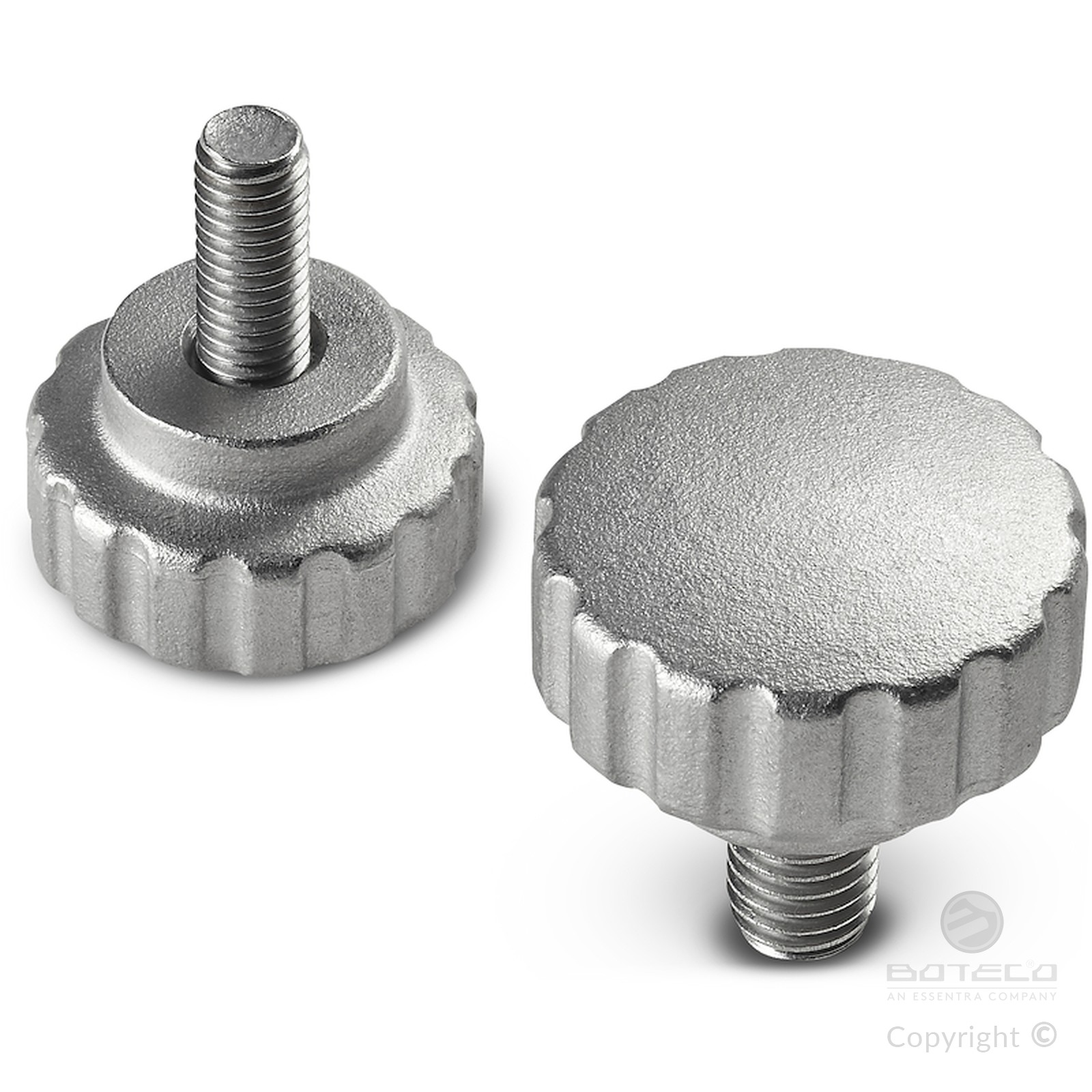

Materials:
Knob:
Precision-cast stainless steel, (Aisi 304).
Stud:
Stainless steel (Aisi 303).
Surface finish:
Knob:
Electropolished satin finish.
Stud:
Smooth.
Colour:
Natural.
Inserts:
Turned threaded stud (thread tolerance 6g).
ATTENTION: The stud is fixed with glue.
Special requests:
Upon request and for a minimum of 50 pieces inserts can be supplied with customised lengths.

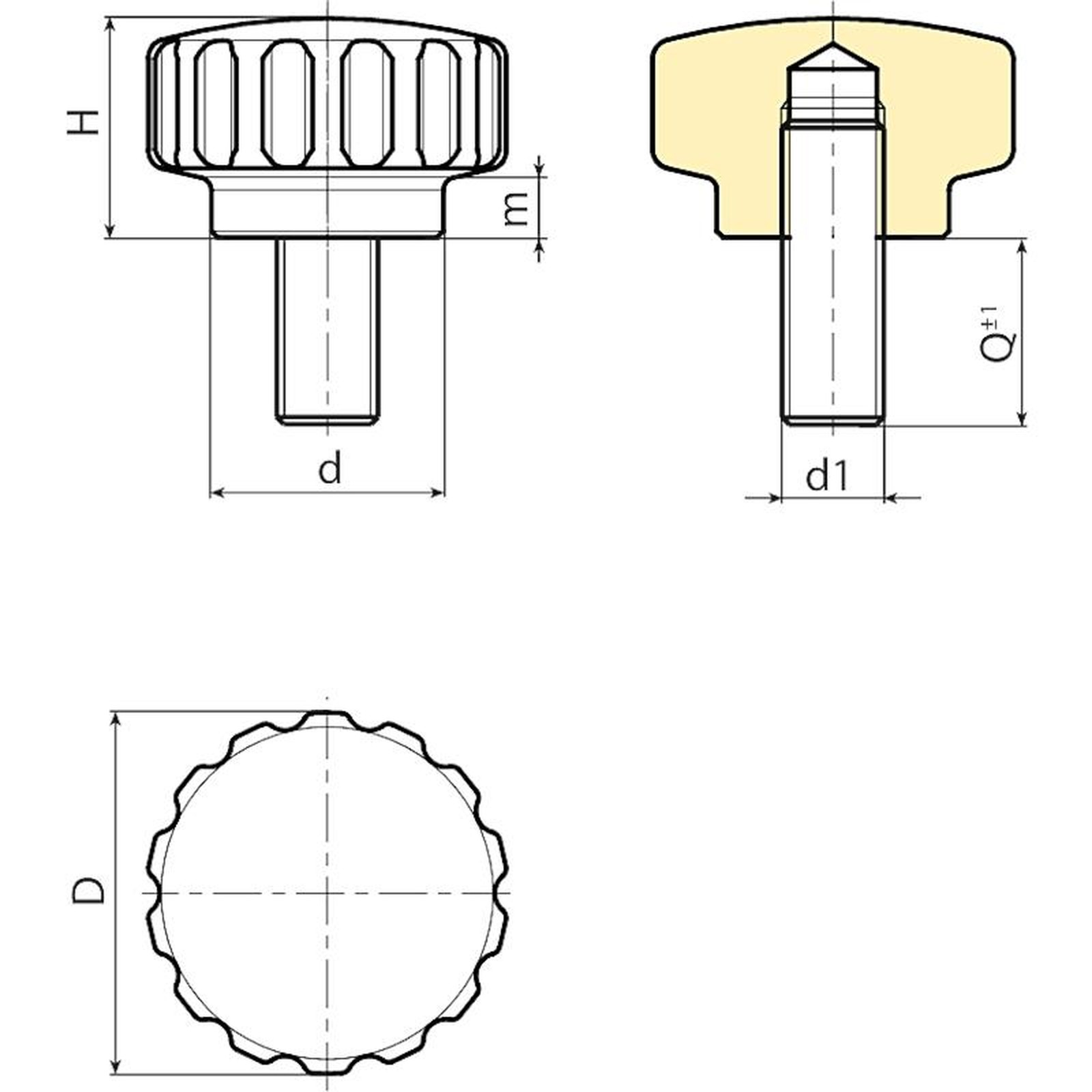

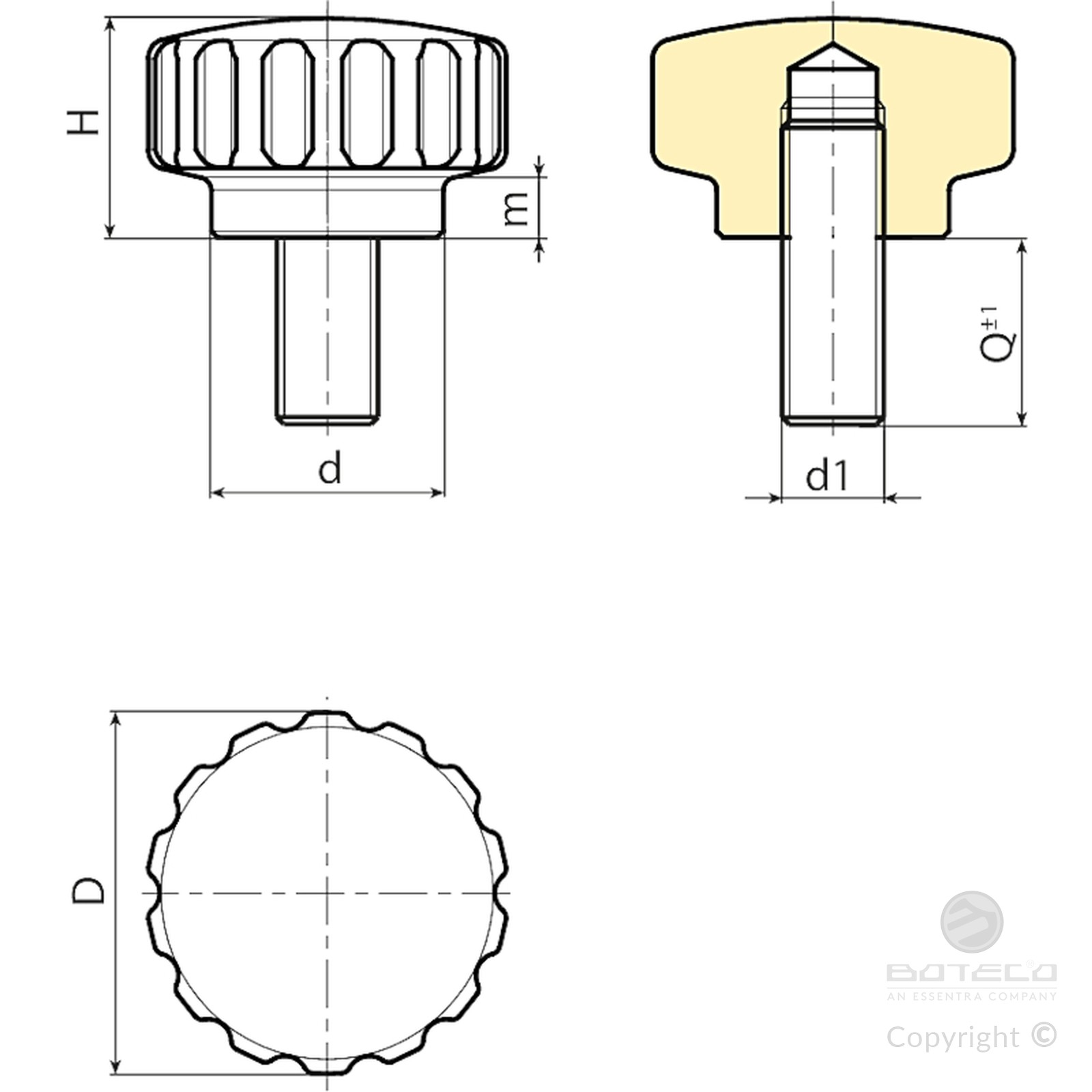

| Code | Art. | D | H | d | m | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W460020.0001 | W460020.HNM05X20HIN | 20 | 13 | 14 | 4,5 | M5 | 20 | 3 |
| W460024.0002 | W460024.HNM06X20HIN | 24 | 15 | 16 | 4,5 | M6 | 20 | 3 |
| W460028.0001 | W460028.HNM08X30HIN | 28 | 17 | 18 | 4,5 | M8 | 30 | 3 |
Customised stud length available for a minimum of 50 pieces.
