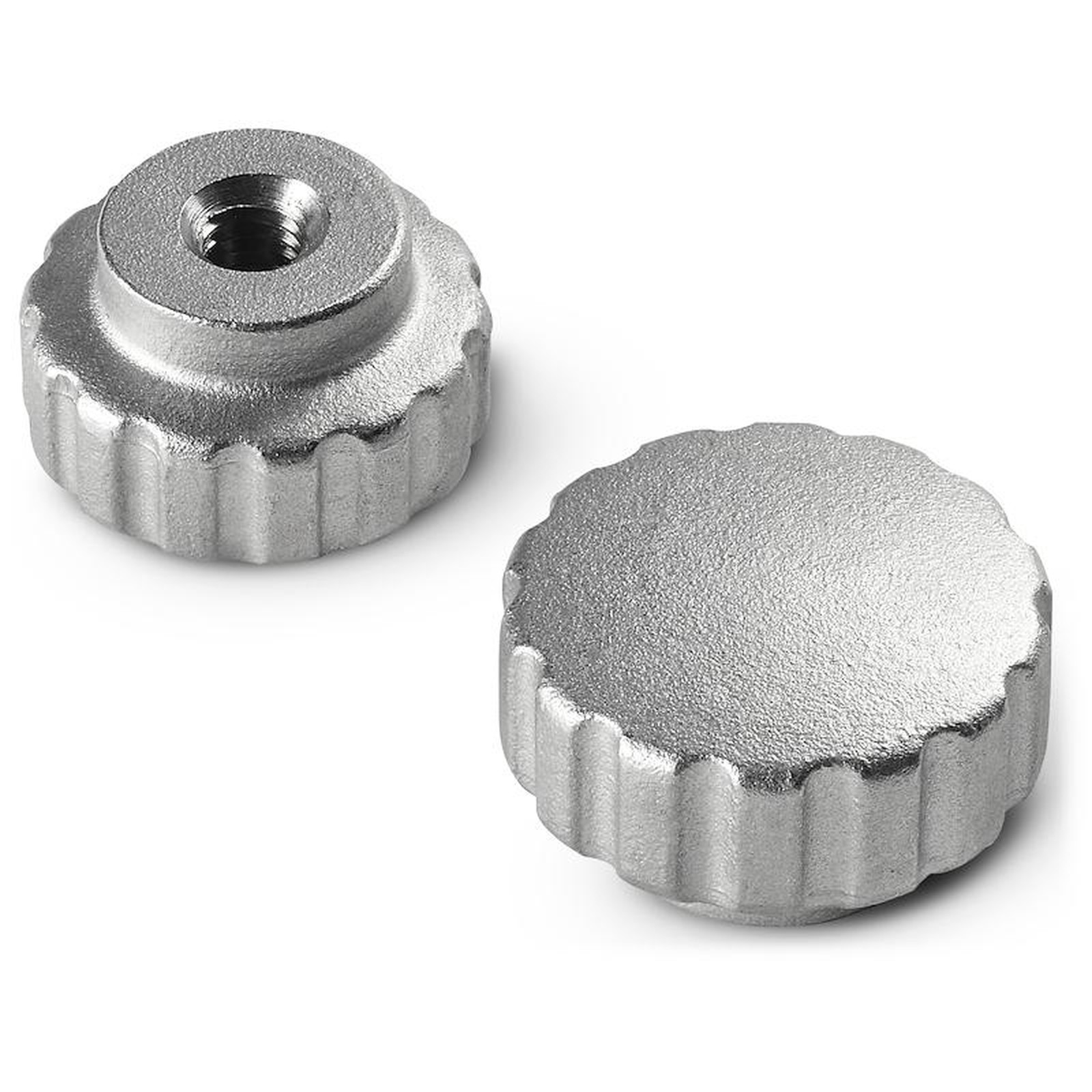

Materials:
Precision-cast stainless steel, (Aisi 304).
Surface finish:
Electropolished satin finish.
Colour:
Natural.
Hole:
Female threaded hole (thread tolerance 6H).
Special requests:
None.

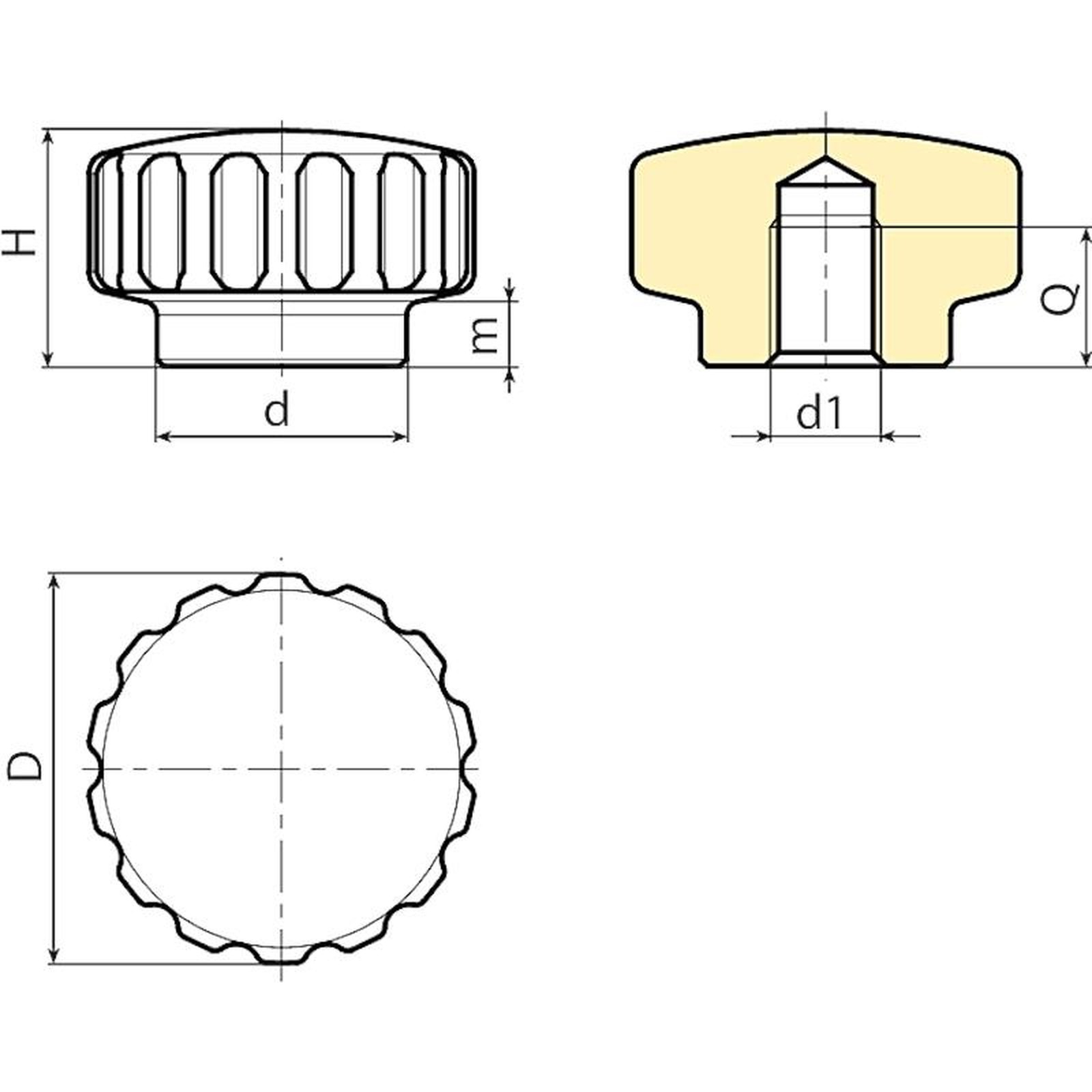

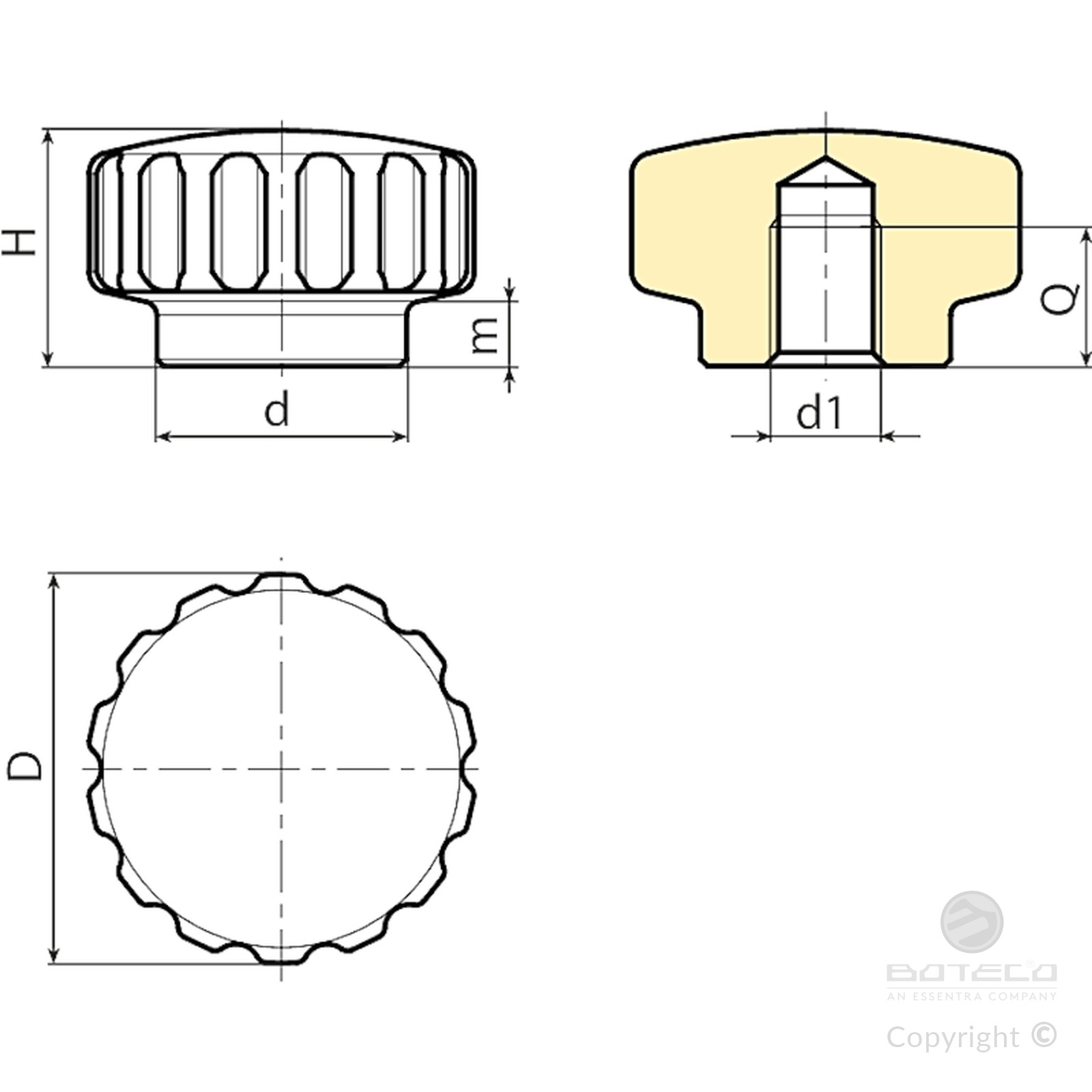

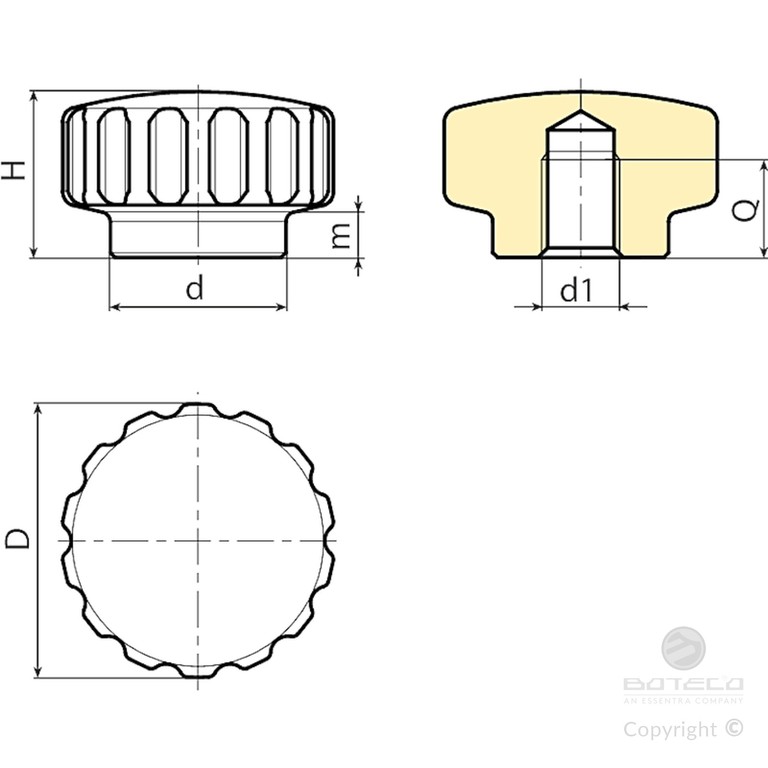

| Code | Art. | D | H | d | m | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| W459020.0001 | W459020.HNM05HIN | 20 | 13 | 14 | 4,5 | M5 | 8 | 3 |
| W459024.0001 | W459024.HNM06HIN | 24 | 15 | 16 | 4,5 | M6 | 9 | 3 |
| W459028.0001 | W459028.HNM08HIN | 28 | 17 | 18 | 4,5 | M8 | 10 | 3 |
