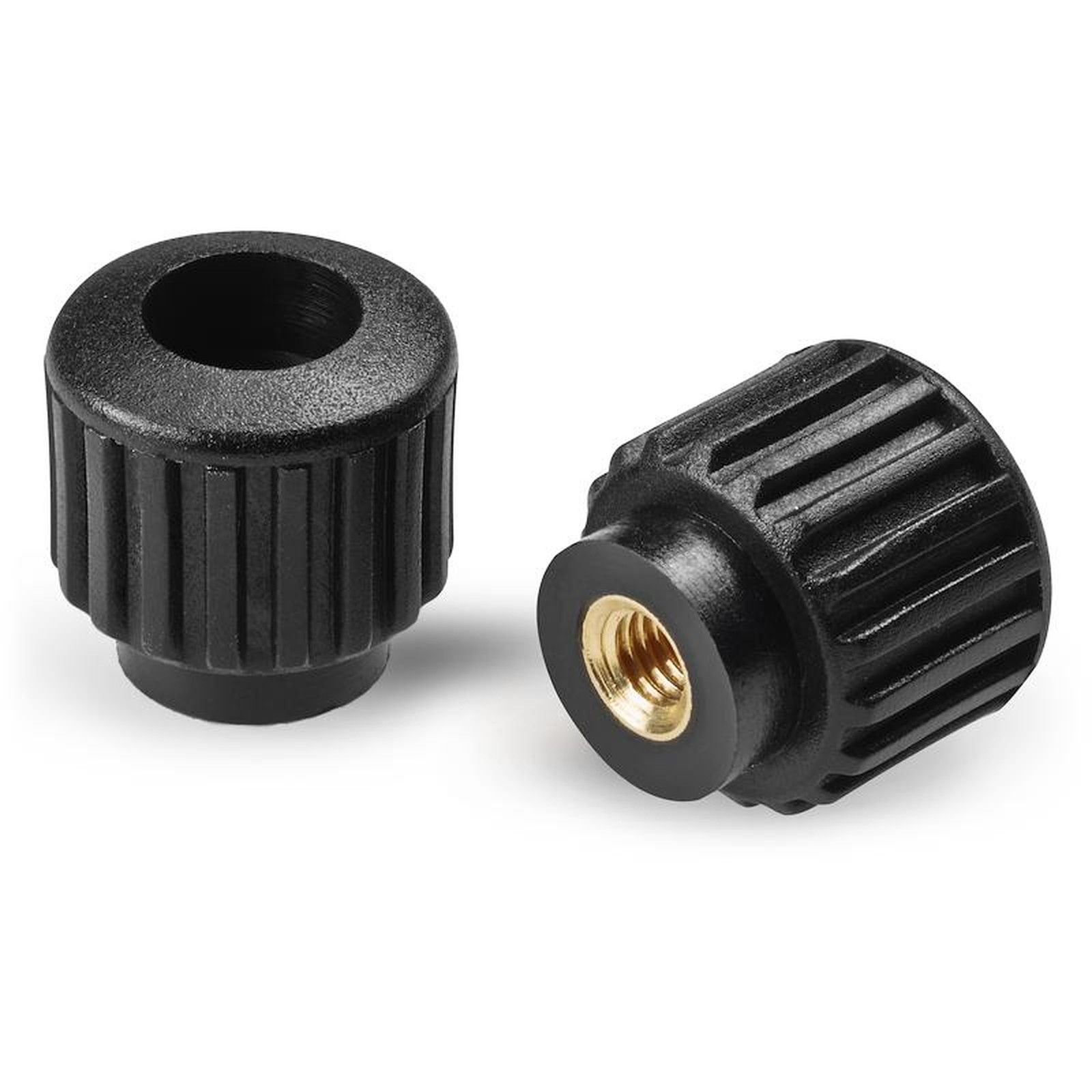

KNURLED KNOB WITH FEMALE THREADED INSERT
08
H770
Vol. Zigrinati foro cieco
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

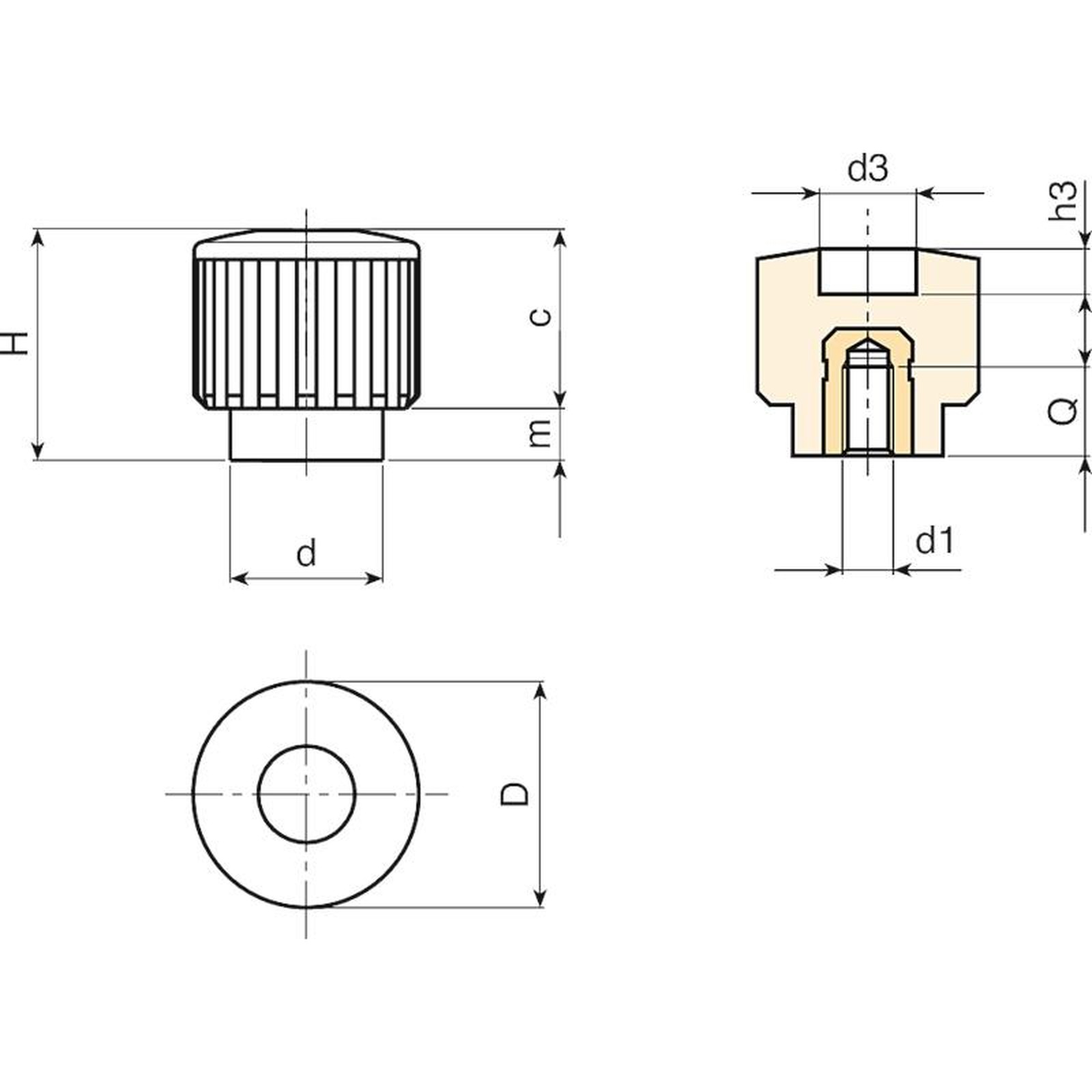

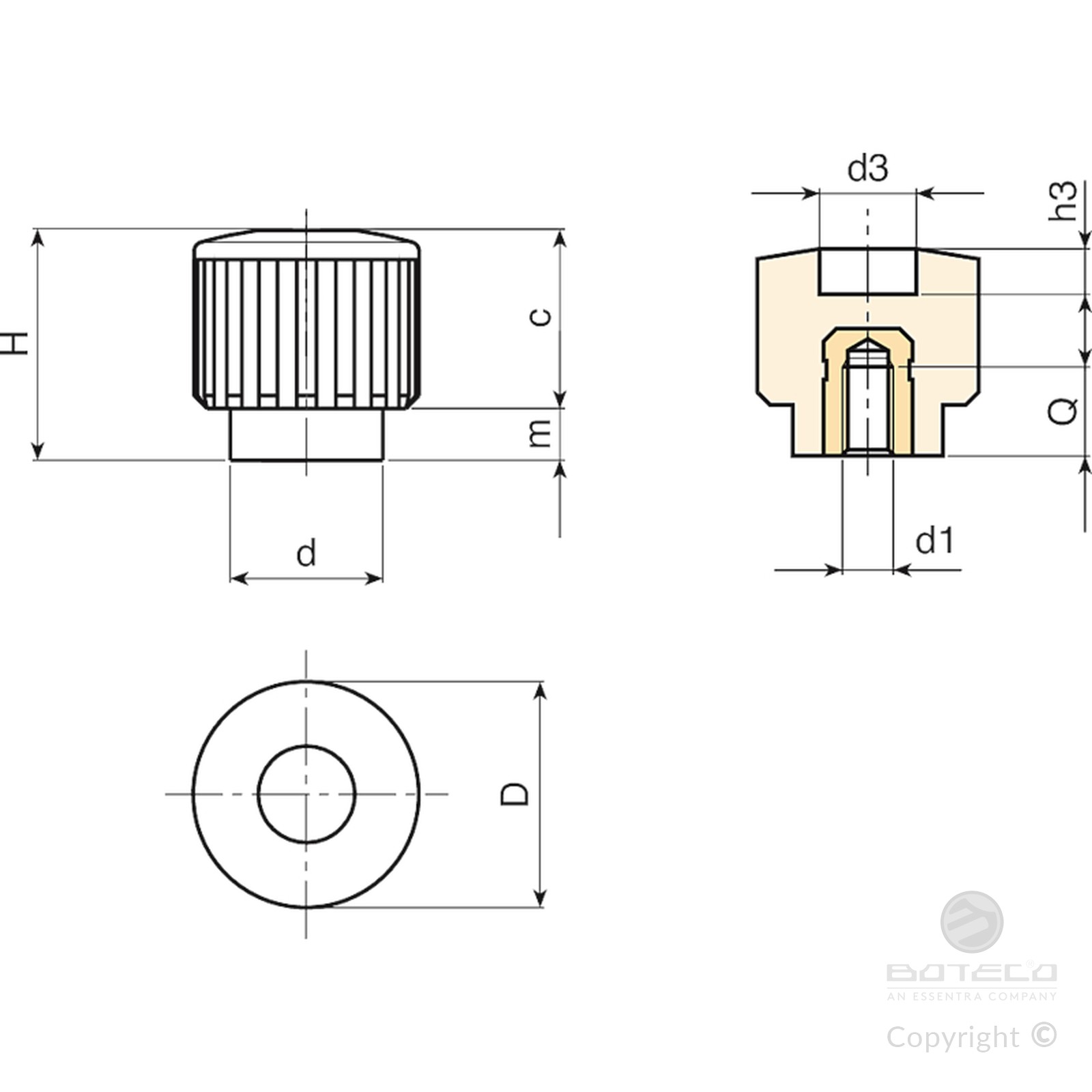

| Code | art. | D | H | d | m | c | d3 | h3 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H77018.0001 | H77018.TM0401 | 17.5 | 17.5 | 12 | 4 | 13.5 | 9 | 5 | M4 | 7 | 5 |
| H77018.0002 | H77018.TM0501 | 17.5 | 17.5 | 12 | 4 | 13.5 | 9 | 5 | M5 | 7 | 5 |
| H77018.0003 | H77018.TM0601 | 17.5 | 17.5 | 12 | 4 | 13.5 | 9 | 5 | M6 | 7 | 5 |
