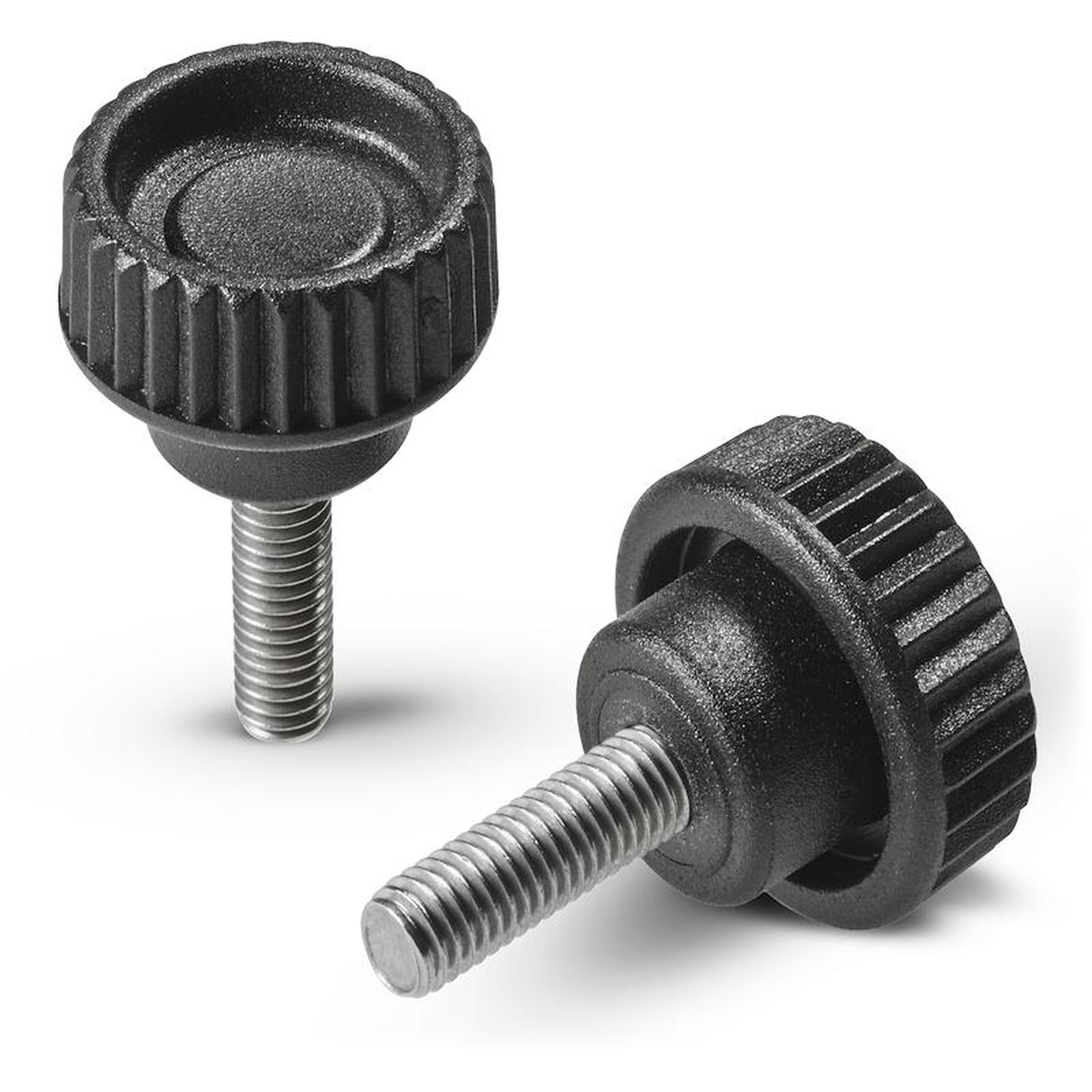

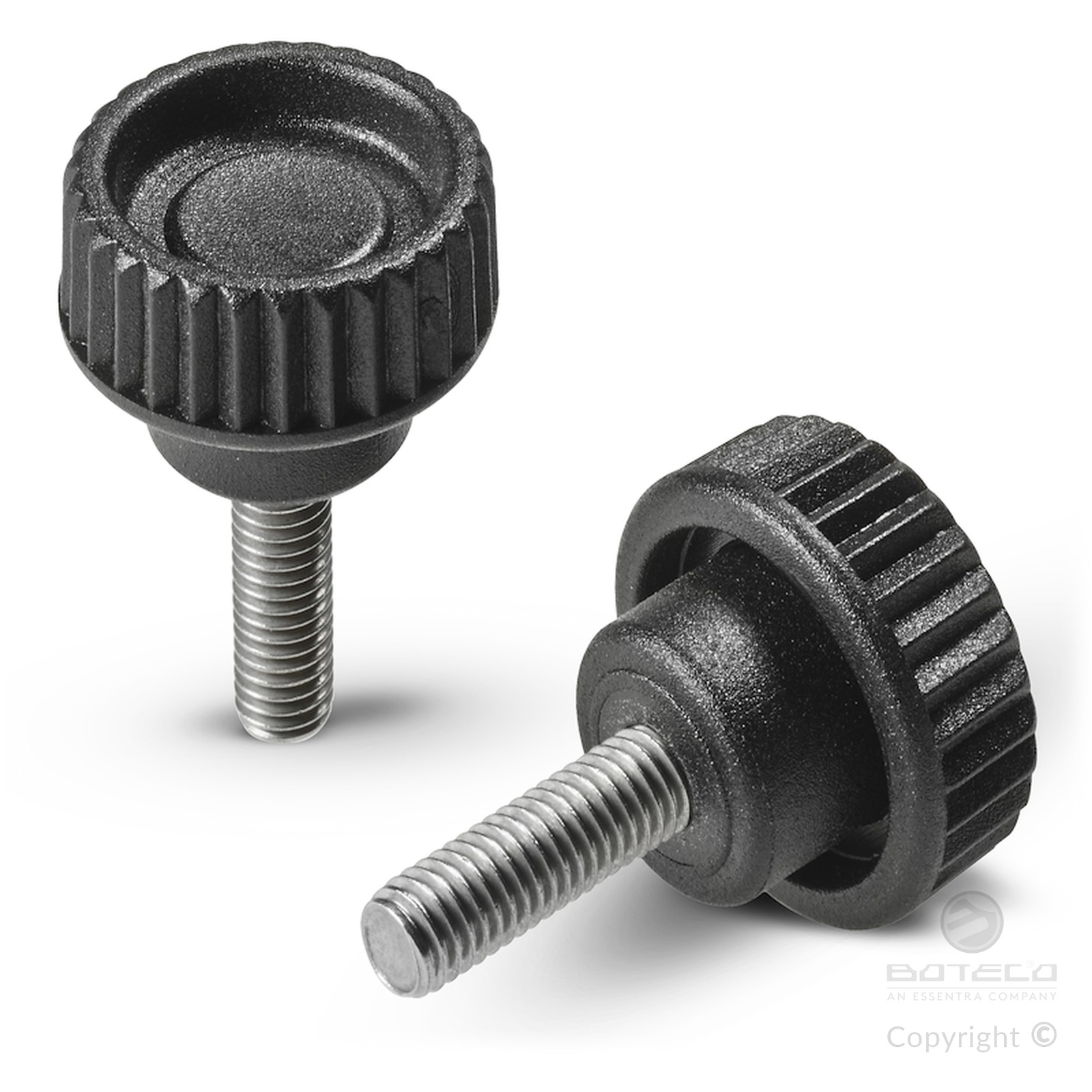

KNURLED HOLLOW HANDWHEEL WITH STAINLESS STEEL THREADED STUD
08
H766CIN
Vol. Zigrinati con prigioniero
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Stainless steel threaded stud (Aisi 303) (thread tolerance 6g).
Special Requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities available in the colours indicated in the chart.

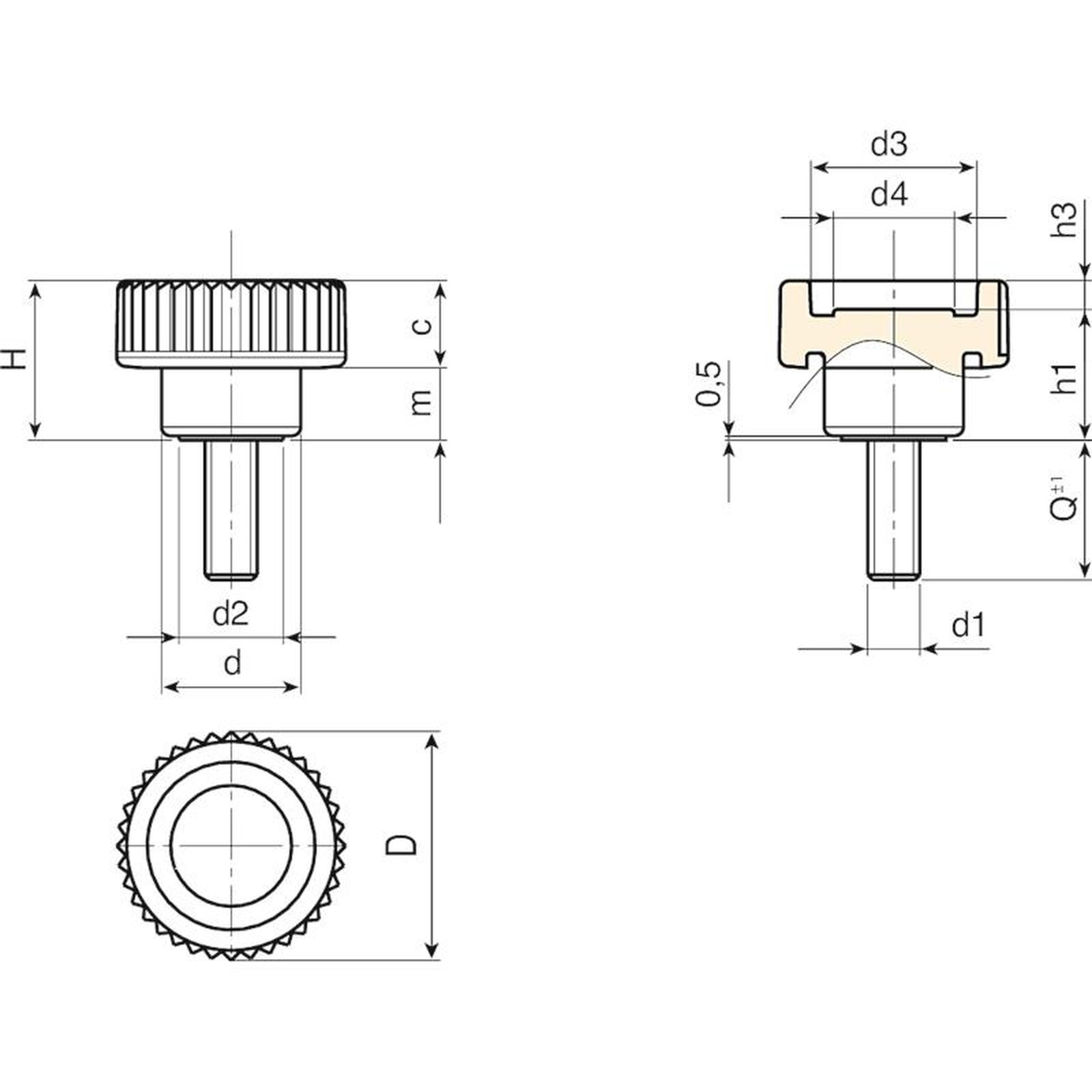

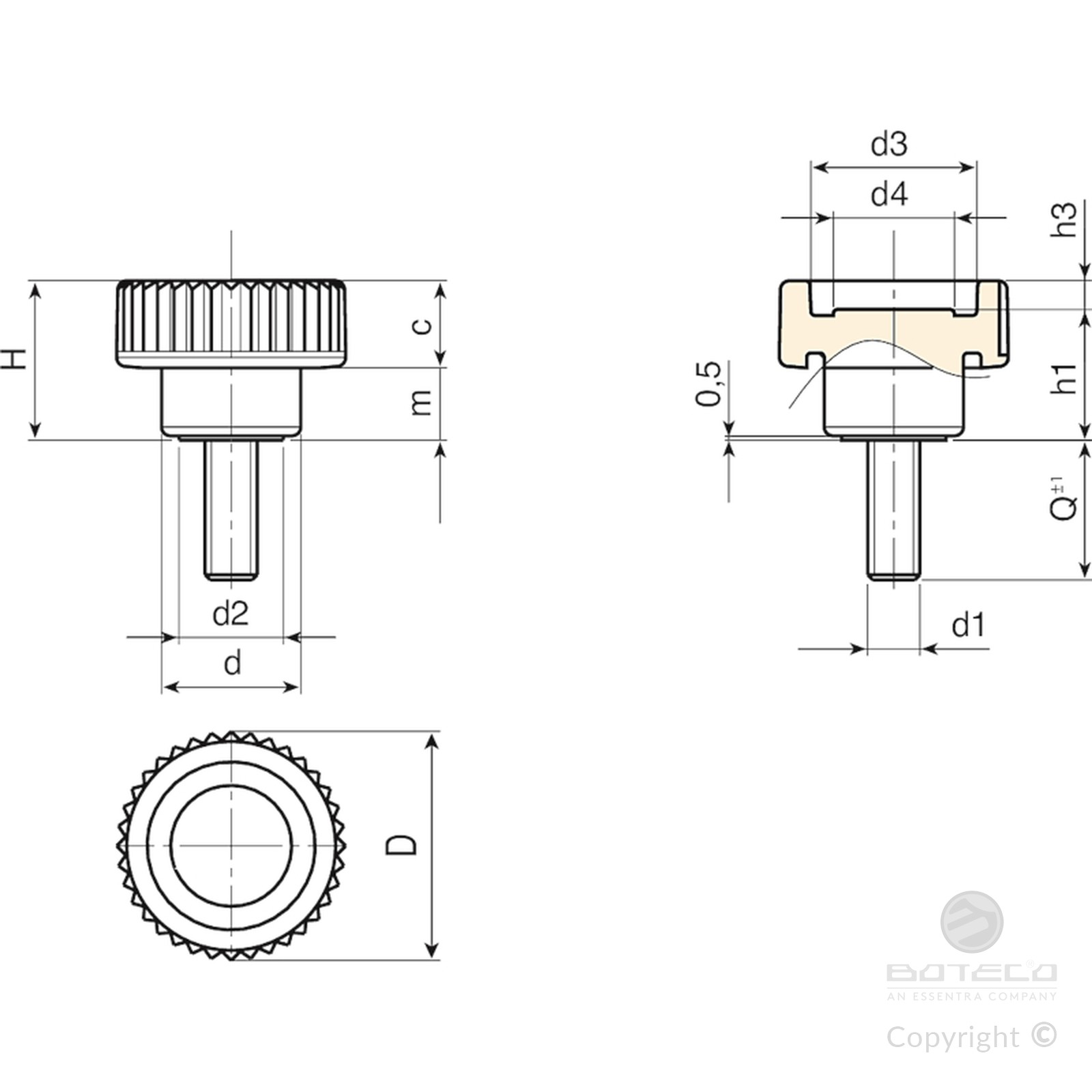

| Code | art. | D | H | d | m | c | d2 | d3 | d4 | h1 | h3 | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H76615.0017 | H76615.TM05X1501CIN | 15 | 10.5 | 10 | 4.5 | 6 | 8 | 10 | 7.5 | 8.5 | 2 | 40 | M5 | 15 | - |
| H76621.0006 | H76621.TM05X1601CIN | 21 | 15 | 13 | 6.5 | 8.5 | 9.5 | 15 | 10.5 | 12.5 | 2.5 | 40 | M5 | 16 | 9.5 |
| H76621.0019 | H76621.TM06X1501CIN | 21 | 15 | 13 | 6.5 | 8.5 | 9.5 | 15 | 10.5 | 12.5 | 2.5 | 40 | M6 | 15 | - |
| H76626.0010 | H76626.TM06X2001CIN | 26 | 18 | 16 | 8.5 | 9.5 | 12 | 19 | 13 | 15 | 3 | 80 | M6 | 20 | - |
| H76626.0032 | H76626.TM08X2001CIN | 26 | 18 | 16 | 8.5 | 9.5 | 12 | 19 | 13 | 15 | 3 | 80 | M8 | 20 | 16.5 |
| H76633.0017 | H76633.TM08X4001CIN | 32 | 23 | 20 | 10.5 | 12.5 | 15 | 23 | 16 | 18 | 5 | 80 | M8 | 40 | 36 |
| H76640.0009 | H76640.TM10X2001CIN | 40 | 28 | 25 | 12.5 | 15.5 | 18 | 29 | 20,5 | 22 | 6 | 100 | M10 | 20 | - |
| H76640.0018 | H76640.TM12X3001CIN | 40 | 28 | 25 | 12.5 | 15.5 | 18 | 29 | 20,5 | 22 | 6 | 100 | M12 | 30 | - |
LM = maximum mouldable length.
Threaded stud length on request, with a minimum quantity of 250 pieces.
