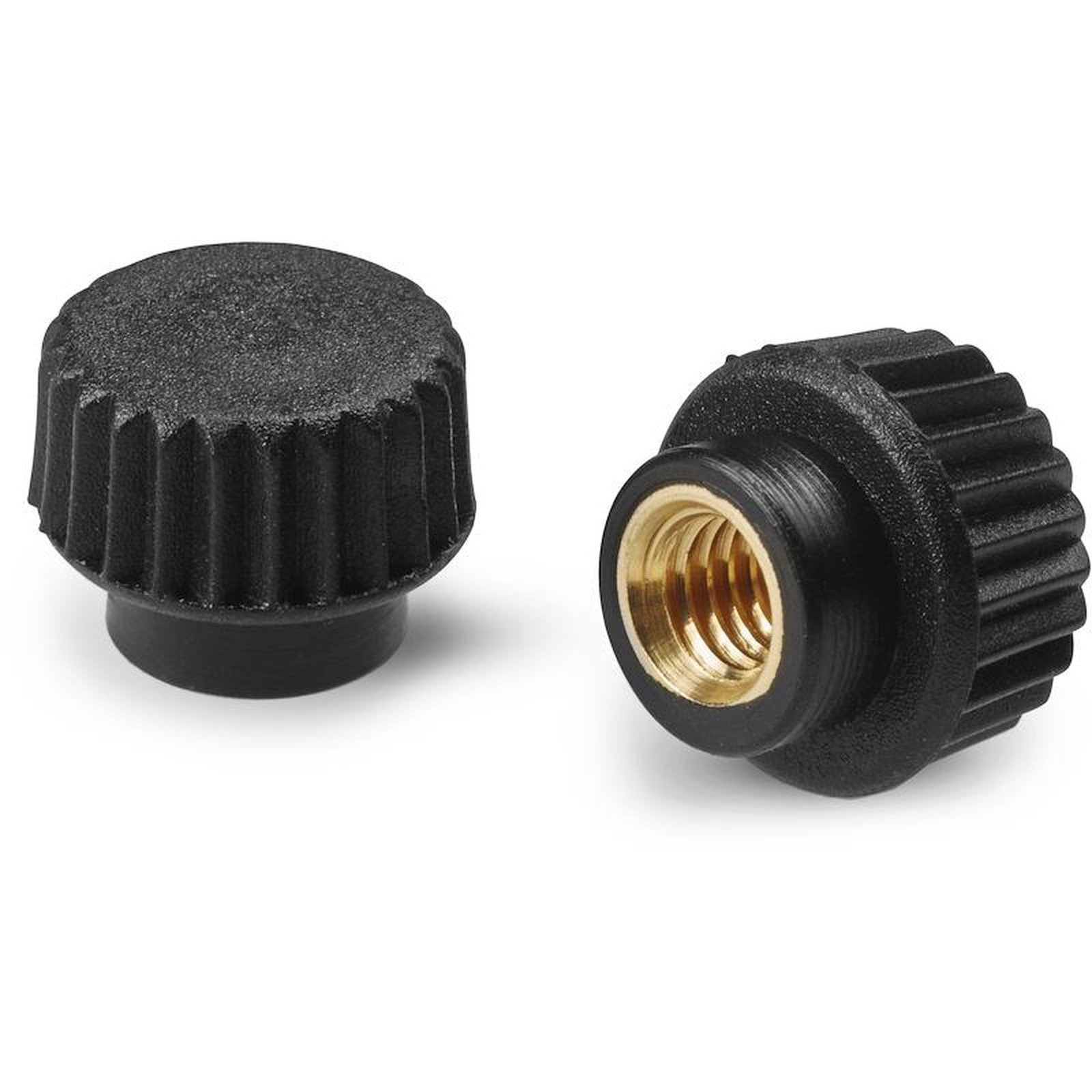

KNURLED HANDWHEEL WITH HUB AND FEMALE THREADED INSERT
08
H758
Vol. Zigrinati foro cieco
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

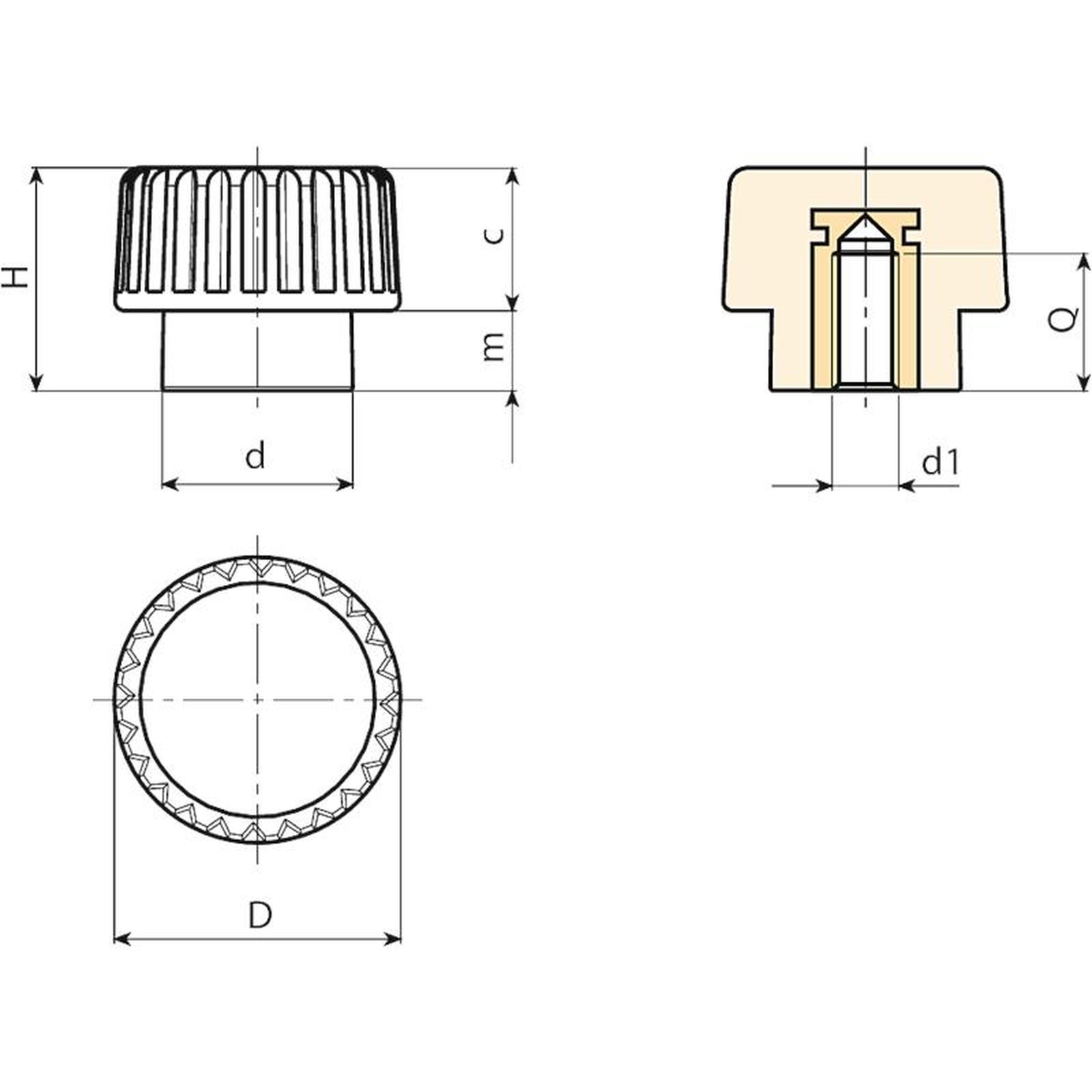

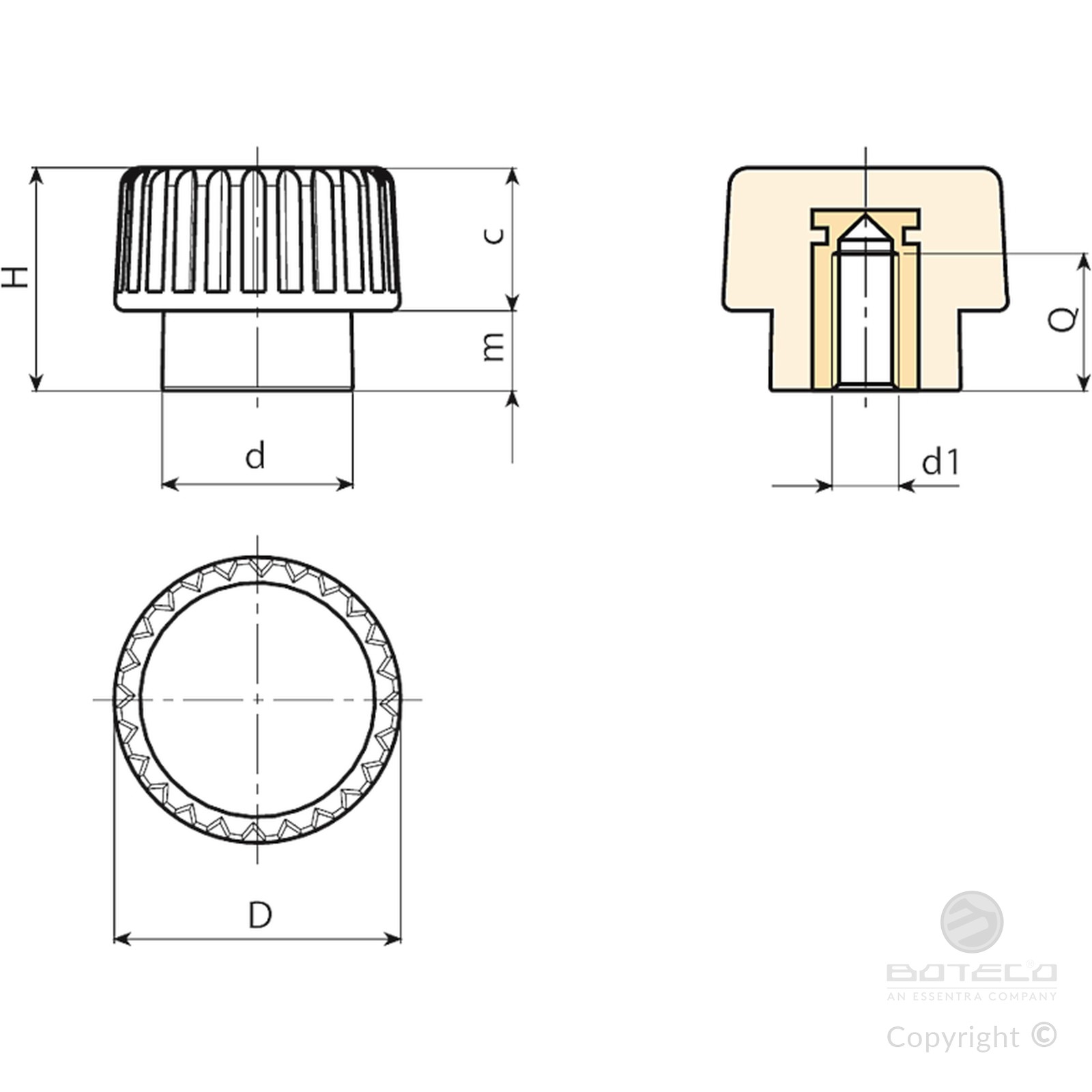

| Code | art. | D | H | d | m | c | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| H75815.0002 | H75815.TM0401 | 15 | 11,5 | 10,5 | 4 | 7,5 | M4 | 7 | 4 |
| H75815.0005 | H75815.TM0501 | 15 | 11,5 | 10,5 | 4 | 7,5 | M5 | 7 | 4 |
| H75815.0010 | H75815.TM0601 | 15 | 11,5 | 10,5 | 4 | 7,5 | M6 | 7 | 4 |
