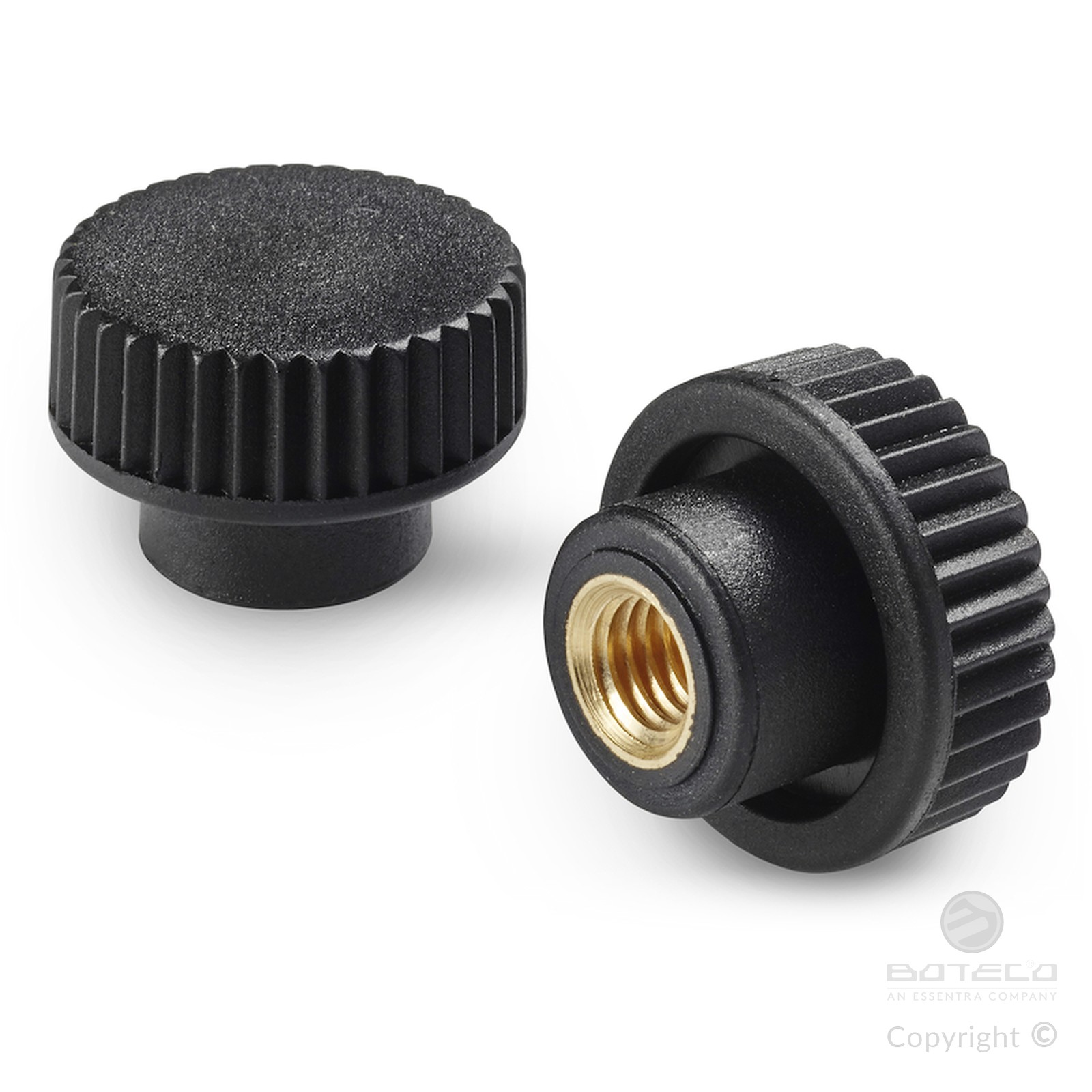

KNURLED SOLID HANDWHEEL WITH FEMALE THREADED INSERT
08
H757
Vol. Zigrinati foro cieco
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

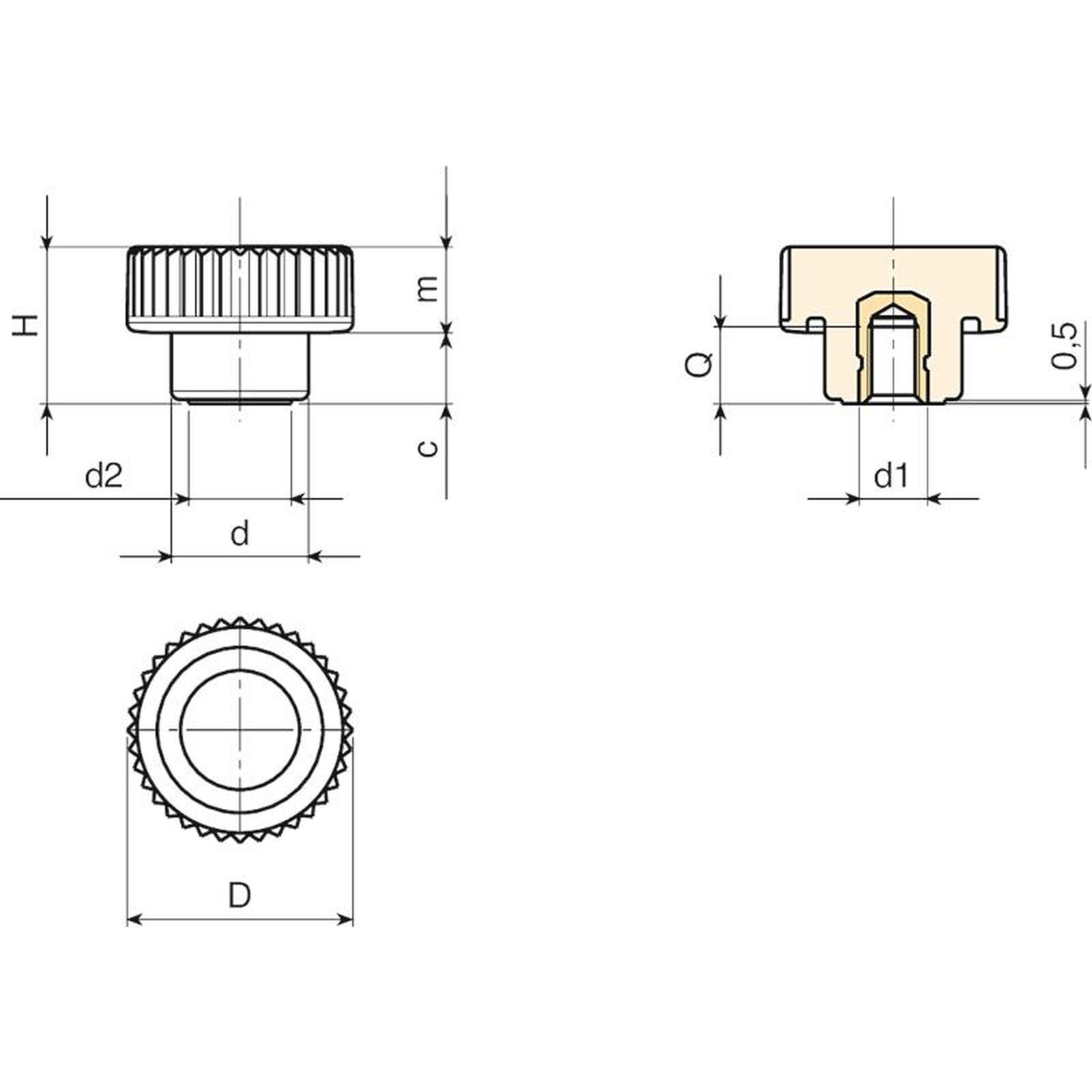

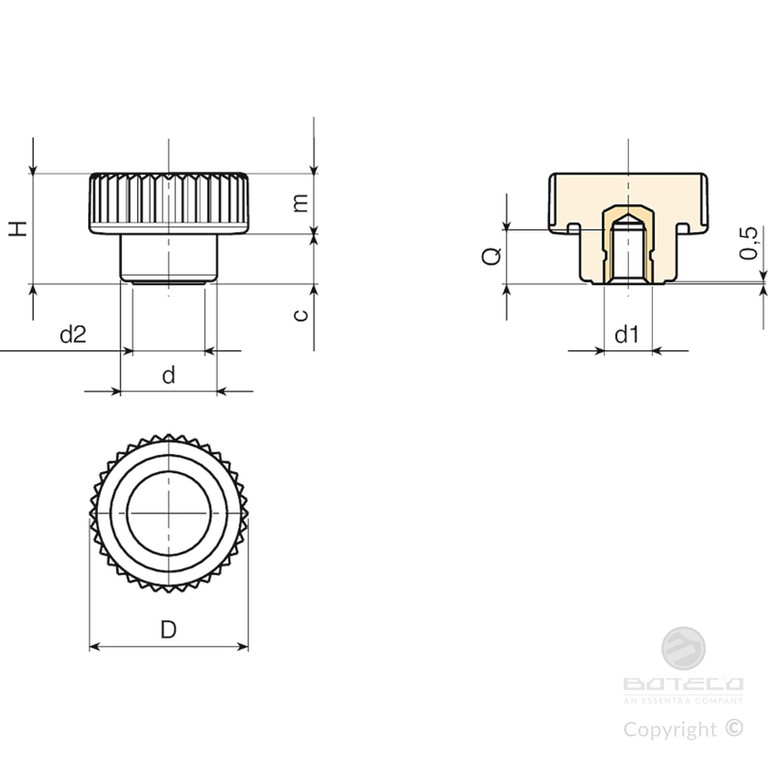

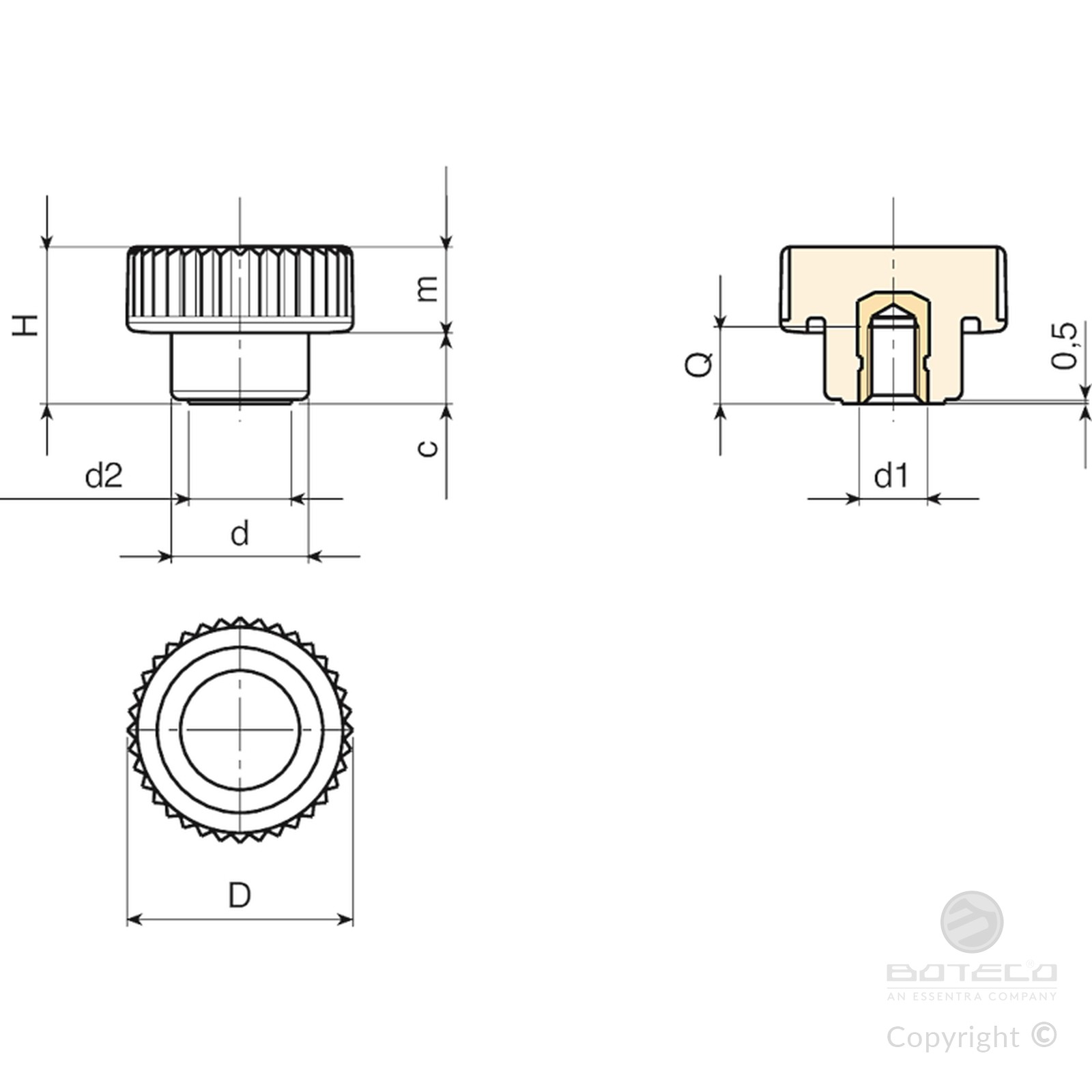

| Code | art. | D | H | d | m | c | d2 | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| H75726.0007 | H75726.TM0501 | 26 | 18 | 16 | 8.5 | 9.5 | 12 | M5 | 6 | 9 |
| H75726.0008 | H75726.TM0601 | 26 | 18 | 16 | 8.5 | 9.5 | 12 | M6 | 8 | 10 |
| H75726.0009 | H75726.TM0801 | 26 | 18 | 16 | 8.5 | 9.5 | 12 | M8 | 8 | 11 |
