Materials:
Phenolic resin.
Resistant to oils and greases.
Resistant to high temperatures.
Surface finish:
Glossy.
Colour:
Black(RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
None.

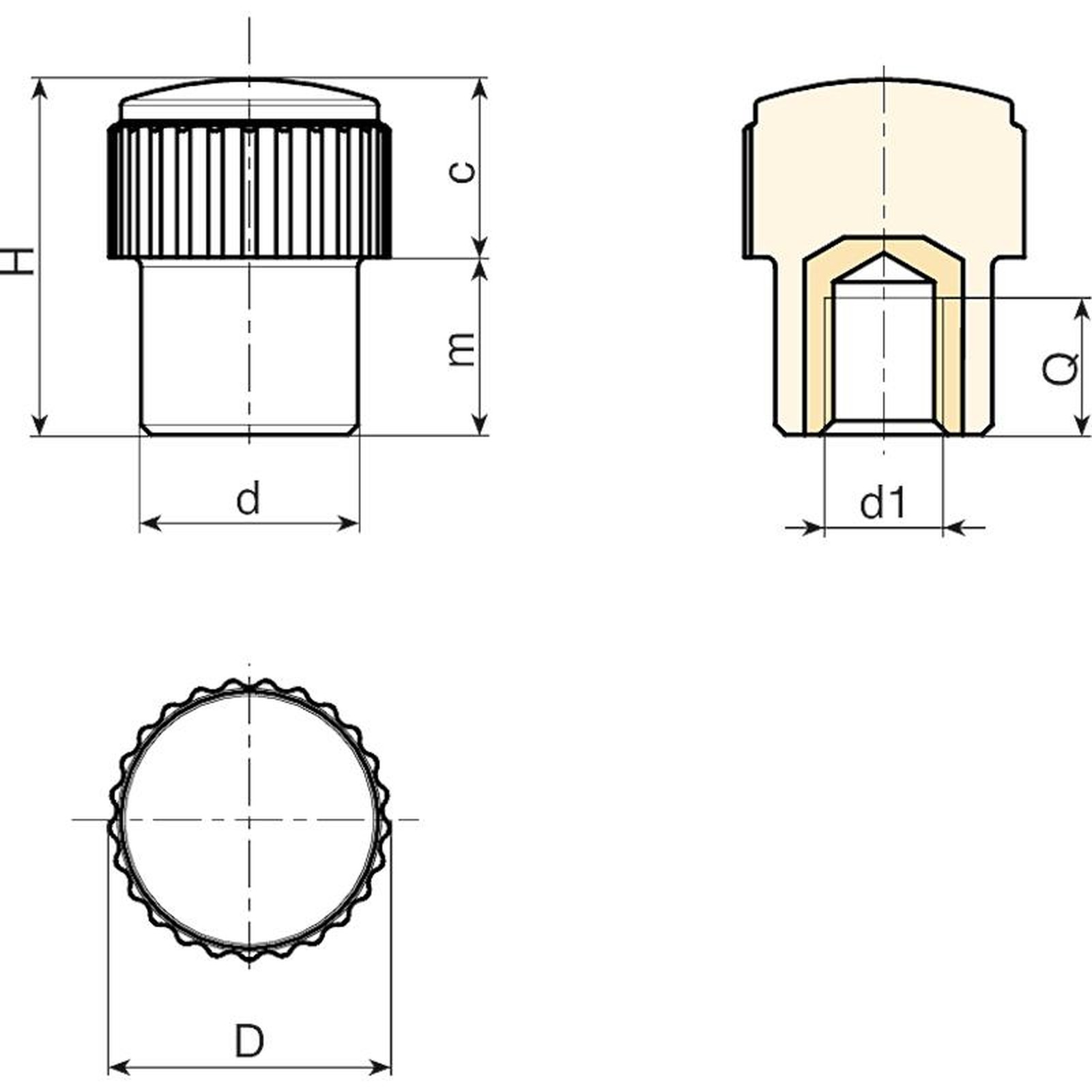

| Code | art. | D | H | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| H18015.0001 | H18015.BM0501 | 15 | 18 | 11 | M5 | 11 | 5 |
