KNURLED HANDWHEEL WITH SHORT HUB
08
H171
Vol. Zigrinati foro cieco
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
H171:
Galvanised steel threaded stud (thread tolerance 6g).
H171CON:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts with stud can be supplied with customised lengths for a minimum quantity of 100 pieces.

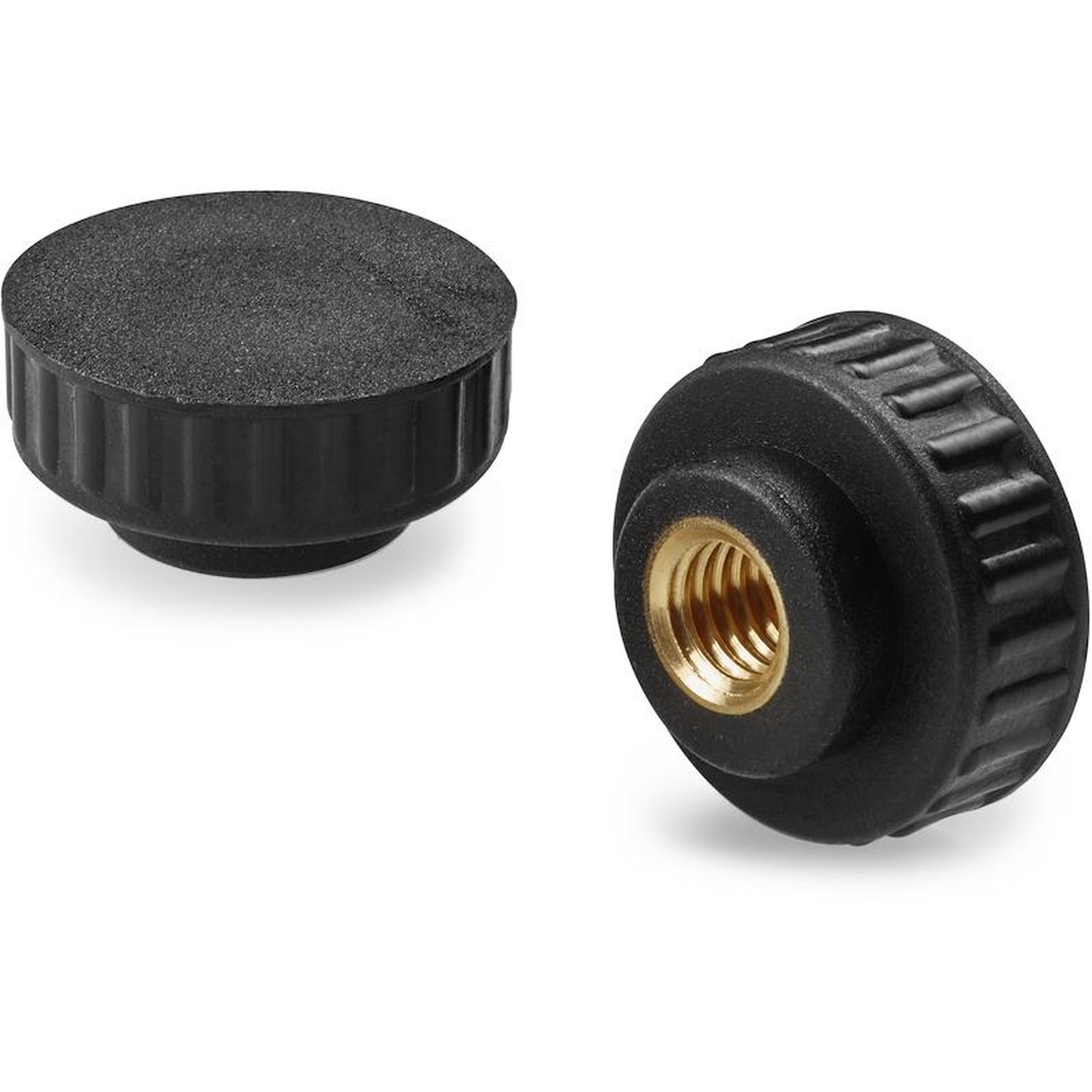

Version H171CON: With brass insert.

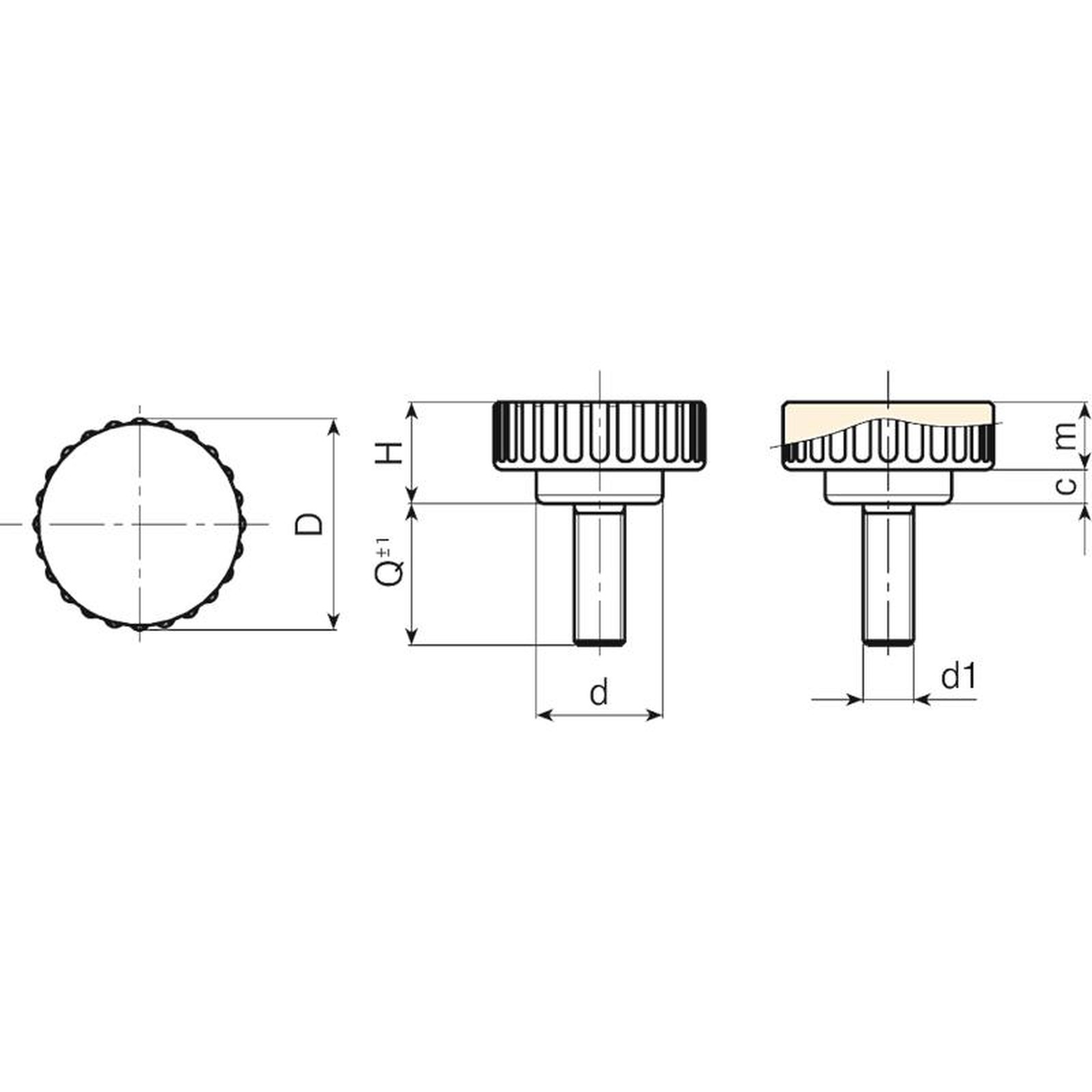

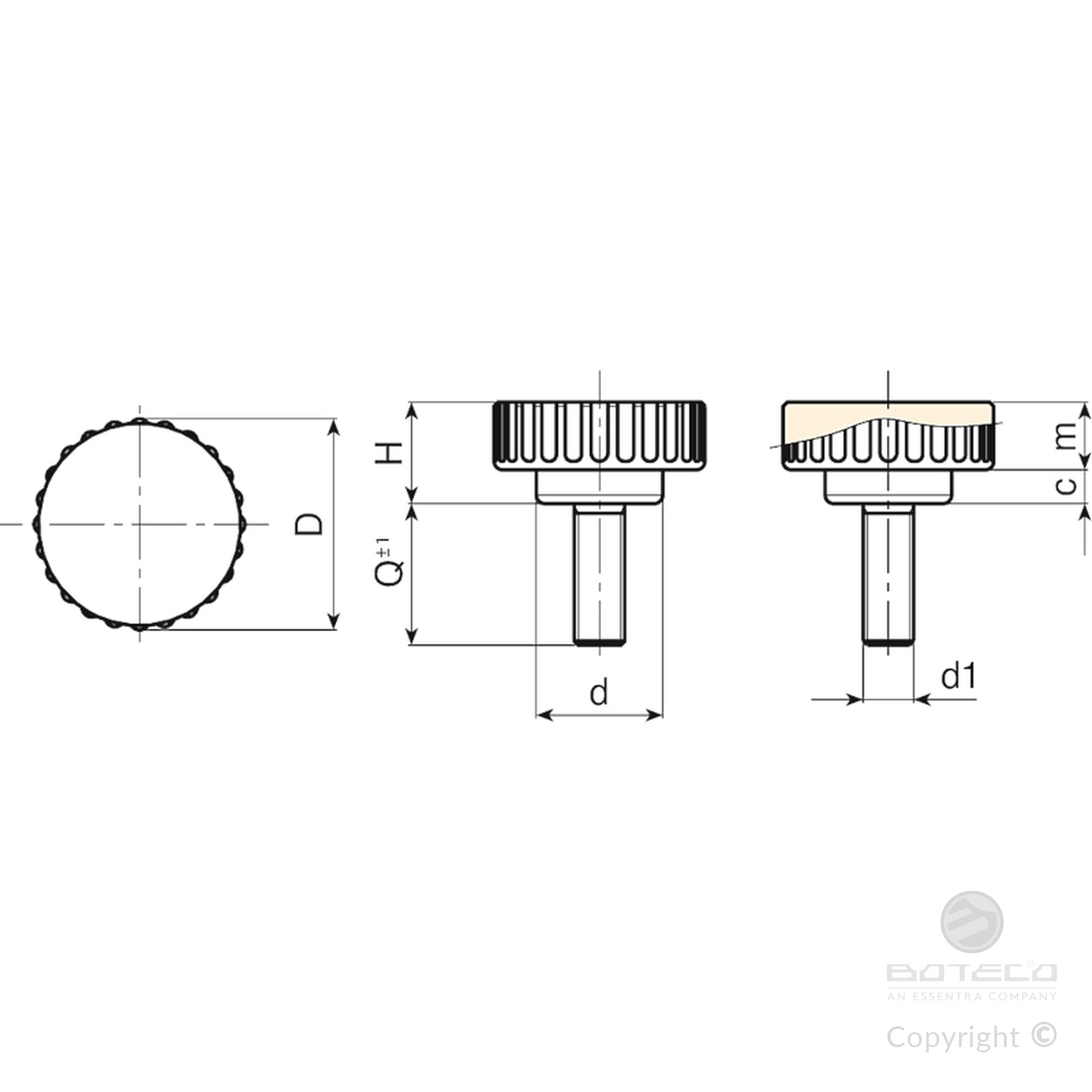

| Code | art. | D | H | d | m | c | d1 6H | Weight (g) |
|---|---|---|---|---|---|---|---|---|
| H17125.0002 | H17125.TM0601CON | 25 | 12 | 15.5 | 4 | 8 | M6 | 7 |
| H17125.0015 | H17125.TM0801CON | 25 | 12 | 15.5 | 4 | 8 | M6 | 8 |

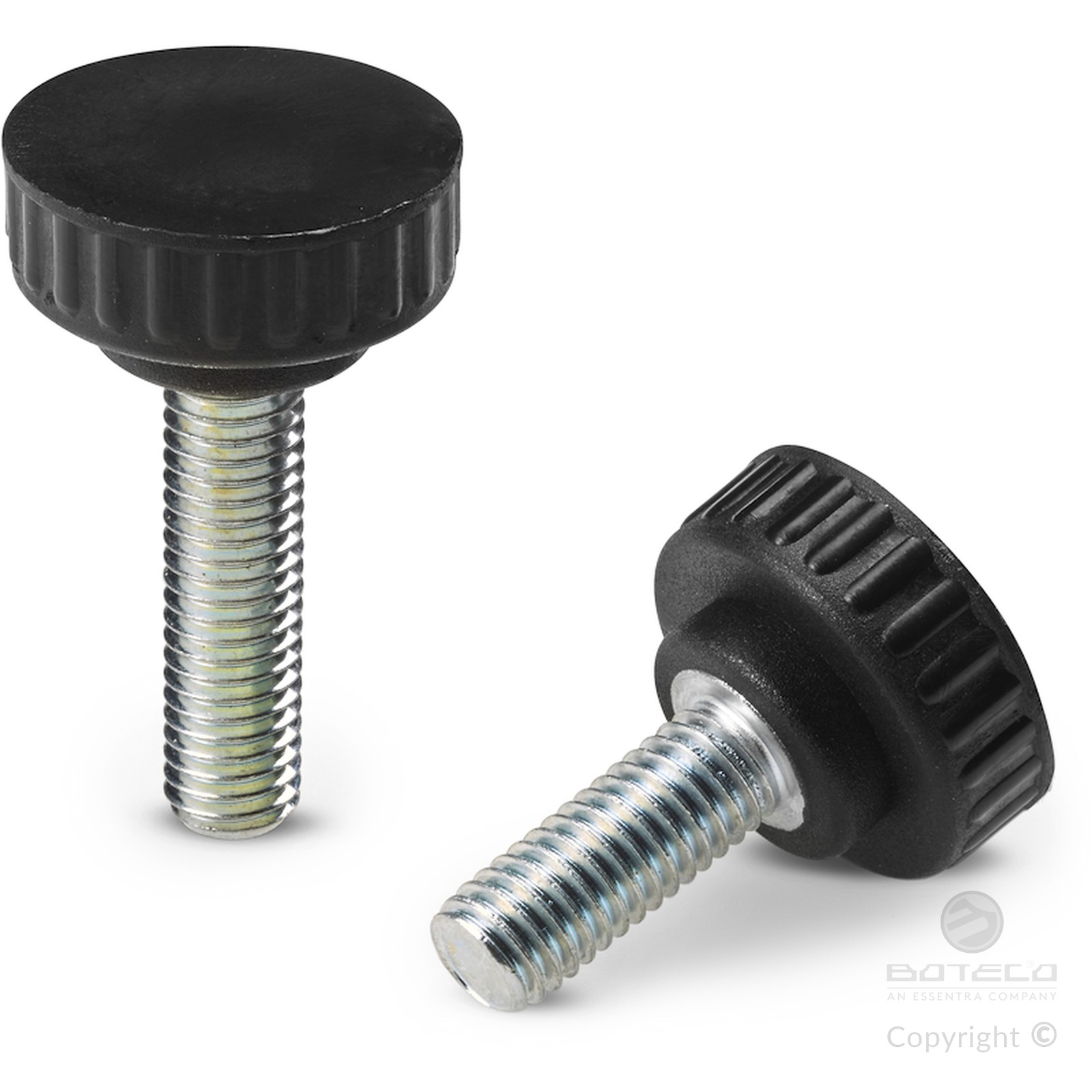

Version H171: With galvanised steel stud.
| Code | art. | D | H | d | m | c | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| H17125.0006 | H17125.TM06X2001 | 25 | 12 | 15.5 | 4 | 8 | 40 | M6 | 20 | 11 |
| H17125.0019 | H17125.TM08X2001 | 25 | 12 | 15.5 | 4 | 8 | 40 | M8 | 20 | 15 |
LM = maximum mouldable length.
Customised stud length available for a minimum of 250 pieces.
