STAINLESS STEEL BALL DIN319 - C DESIGN
09
W319
Impugnature a sfera
Materials:
Stainless steel (Aisi 303).
Surface finish:
W319CIN:

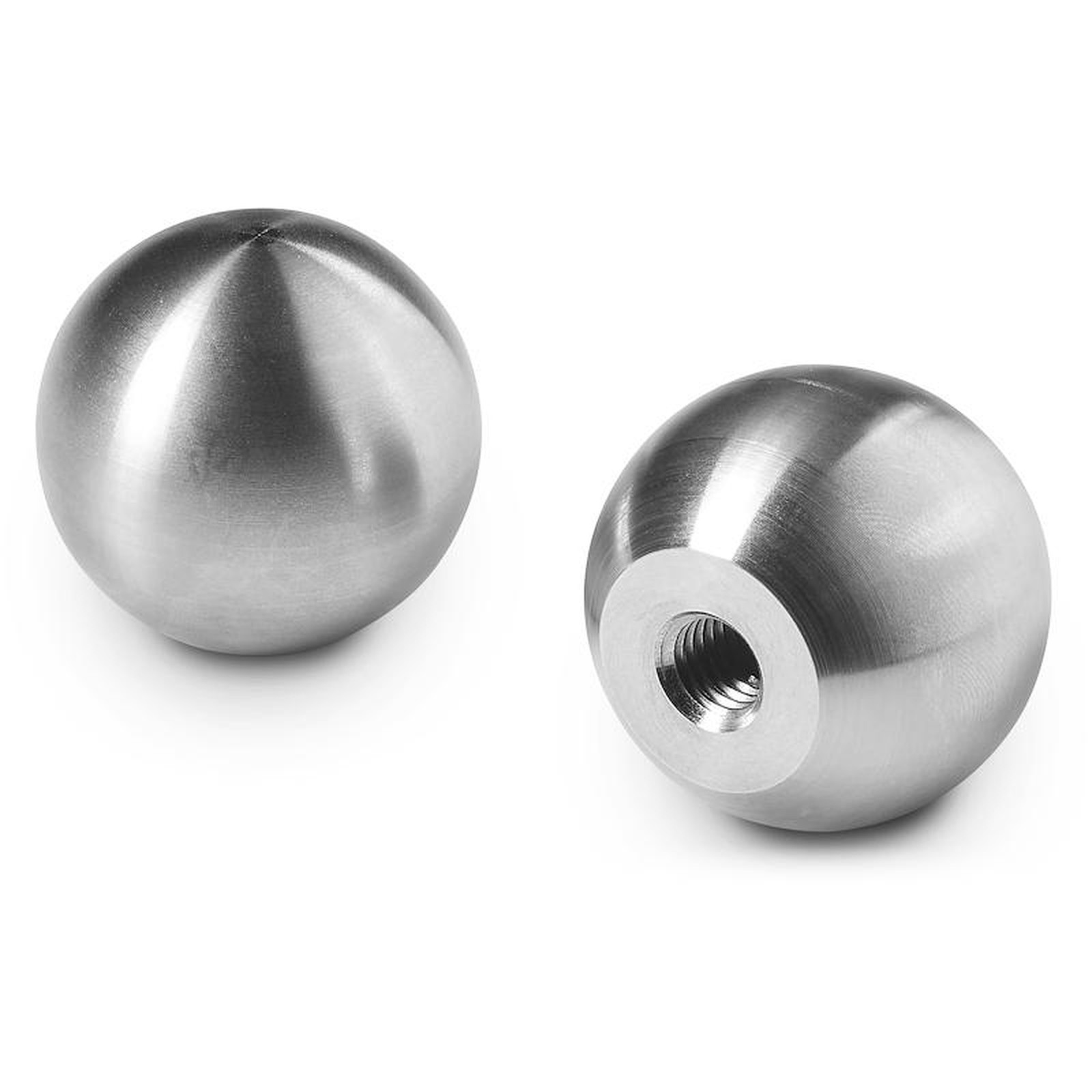

Turned with low roughness.
W319CIB:

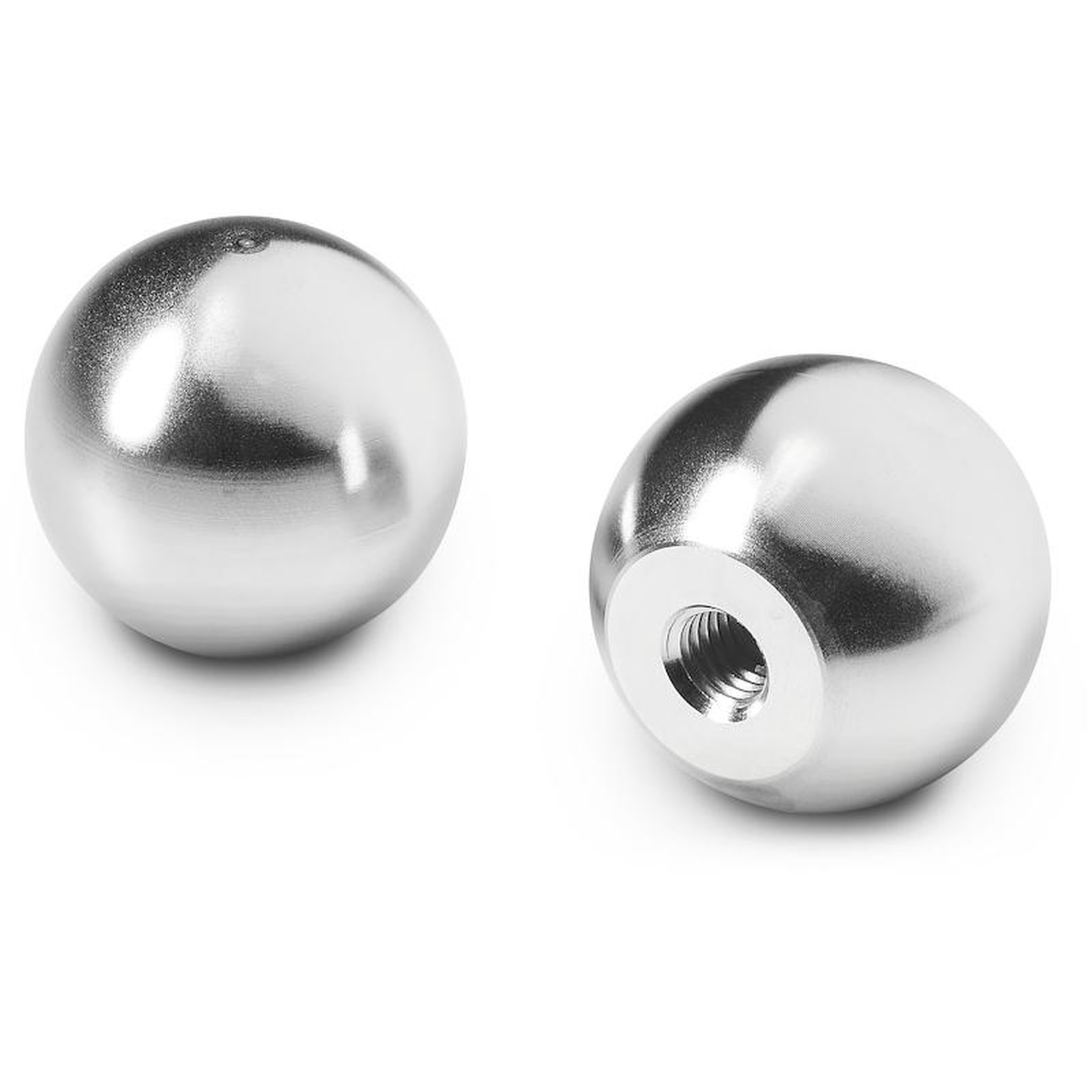

Low surface roughness obtained by turning and galvanically treated (brightening, with resistance to salt spray between 200-300 hours).
Colour:
W319CIN:
Natural.
W319CIB:
Brightened.
Hole:
Female threaded hole machined from solid metal (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied to customer’s drawing with hole diameter d1.
Version W319CIN - stainless steel (Aisi 303)
| Code | Art. | D | d | H | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| W319016.0002 | W319016.IM04CIN | 16 | 8 | 15 | M4 | 7 | 16 |
| W319020.0002 | W319020.IM05CIN | 20 | 12 | 18 | M5 | 9 | 30 |
| W319025.0002 | W319025.IM06CIN | 25 | 15 | 22.5 | M6 | 11 | 59 |
| W319032.0002 | W319032.IM08CIN | 32 | 18 | 29 | M8 | 14 | 123 |
| W319040.0002 | W319040.IM10CIN | 40 | 22 | 37 | M10 | 18 | 241 |
Version W319CIB - stainless steel (Aisi 303) - BRIGHTENED
| Code | Art. | D | d | H | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| W319016.0001 | W319016.IM04CIB | 16 | 8 | 15 | M4 | 7 | 16 |
| W319020.0001 | W319020.IM05CIB | 20 | 12 | 18 | M5 | 9 | 30 |
| W319025.0001 | W319025.IM06CIB | 25 | 15 | 22.5 | M6 | 11 | 59 |
| W319032.0001 | W319032.IM08CIB | 32 | 18 | 29 | M8 | 14 | 123 |
| W319040.0001 | W319040.IM10CIB | 40 | 22 | 37 | M10 | 18 | 241 |
