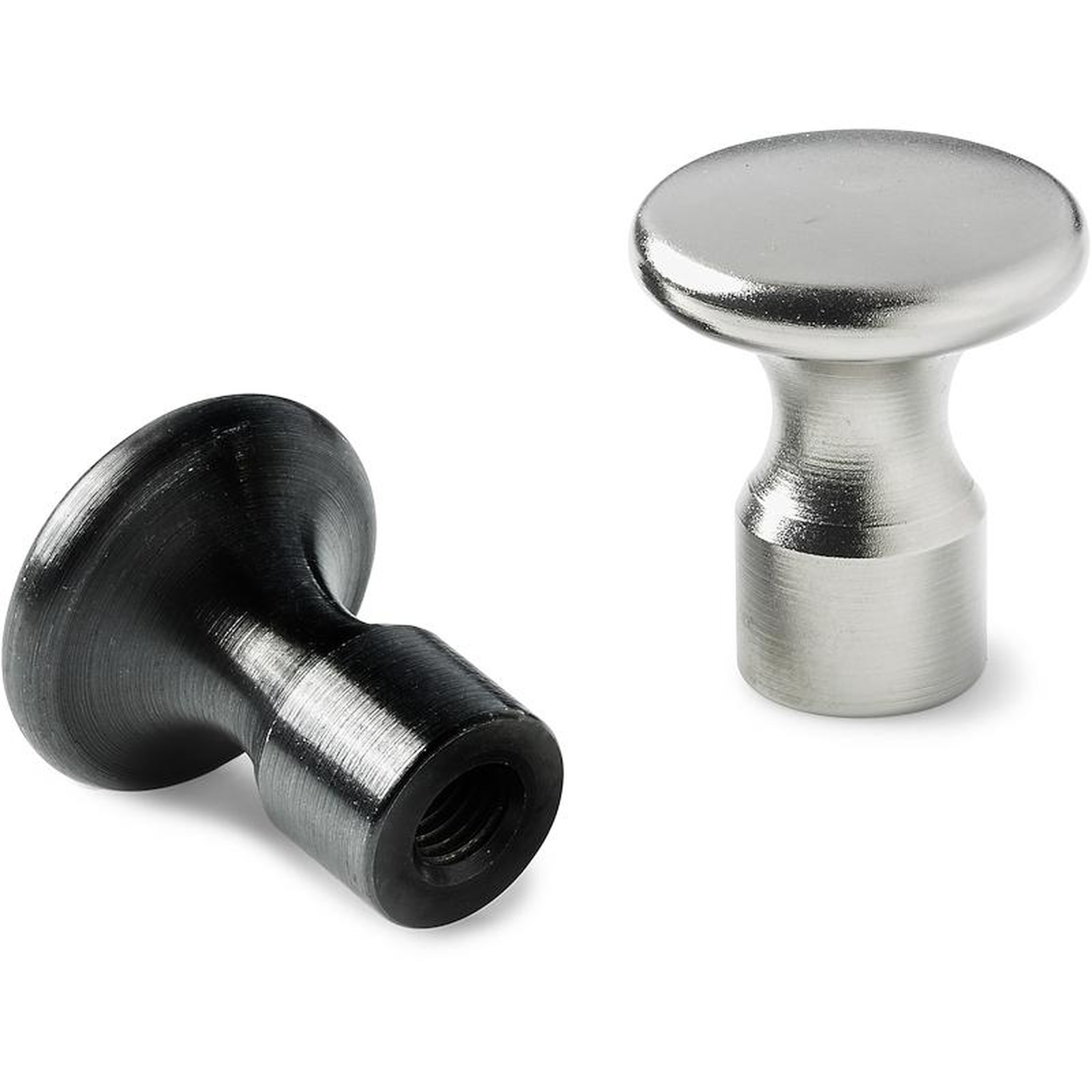

STEEL KNOB WITH THREADED HOLE
09
W118
Impugnature leva cambio
Materials:
W118B-W118H:
Steel with strength class 5.8.
W118CIN:
Stainless steel (Aisi 303).
Surface finish:
W118...H (nickel plated):
Turned and sandblasted.
W118...B (black-oxide treated) and W118....CIN (stainless steel):
Turned and polished.
Colour:
W118...B:
Black-oxide treated.
W118...H:
Nickel-plated.
W118...CIN:
Natural.
Hole:
Female threaded hole machined from solid metal (thread tolerance 6H).
Special requests:
Upon request and for special quantities knobs can be supplied to customer’s drawing with hole diameter d1.
Version W118....H - Nickel plated

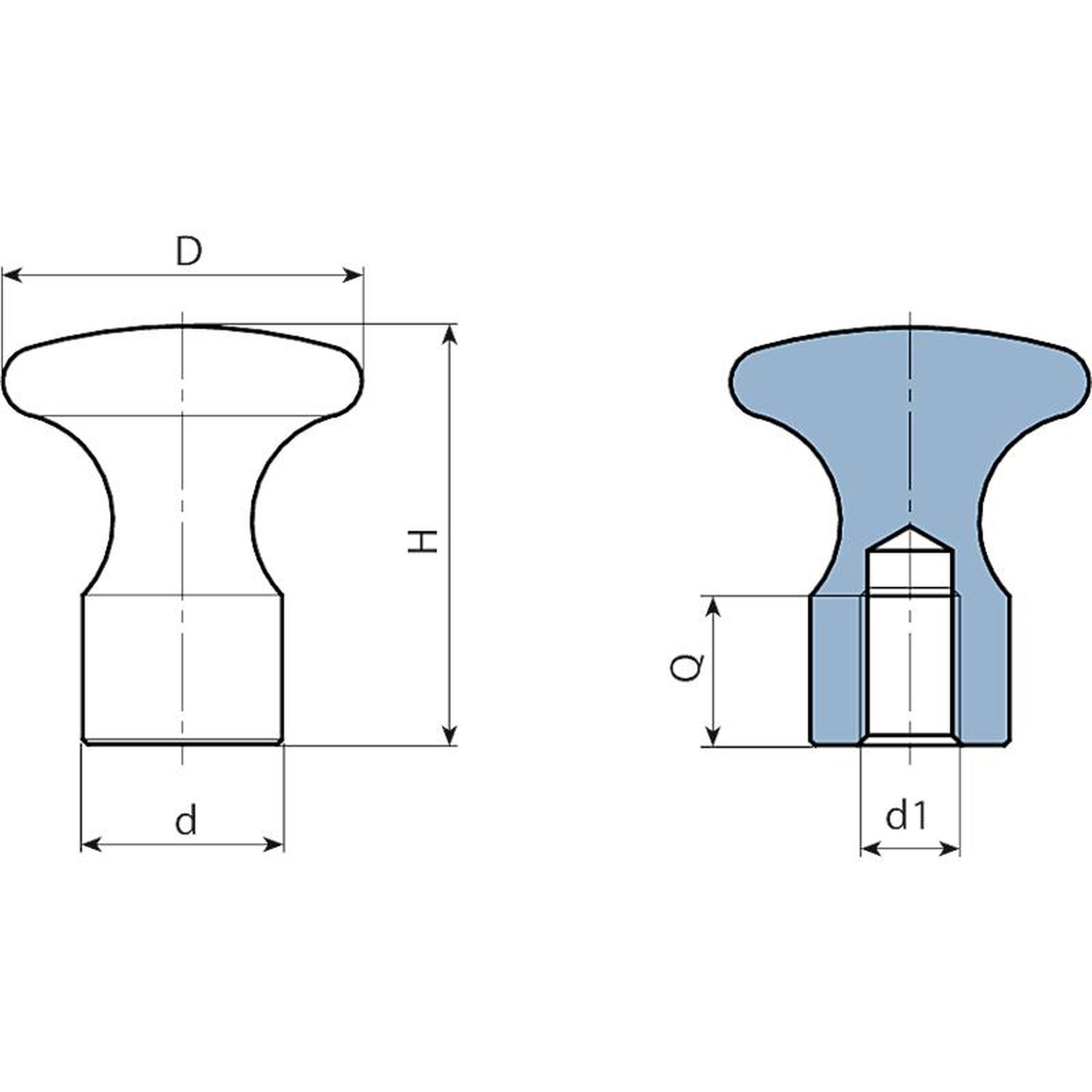

| Code | art. | d | D | H | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| W11816.0003 | W11816.SM05H | 10 | 16 | 18 | M5 | 7 | - |
| W11820.0003 | W11820.SM06H | 12 | 20 | 24 | M6 | 9 | - |
| W11825.0003 | W11825.SM06H | 14 | 25 | 29 | M6 | 9 | - |
| W11832.0003 | W11832.SM08H | 18 | 32 | 37 | M8 | 12 | - |
| W11836.0003 | W11836.SM10H | 20 | 36 | 42 | M10 | 15 | - |
Version W118....B - Black-oxide treated
| Code | Art. | d | D | H | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| W11816.0002 | W11816.SM05B | 10 | 16 | 18 | M5 | 7 | - |
| W11820.0002 | W11820.SM06B | 12 | 20 | 24 | M6 | 9 | - |
| W11825.0002 | W11825.SM06B | 14 | 25 | 29 | M6 | 9 | - |
| W11832.0002 | W11832.SM08B | 18 | 32 | 37 | M8 | 12 | - |
| W11836.0002 | W11836.SM10B | 20 | 36 | 42 | M10 | 15 | - |
Version W118....CIN - Stainless steel (Aisi 303)
| Code | Art. | d | D | H | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| W11816.0001 | W11816.IM05CIN | 10 | 16 | 18 | M5 | 7 | - |
| W11820.0001 | W11820.IM06CIN | 12 | 20 | 24 | M6 | 9 | - |
| W11825.0001 | W11825.IM06CIN | 14 | 25 | 29 | M6 | 9 | - |
| W11832.0001 | W11832.IM08CIN | 18 | 32 | 37 | M8 | 12 | - |
| W11836.0001 | W11836.IM10CIN | 20 | 36 | 42 | M10 | 15 | - |
