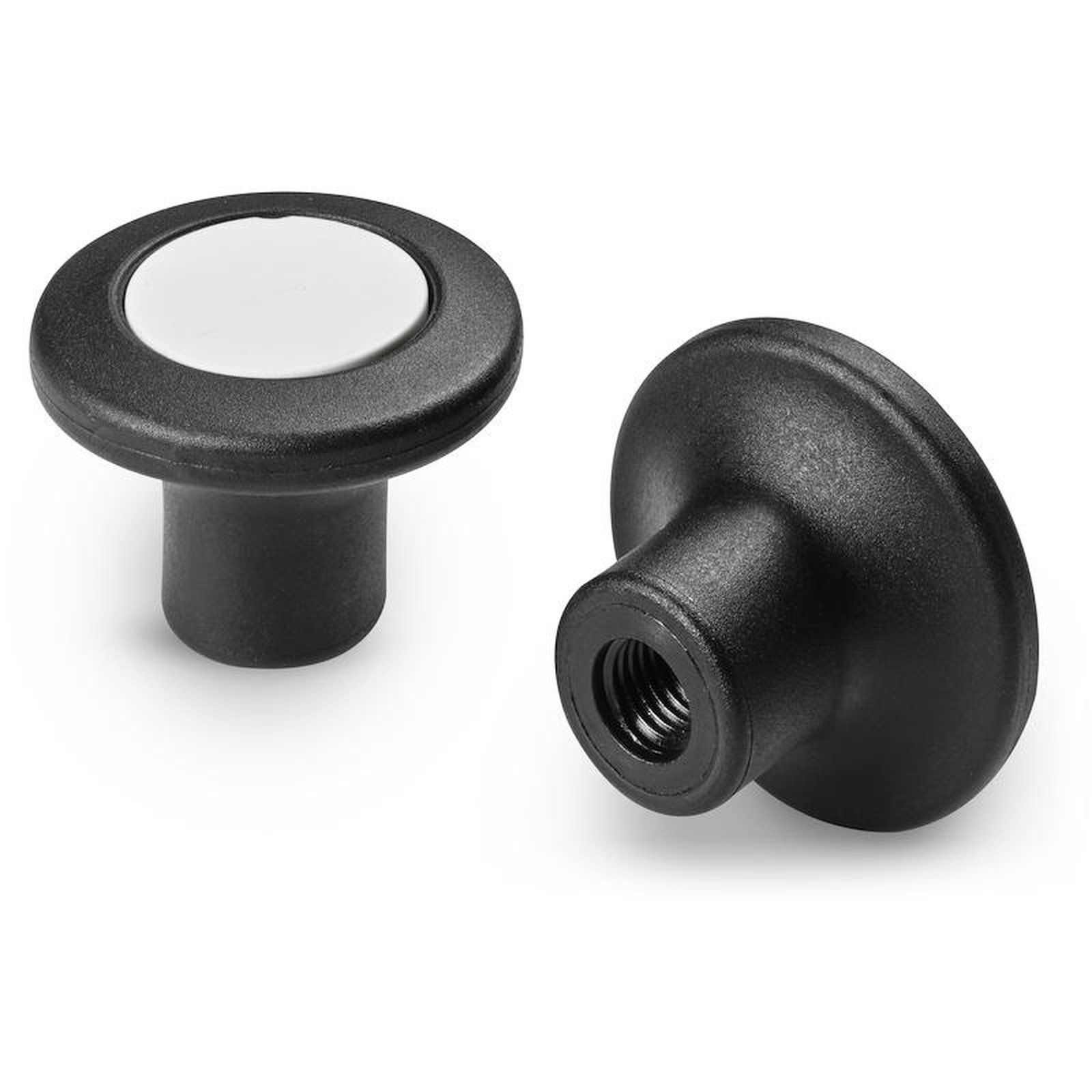

"EUROMODEL" MUSHROOM KNOB WITH CAP AND PLASTIC THREADED HOLE
09
I132
Impugnature Euromodel
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
Hole:
Female threaded hole obtained by moulding the plastic (thread tolerance not applicable).
Special requests:
Upon request and for special quantities available in the colours indicated in the chart.
PAD PRINTING SERVICE
Upon request and for special quantities caps can be supplied with custom pad printing.

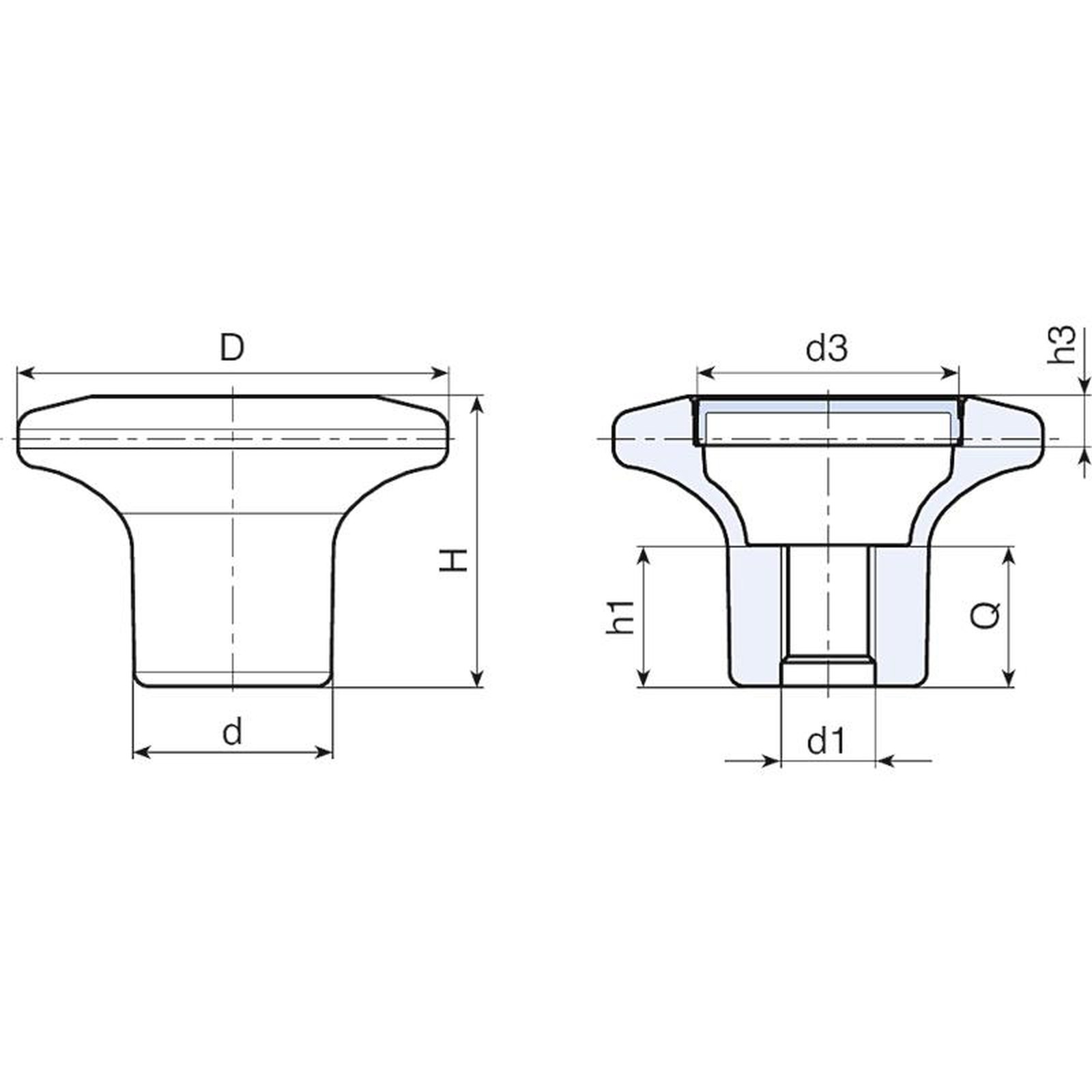

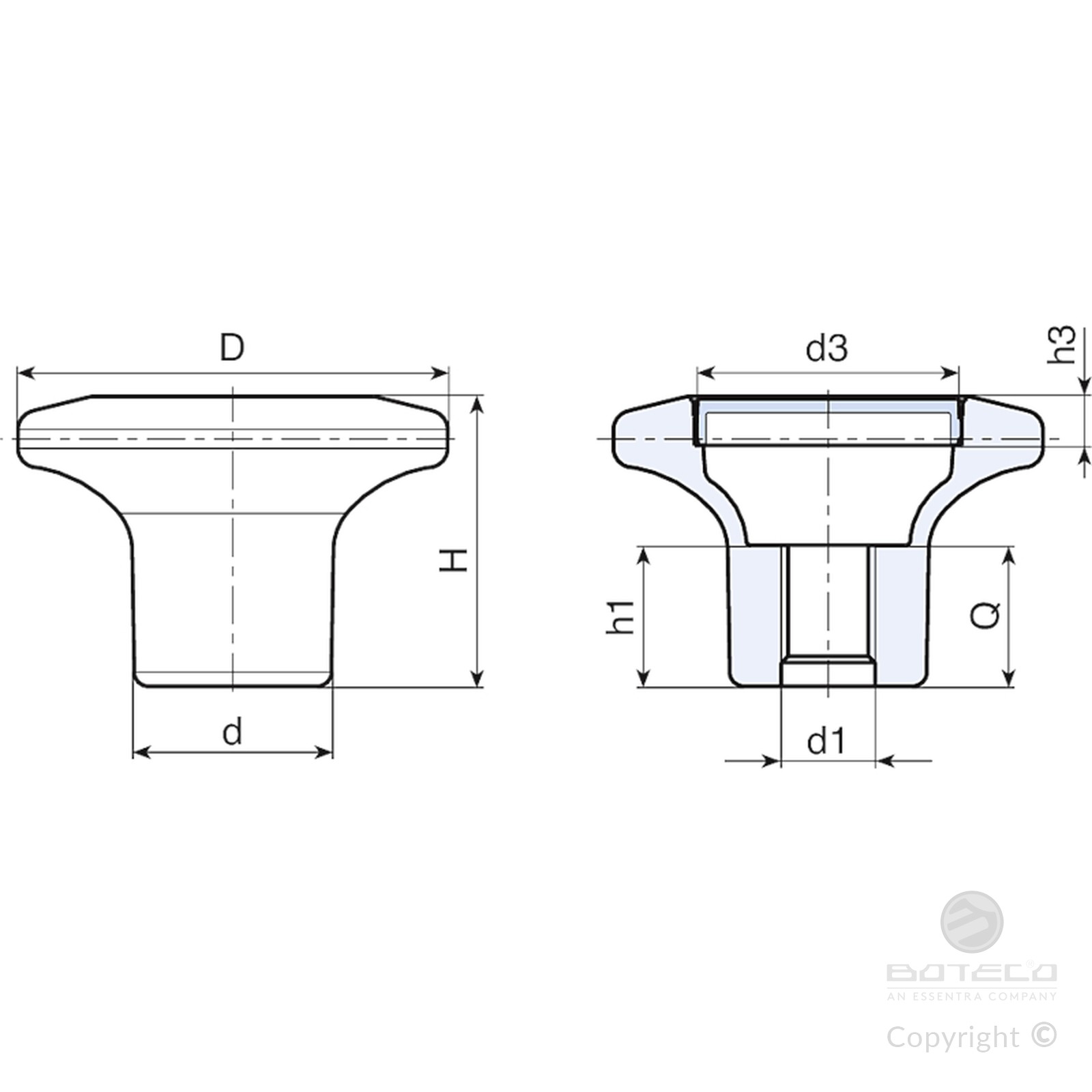

| Code | art. | D | H | d | h1 | d3 | h3 | d1 | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| I13245.0001 | I13245.TM0801 | 45 | 31 | 21 | 15 | 28 | 5 | M8 | 15 | 16 |
| I13245.0004 | I13245.TM1001 | 45 | 31 | 21 | 15 | 28 | 5 | M10 | 15 | 15 |
| I13245.0006 | I13245.TM1201 | 45 | 31 | 21 | 15 | 28 | 5 | M12 | 15 | 14 |
