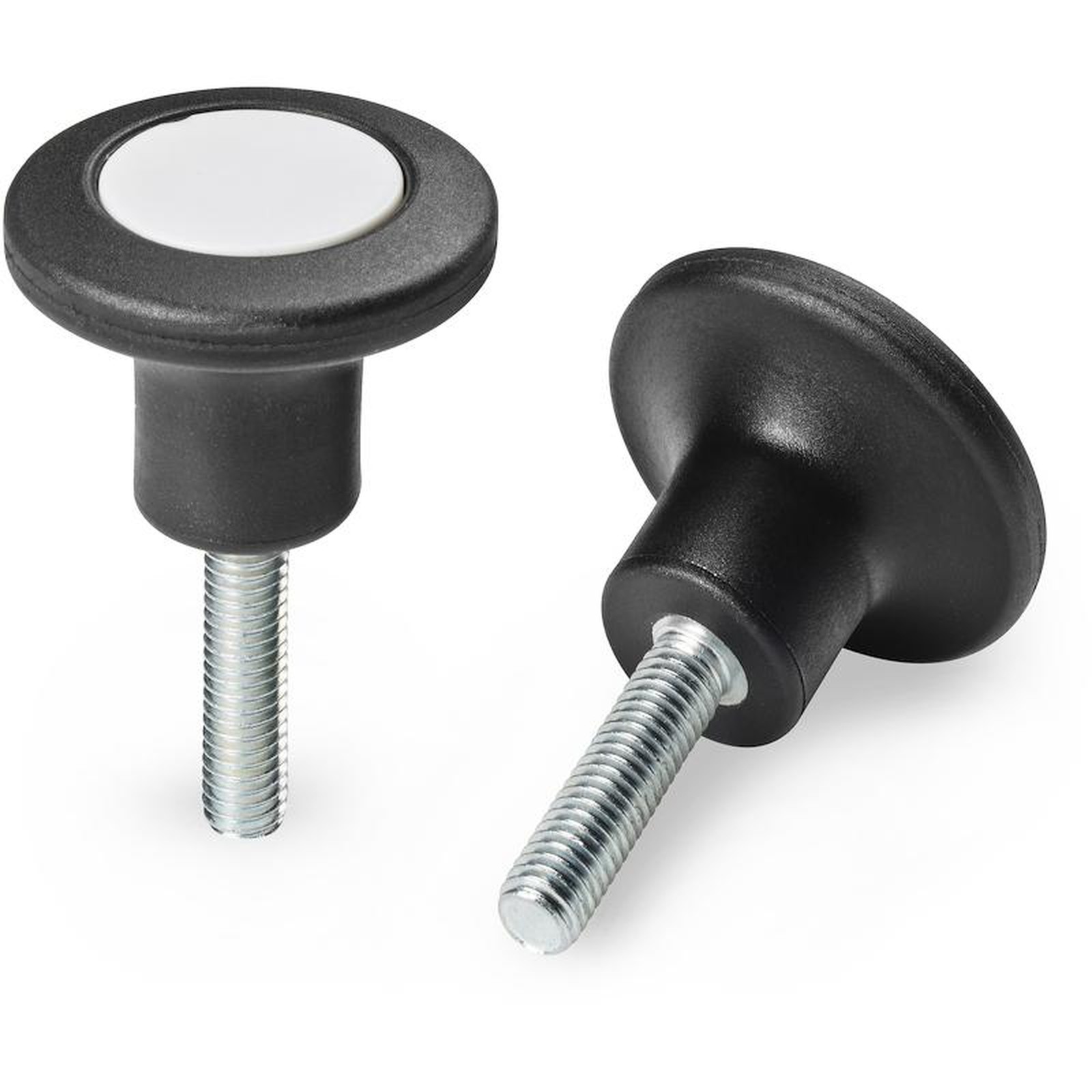

"EUROMODEL" MUSHROOM KNOB WITH CAP AND THREADED STUD
09
I130
Impugnature Euromodel
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Central cap:
Grey polyamide (RAL 7035). 13).
Alternative cap colours:
Orange (RAL 2004 code 02).
Blue (RAL 5015 code 07).
Yellow (RAL 1021 code 10).
Red (RAL 3000 code 16).
Green (RAL 6024 code 17).
Black (RAL 9011 code 01).
Inserts:
Galvanised steel threaded stud (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied with customised lengths.
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.
PAD PRINTING SERVICE
Upon request and for special quantities caps can be supplied with custom pad printing.

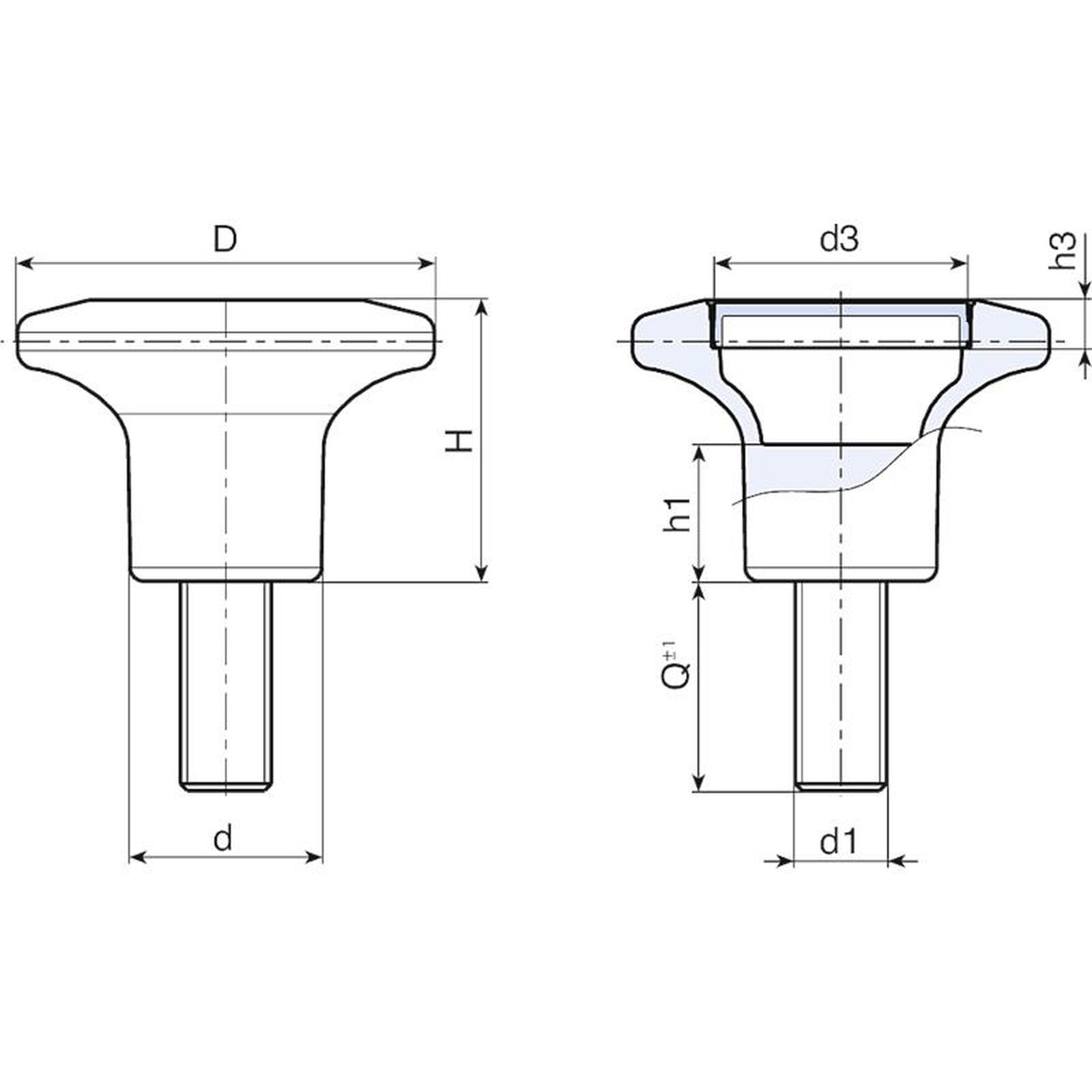

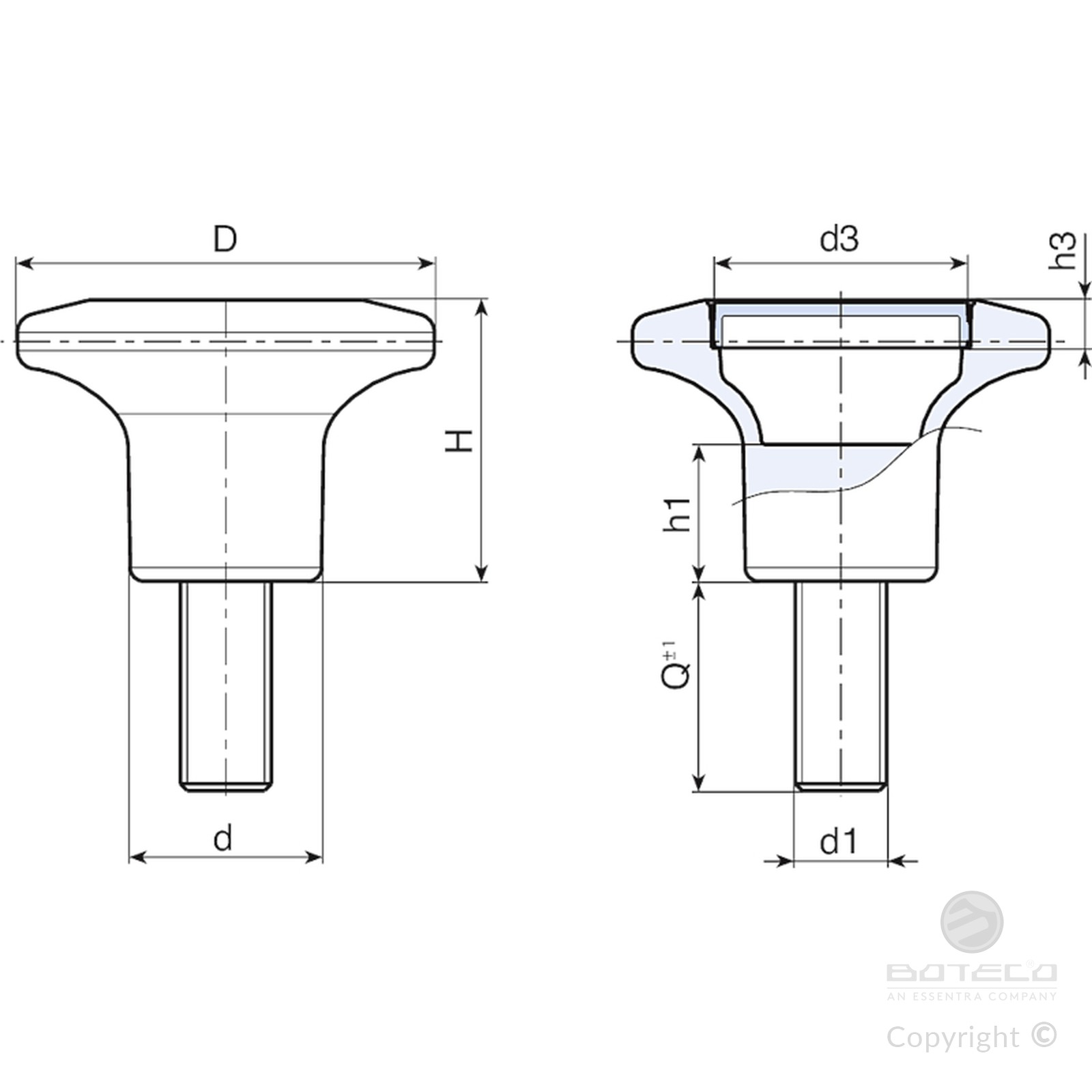

| Code | art. | D | H | d | h1 | d3 | h3 | LM | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| I13045.0002 | I13045.TM08X3001 | 45 | 31 | 21 | 15 | 28 | 5 | 100 | M8 | 30 | 36 |
LM = Maximum mouldable length.
Customised stud length available for a minimum of 250 pieces.
