Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black(RAL 9011).
Inserts:
I117:
Brass insert with female threaded hole (thread tolerance 6H).
I117CIN:
Stainless steel insert with female threaded hole (Aisi 303) (thread tolerance 6H).
Special requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

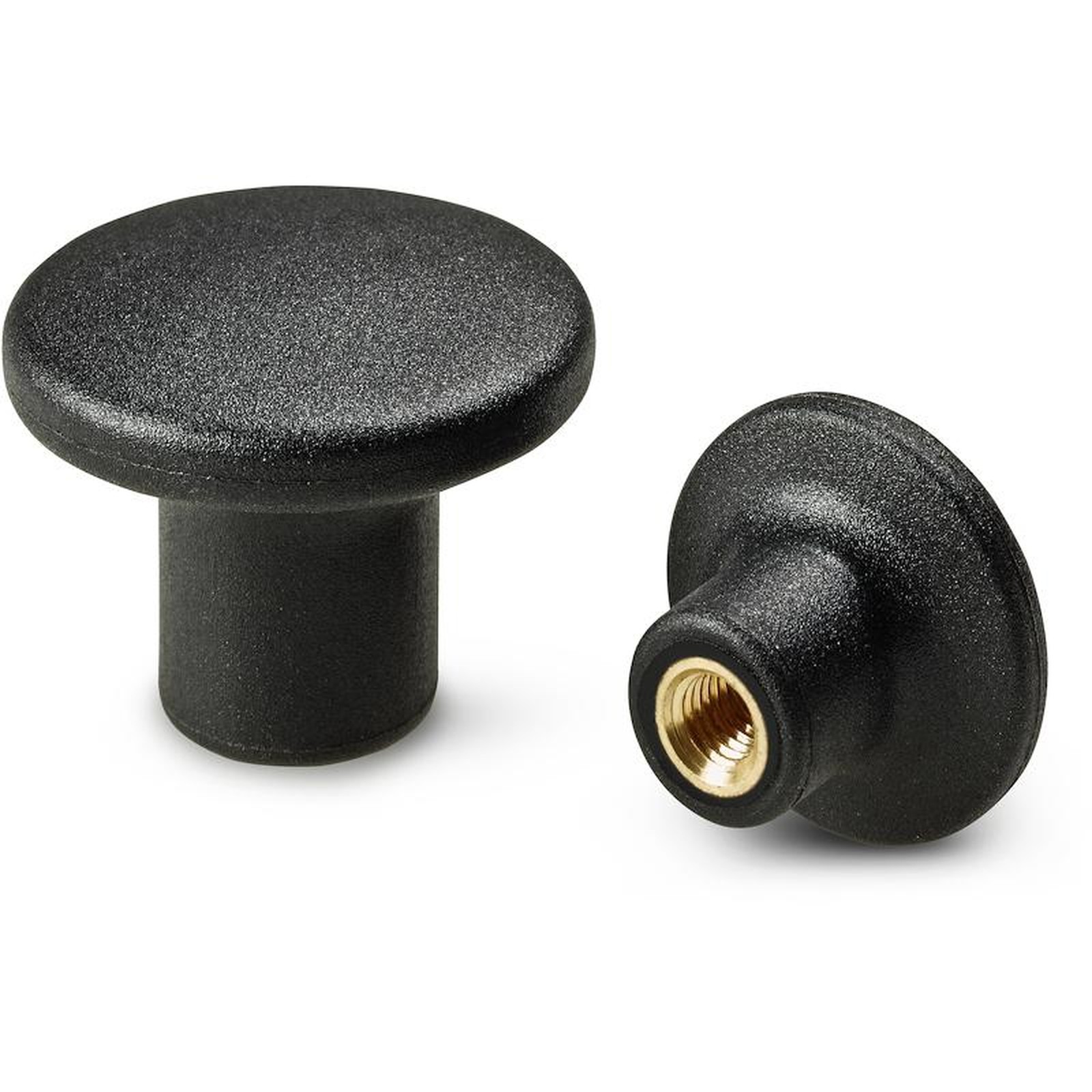

Version I117: with brass insert.

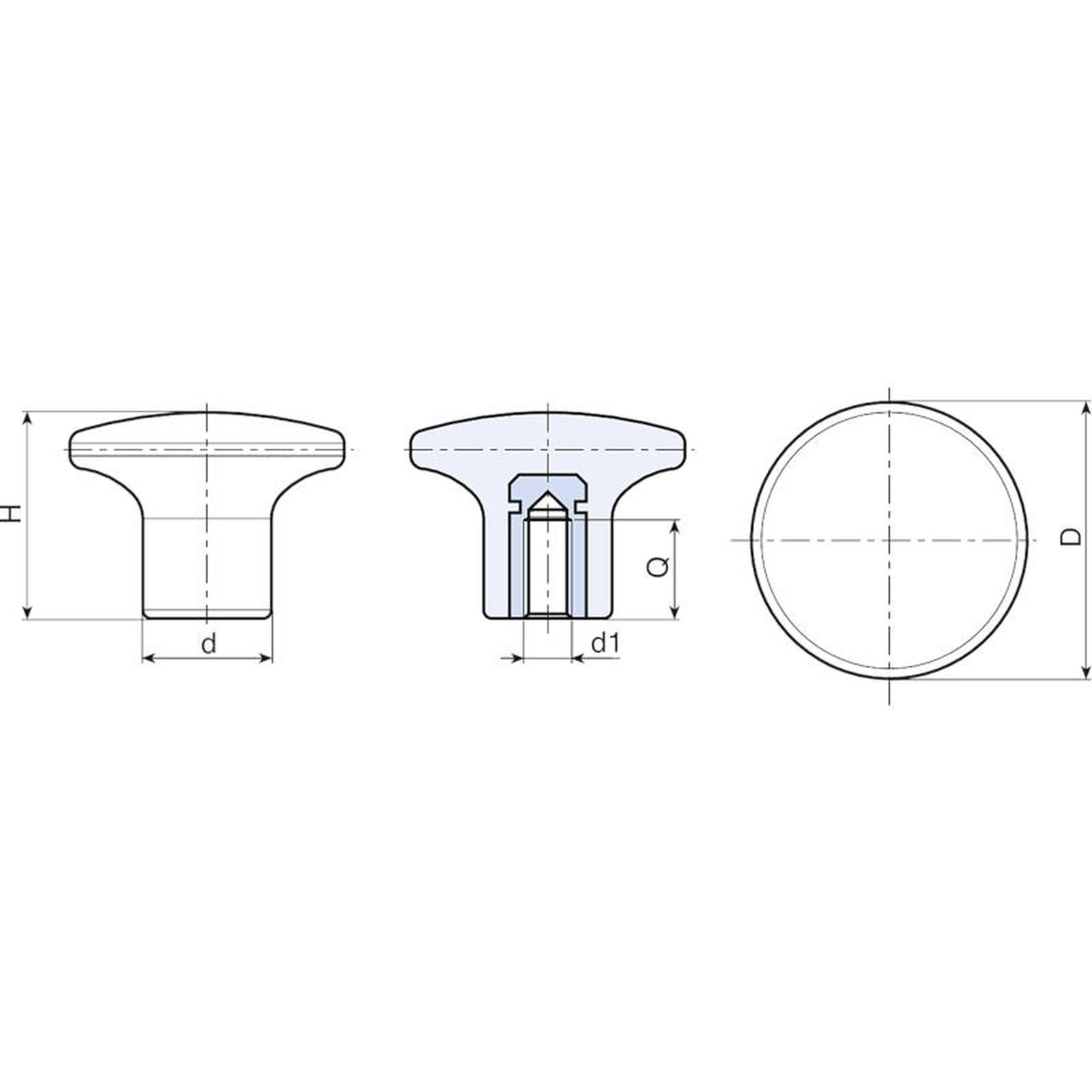

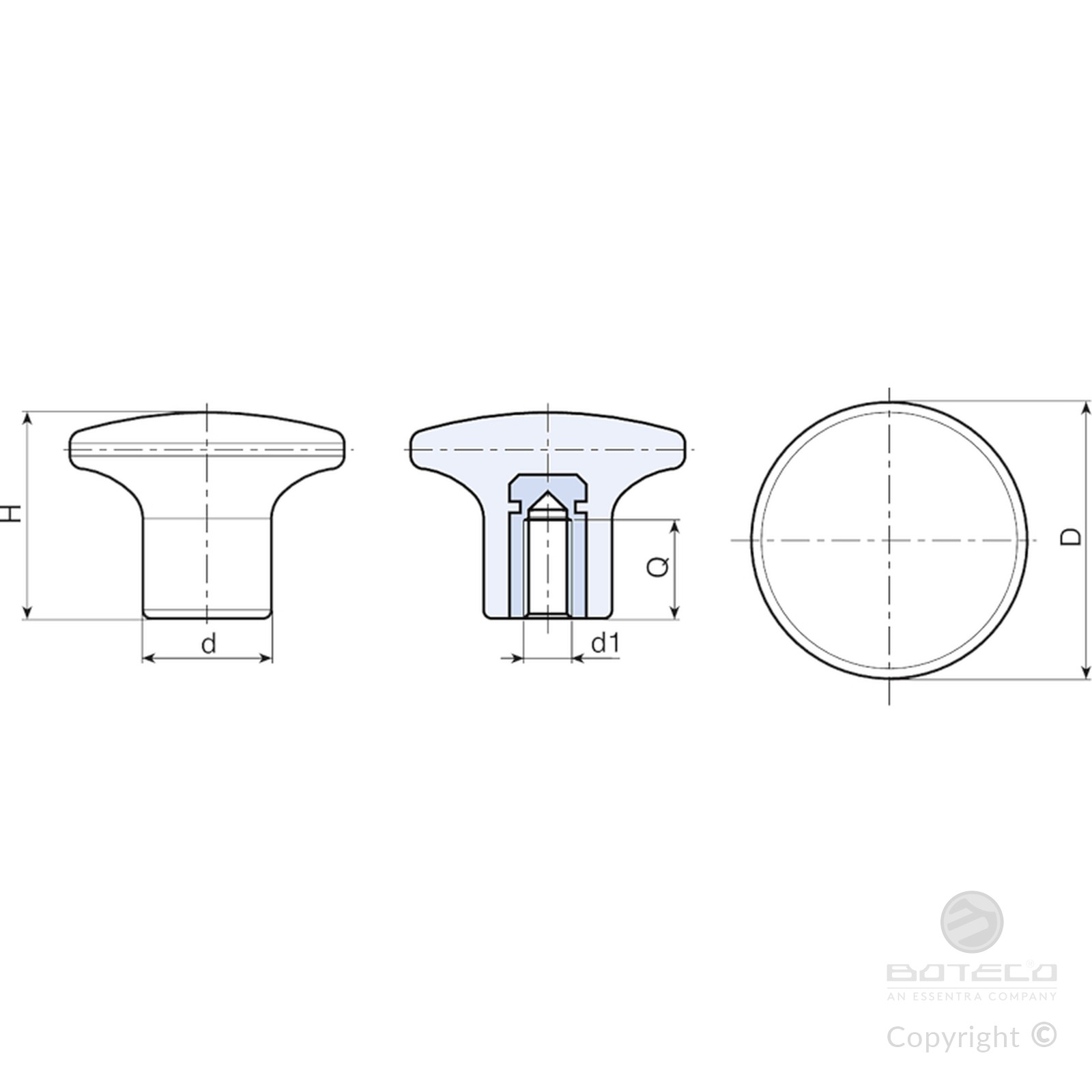

| Code | art. | D | H | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| I11722.0001 | I11722.TM0401 | 22 | 17 | 11 | M4 | 9.5 | 6 |
| I11722.0002 | I11722.TM0501 | 22 | 17 | 11 | M5 | 8 | 6 |
| I11722.0003 | I11722.TM0601 | 22 | 17 | 11 | M6 | 8 | 6 |
| I11726.0001 | I11726.TM0501 | 26 | 20.5 | 13 | M5 | 15.5 | 9 |
| I11726.0003 | I11726.TM0601 | 26 | 20.5 | 13 | M6 | 13 | 9 |
| I11726.0007 | I11726.TM0801 | 26 | 20.5 | 13 | M8 | 13 | 10 |
| I11732.0001 | I11732.TM0501 | 32 | 24 | 15 | M5 | 8 | 12 |
| I11732.0003 | I11732.TM0601 | 32 | 24 | 15 | M6 | 8 | 12 |
| I11732.0006 | I11732.TM0801 | 32 | 24 | 15 | M8 | 13 | 14 |
| I11745.0001 | I11745.TM0801 | 45 | 32 | 21 | M8 | 13 | 32 |
| I11745.0002 | I11745.TM1001 | 45 | 32 | 21 | M10 | 13 | 33 |
| I11745.0007 | I11745.TM1201 | 45 | 32 | 21 | M12 | 17 | 34 |

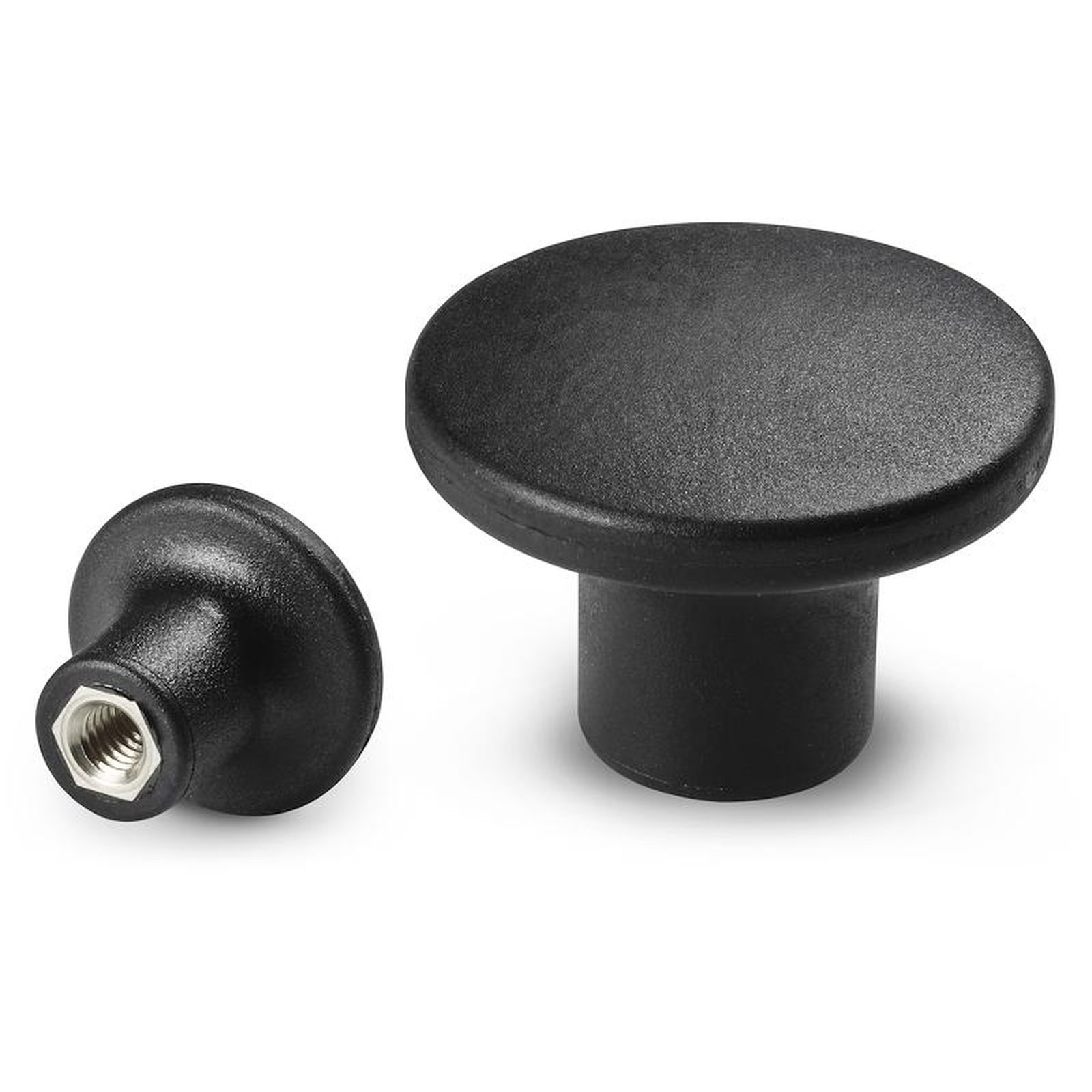

Version I117CIN: with stainless steel insert (Aisi 303).
| Code | art. | D | H | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| I11722.0010 | I11722.TM0501CIN | 22 | 17 | 11 | M5 | 9 | 8 |
| I11722.0004 | I11722.TM0601CIN | 22 | 17 | 11 | M6 | 9 | 9 |
| I11726.0002 | I11726.TM0501CIN | 26 | 20.5 | 13 | M5 | 9 | 10 |
| I11726.0004 | I11726.TM0601CIN | 26 | 20.5 | 13 | M6 | 9 | 11 |
| I11726.0008 | I11726.TM0801CIN | 26 | 20.5 | 13 | M8 | 13 | 12 |
| I11732.0004 | I11732.TM0601CIN | 32 | 24 | 15 | M6 | 14 | 16 |
| I11732.0007 | I11732.TM0801CIN | 32 | 24 | 15 | M8 | 13 | 18 |
| I11745.0003 | I11745.TM1001CIN | 45 | 32 | 21 | M10 | 16 | 35 |
| I11745.0008 | I11745.TM1201CIN | 45 | 32 | 21 | M12 | 15 | 39 |
