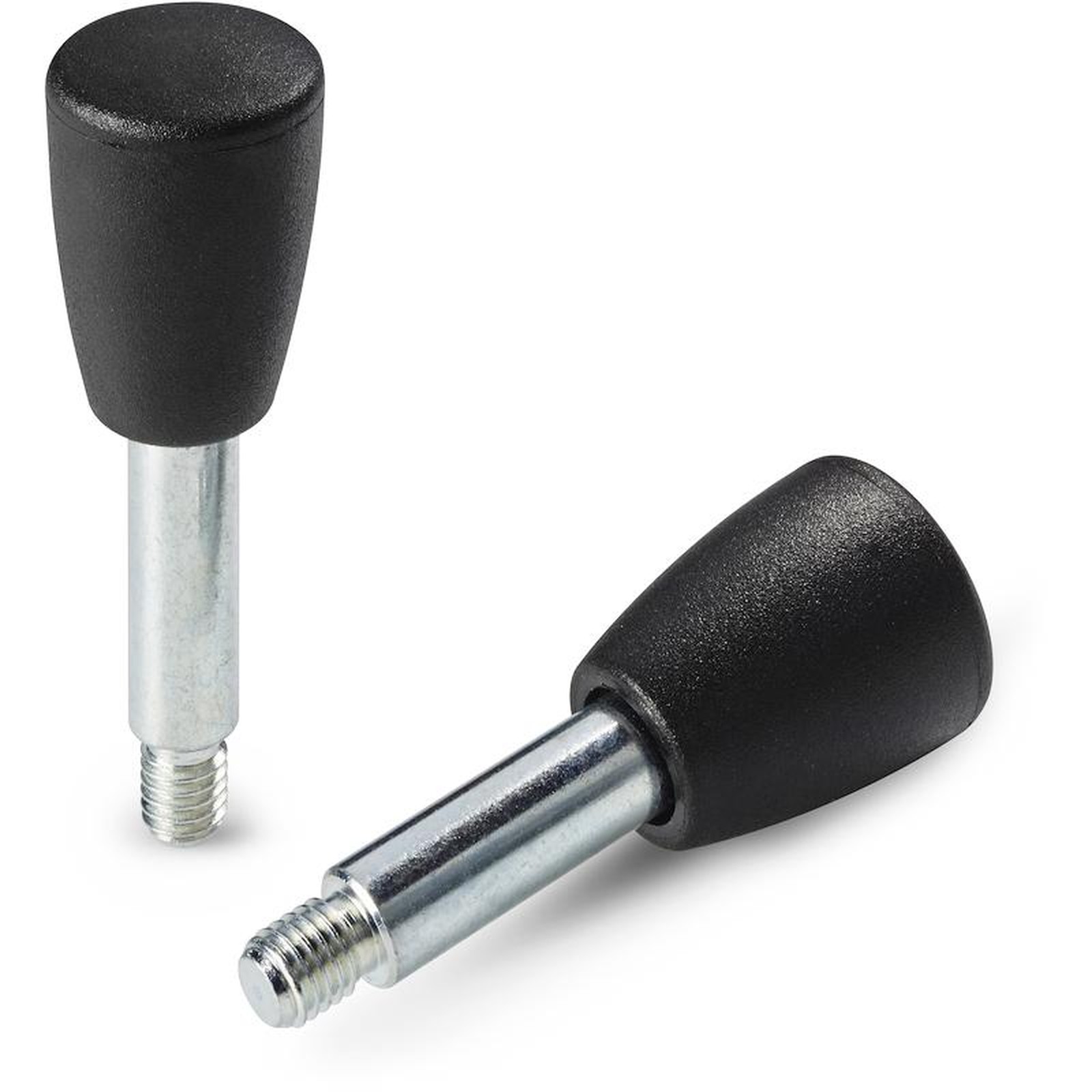

CONICAL KNOB WITH LEVER ARM
09
I113
Impugnature a botticella
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel partially threaded stud (thread tolerance 6g).
Special requests:
Upon request and for special quantities inserts can be supplied to customer’s drawing.
Upon request and for special quantities inserts can be supplied in different materials/with different coatings.
Upon request and for special quantities available in the colours indicated in the chart (ATTENTION: reduced range for measures marked (*) ).

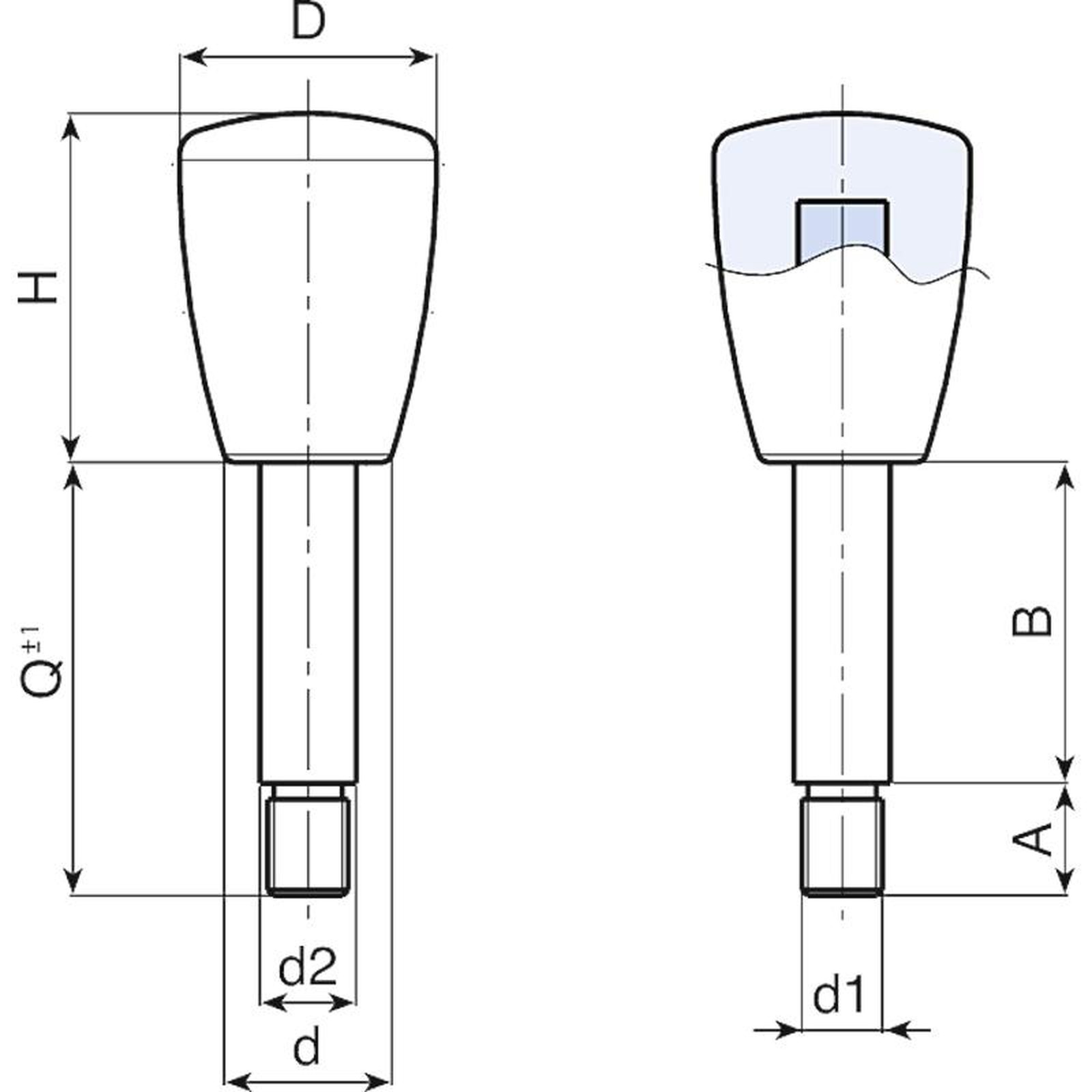

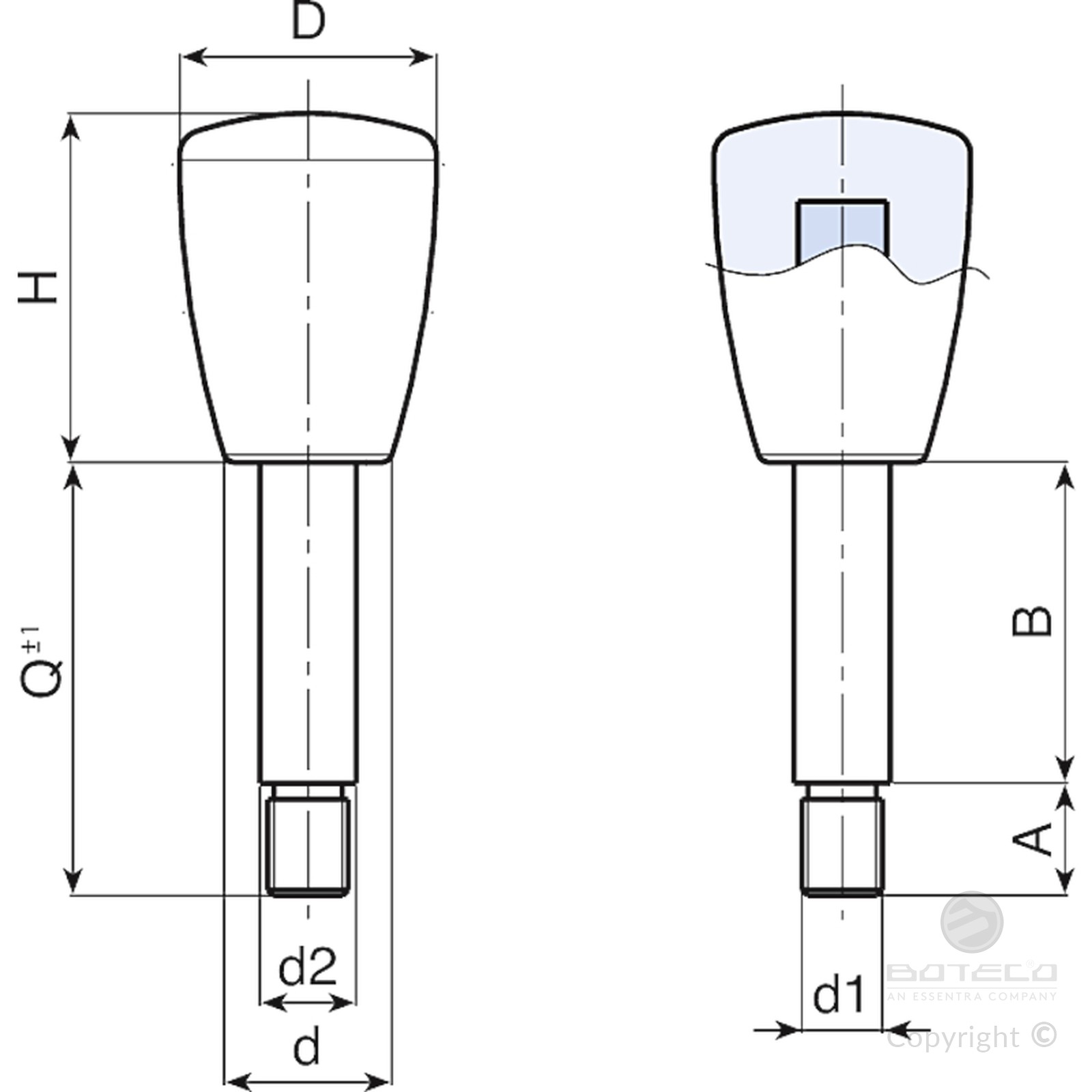

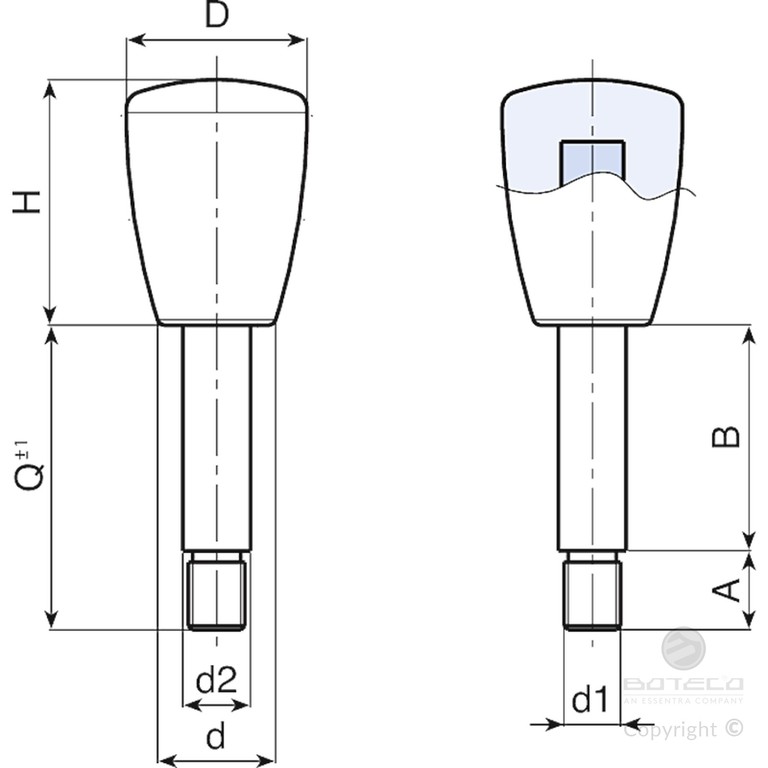

| Code | art. | D | H | d | A | B | d2 | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|
| I11325.0001 | I11325.TI10X4001 | 25 | 34 | 17 | 10 | 30 | 10 | M8 | 40 | 42 |
| I11325.0002 | I11325.TI10X5501 | 25 | 34 | 17 | 10 | 45 | 10 | M8 | 55 | 48 |
| I11325.0003 | I11325.TI10X8001 | 25 | 34 | 17 | 10 | 70 | 10 | M8 | 80 | 75 |
| I11332.0001 | I11332.TI12X5501 | 32 | 43 | 21 | 15 | 40 | 12 | M10 | 55 | 86 |
| I11332.0002 | I11332.TI12X6501 | 32 | 43 | 21 | 15 | 50 | 12 | M10 | 65 | 97 |
| I11332.0005 | I11332.TI14X6501 | 32 | 43 | 21 | 15 | 50 | 14 | M12 | 65 | 114 |
Customised stud length available for a minimum of 250 pieces.
LM = Maximum mouldable length.
