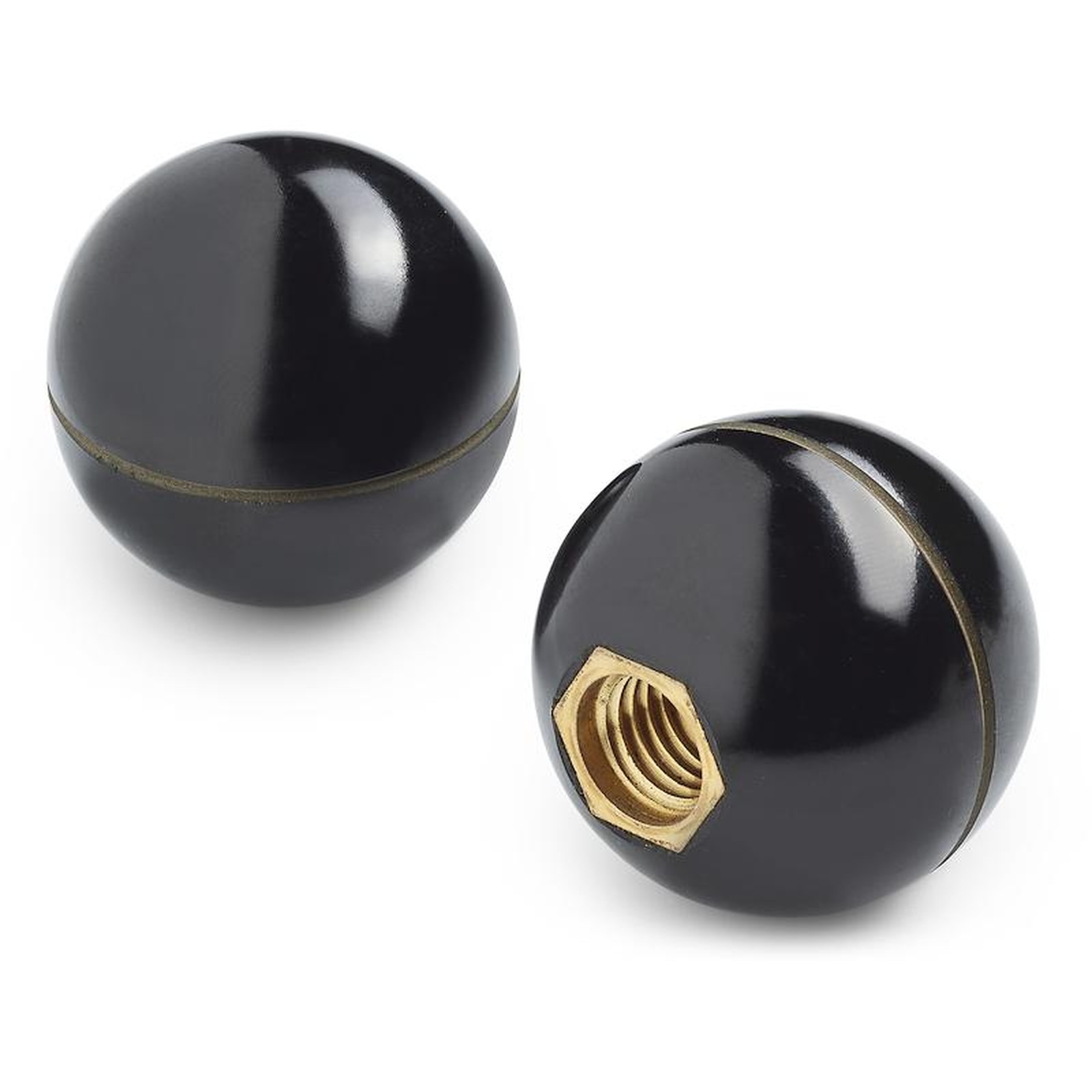

BAKELITE BALL KNOB WITH THREADED HOLE INSERT
09
I101
Impugnature a sfera
Materials:
Phenolic resin.
Resistant to oils and greases.
Resistant to high temperatures.
Surface finish:
Glossy.
Colour:
Black (RAL 9011).
Inserts:
Brass insert with female threaded hole (thread tolerance 6H).
Special requests:
None.

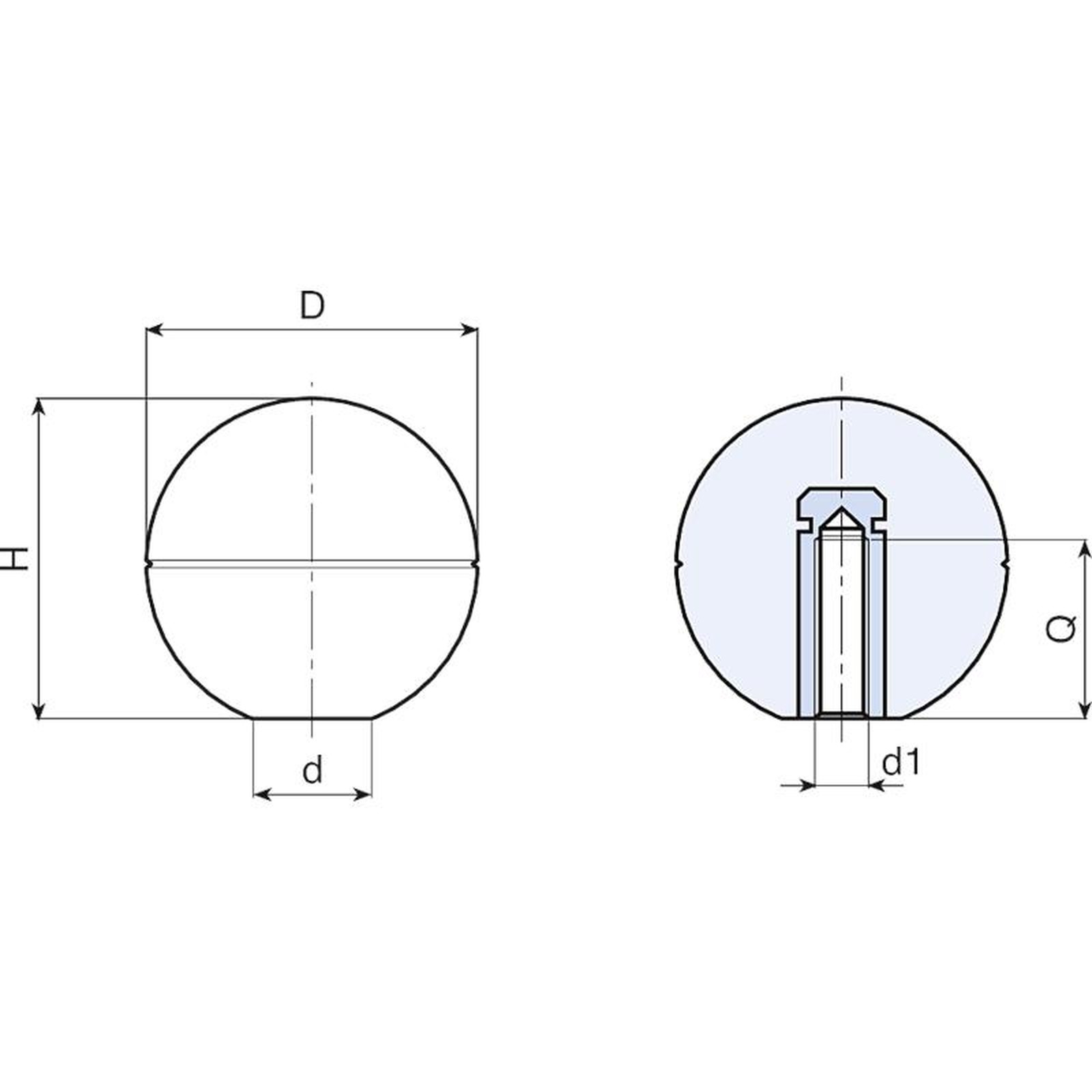

| Code | art. | D | H | d | d1 6H | Q | Weight (g) |
|---|---|---|---|---|---|---|---|
| I10118.0001 | I10118.BM0401 | 18 | 17 | 8,5 | M4 | 8 | 6 |
| I10118.0002 | I10118.BM0501 | 18 | 17 | 8,5 | M5 | 8 | 6 |
| I10118.0003 | I10118.BM0601 | 18 | 17 | 8,5 | M4 | 9 | 6 |
| I10126.0001 | I10126.BM0601 | 26 | 24 | 12 | M6 | 13 | 15 |
| I10126.0002 | I10126.BM0801 | 26 | 24 | 12 | M8 | 13.5 | 14 |
| I10130.0001 | I10130.BM1001 | 30 | 28 | 15 | M10 | 15 | 25 |
| I10135.0001 | I10135.BM0801 | 35 | 32 | 14 | M8 | 13.5 | 34 |
| I10135.0002 | I10135.BM1001 | 35 | 32 | 14 | M10 | 15 | 33 |
| I10140.0001 | I10140.BM1001 | 40 | 37 | 21 | M10 | 15 | 61 |
| I10140.0002 | I10140.BM1201 | 40 | 37 | 21 | M12 | 18 | 62 |
