BASIC PUNCHED STEEL HINGE WITH THROUGH HOLES
15
O515
Cerniere in acciaio
Materials:
(1) Steel punched and bent.
Surface finish:
Smooth.

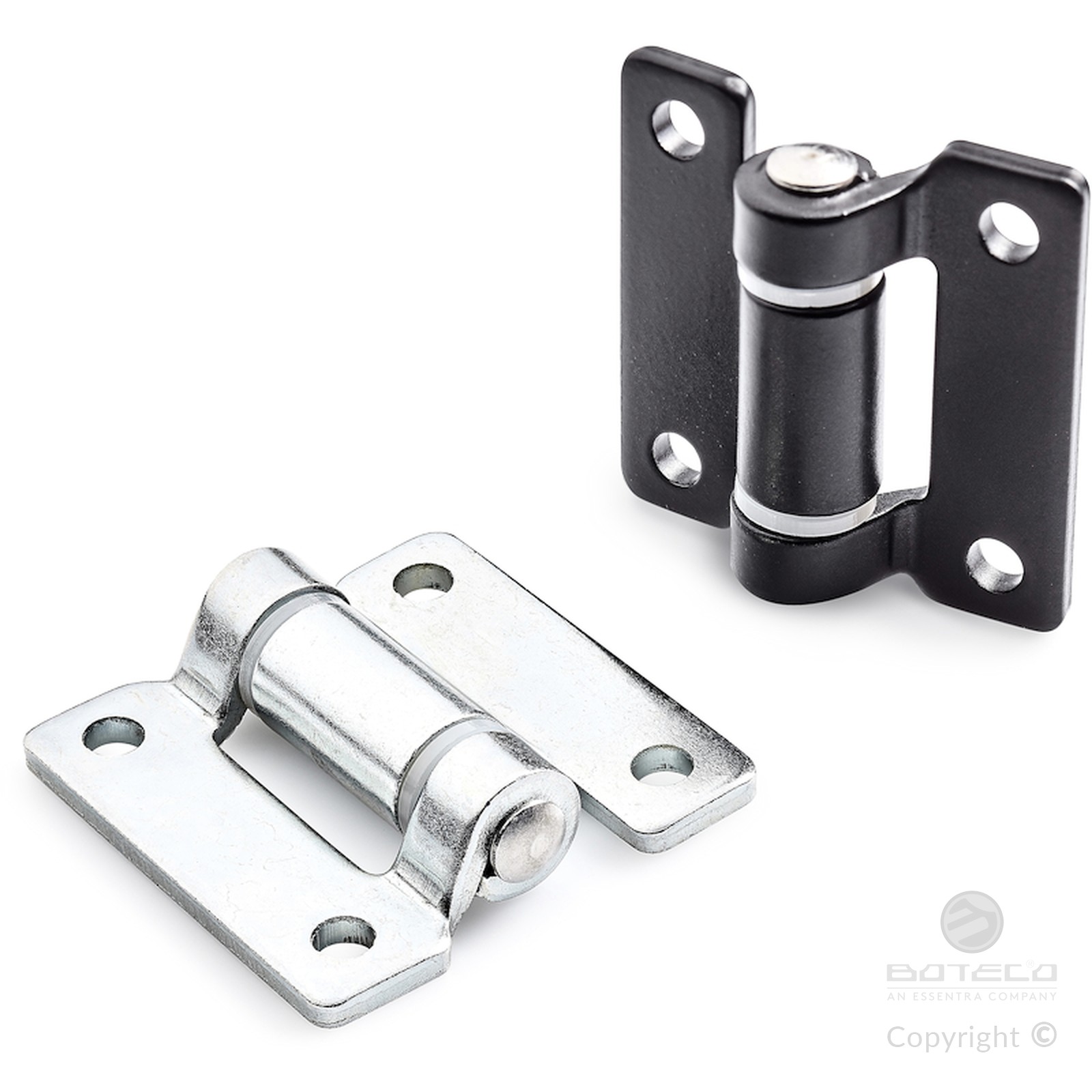

Colour:
(01) Black epoxy powder coated (RAL 9011).
(Z) Standard blue galvanising.
Inserts:
(3) Stainless steel hinge pivot pin (Aisi 304).
(4) Natural PA6 separating washer inserted between the two knuckles.
Holes:
Through holes obtained by punching.
Special Requests:
None.

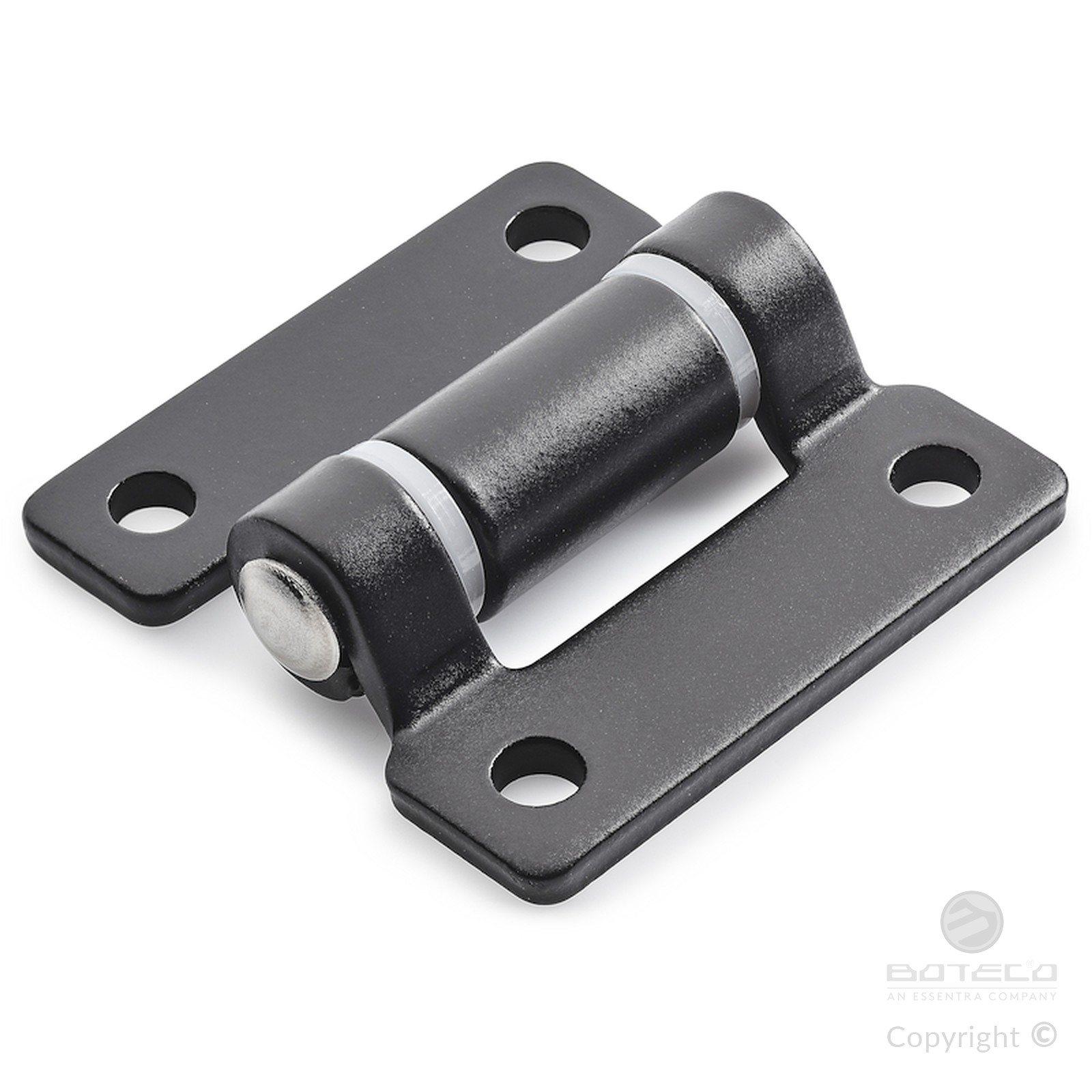

Black coated version code 01 ending.

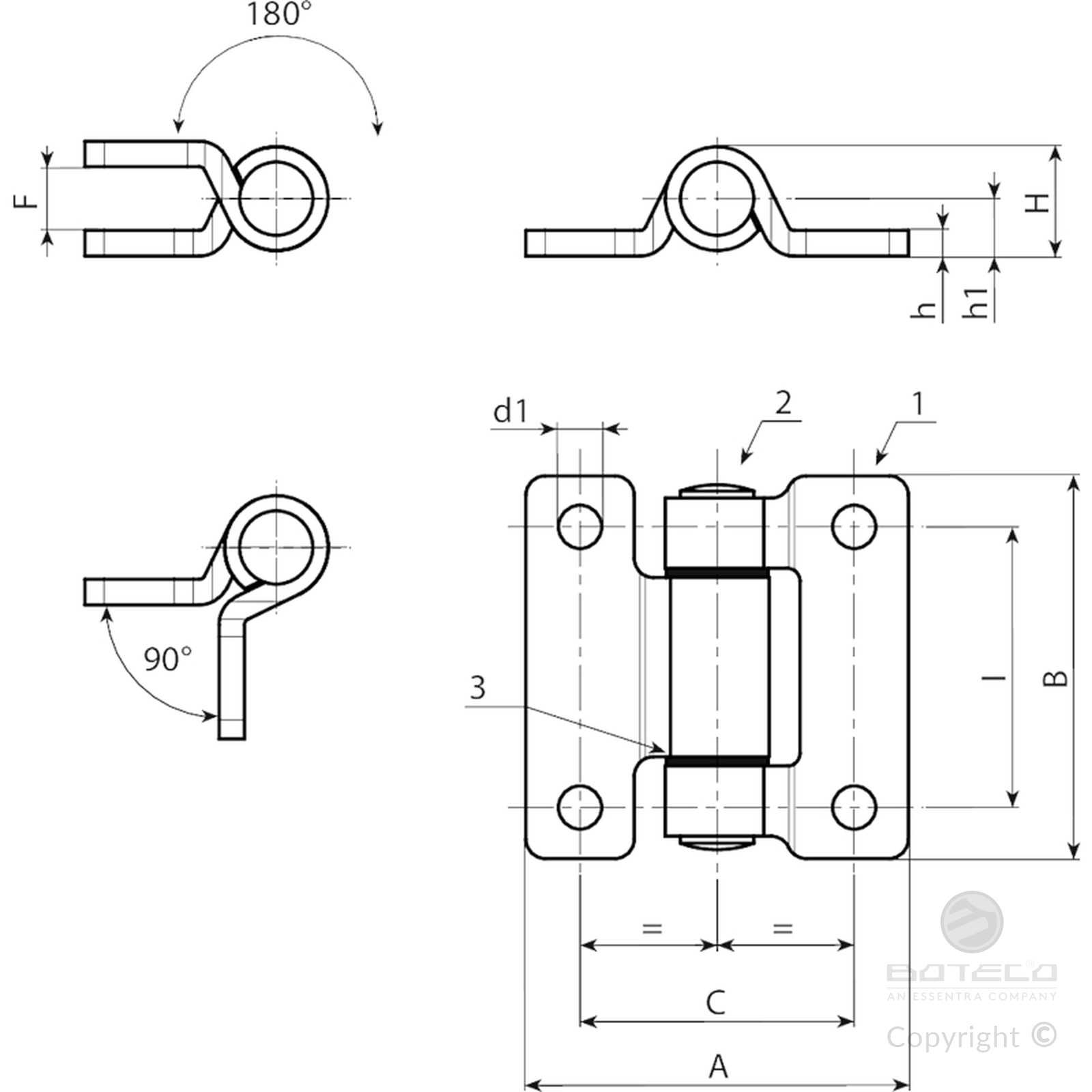

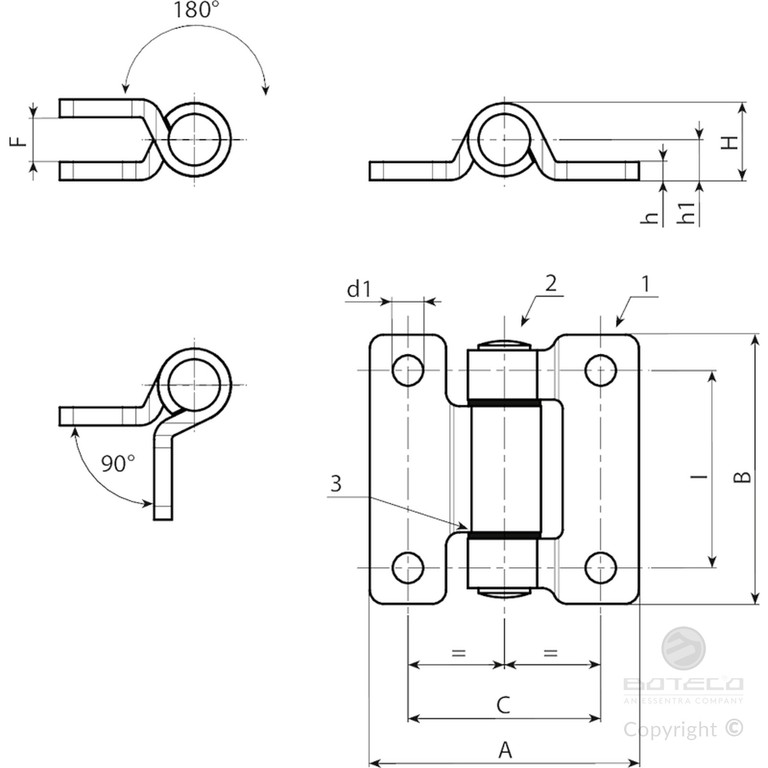

| Code | Art. | C | I | A | B | F | h | H | h1 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| O515040.0001 | O515040.VG06.501 | 40 | 40 | 60 | 60 | 10 | 4 | 17 | 9 | 6,8 | 143 |

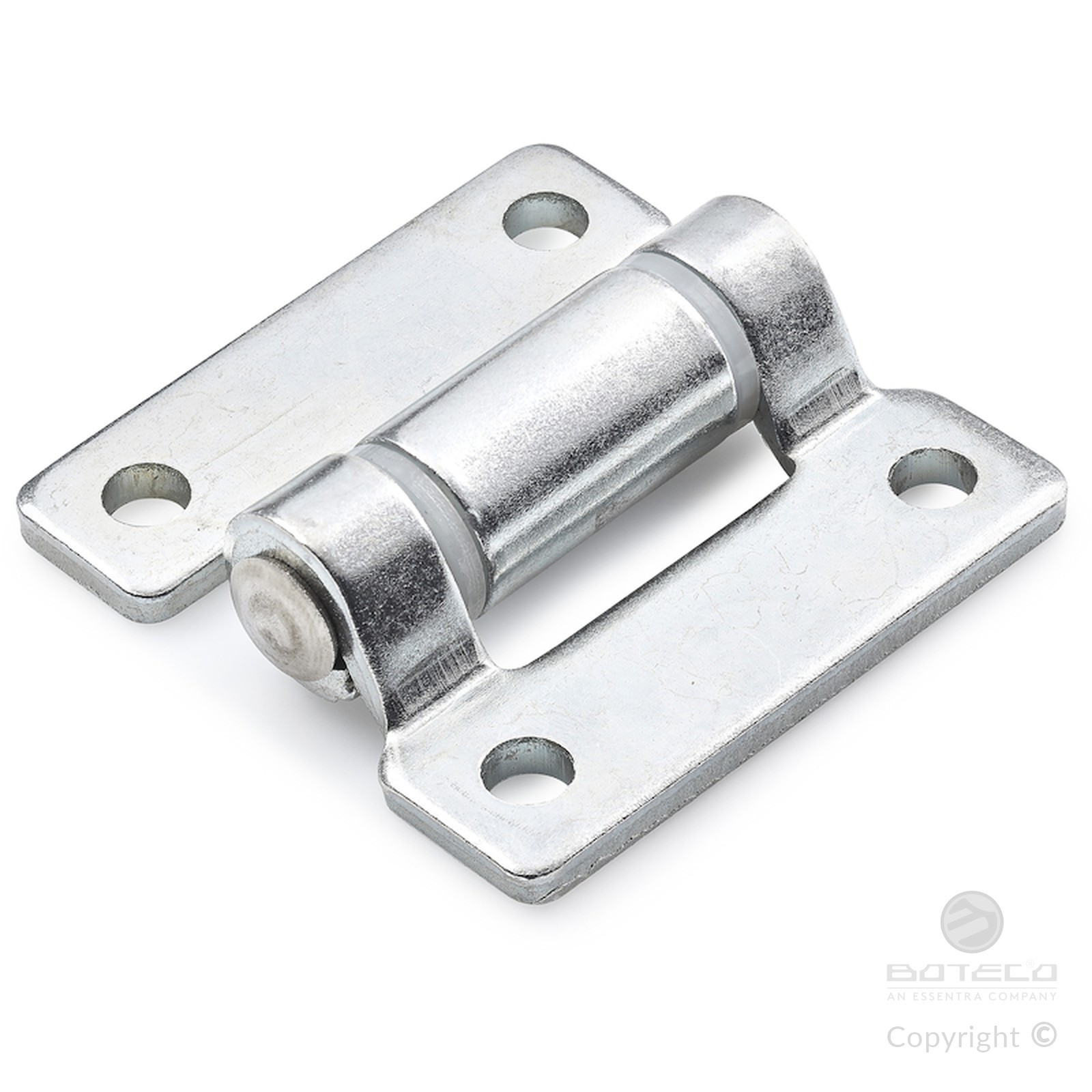

Galvanised version code Z ending.
| Code | Art. | C | I | A | B | F | h | H | h1 | d1 | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| O515040.0002 | O515040.VG06.5Z | 40 | 40 | 60 | 60 | 10 | 4 | 17 | 9 | 6,8 | 143 |
