VERTICAL ZAMAK HINGE WITH EXTENSION
15
O510
Cerniere in zama
Materials:
(1-2) Die-cast zamak alloy (zinc, aluminium and copper alloy).
Surface finish:
Light sandblasting.
Colour:

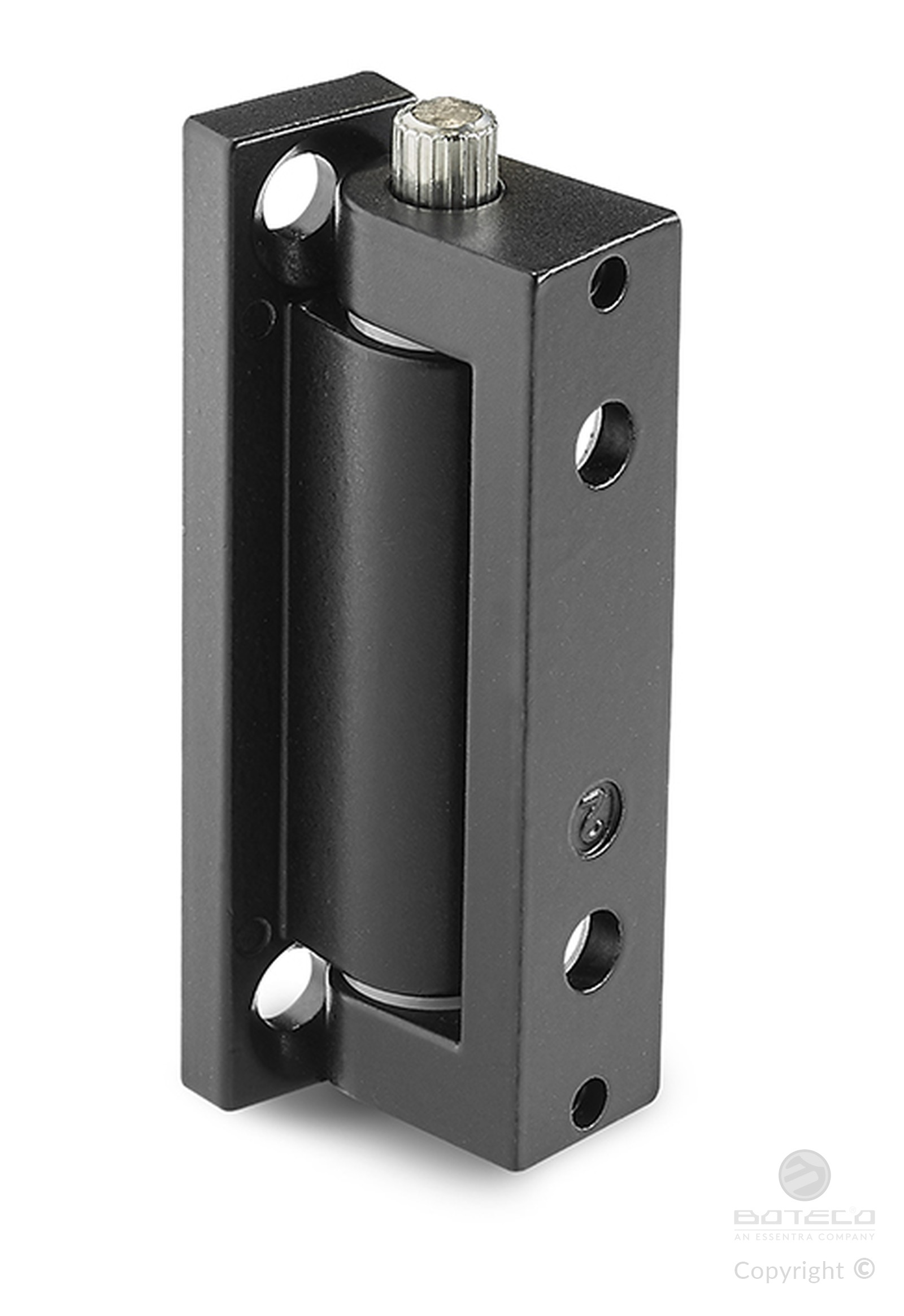

(01) Black epoxy powder coated (RAL 9011).

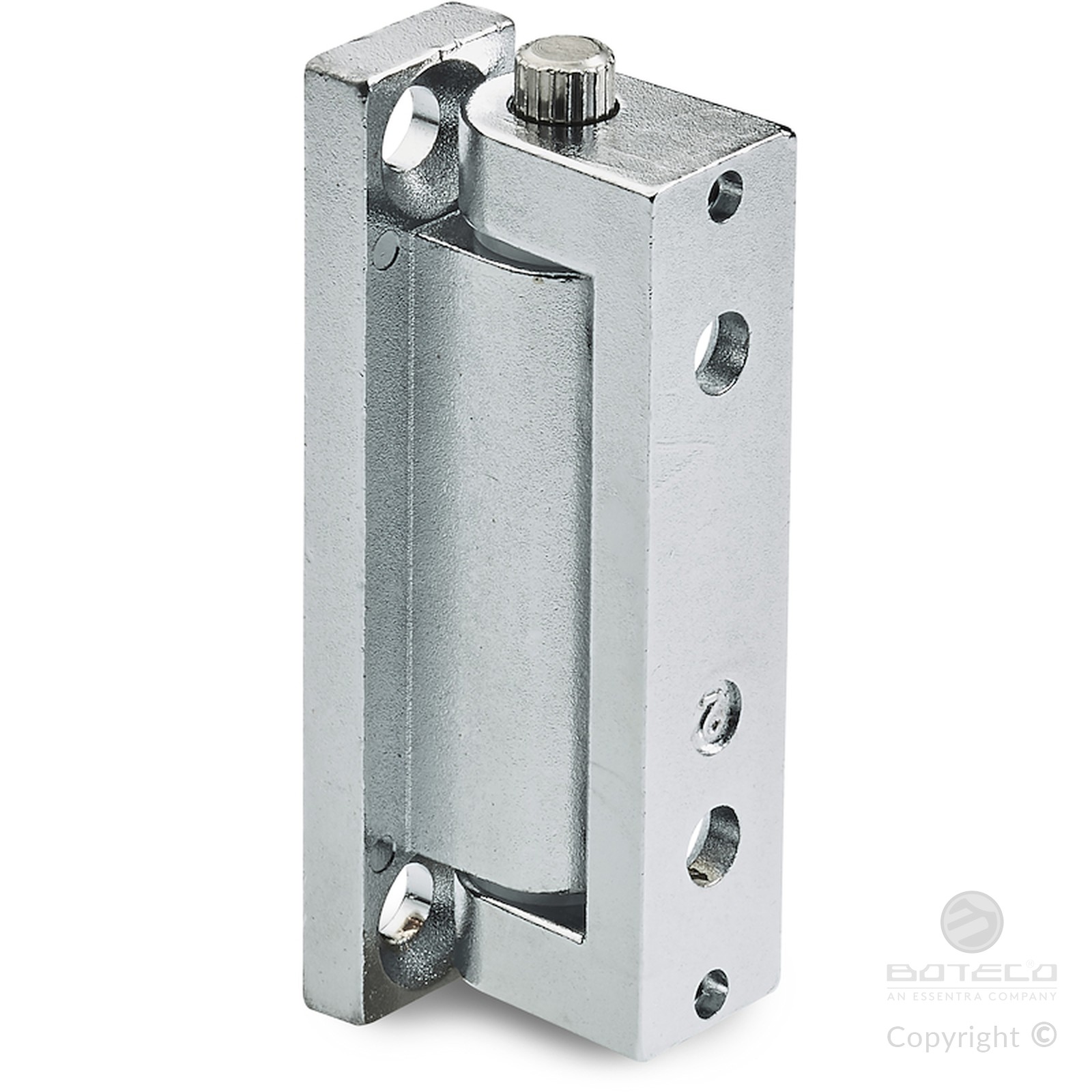

(Z) Standard blue galvanising.
Inserts:
(3) Stainless steel hinge pivot pin (Aisi 304).
(4) Natural PA6 spacer bush.

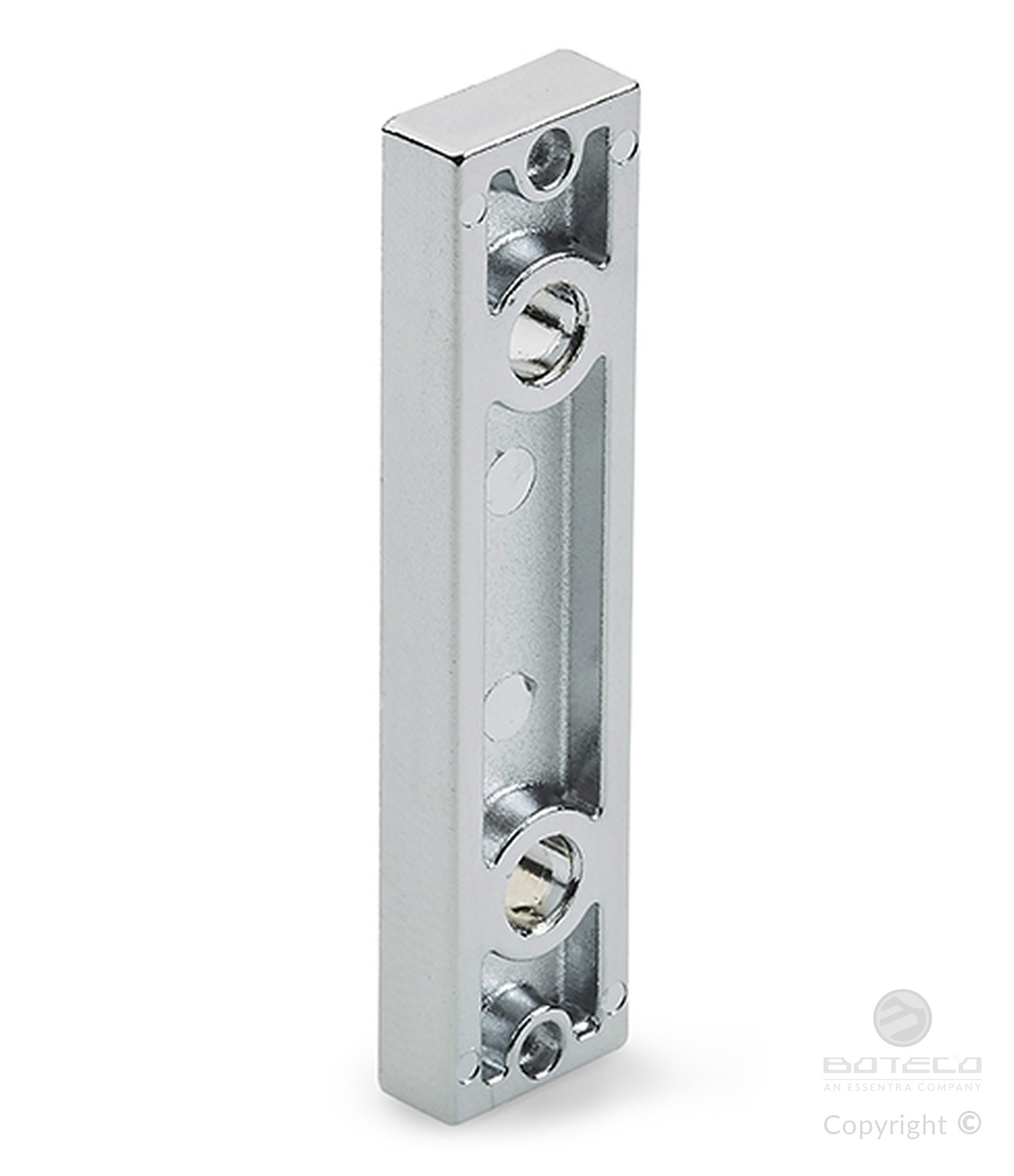

EXTENSION:

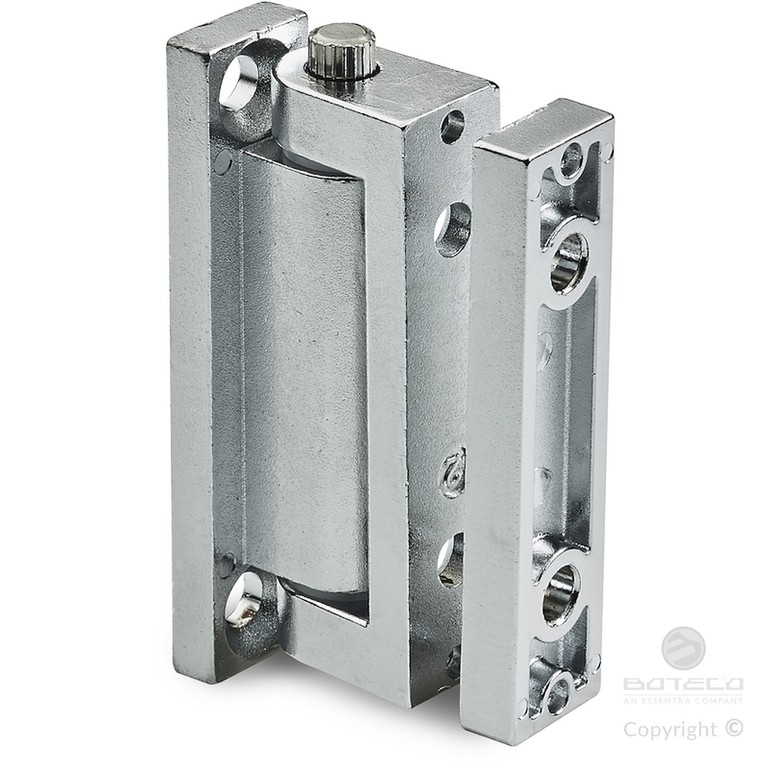

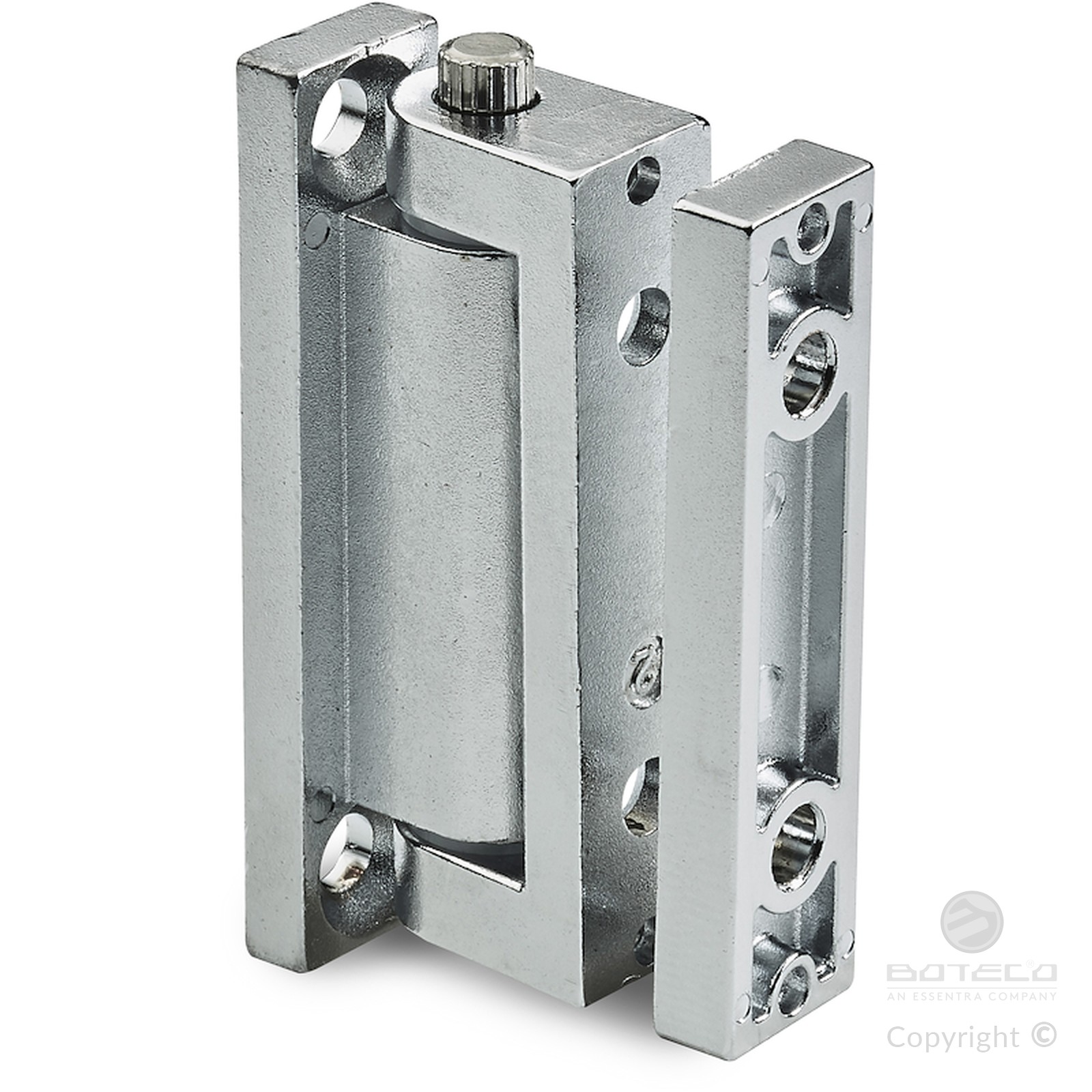

The hinge can be supplied with the extension (5) included. In your order add the letter P to the end of the code.
Holes:
Through holes obtained by moulding. 90° countersunk hole for UNI 5933 – UNI 6109 screws.
Special Requests:
It is possible to order, separately, an additional thickness of 6 mm in black using code no. O51160.ZG05.0501; or a galvanised one using code no. O51160.ZG05.05Z.









Black coated version code 01 ending

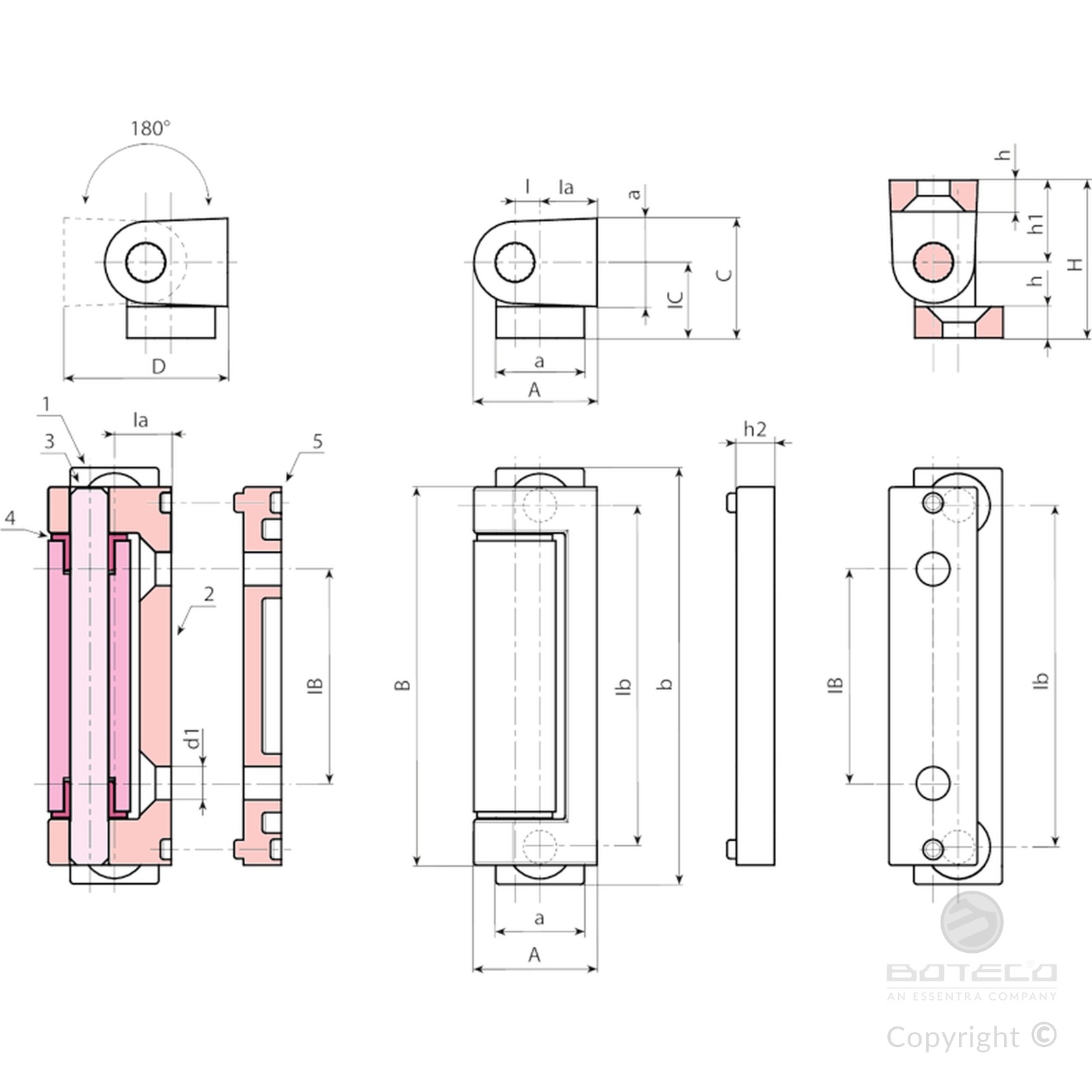

Code | Art. | Ib | IB | A | a | B | b | C | D | I | h | h1 | IC | Ia | d1 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O510054.0001 | O510054.ZG05.501 | 54 | 34 | 19,5 | 14 | 60 | 66 | 19 | 24 | 4 | 5 | 13 | 12,5 | 9 | 5,3 | 100 |
Black coated version code 01 ending + extension
Code | Art. | Ib | IB | A | a | B | b | C | D | H | I | h | h1 | IC | Ia | h2 | d1 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O510054.0002 | O510054.ZG05.501P | 54 | 34 | 19,5 | 14 | 60 | 66 | 19 | 24 | 25 | 4 | 5 | 13 | 12,5 | 9 | 6 | 5,3 | 111 |
Galvanised version code Z ending
Code | Art. | Ib | IB | A | a | B | b | C | D | I | h | h1 | IC | Ia | d1 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O510054.0003 | O510054.ZG05.5Z | 54 | 34 | 19,5 | 14 | 60 | 66 | 19 | 24 | 4 | 5 | 13 | 12,5 | 9 | 5,3 | 100 |
Galvanised version code Z ending + extension
Code | Art. | Ib | IB | A | a | B | b | C | D | H | I | h | h1 | IC | Ia | h2 | d1 | Weight (g) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
O510054.0004 | O510054.ZG05.5ZP | 54 | 34 | 19,5 | 14 | 60 | 66 | 19 | 24 | 25 | 4 | 5 | 13 | 12,5 | 9 | 6 | 5,3 | 111 |
