ASYMMETRICAL FLAT ZAMAK HINGE WITH THREADED STUD
15
O505
Cerniere in zama
Materials:
(1) Die-cast zamak alloy (zinc, aluminium and copper alloy).
Surface finish:
Smooth.
Colour:

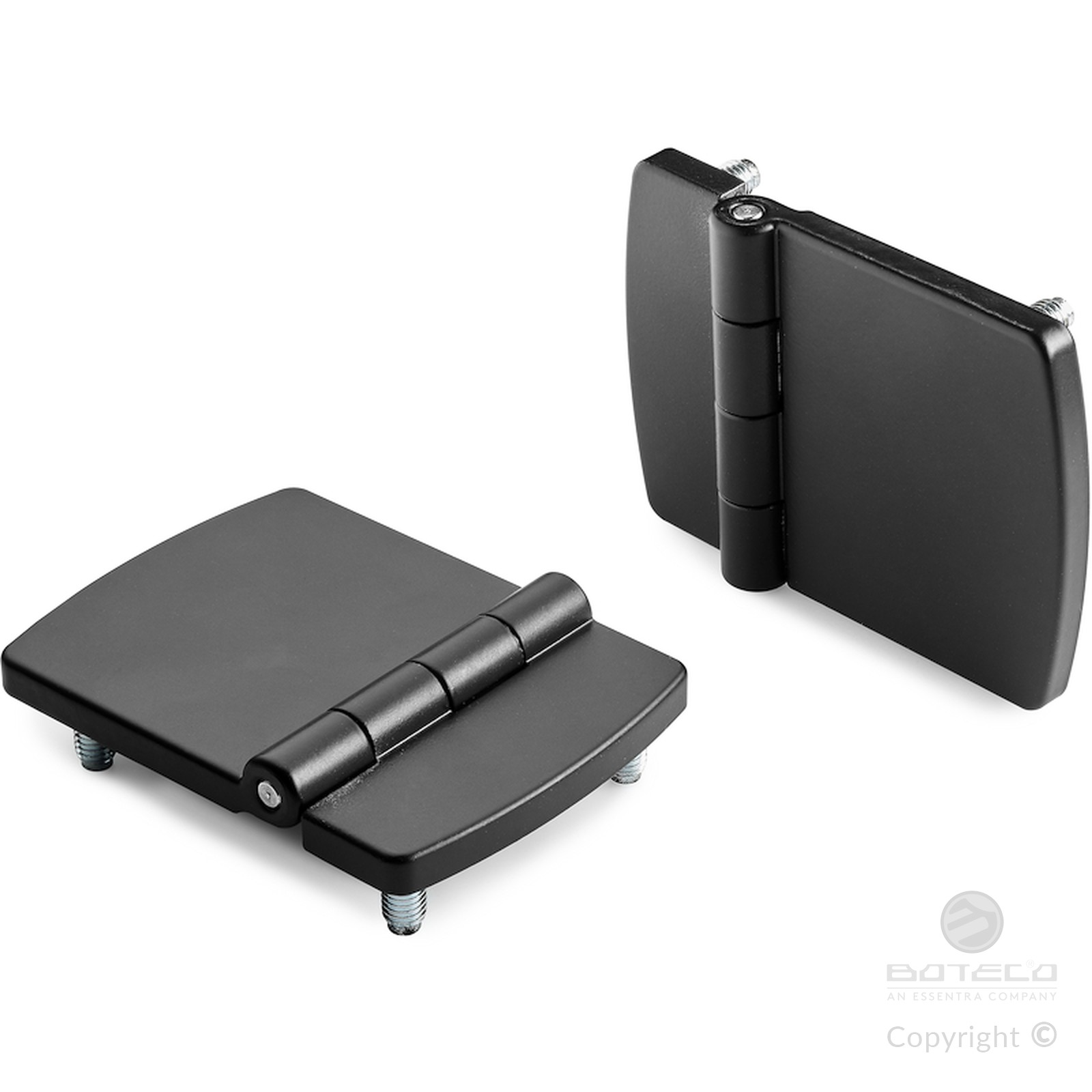

(01) Black epoxy powder coated (RAL 9011).
(Z) Standard blue galvanising.
Inserts:
(2) Galvanised steel threaded stud (thread tolerance 6g).
(3) Stainless steel hinge pivot pin (Aisi 304).
Special Requests:
None.
Black coated version code 01 ending.

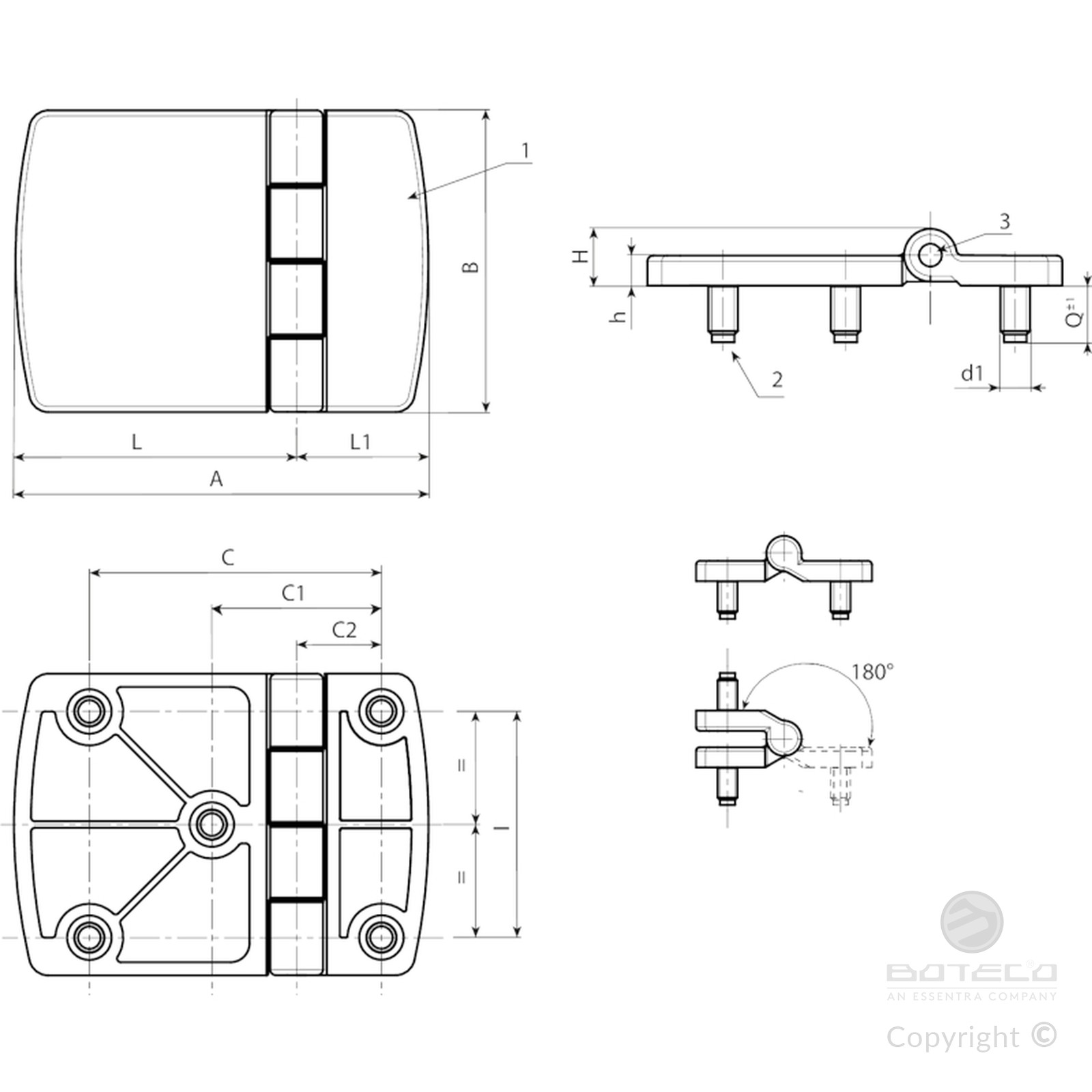

| Code | Art. | C2 | C1 | C | I | A | B | L1 | L | h | H | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O505077.0001 | O505077.ZM08X1401 | 22,5 | 45 | 77,5 | 60 | 110 | 80 | 35 | 75 | 8 | 15 | M8 | 15 | 387 |
Galvanised version code Z ending.
| Code | Art. | C2 | C1 | C | I | A | B | L1 | L | h | H | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O505077.0002 | O505077.ZM08X14Z | 22,5 | 45 | 77,5 | 60 | 110 | 80 | 35 | 75 | 8 | 15 | M8 | 15 | 387 |
