REMOVABLE FLAT ZAMAK HINGE WITH THREADED STUD
15
O500
Cerniere in zama
Materials:
(1) Die-cast zamak alloy (zinc, aluminium and copper alloy).
Surface finish:
Smooth.
Colour:

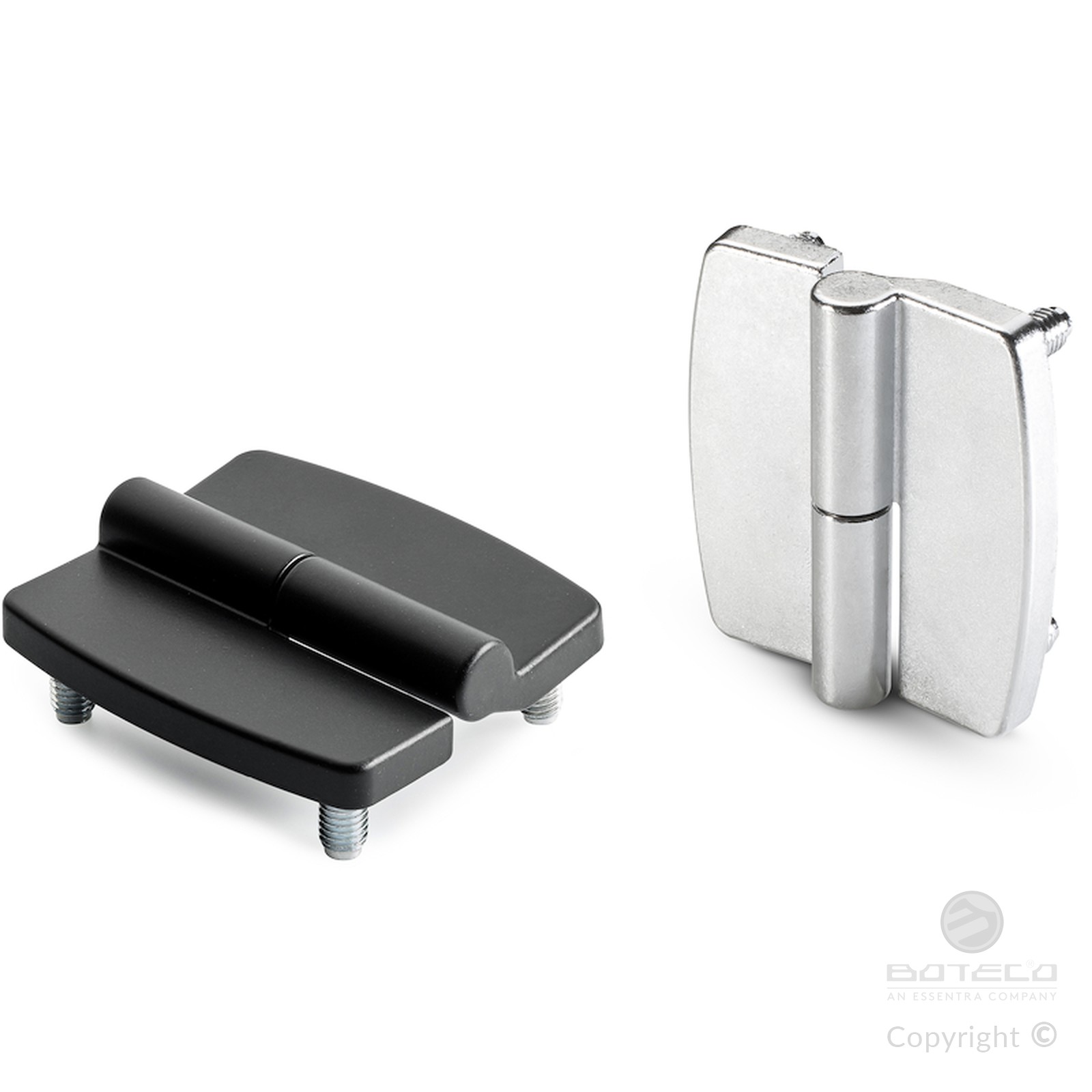

(01) Black epoxy powder coated (RAL 9011).
(Z) Standard blue galvanising.
Inserts:
(2) Galvanised steel threaded stud (thread tolerance 6g).
(3) Stainless steel hinge pivot pin (Aisi 304).
(4) Stainless steel separating washer (Aisi 304) inserted between the two knuckles.
Assembly:
The hinge can be supplied for mounting doors that swing open to the right (DX/RH – enter the letter D at the end of the code); or for doors that swing open to the left (SX/LH – enter the letter S at the end of the code).
Special Requests:
None.
Black coated version code 01, final letter S at the end for Left version – final letter D for door opening to the right.

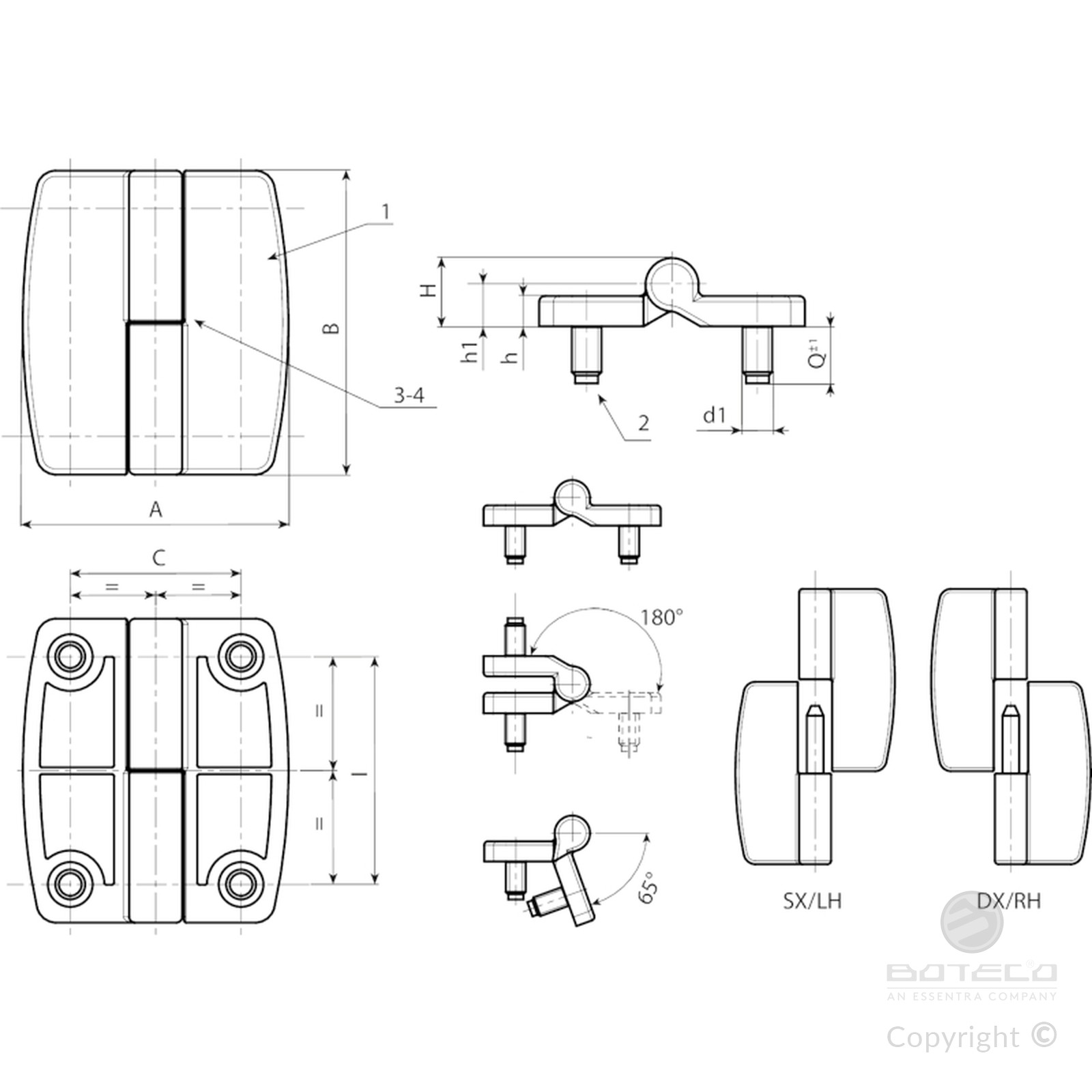

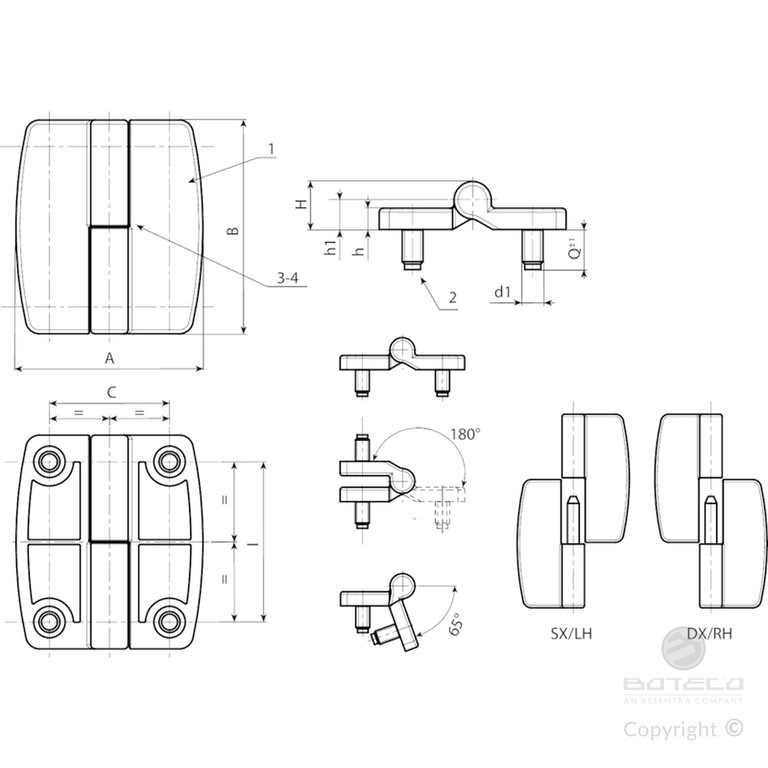

| Code | Art. | C | I | A | B | h | H | h1 | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| O500045.0001 | O500045.ZM08X1401D | 45 | 60 | 70 | 80 | 8 | 18 | 11 | M8 | 15 | 281 |
| O500045.0002 | O500045.ZM08X1401S | 45 | 60 | 70 | 80 | 8 | 18 | 11 | M8 | 15 | 281 |
Galvanised version code Z, final letter S at the end for Left version – final letter D for door opening to the right.
| Code | Art. | C | I | A | B | h | H | h1 | d1 6g | Q | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| O500045.0003 | O500045.ZM08X14ZD | 45 | 60 | 70 | 80 | 8 | 18 | 11 | M8 | 15 | 281 |
| O500045.0004 | O500045.ZM08X14ZS | 45 | 60 | 70 | 80 | 8 | 18 | 11 | M8 | 15 | 281 |
