O452

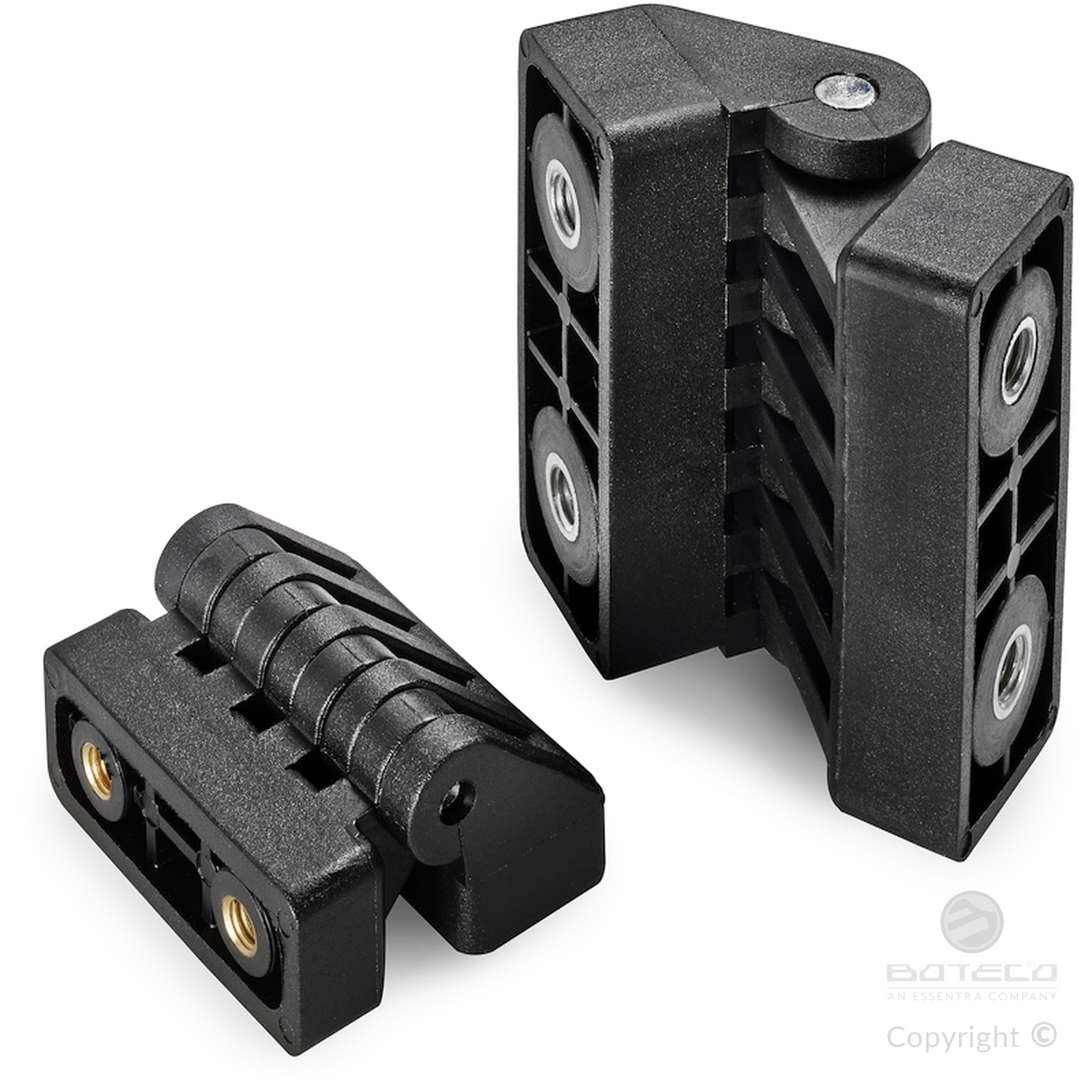

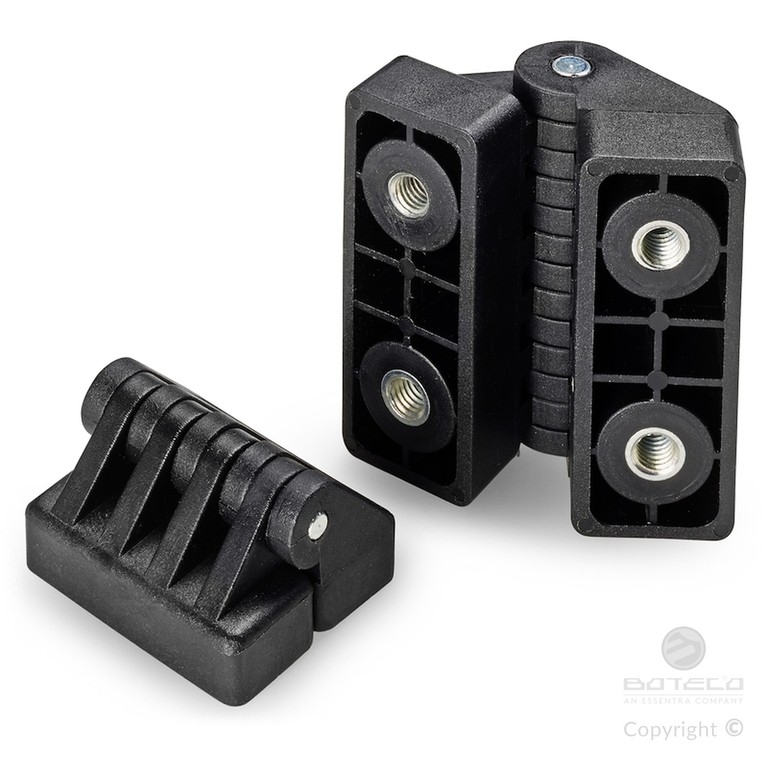

UNIVERSAL HINGE WITH THREADED INSERT TO MOUNT ANGULAR DOOR

Plastic hinges with threaded inserts

Data sheet Technical Notes More information

Materials:

Reinforced polyamide.

Resistant to oils and greases.

Surface finish:

Satin.

Colour:

Black(RAL 9011).

Inserts:

Galvanised steel pin.

Brass insert with female threaded hole (thread tolerance 6H).

(*) Galvanised steel insert with female threaded hole (thread tolerance 6H).

Special Requests:

None.

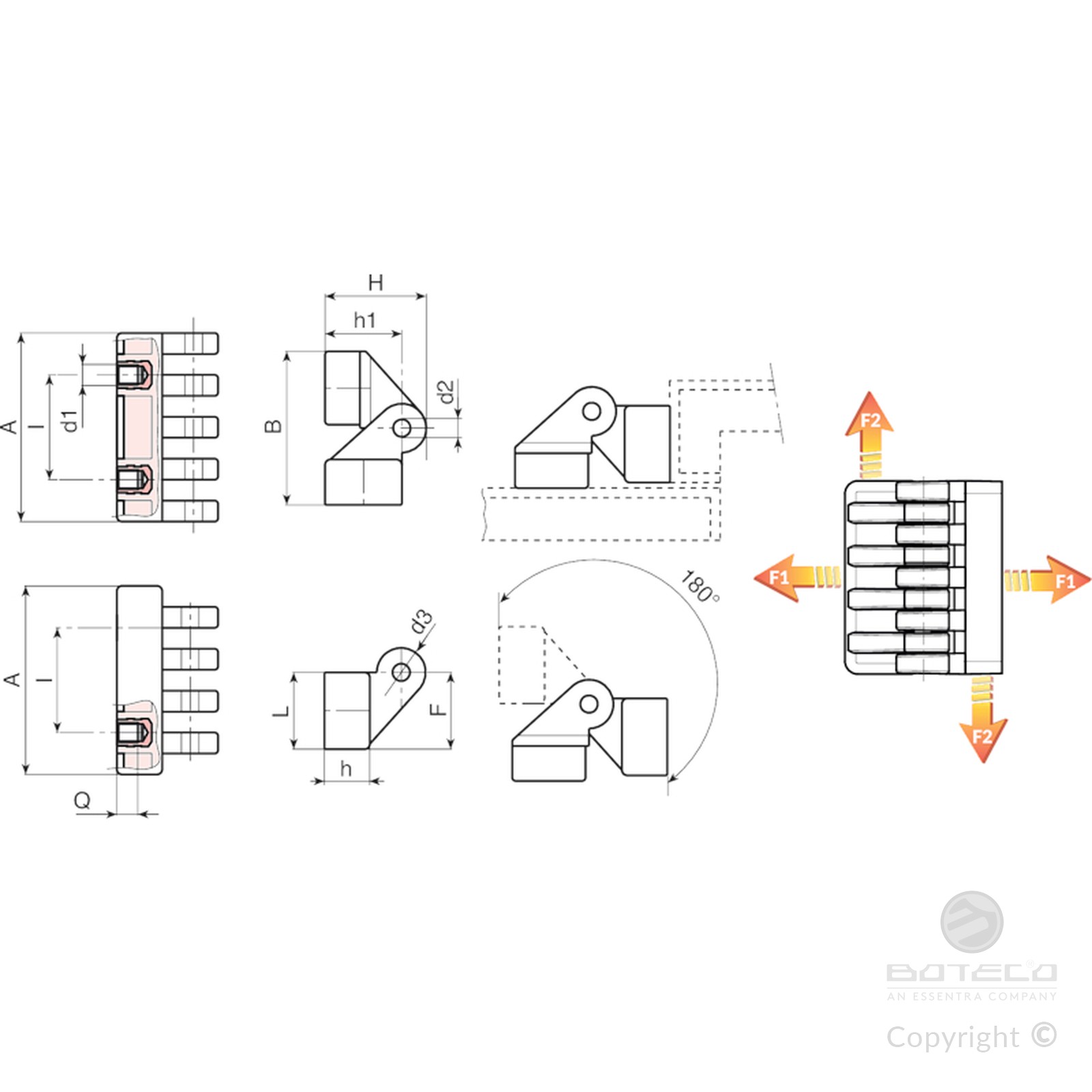

Code	art.	I	C	A	B	L	F	h	h1	H	d2	d3	d1 6H	Q	Weight (g)	F1 (N)	F2 (N)
O45230.0001	O45230.TM0501	15	28	30	36,5	17	17,5	11	19	24,5	4	11	M5	6	26	1180	1130
O45254.0001	O45254.TM0601	30	33,8	54	44,5	21,5	22	13	22,5	30	5	15	M6	7	58	1520	2980
O45278.0001	O45278.TM0801	42	47	78	62	30	30,5	18,5	31,5	42,5	8	22	(*) M8	9	178	885	2875
