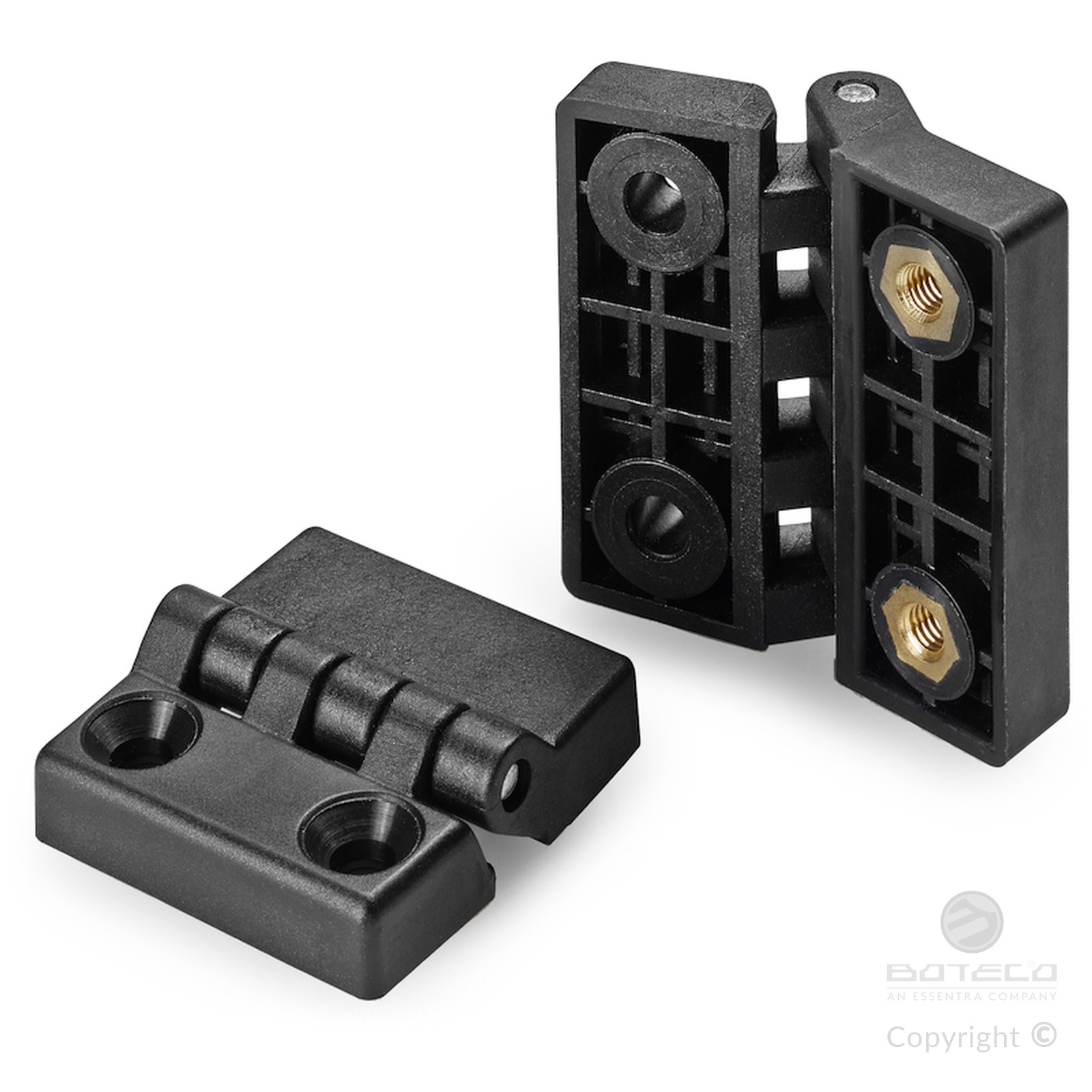

FLAT HINGE WITH THROUGH HOLE AND THREADED HOLE INSERT
15
O433
Cerniere in plastica con fori passanti
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel pin.
Brass insert with female threaded hole (thread tolerance 6H).
Hole:
Version TS:
Through hole obtained by moulding the plastic. Seat for countersunk screw DIN 7991 / UNI 5933.
Version TC:
Through hole obtained by moulding the plastic. Seat for cylindrical head screw DIN 912 / UNI 5931.
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

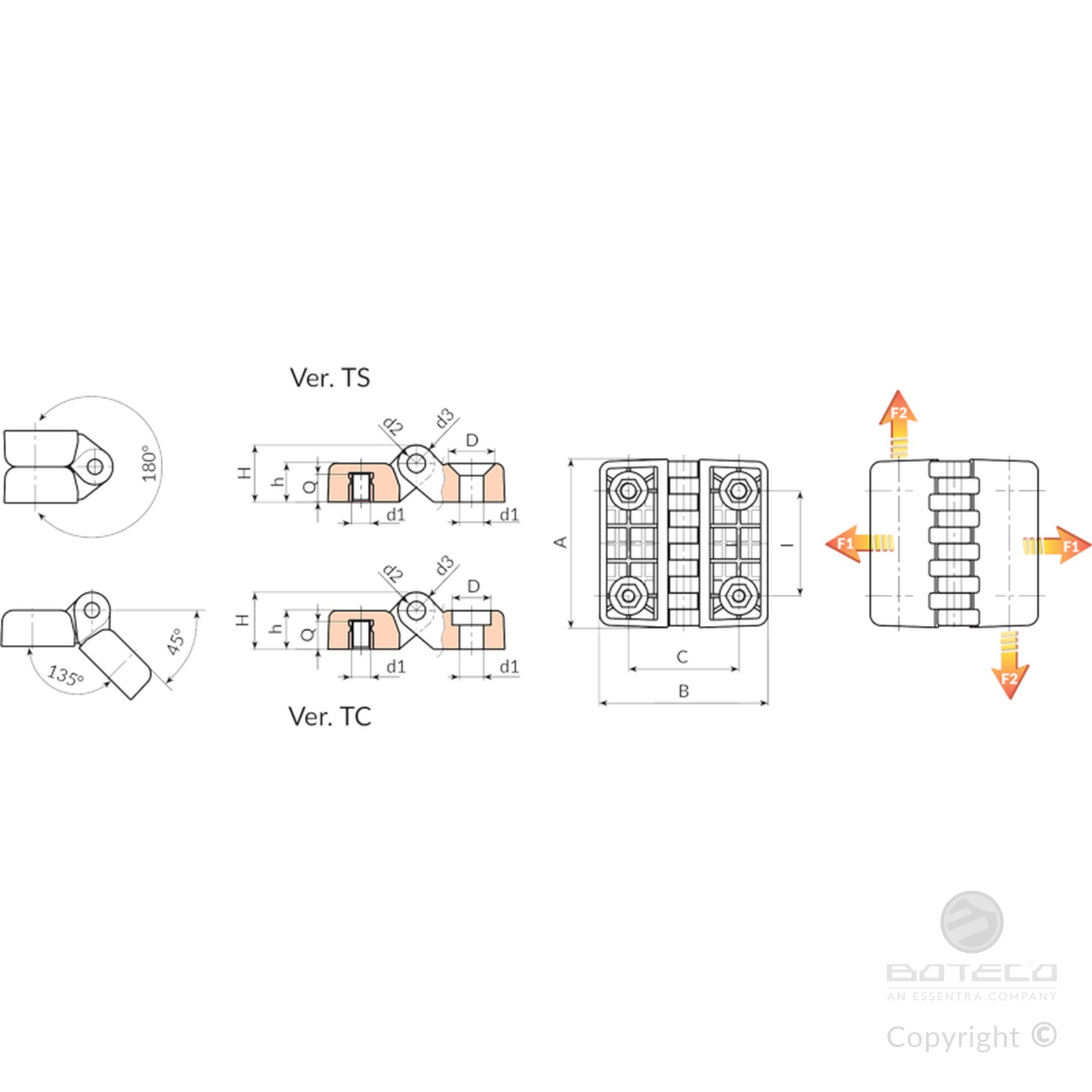

Version O433-TS: with holes for countersunk head screws
| Code | art. | I | C | A | B | h | H | D | d2 | d3 | d1 | Q | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O43330.0002 | O43330.TM0601TS | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 12,5 | 5 | 10 | M6 / 6,5 | 7 | 31 | 2000 | 1450 |
| O43340.0002 | O43340.TM0601TS | 40 | 40 | 64 | 64 | 13 | 19 | 12,5 | 5 | 12 | M6 / 6,5 | 8,5 | 60 | 3500 | 1650 |
Version O433-TC: with holes for cylindrical head screws
| Code | art. | I | C | A | B | h | H | D | d2 | d3 | d1 | Q | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O43330.0001 | O43330.TM0601TC | 30 | 30 | 48 | 48 | 10,5 | 15,5 | 10,5 | 5 | 10 | M6 / 6,5 | 7 | 31 | 2000 | 1450 |
| O43340.0001 | O43340.TM0601TC | 40 | 40 | 64 | 64 | 13 | 19 | 10,5 | 5 | 12 | M6 / 6,5 | 8,5 | 60 | 3500 | 1650 |
