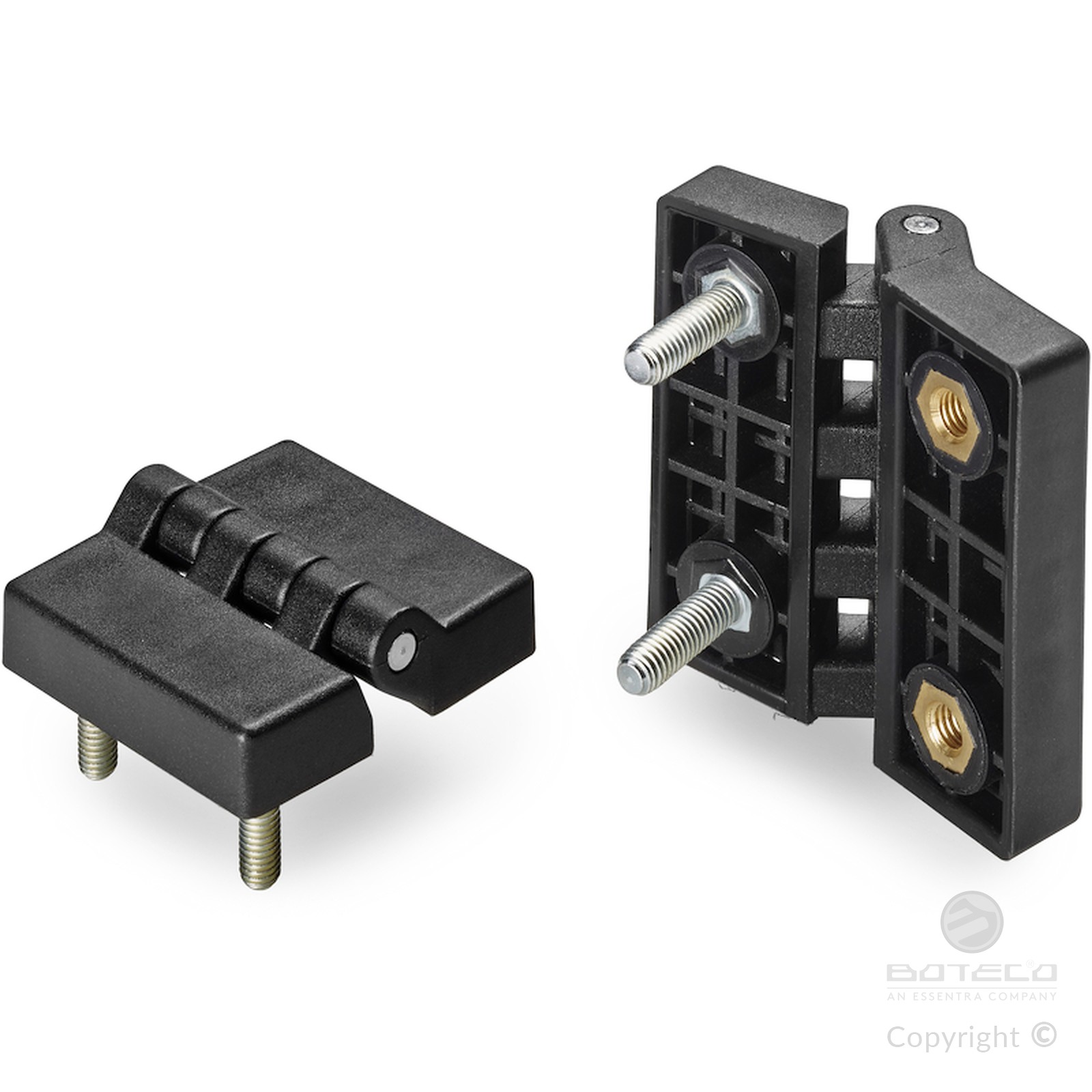

FLAT HINGE WITH THREADED STUD AND THREADED HOLE INSERT
15
O432
Cerniere in plastica con inserti filettati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel pin.
Brass insert with female threaded hole (thread tolerance 6H).
Galvanised steel threaded stud (thread tolerance 6g).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

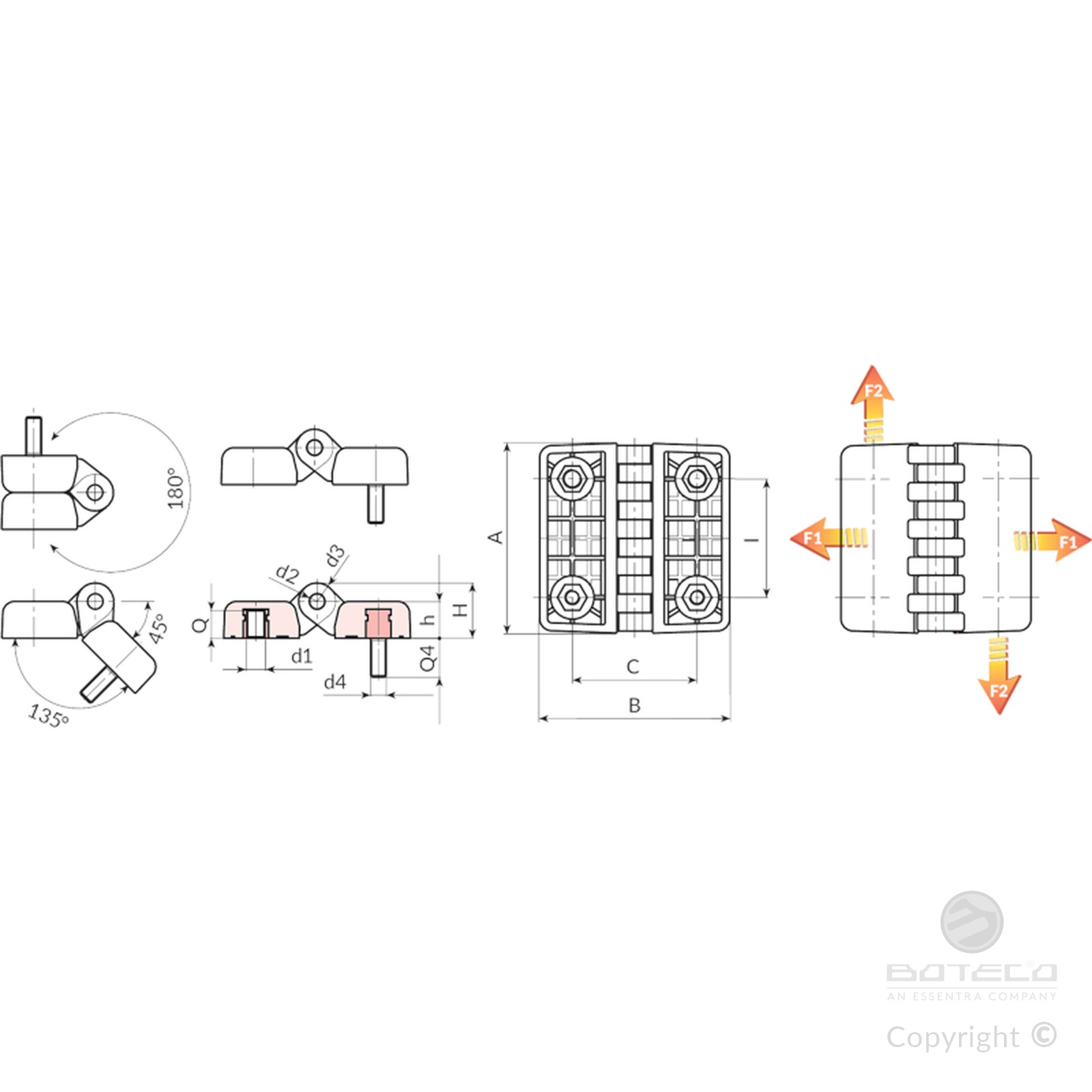

| Code | art. | I | C | A | B | h | H | d2 | d3 | d1-d4 | Q | Q4 | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O43230.0001 | O43230.TM0501 | 30 | 30 | 48 | 48 | 10.5 | 15.5 | 5 | 10 | M05 | 7 | 15 | 40 | 1850 | 1350 |
| O43230.0002 | O43230.TM0601 | 30 | 30 | 48 | 48 | 10.5 | 15.5 | 5 | 10 | M06 | 7 | 15 | 41 | 1850 | 1350 |
| O43240.0001 | O43240.TM0601 | 40 | 40 | 64 | 64 | 13 | 19 | 5 | 12 | M06 | 8,5 | 20 | 73 | 4000 | 1600 |
| O43240.0002 | O43240.TM0801 | 40 | 40 | 64 | 64 | 13 | 19 | 5 | 12 | M08 | 8,5 | 20 | 85 | 4000 | 1600 |
| O43260.0001 | O43260.TM0801 | 60 | 63 | 96 | 96 | 19 | 28.5 | 8 | 19 | M08 | 14 | 20 | 240 | 3100 | 1400 |
| O43260.0003 | O43260.TM1001 | 60 | 63 | 96 | 96 | 19 | 28.5 | 8 | 19 | M10 | 14 | 20 | 250 | 3100 | 1400 |
