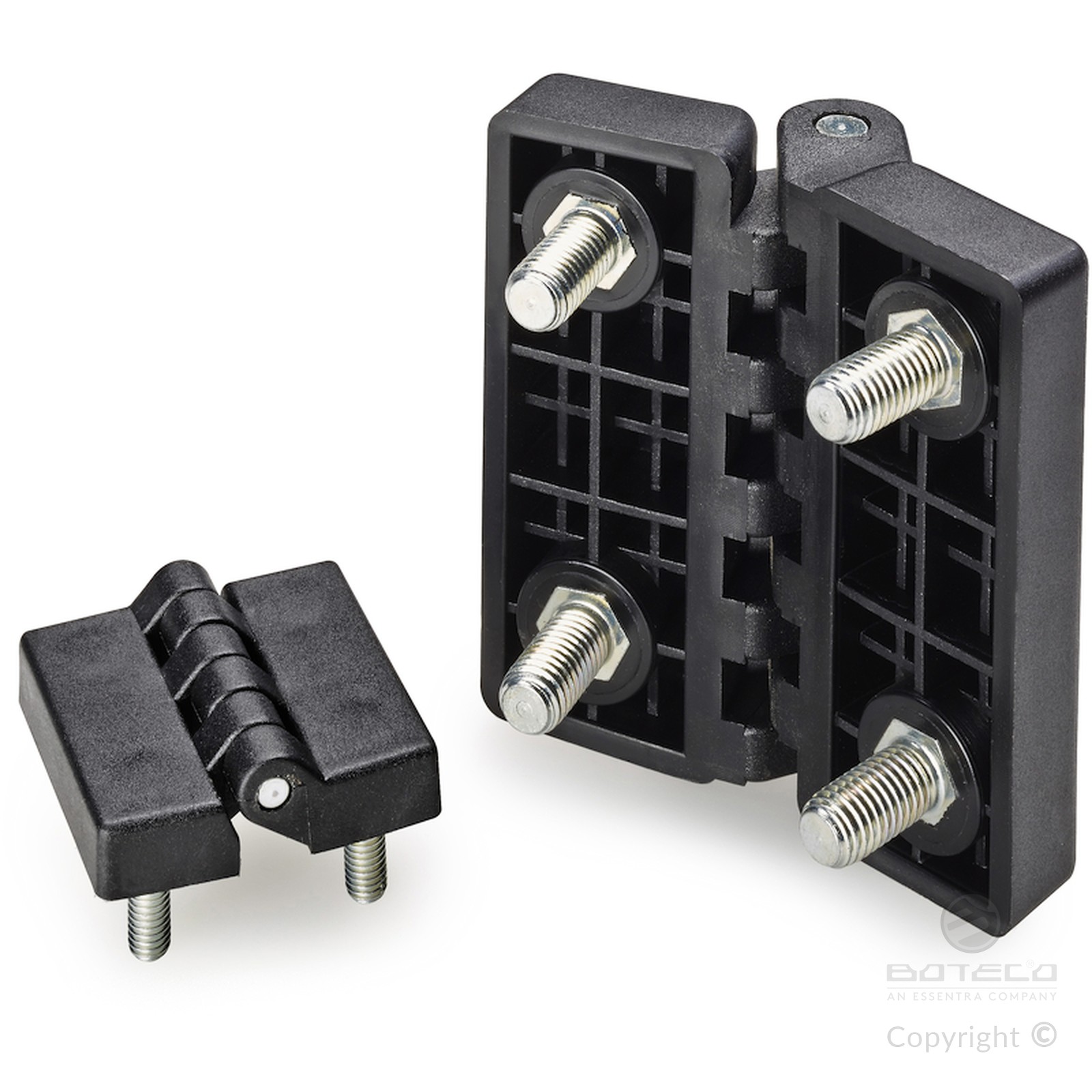

FLAT HINGE WITH THREADED STUD
15
O431
Cerniere in plastica con inserti filettati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Inserts:
Galvanised steel pin.
Galvanised steel threaded stud (thread tolerance 6g).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

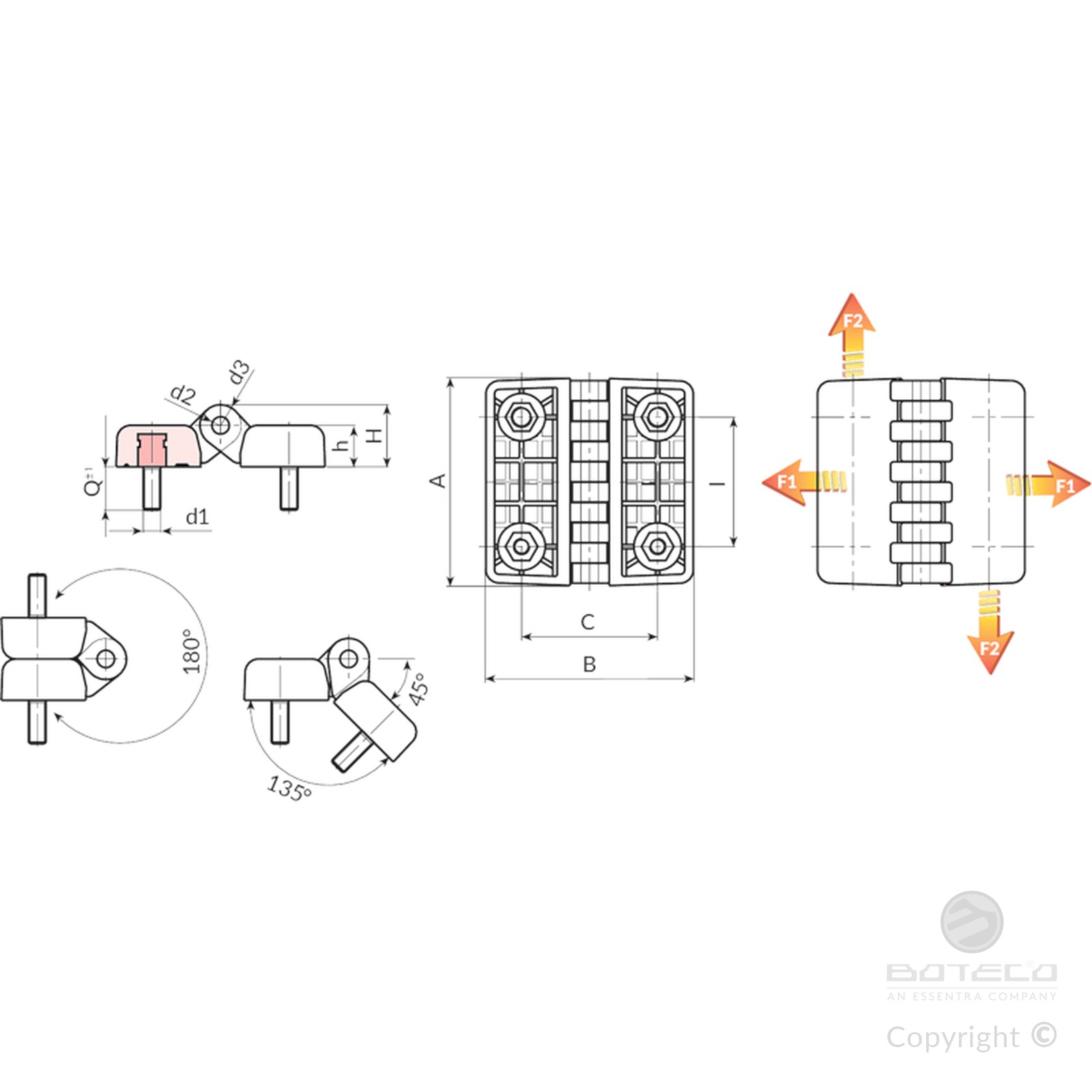

| Code | art. | I | C | A | B | h | H | d2 | d3 | d1 6g | Q | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O43130.0001 | O43130.TM05X1501 | 30 | 30 | 48 | 48 | 10.5 | 15.5 | 5 | 10 | M5 | 15 | 49 | 1780 | 1370 |
| O43130.0002 | O43130.TM06X1501 | 30 | 30 | 48 | 48 | 10.5 | 15.5 | 5 | 10 | M6 | 15 | 52 | 1780 | 1370 |
| O43140.0001 | O43140.TM06X2001 | 40 | 40 | 64 | 64 | 13 | 19 | 5 | 12 | M6 | 20 | 90 | 4120 | 1760 |
| O43140.0003 | O43140.TM08X2001 | 40 | 40 | 64 | 64 | 13 | 19 | 5 | 12 | M8 | 20 | 100 | 4120 | 1760 |
| O43160.0001 | O43160.TM08X2001 | 60 | 63 | 96 | 96 | 19 | 28.5 | 8 | 19 | M8 | 20 | 260 | 4900 | 1275 |
| O43160.0002 | O43160.TM10X2001 | 60 | 63 | 96 | 96 | 19 | 28.5 | 8 | 19 | M10 | 20 | 278 | 4900 | 1275 |
