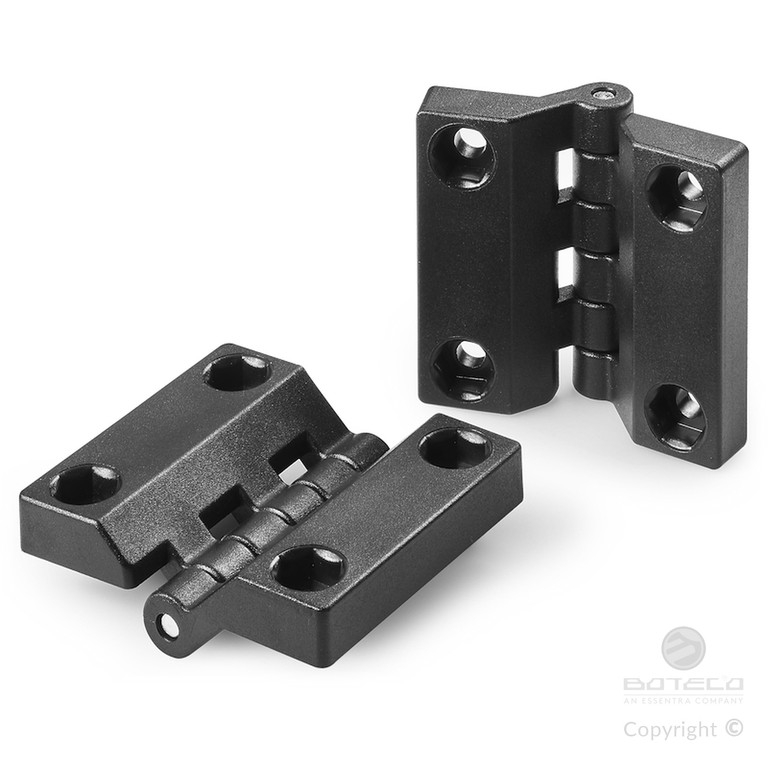

FLAT HINGE WITH THREADED HOLE INSERT
15
O430
Cerniere in plastica con inserti filettati
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).

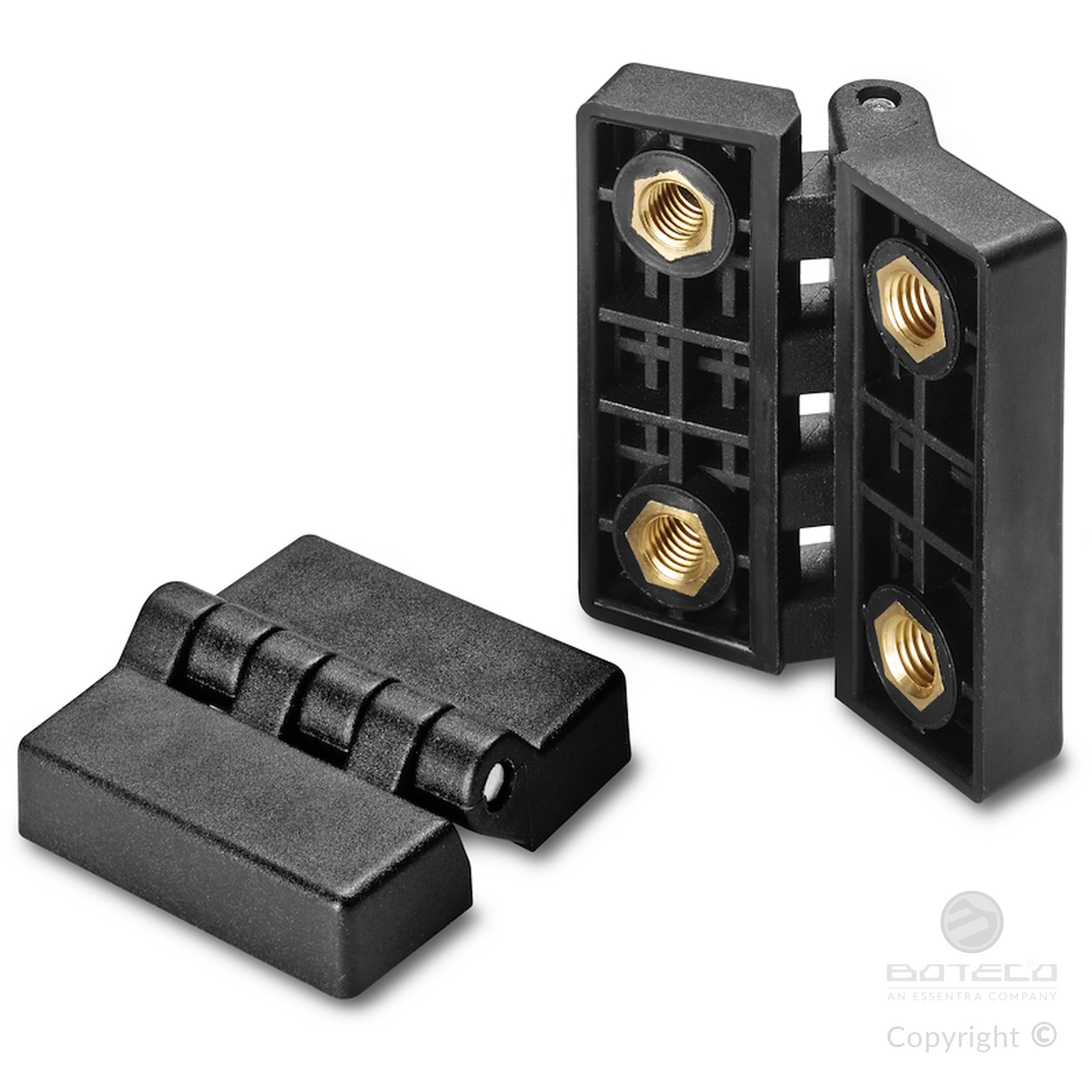

Inserts:
Galvanised steel pin.
Brass insert with female threaded hole (thread tolerance 6H).
Special Requests:
Upon request and for special quantities inserts can be supplied in different materials.
Upon request and for special quantities available in the colours indicated in the chart.

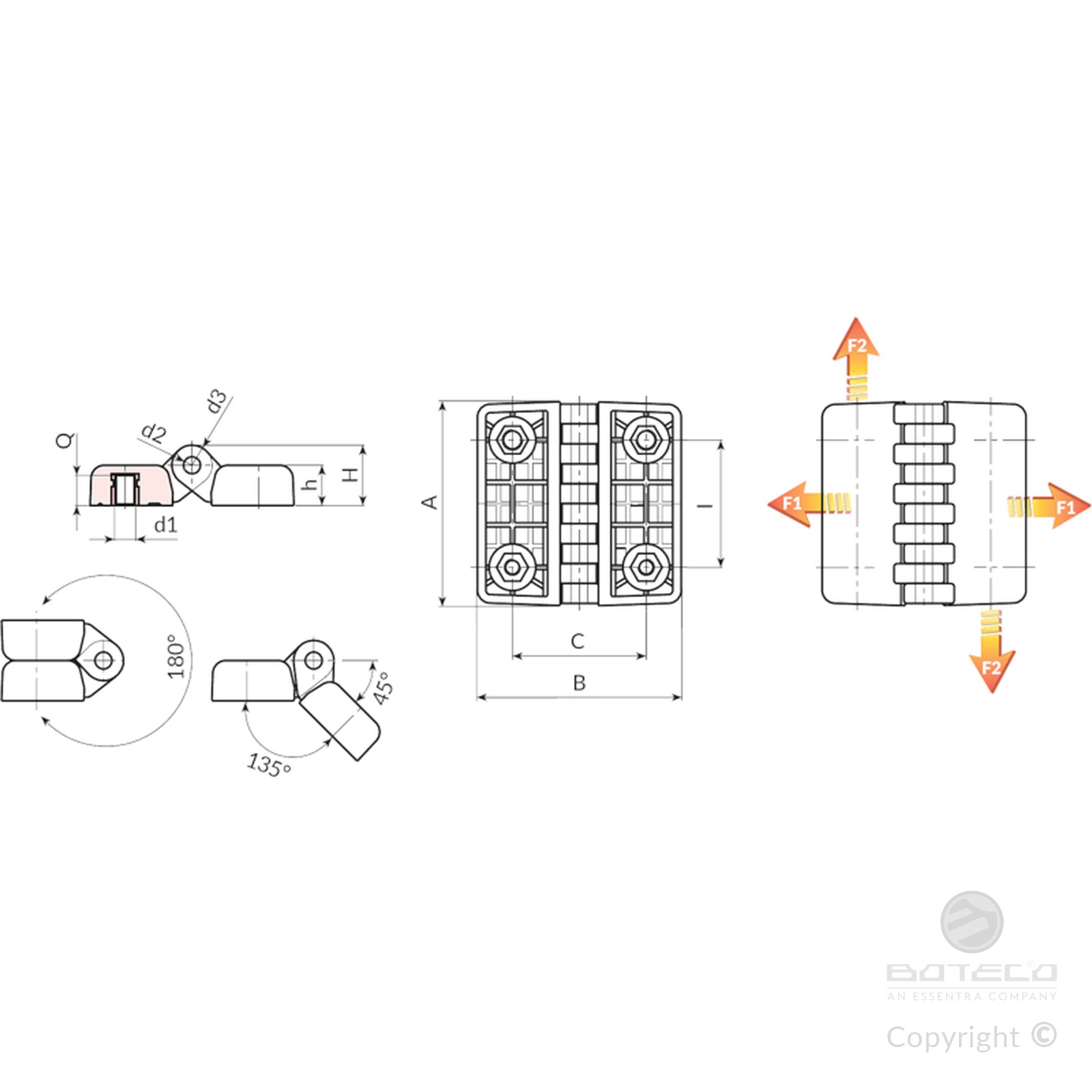

| Code | art. | I | C | A | B | h | H | d2 | d3 | d1 6H | Q | Weight (g) | F1 (N) | F2 (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O43030.0001 | O43030.TM0501 | 30 | 30 | 48 | 48 | 10.5 | 15.5 | 5 | 10 | M5 | 7 | 35 | 2000 | 1370 |
| O43030.0002 | O43030.TM0601 | 30 | 30 | 48 | 48 | 10.5 | 15.5 | 5 | 10 | M6 | 7 | 35 | 2000 | 1370 |
| O43040.0001 | O43040.TM0601 | 40 | 40 | 64 | 64 | 13 | 19 | 5 | 12 | M6 | 8,5 | 67 | 4100 | 1800 |
| O43040.0004 | O43040.TM0801 | 40 | 40 | 64 | 64 | 13 | 19 | 5 | 12 | M8 | 8,5 | 65 | 4100 | 1800 |
| O43060.0001 | O43060.TM0801 | 60 | 63 | 96 | 96 | 19 | 28.5 | 8 | 19 | M8 | 14 | 220 | 2450 | 2650 |
| O43060.0002 | O43060.TM1001 | 60 | 63 | 96 | 96 | 19 | 28.5 | 8 | 19 | M10 | 14 | 228 | 2450 | 2650 |
