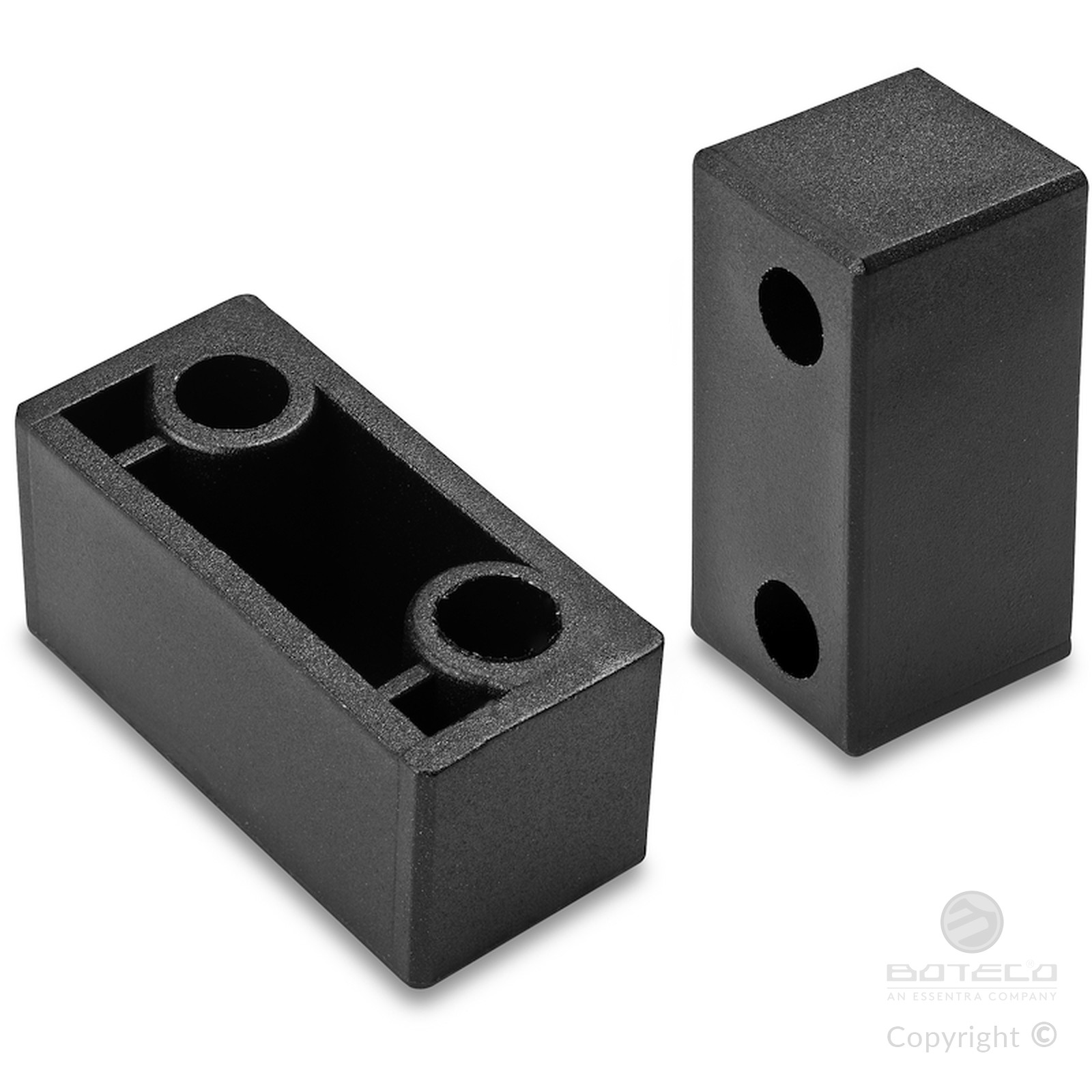

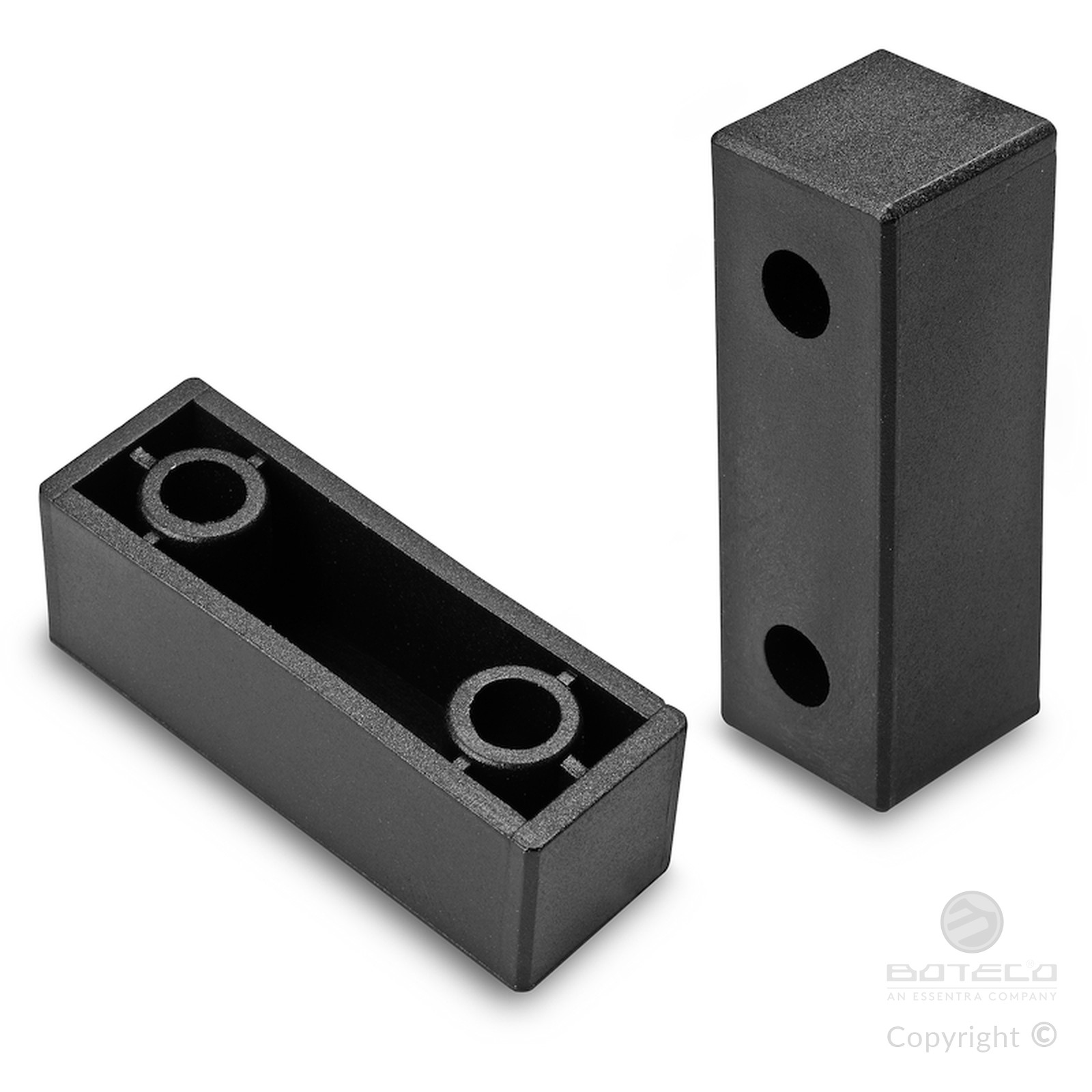

SHIM FOR HINGE O400
15
O410
Cerniere in plastica con fori passanti
Materials:
Reinforced polyamide.
Resistant to oils and greases.
Surface finish:
Satin.
Colour:
Black (RAL 9011).
Hole:
Through hole obtained by moulding the plastic.
Special Requests:
Upon request and for special quantities available in the colours indicated in the chart.

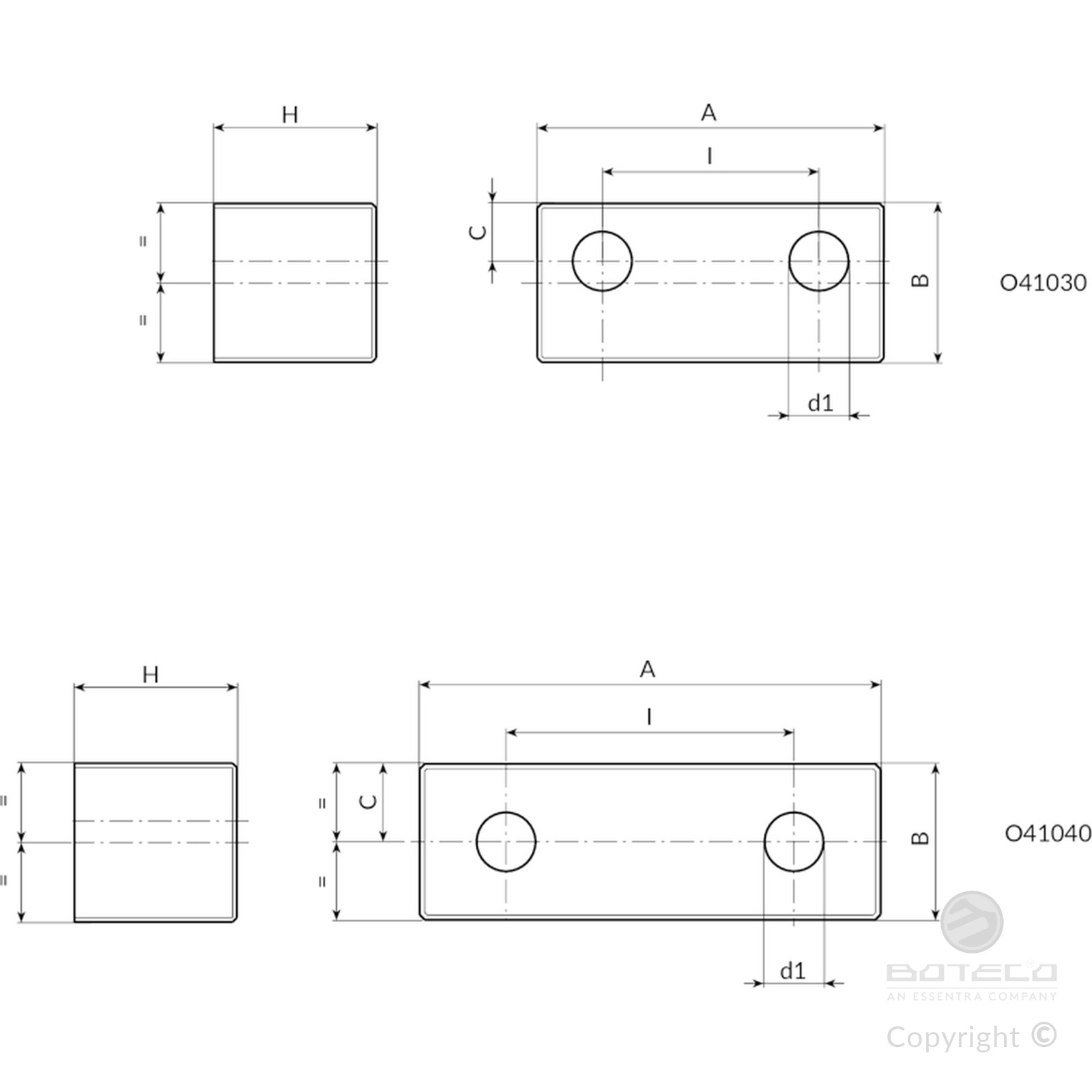

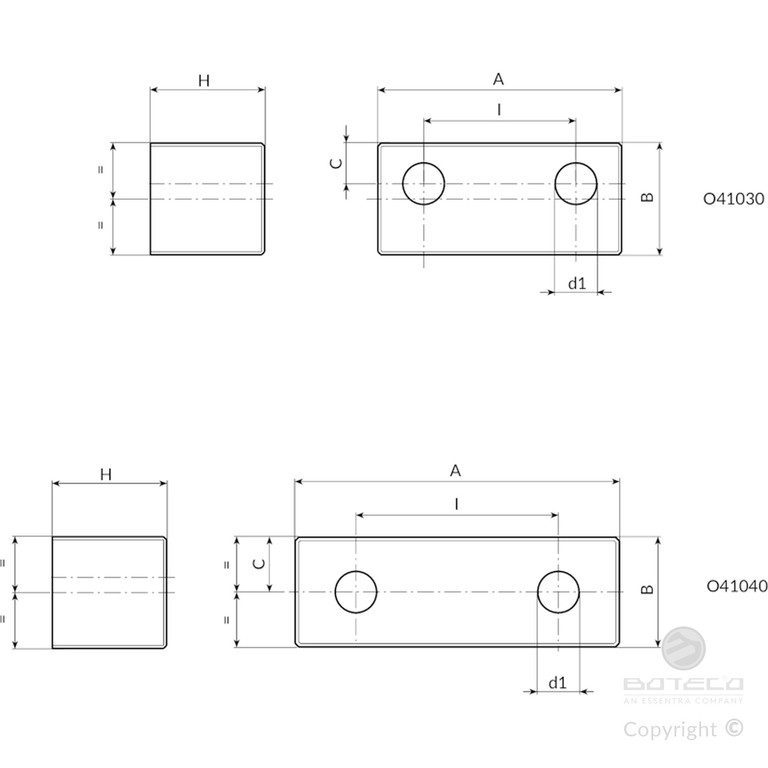

Code | art. | I | C | A | B | H | d1 | Weight (g) |
---|---|---|---|---|---|---|---|---|
O41030.0001 | O41030.TG08.501 | 30 | 8 | 48 | 22 | 22.5 | 8.5 | 19 |
O41040.0001 | O41040.TG08.501 | 40 | 11 | 65 | 22 | 22.5 | 8.5 | 24 |
